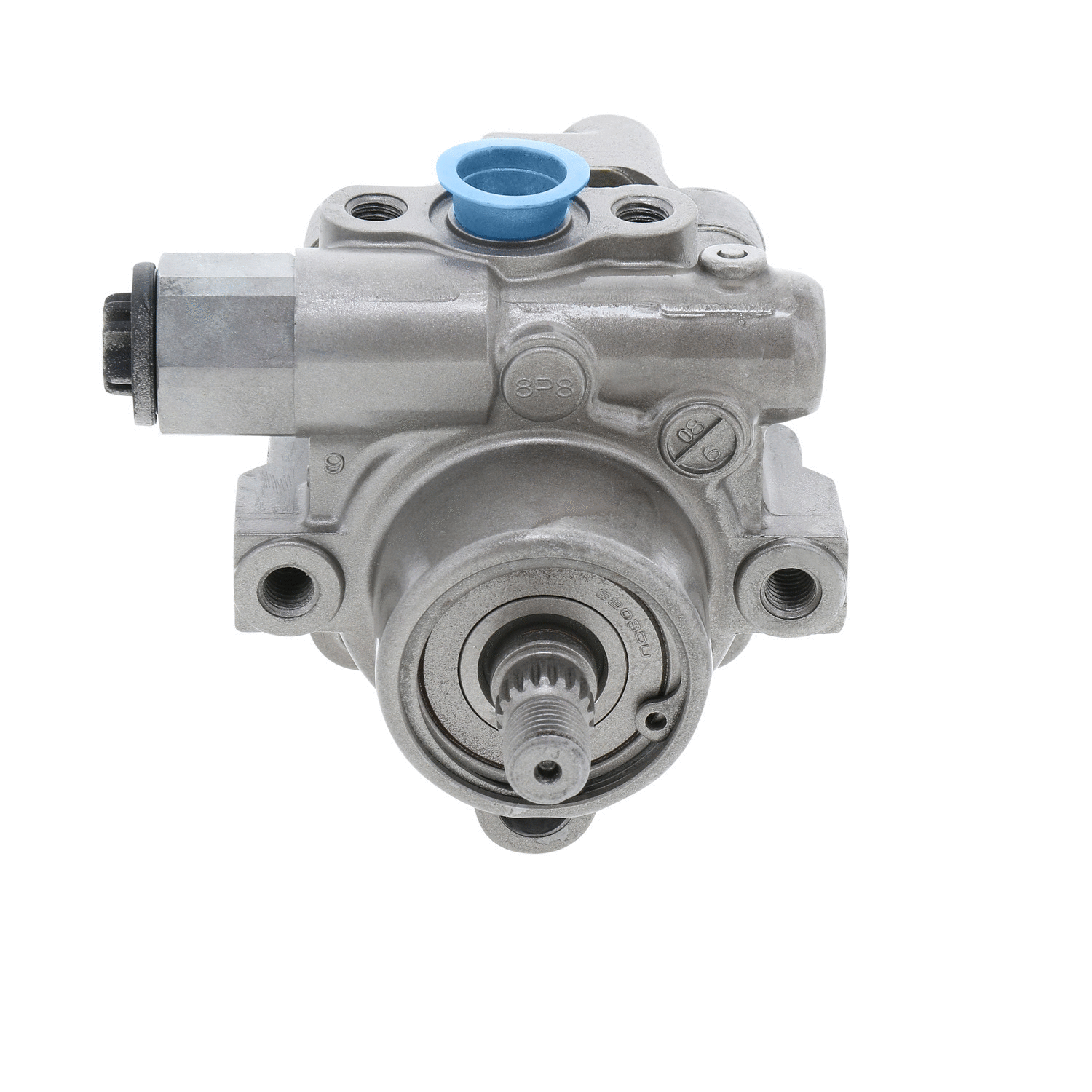

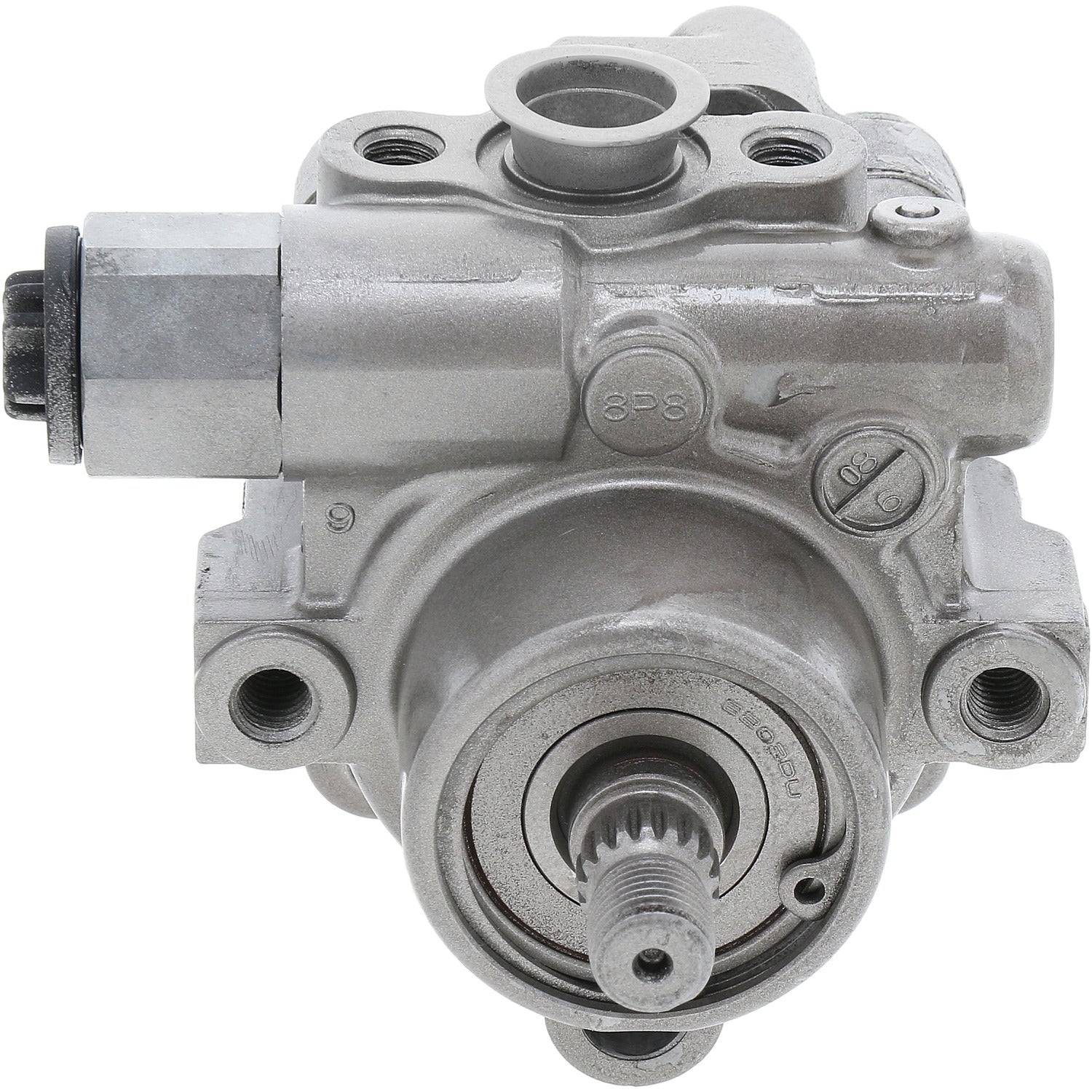

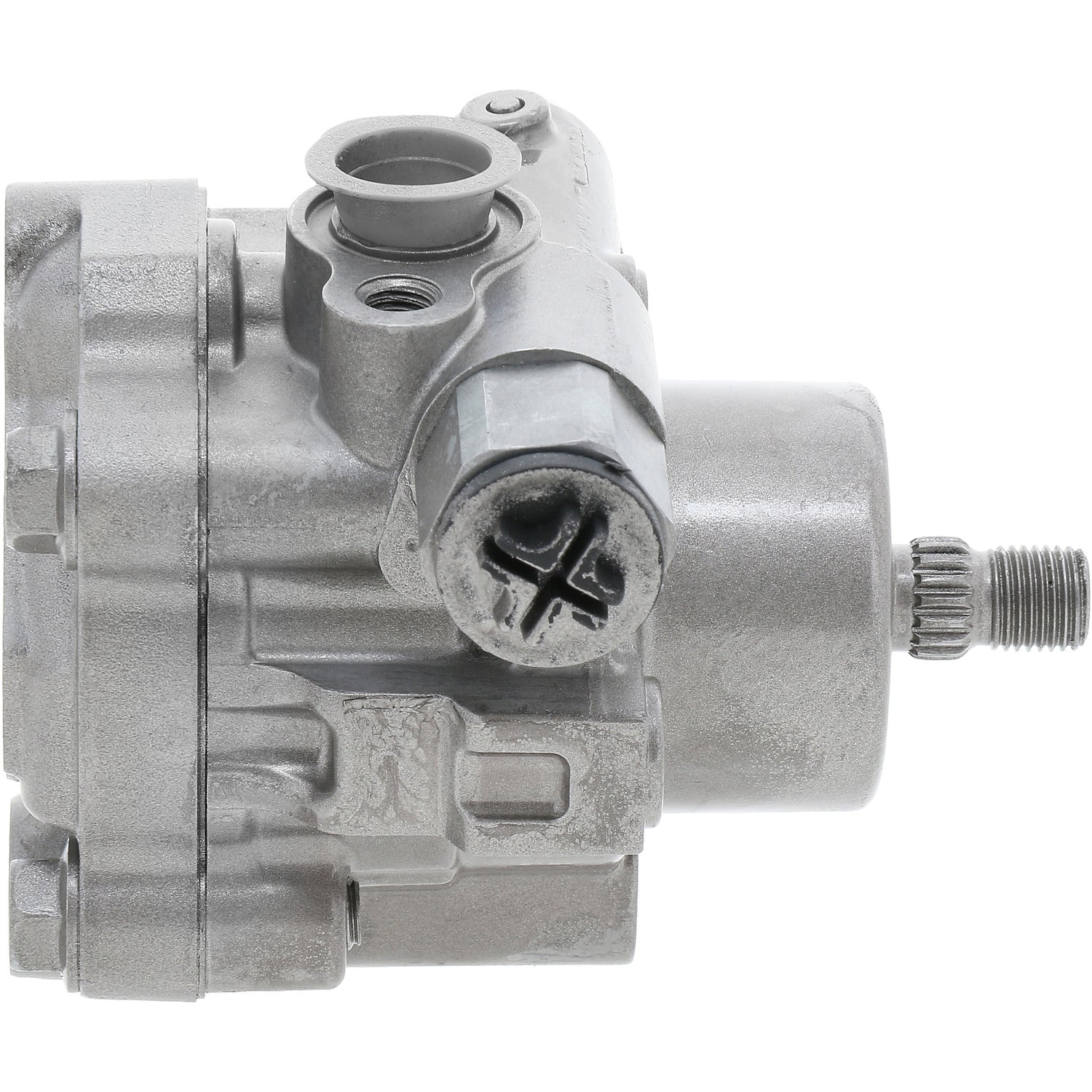

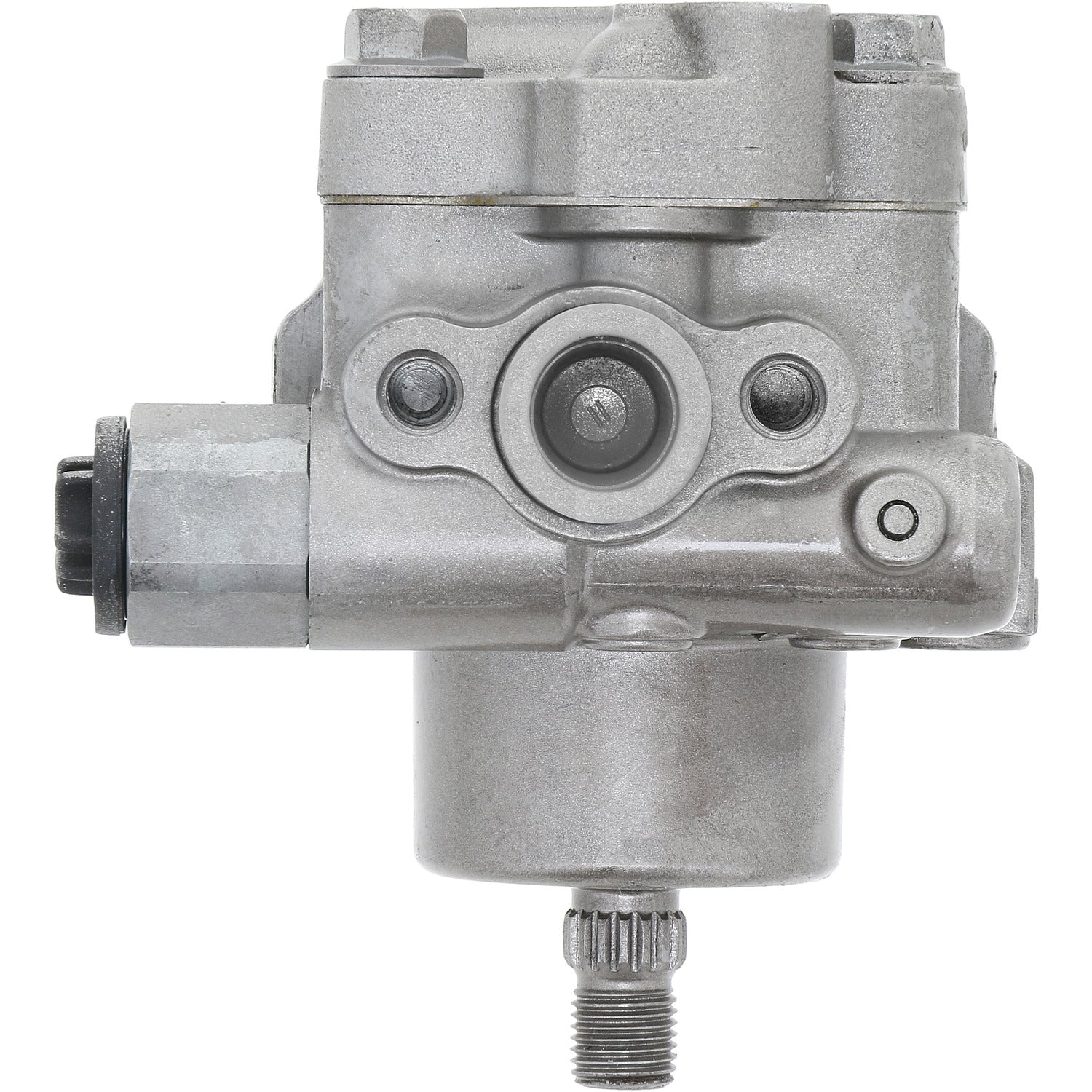

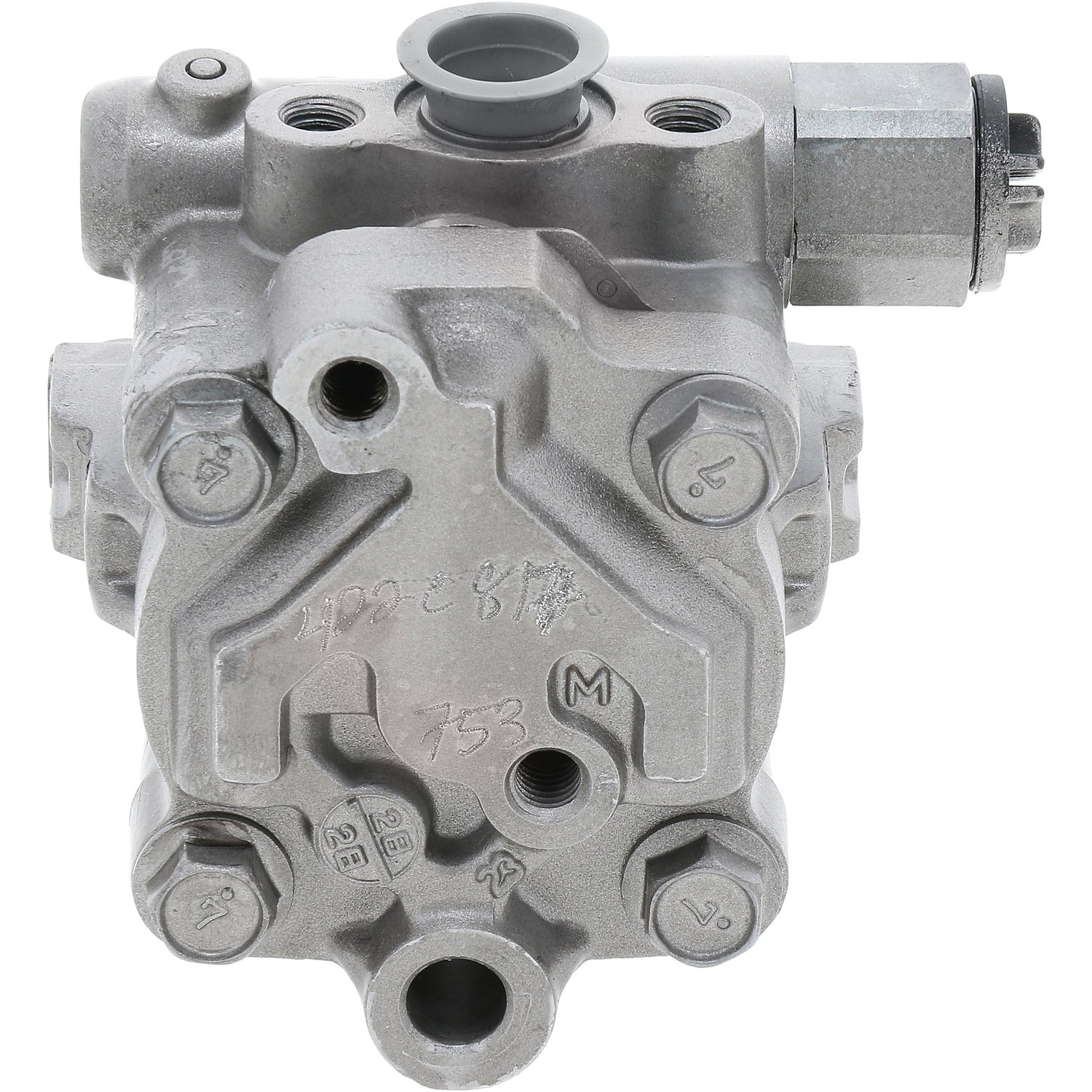

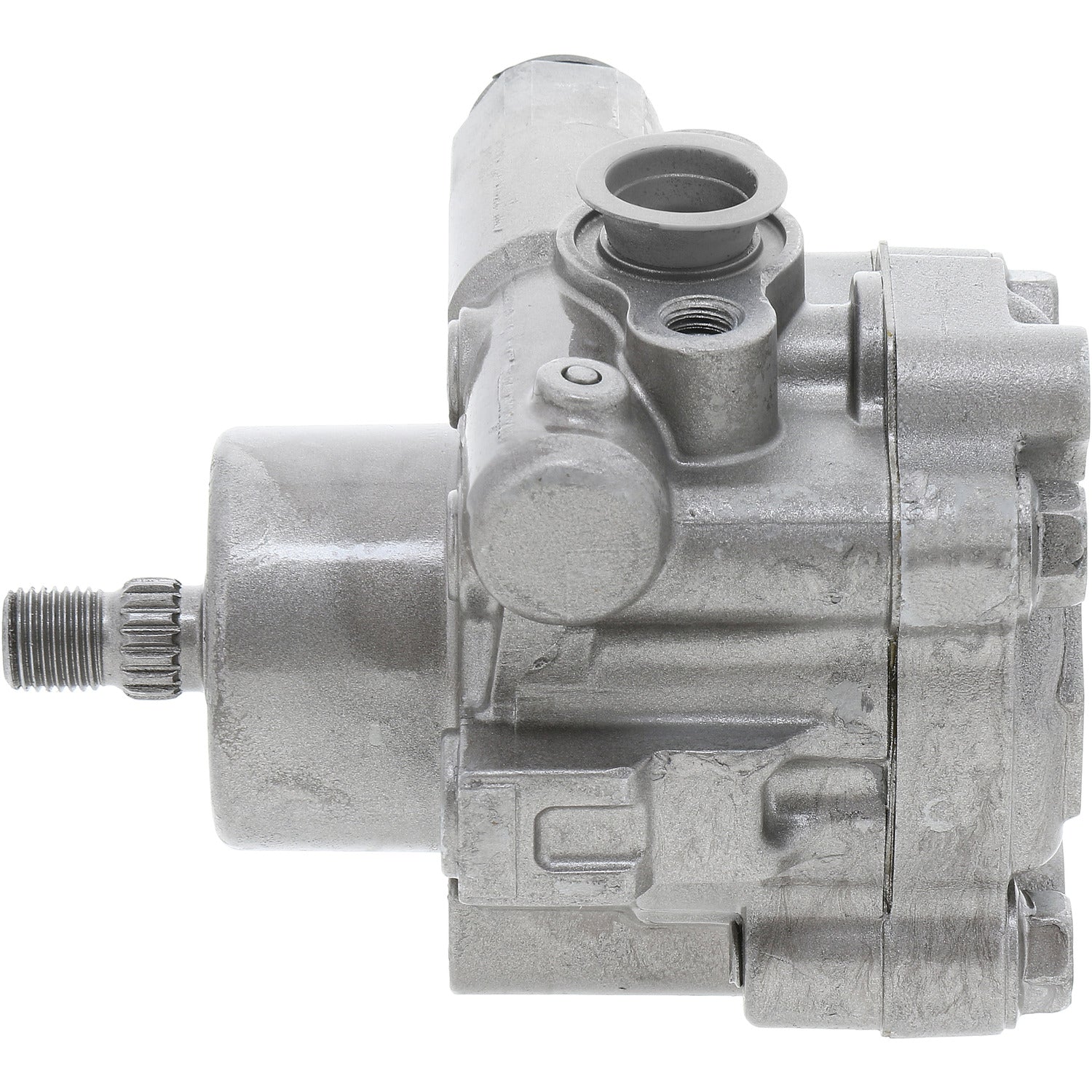

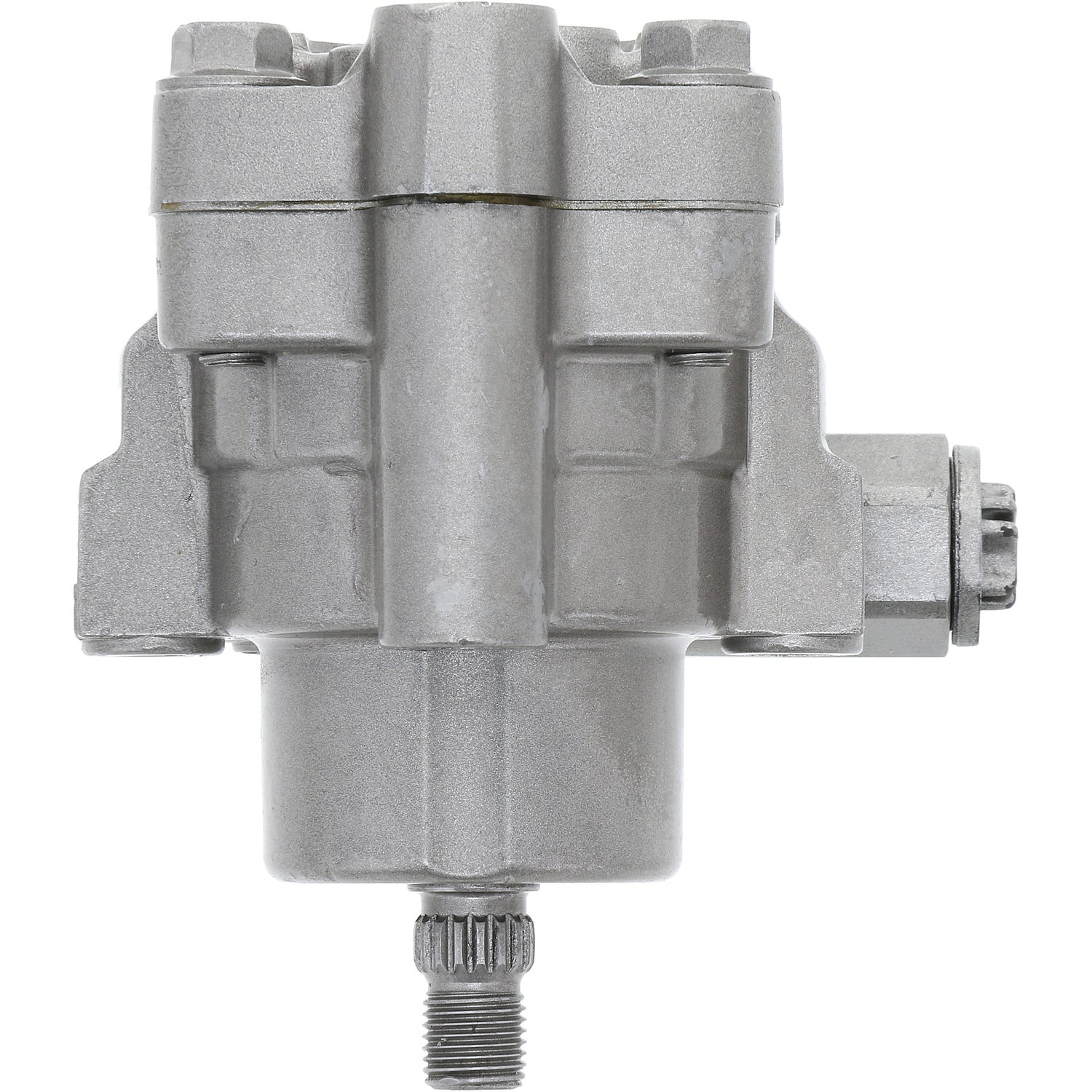

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96753M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96753M

SKU:96753M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Aluminum
Mounting Hardware Included No
Outlet Thread Size 16X1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Pulley Attachement Type Bolt-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No



Application Info: Infiniti QX56 (2012); Nissan Armada (2010-15), Pathfinder (2011-12), Titan (2011-15) ***W/O Pulley, W/O Reservoir***

Interchange: 49110-ZV00A

BBB Cross-Reference: 990-1143

Cardone Cross-Reference: 21-494

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
