MAVAL

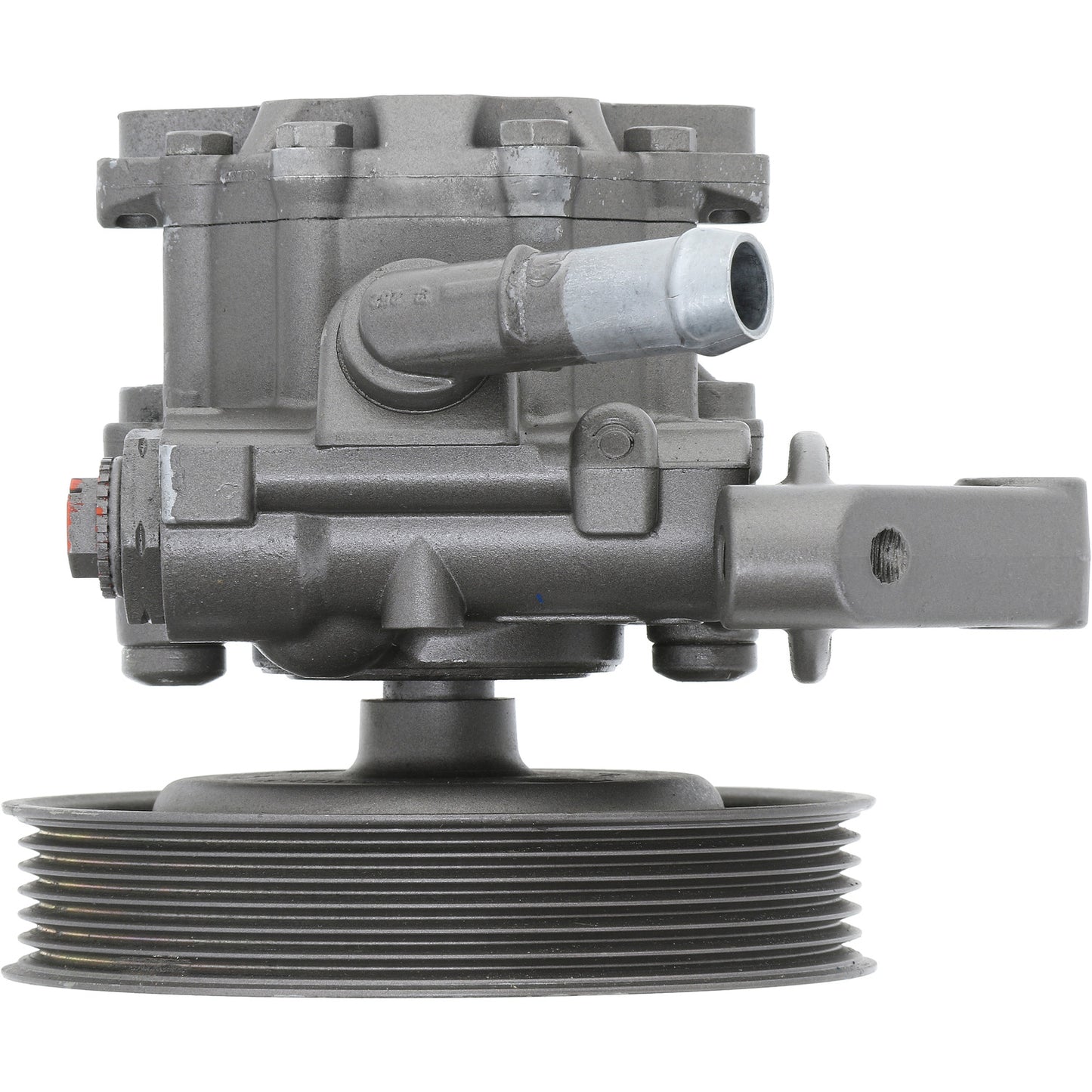

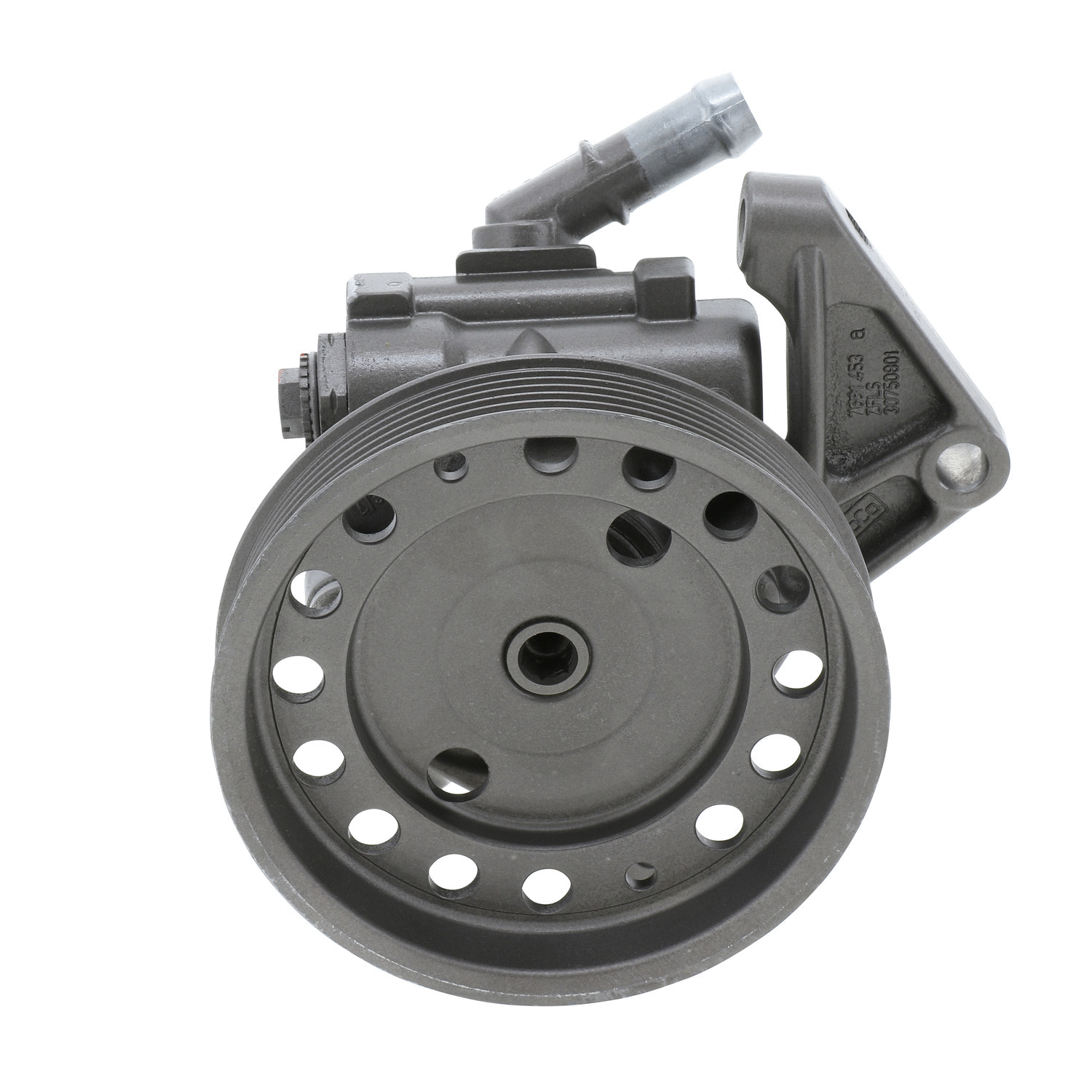

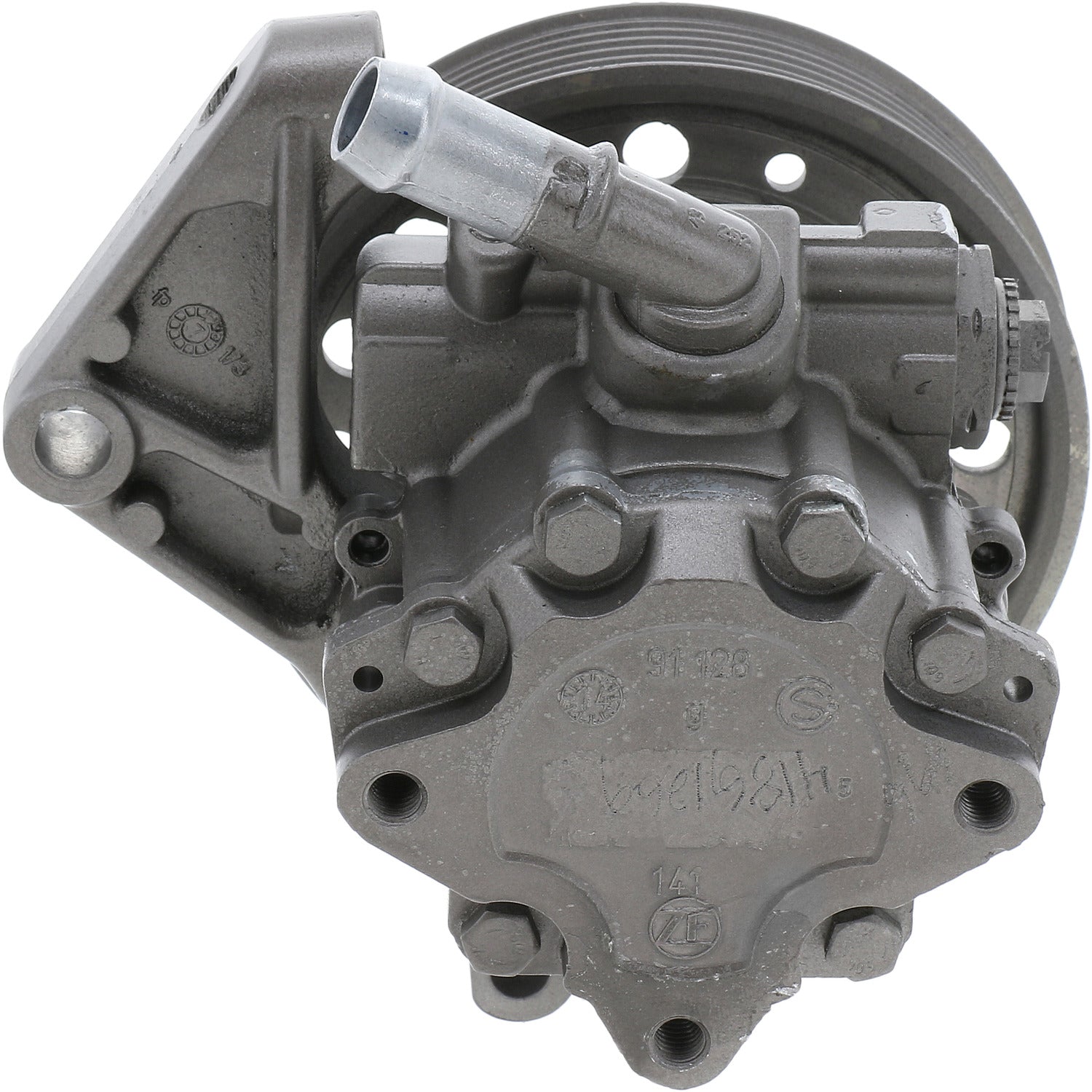

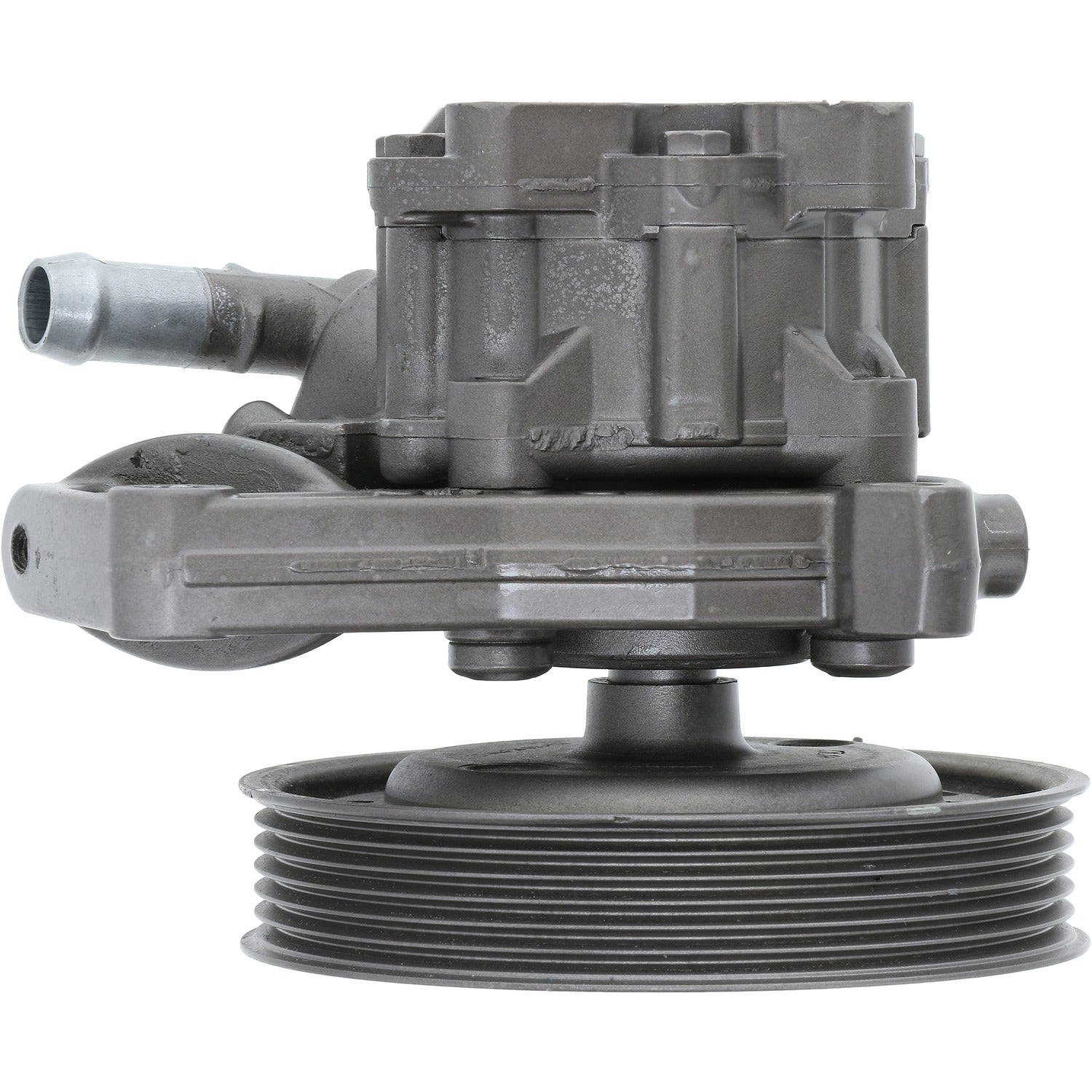

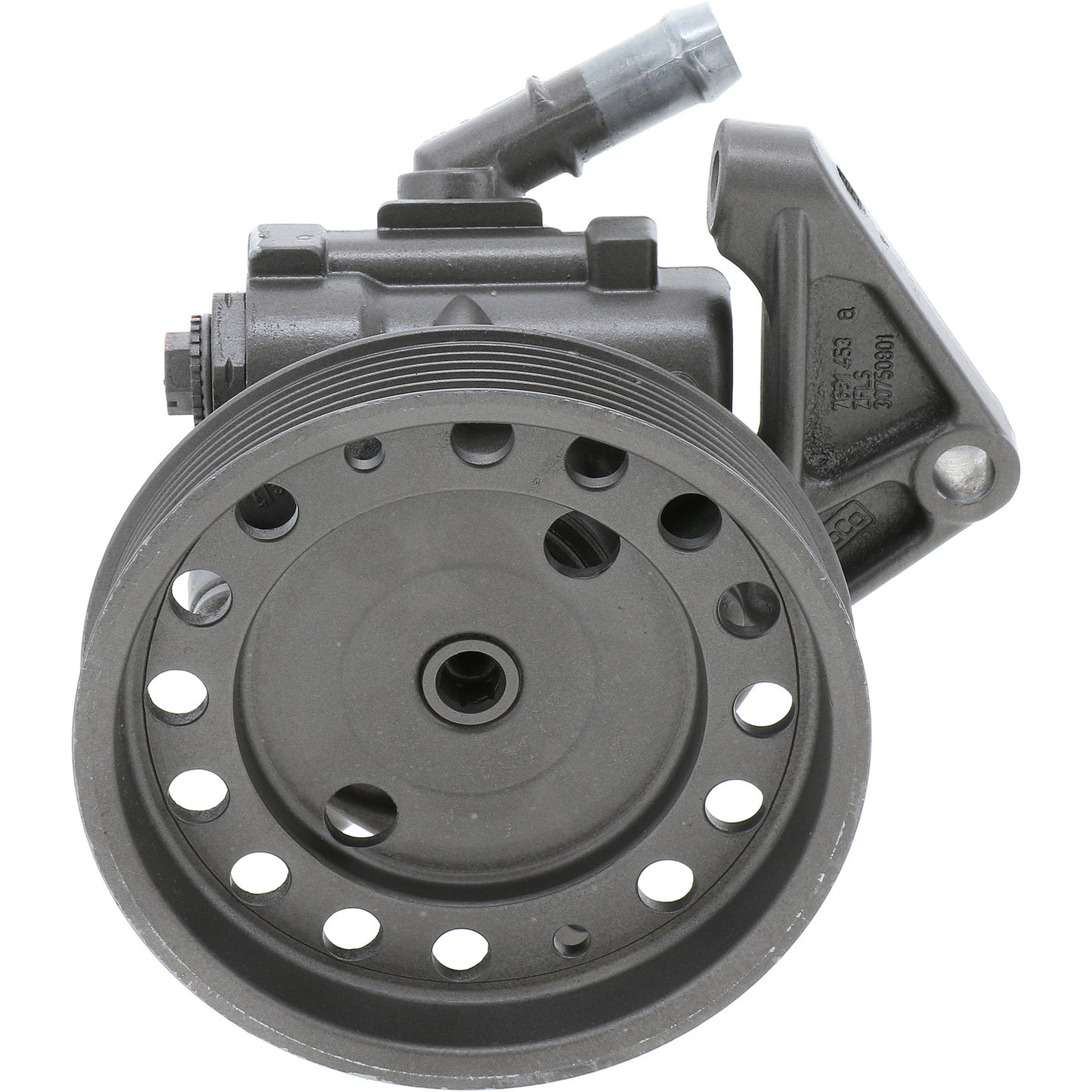

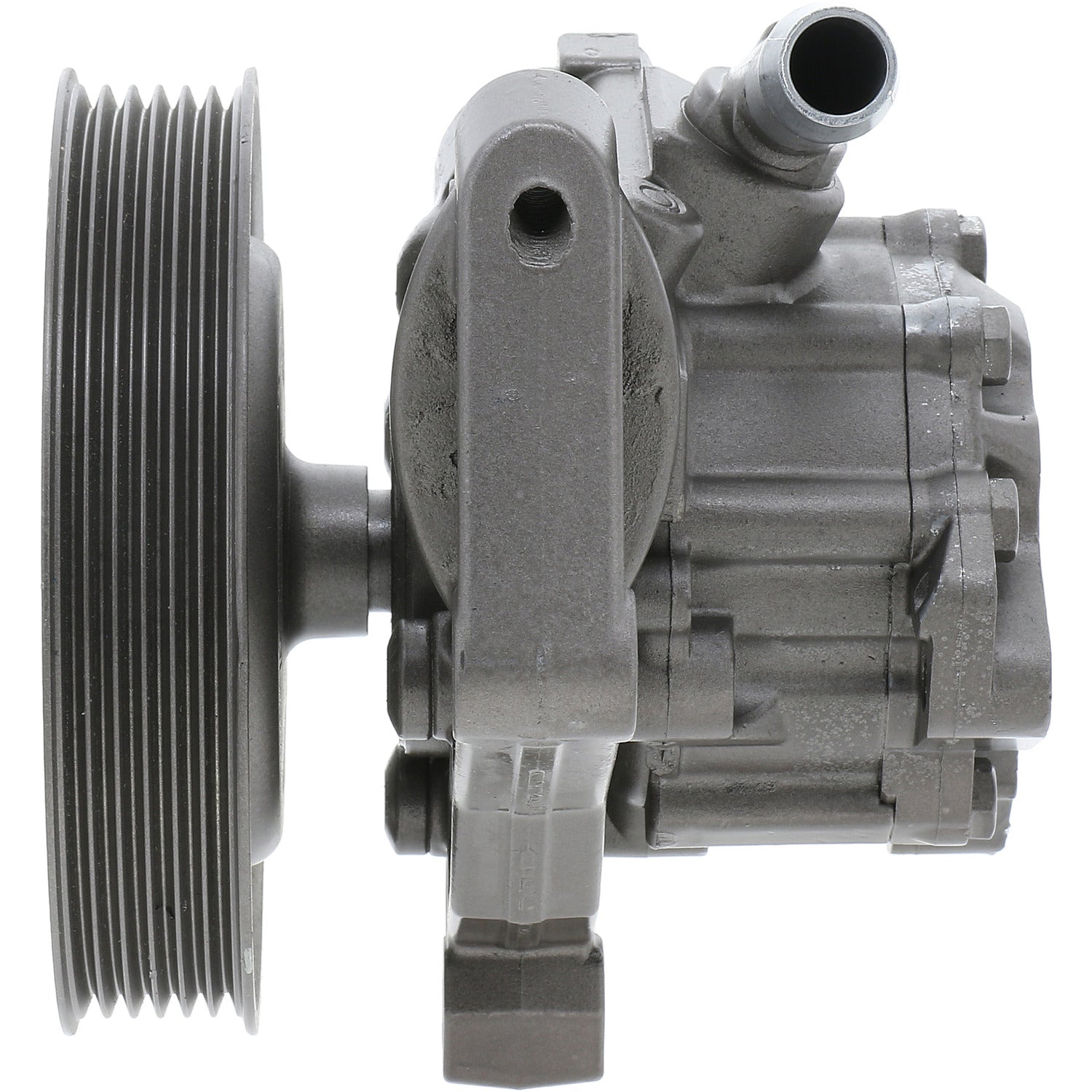

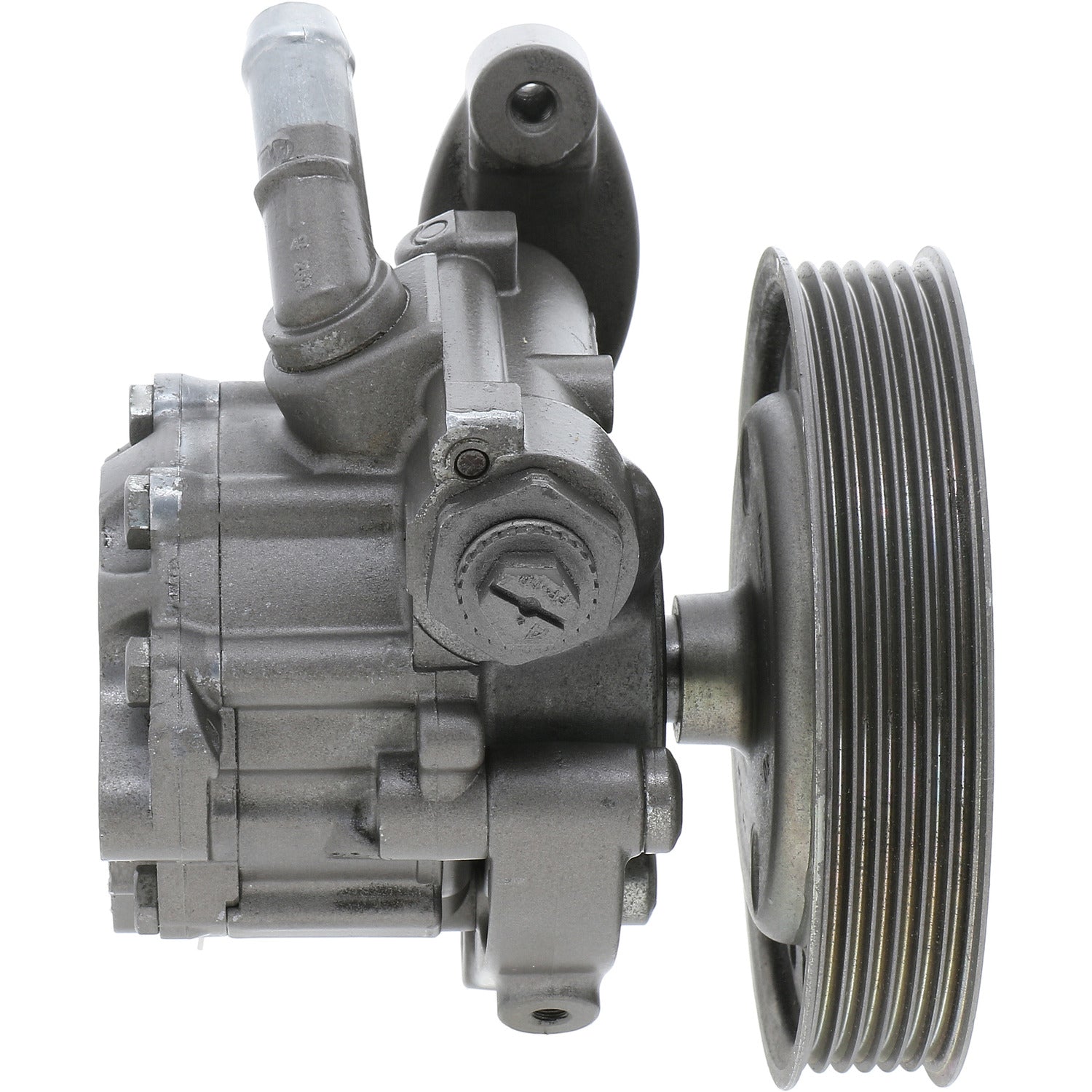

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96696M
Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96696M
SKU:96696M
MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.
Hose Port Type | O-Ring |
Housing Material | Aluminum |
Mounting Hardware Included | No |
Outlet Thread Size | 16X1.5 |
Inlet Attachment Type | Hose Barb |
Outlet Attachment Type | Threaded |
Outlet Quantity | 1 |
Pulley Attachment Type | Press-on |
Pulley Included | Yes |
Remote Reservoir | Yes |
Reservoir Included | No |
Application Info: 2008-2012 Land Rover LR2 (Qualifier: with Pulley / Note: Without Reservoir); 2008-2010 Volvo S80 (Liter: 3.2, 3.0 & Cylinder: 6 & Block: L / Qualifier: with Pulley / Note: Without Reservoir); 2008-2010 Volvo V70 (Qualifier: with Pulley / Note: Without Reservoir); 2008-2010 Volvo XC70 (Qualifier: with Pulley / Note: Without Reservoir)
Interchange: JLR: LR007207; Volvo: 31201150, 36000120, 36002409
BBB Cross-Reference: 990-1086
Cardone Cross-Reference: 21-398
