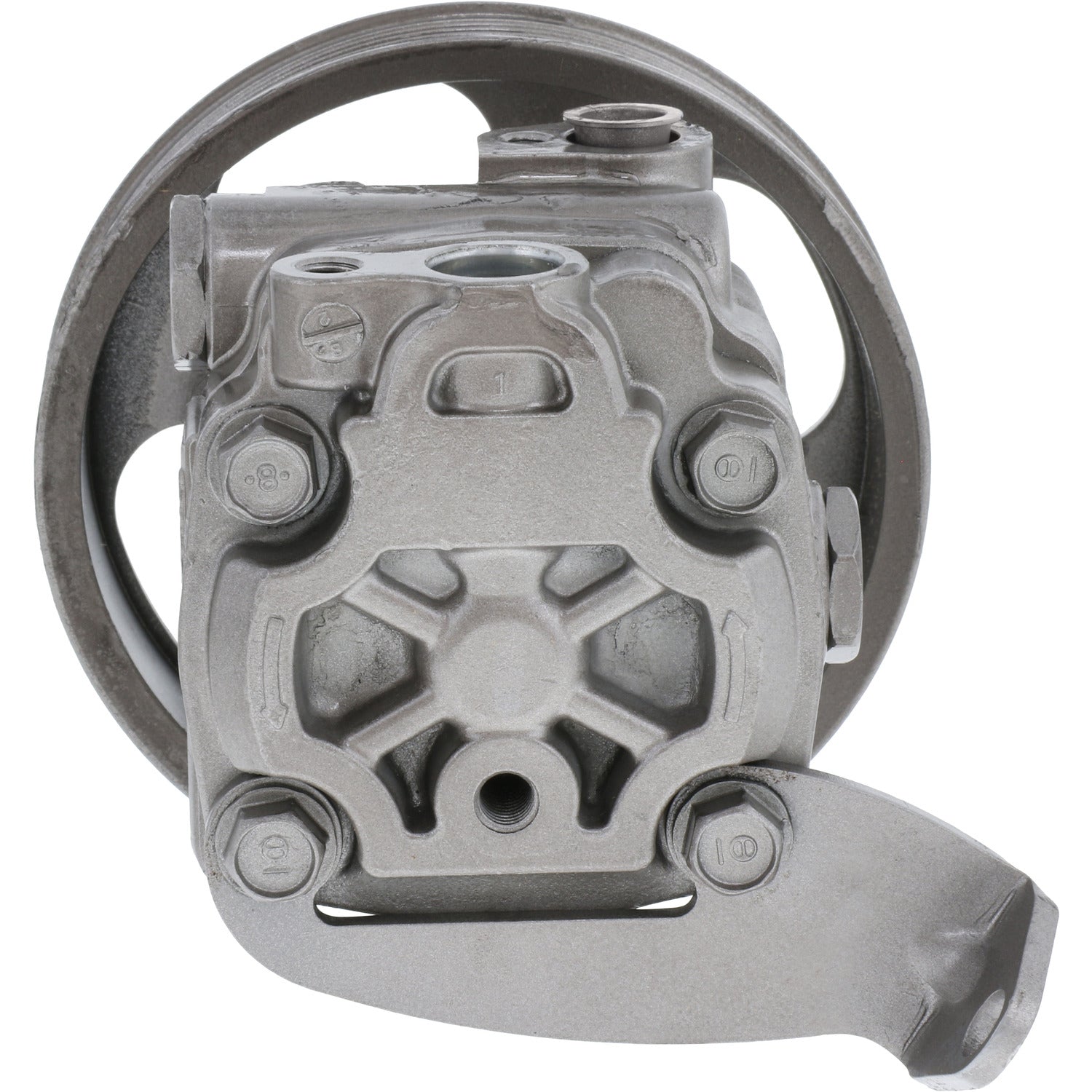

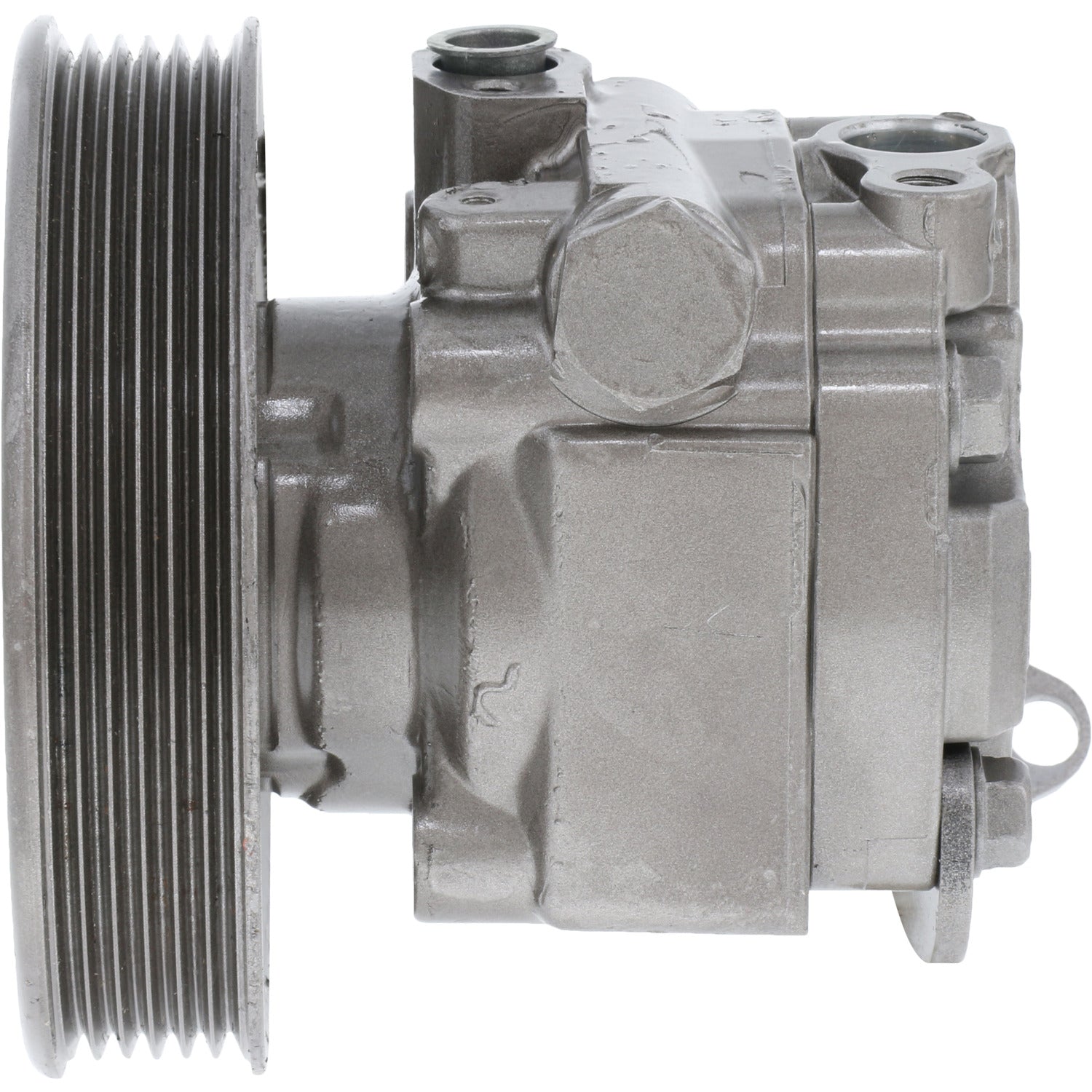

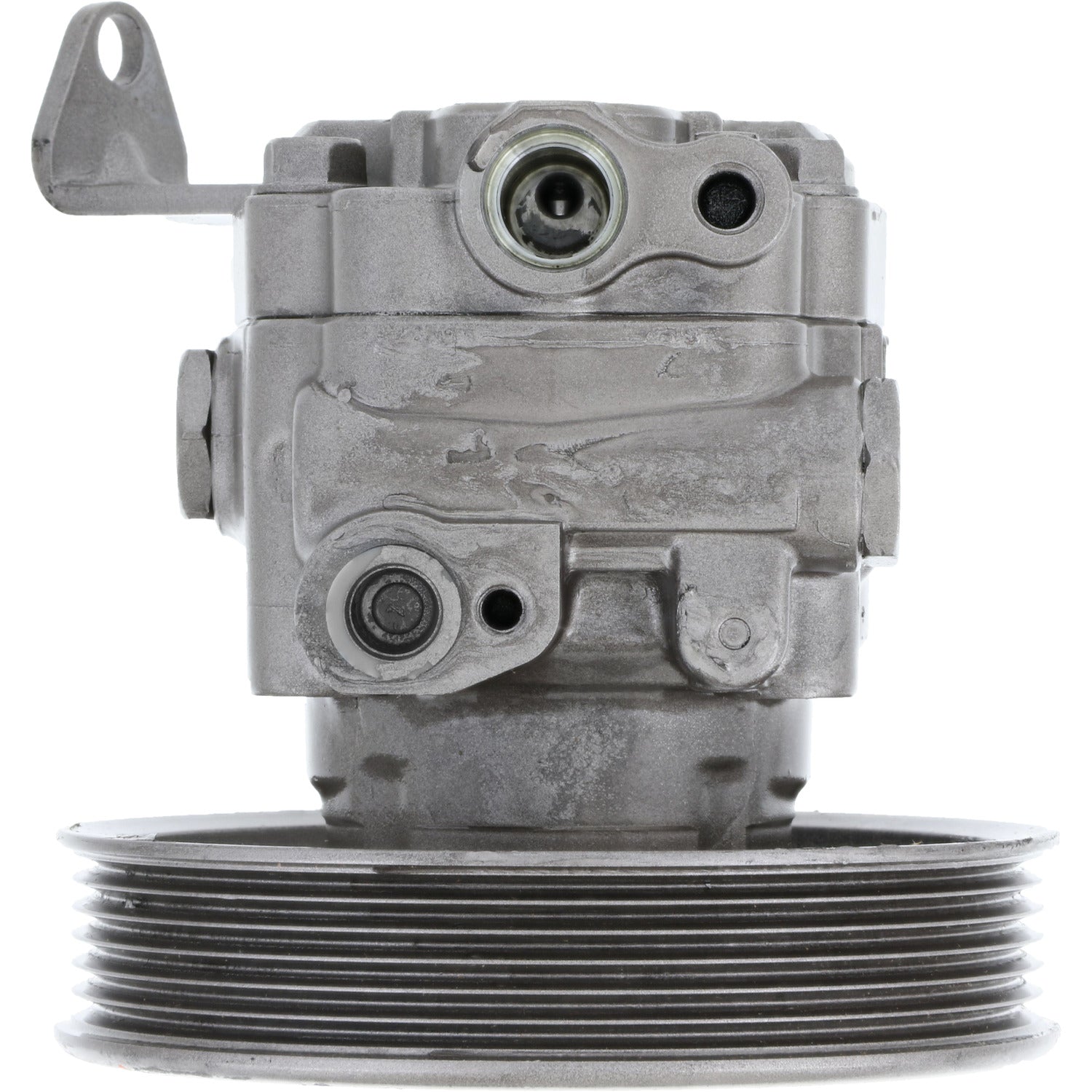

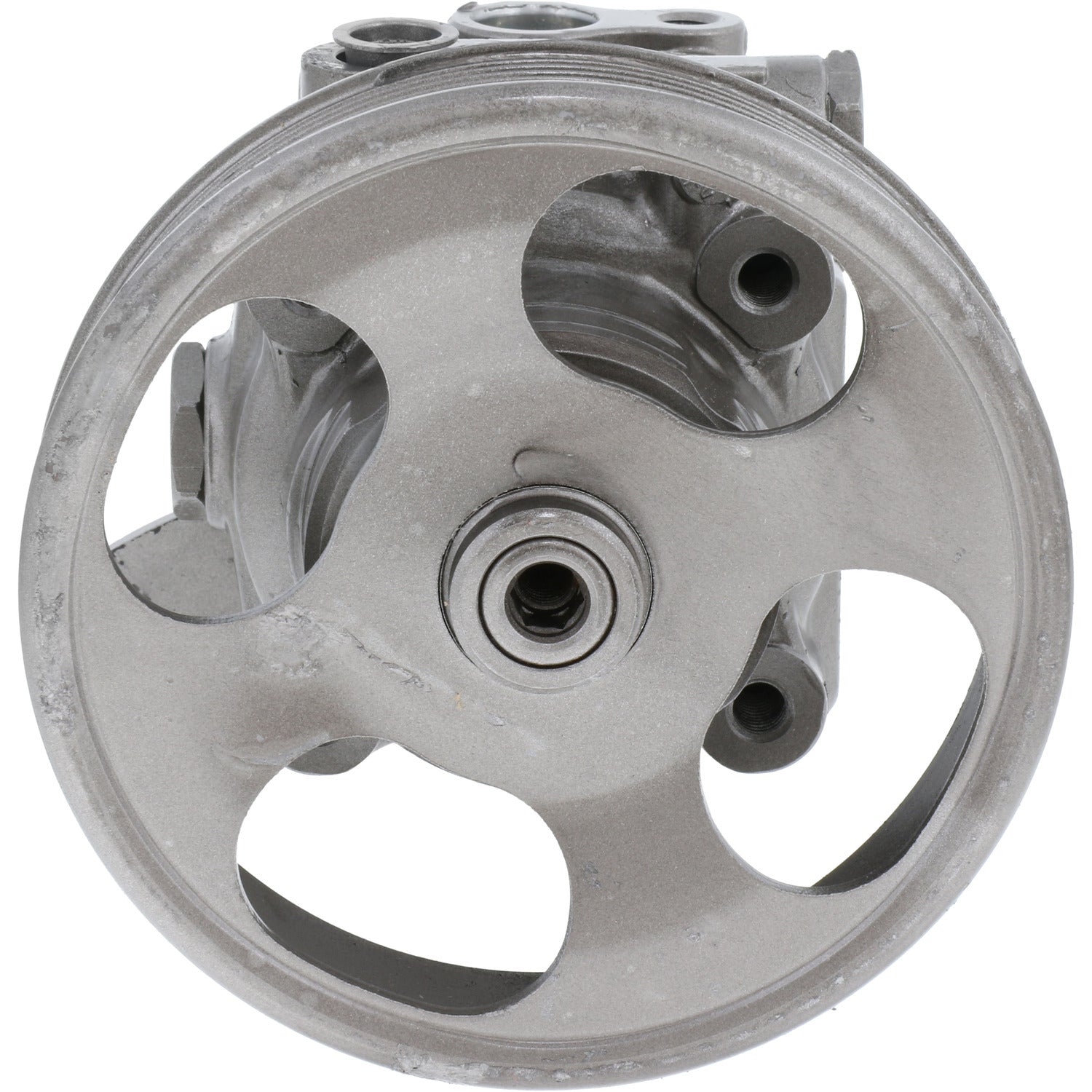

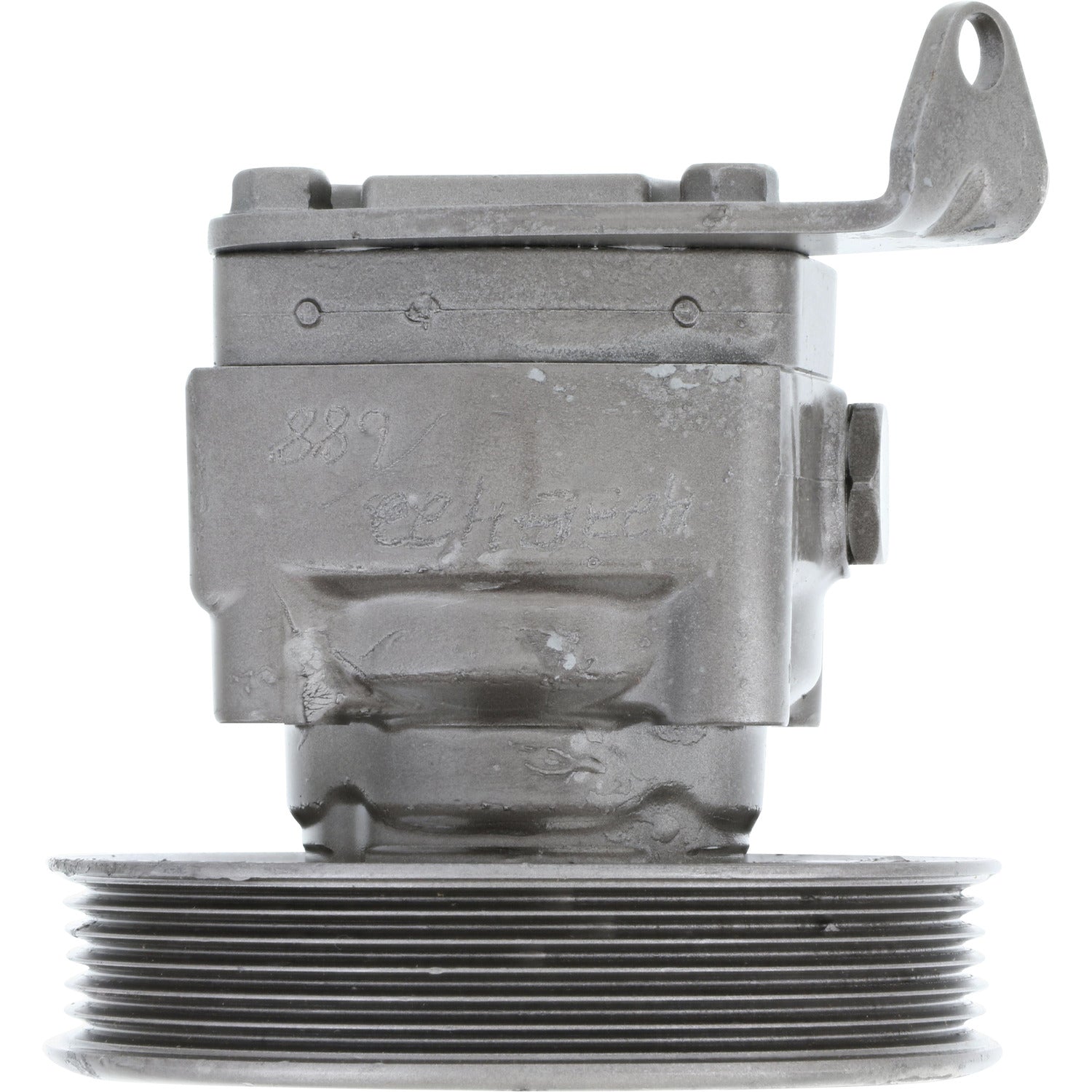

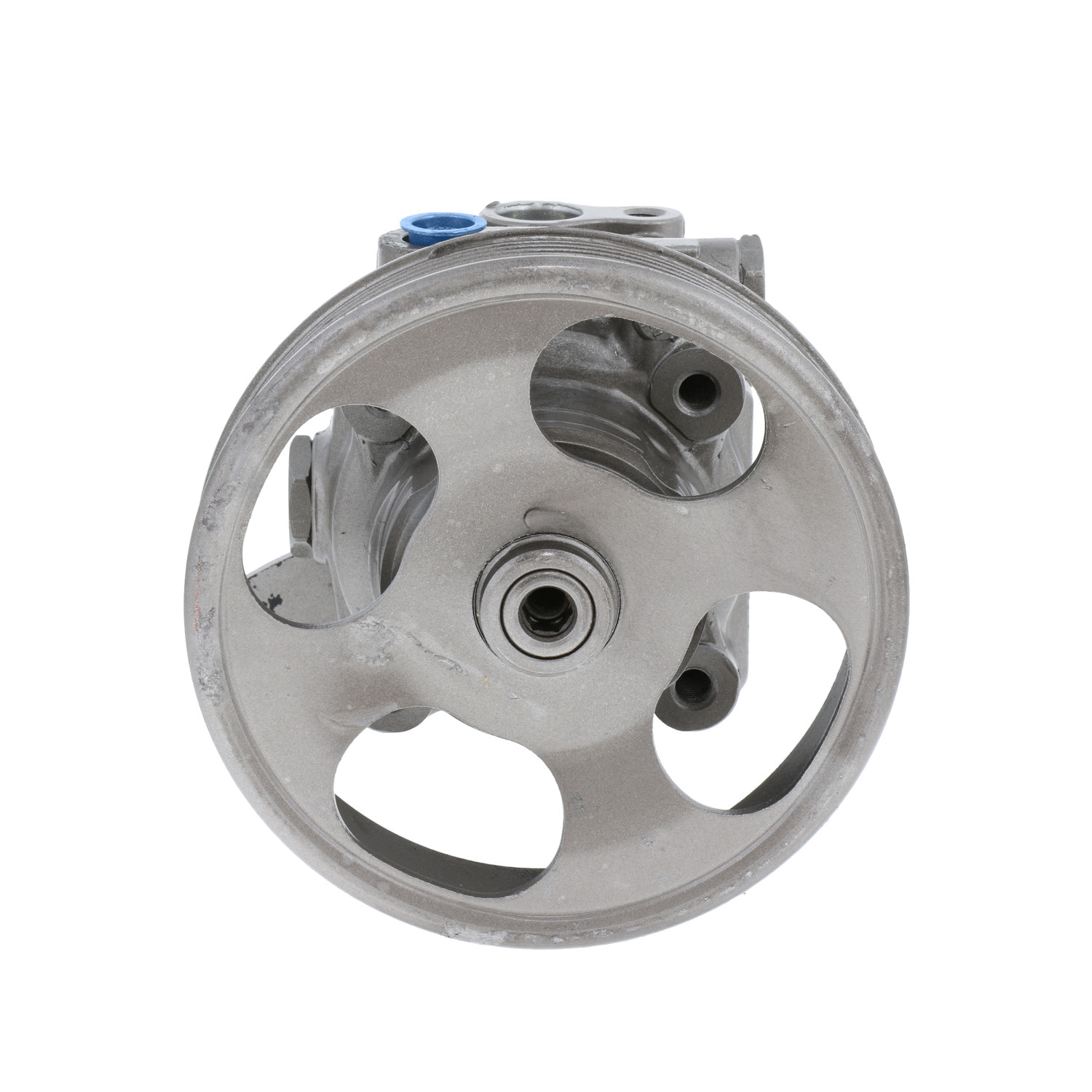

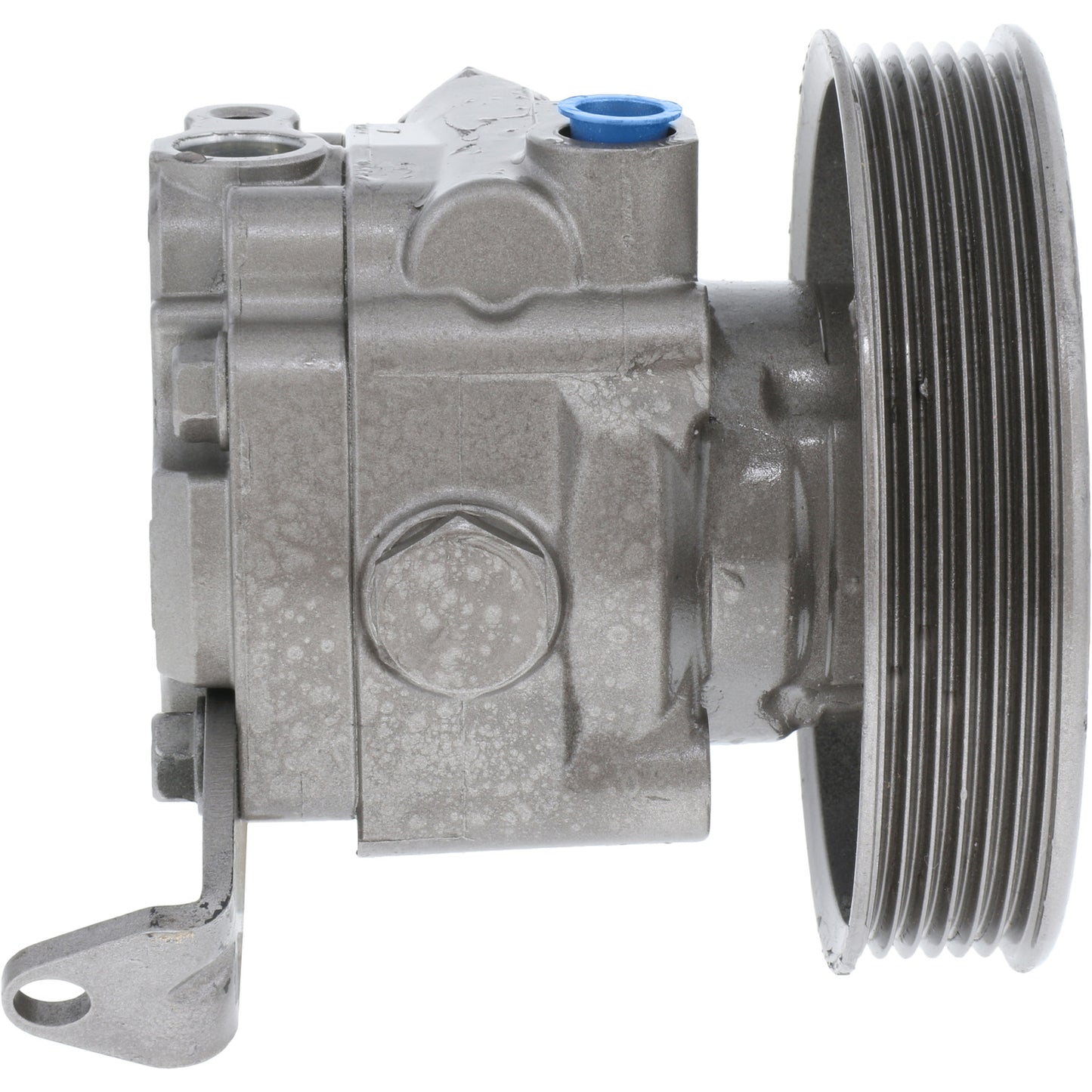

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96688M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96688M


MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Housing Material Aluminum
Inlet Quantity 1
Inlet Thread Size M8-1.25
New Or Remanufactured Remanufactured
Mounting Hole Quantity 4
Outlet Attachment Type Bolt-on
Outlet Thread Size M14x1.50
Pulley Attachement Type Press-on
Pulley Included Yes
Remote Reservoir Yes
Reservoir Included No

Application Info: Volvo XC90 (2005-11) ***W/4.4L V8 Engine, W/Pulley, W/O Reservoir***

Interchange: 36000748, 30741375, 30776247

BBB Cross-Reference: 990-1093

Cardone Cross-Reference:

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
