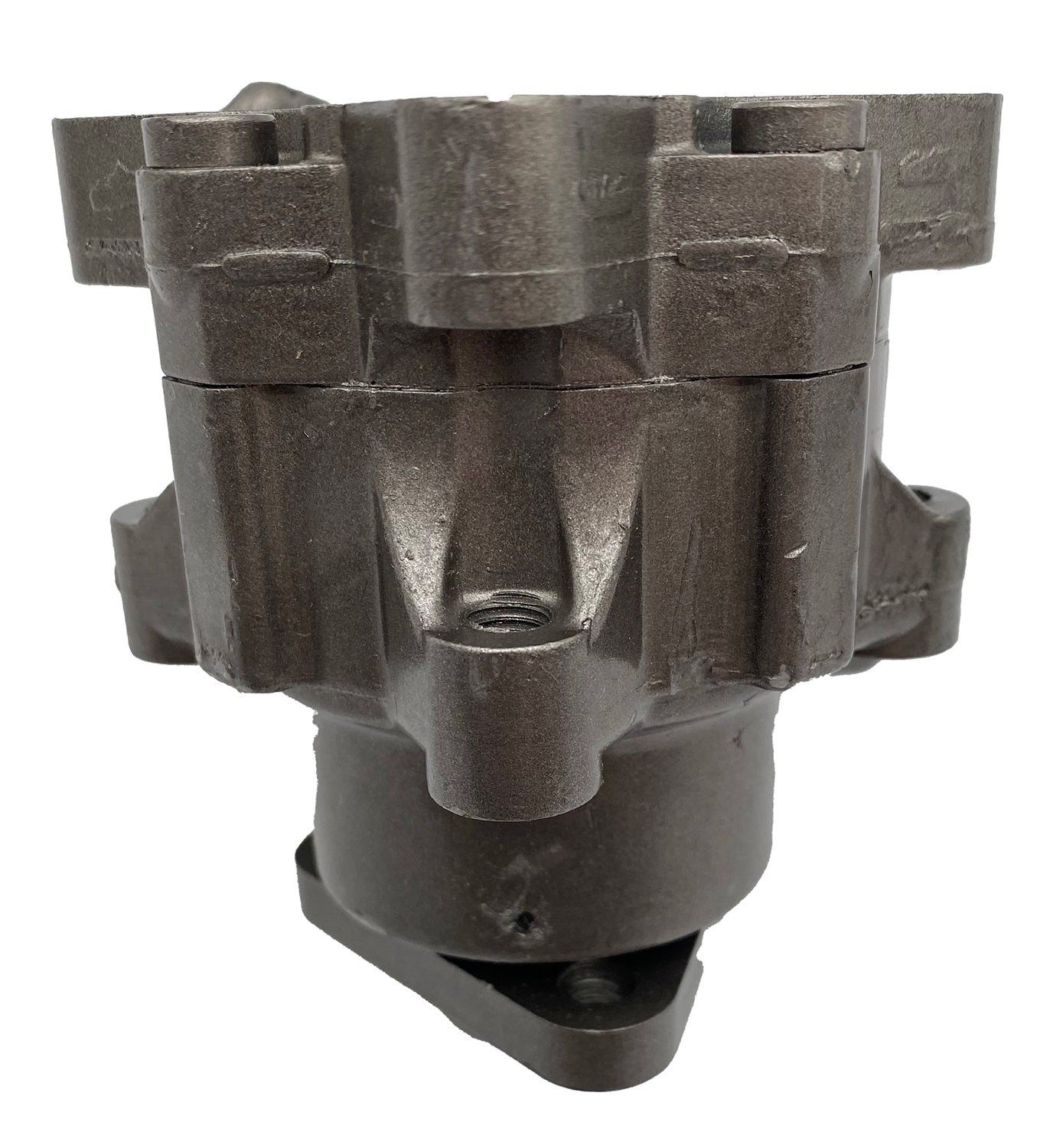

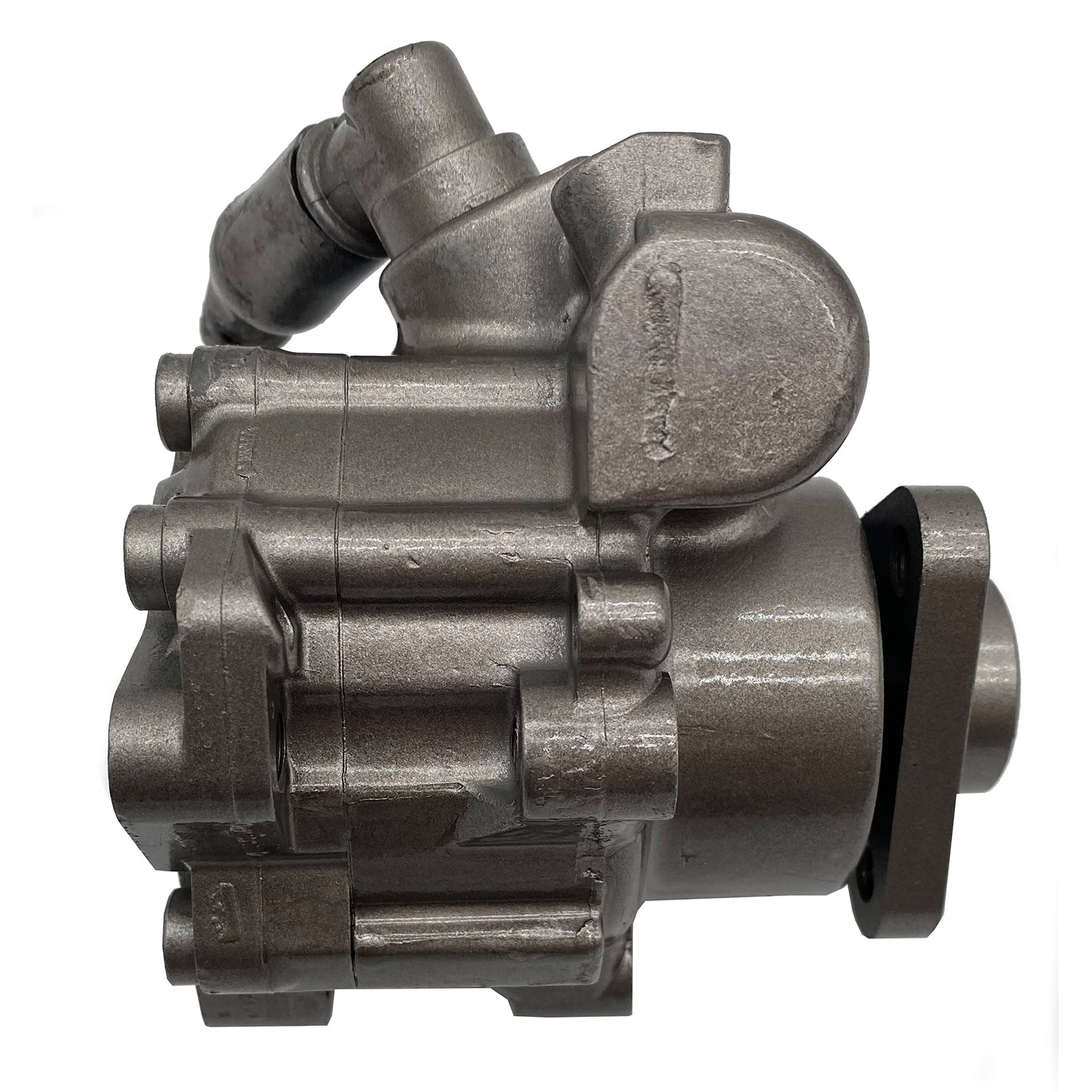

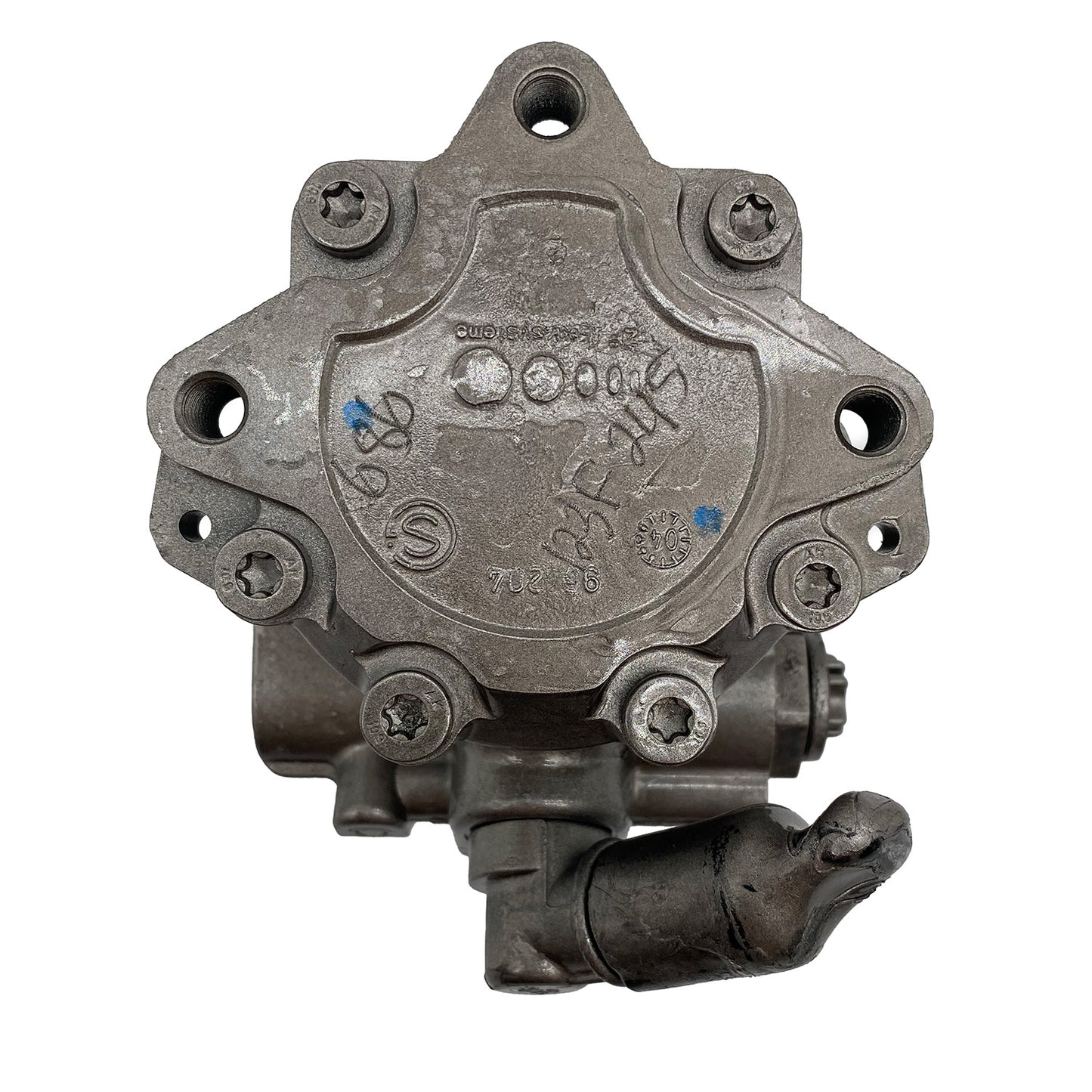

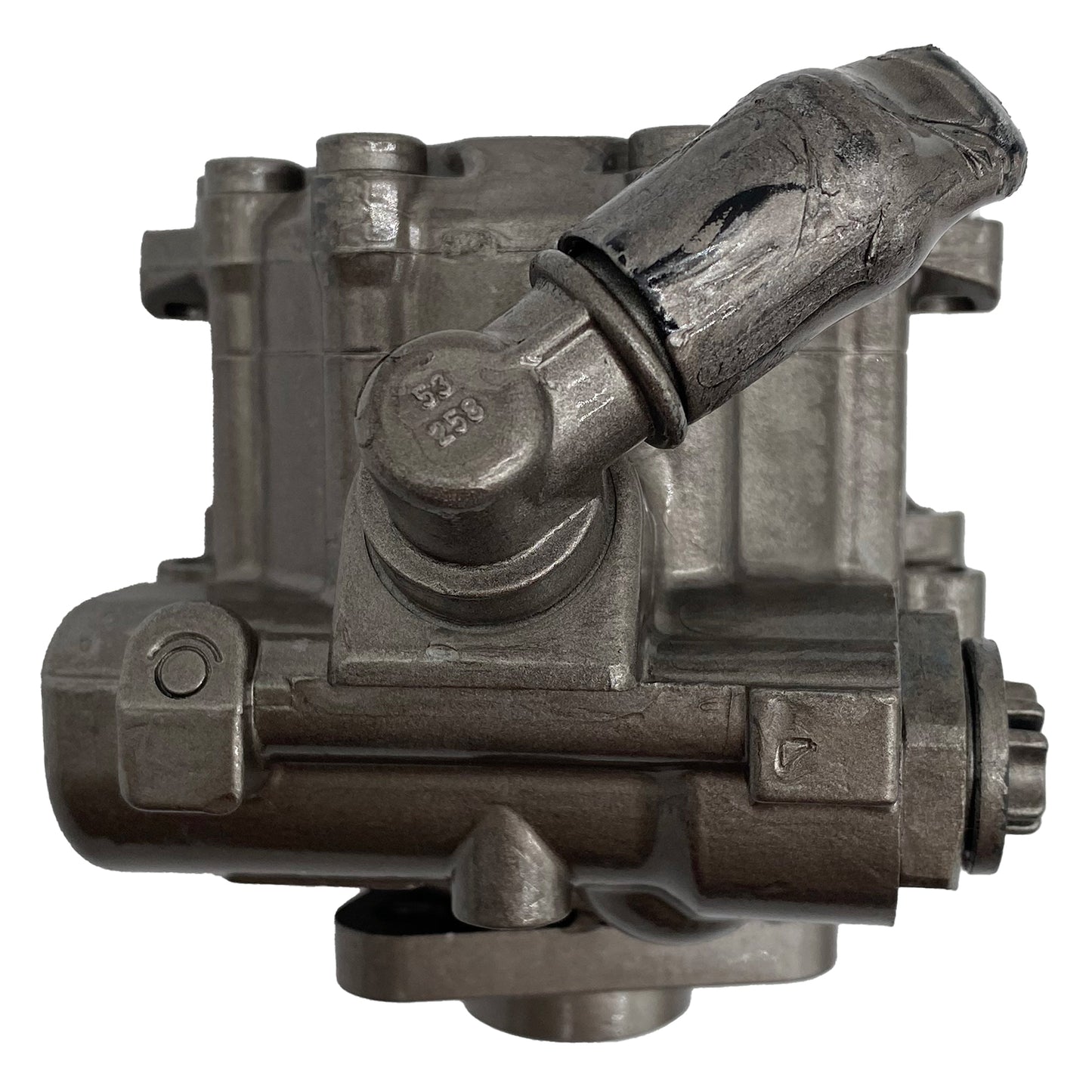

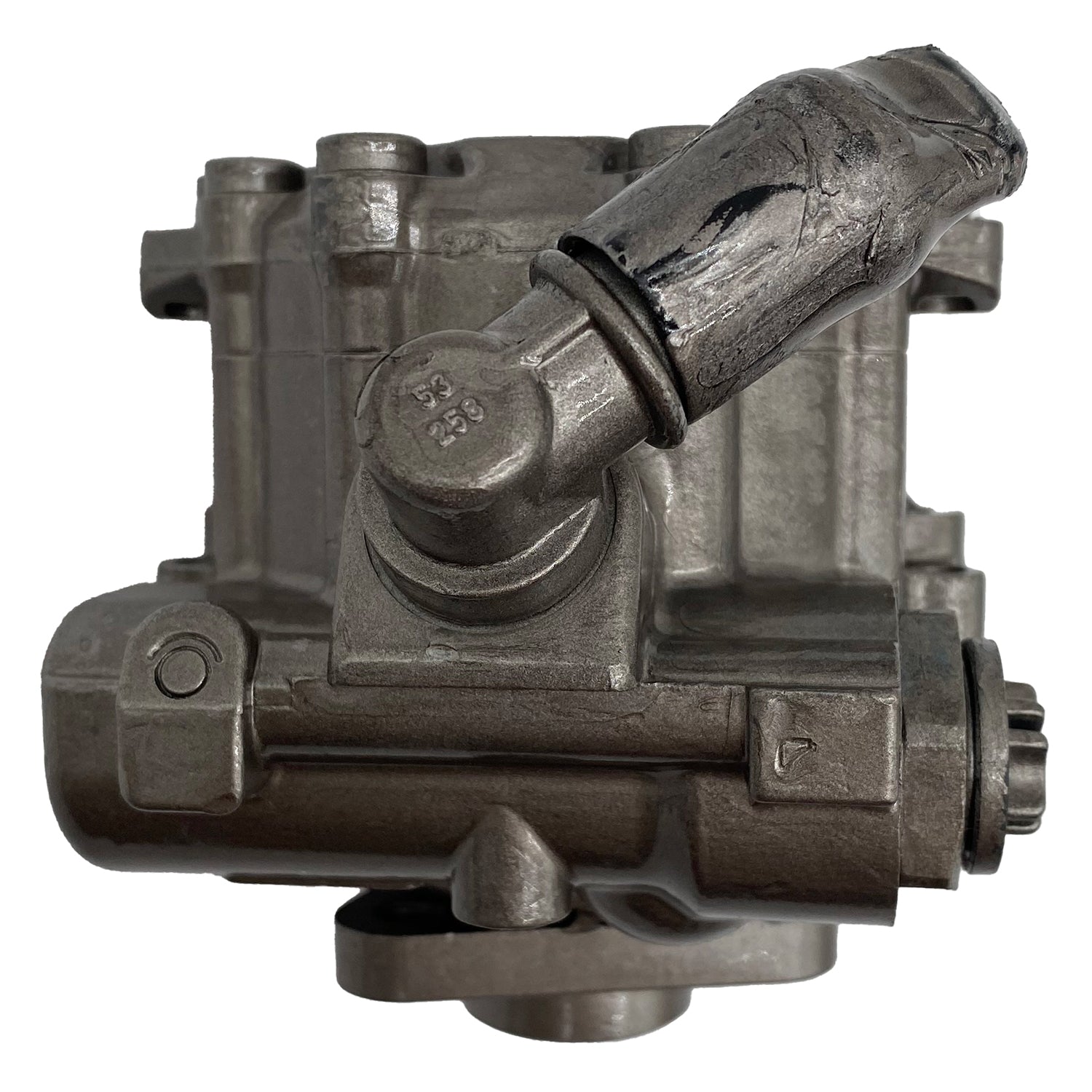

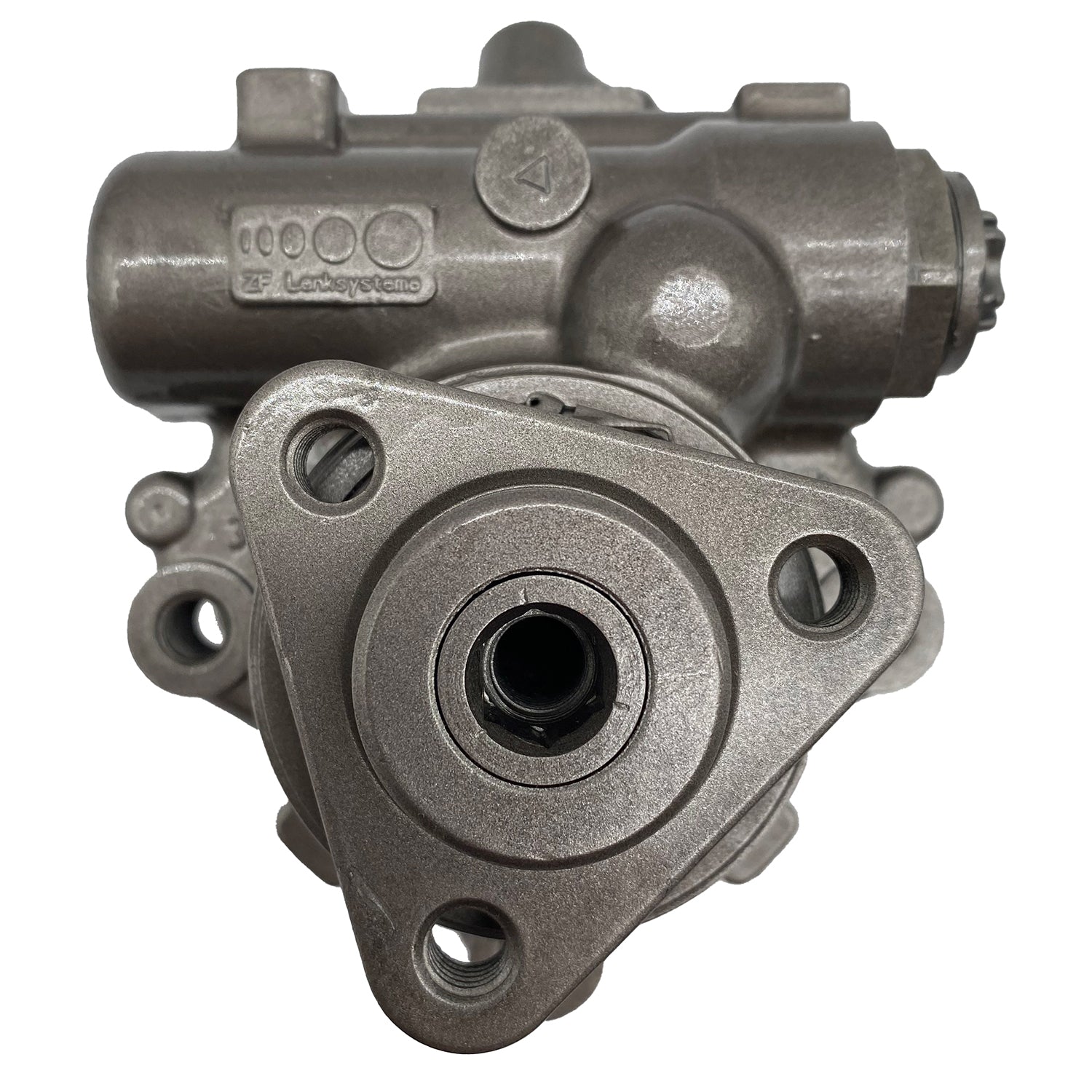

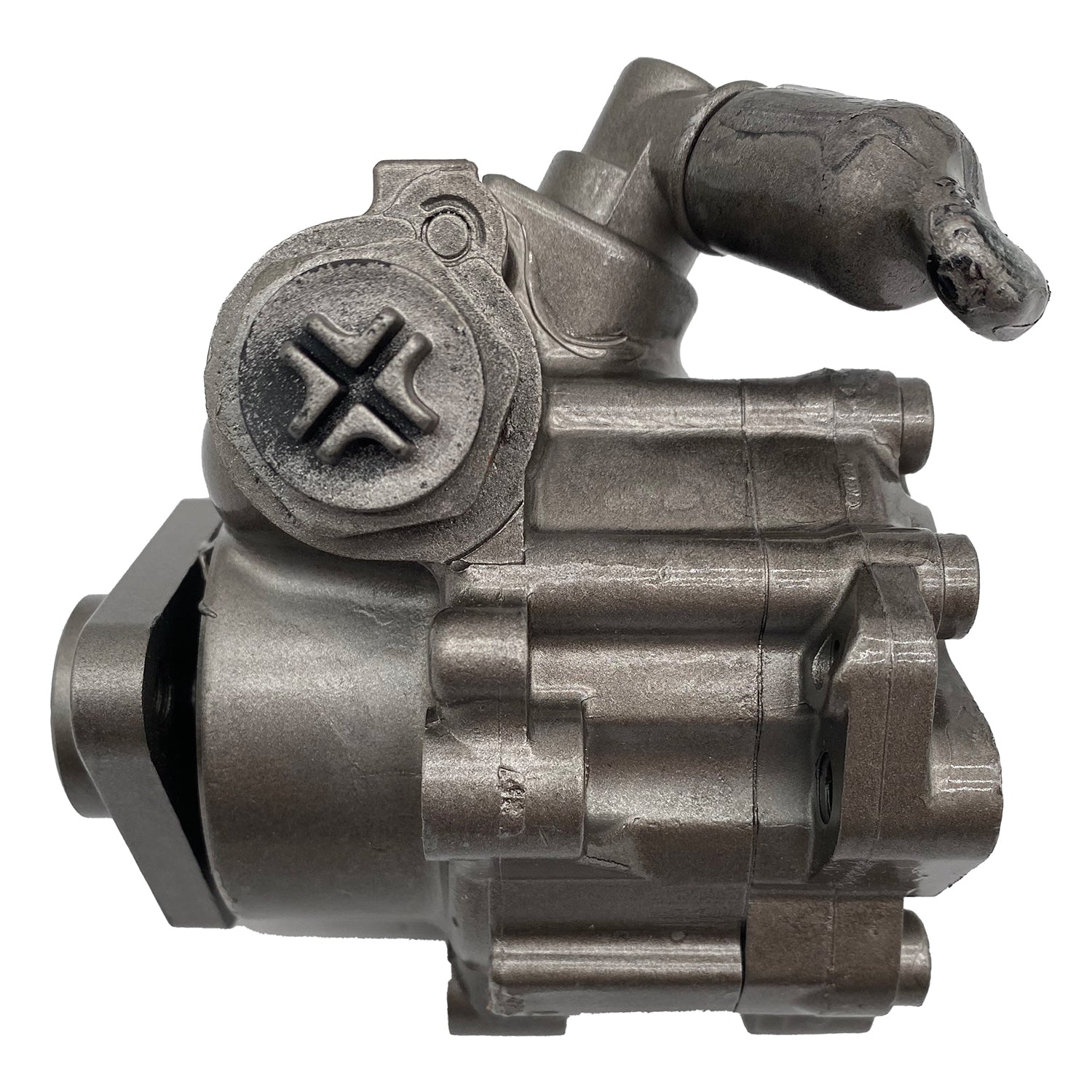

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96686M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96686M

SKU:96686M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Housing Material Aluminum
Inlet Diameter 0.635 IN
Inlet Quantity 1
New Or Remanufactured Remanufactured
Mounting Hole Quantity 3
Outlet Attachment Type Threaded
Outlet Thread Size M16x1.50
Outlet Thread Size M16x1.50
Outlet Thread Size M16x1.50
Pulley Attachement Type Bolt-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No

Application Info: BMW 545i (2004-05), 550i (2006-10), 645Ci (2004-05), 650i (2006-10) ***W/O Active Steering, W/O Dynamic Drive, W/O Pulley, W/O Reservoir***

Interchange: 21 41 6 762 158

BBB Cross-Reference: 990-0891

Cardone Cross-Reference: 21-192

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
