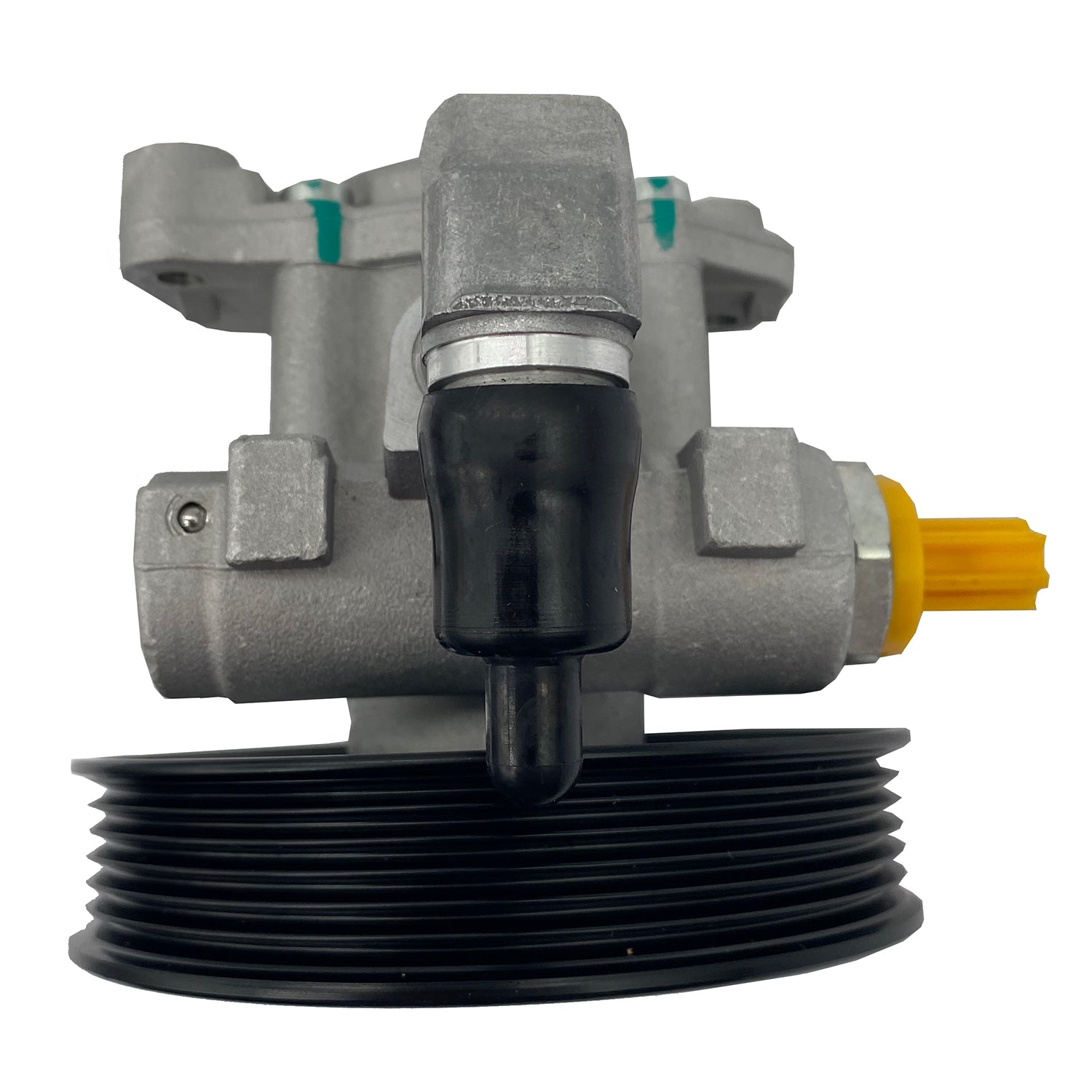

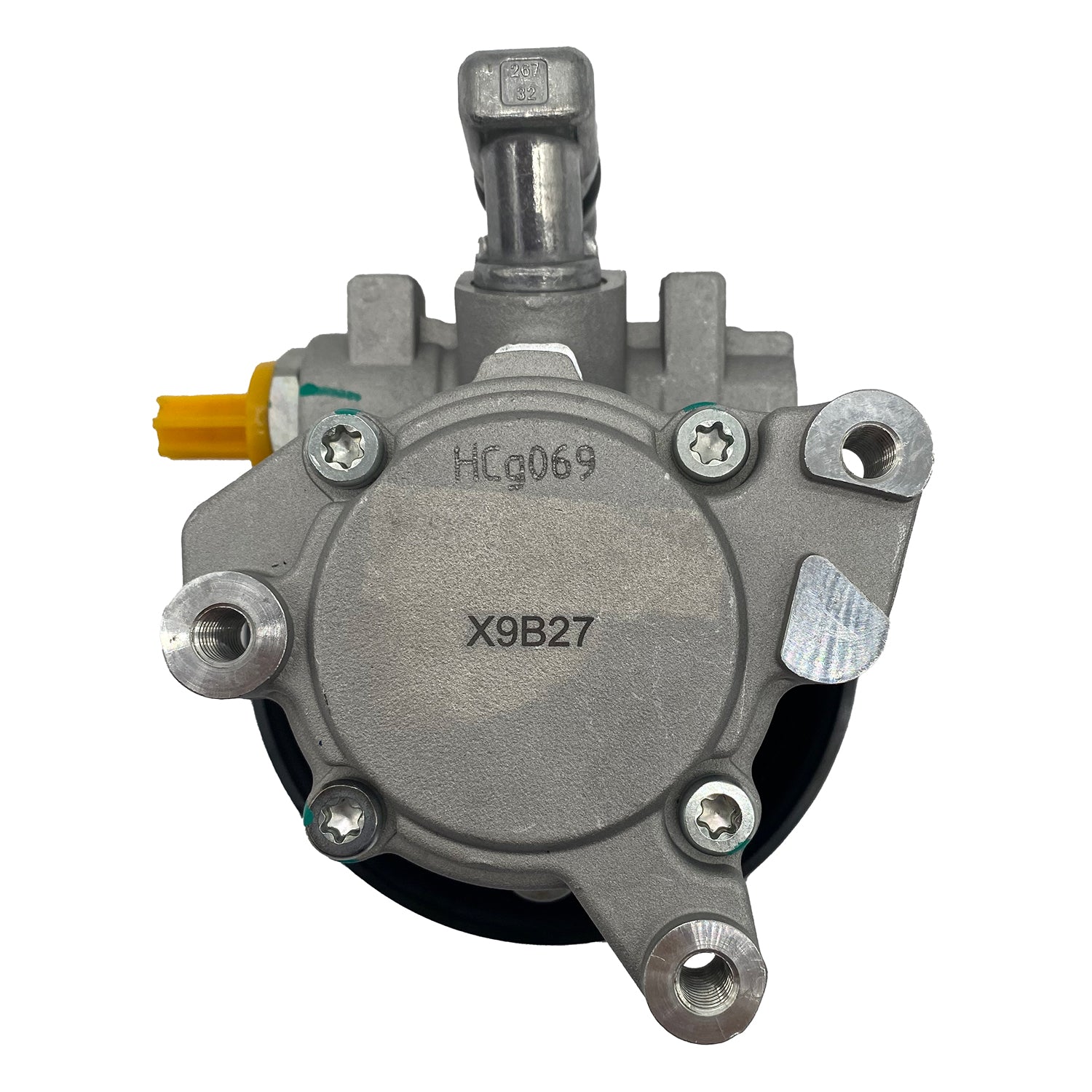

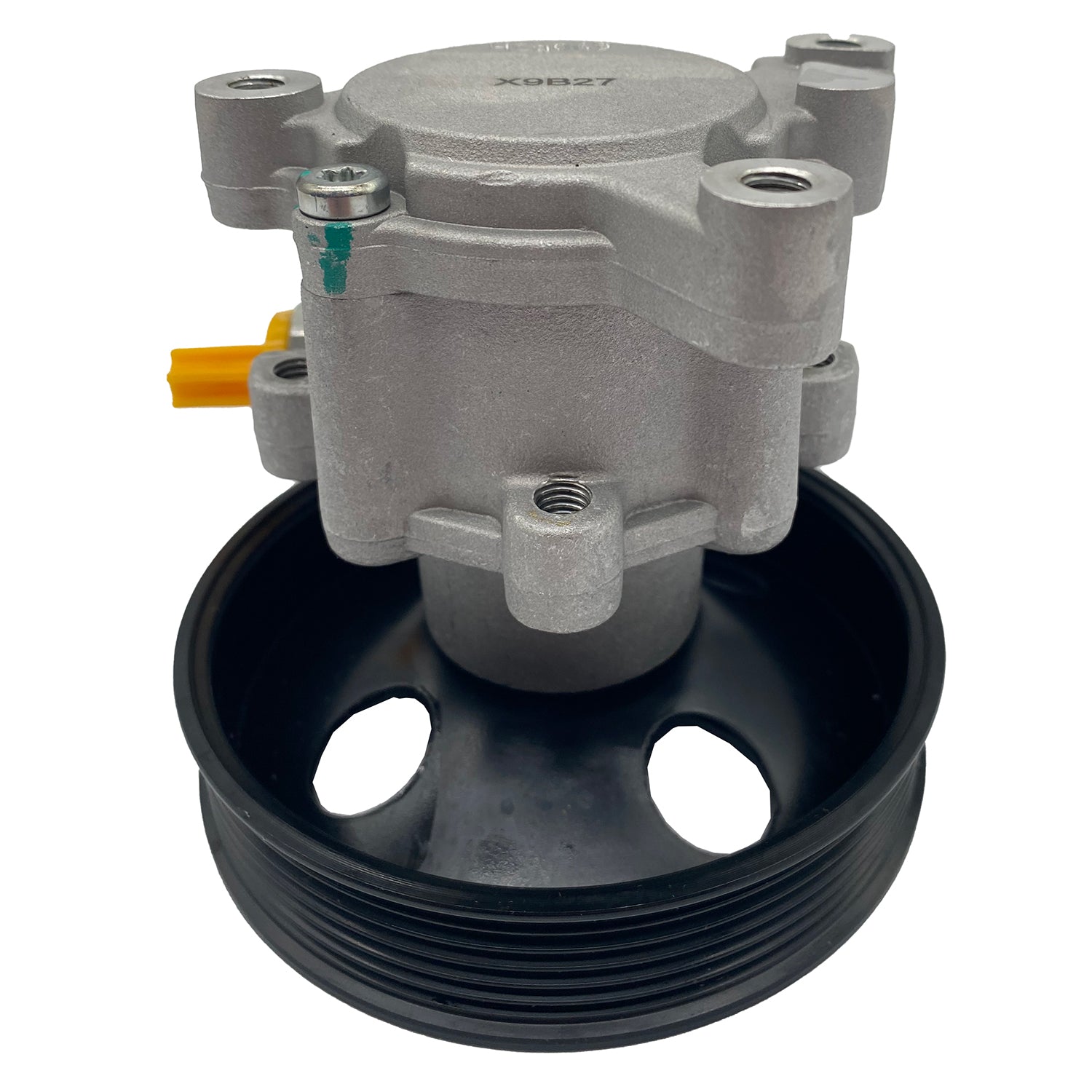

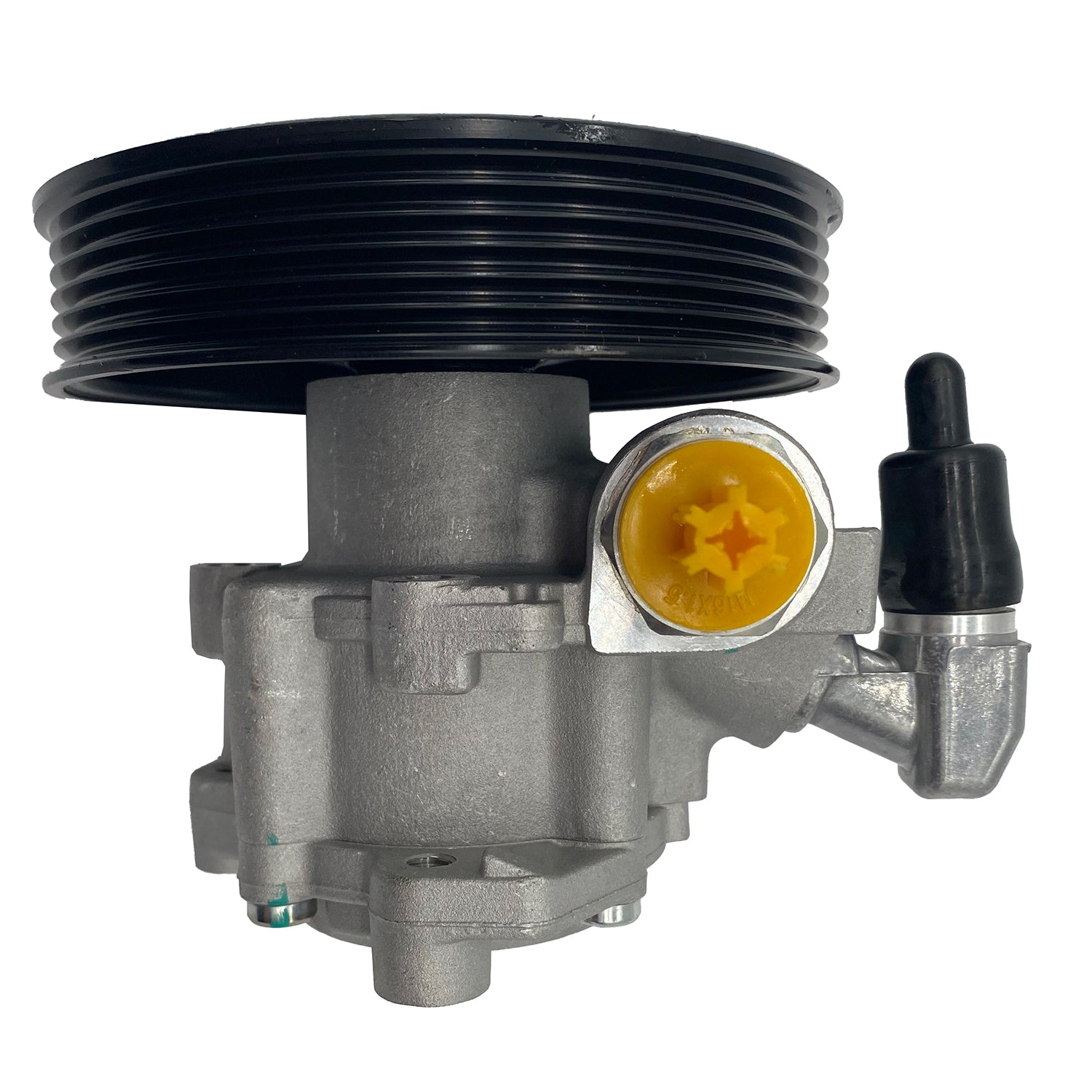

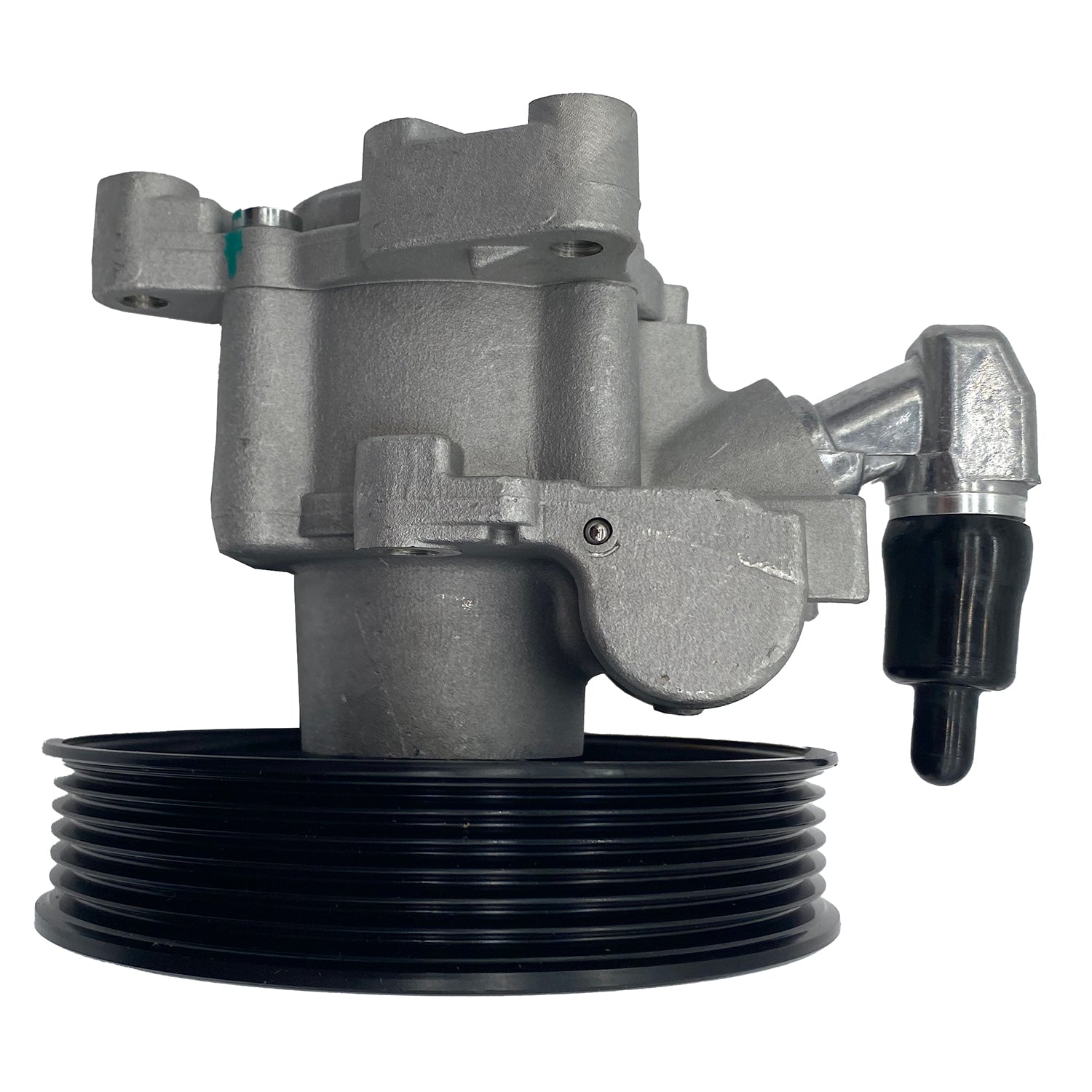

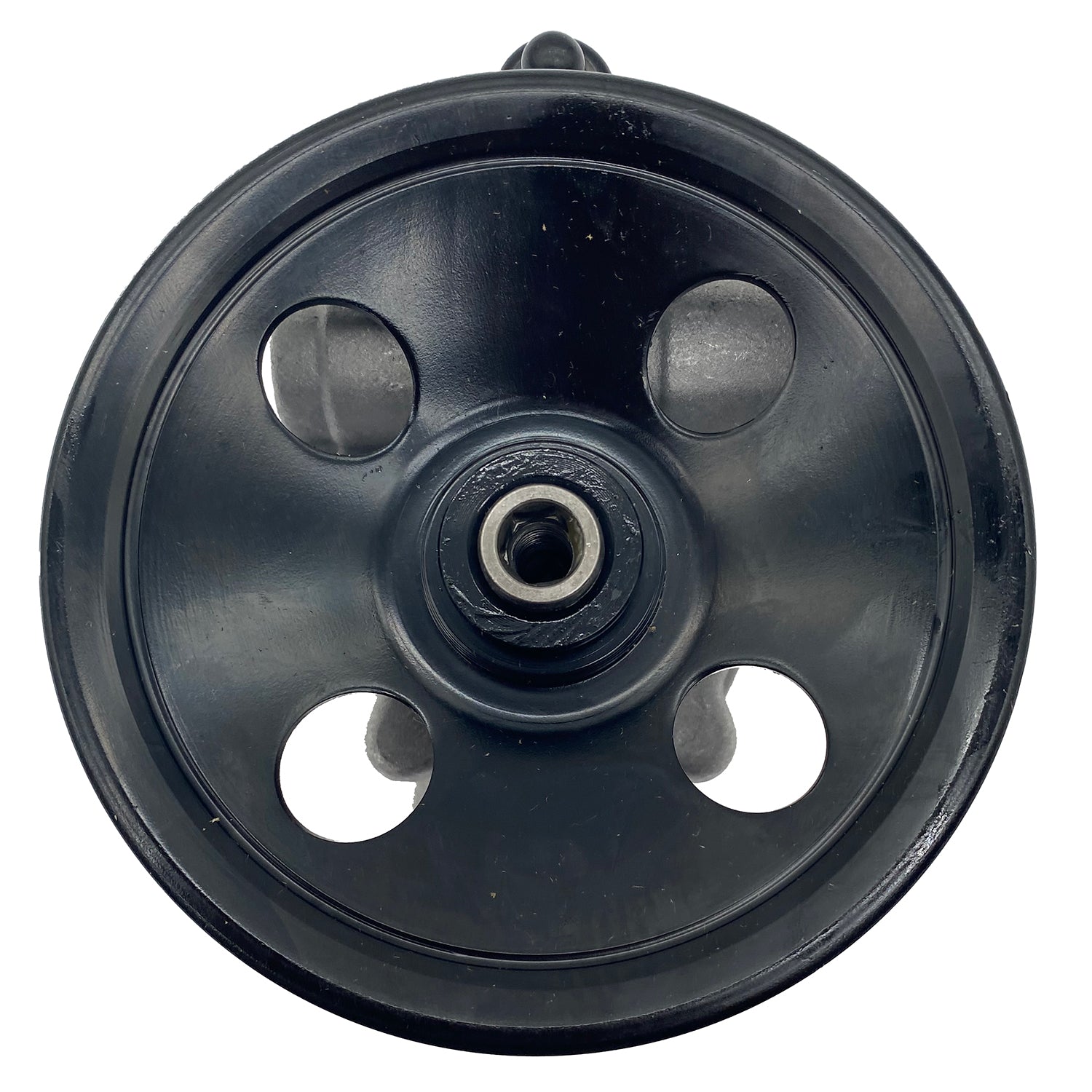

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96661M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96661M

SKU:96661M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Aluminum
Mounting Hardware Included No
Outlet Thread Size 16X1.5
Inlet Attachement Type Quick Connect
Outlet Attachment Type Threaded
Outlet Quantity 1
Pulley Attachement Type Press-on
Pulley Included No
Remote Reservoir No
Reservoir Included No

Application Info: Mercedes-Benz CL500 (2000-01), E320 (2003-05), E500 (2003-06), E55 AMG (2004-06), S600 (2001) ***W/O Pulley, W/O Reservoir***

Interchange: 003 466 60 01, 004 466 14 01, 004 466 14 01 88

BBB Cross-Reference: 990-0695

Cardone Cross-Reference: 21-5361

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
