MAVAL

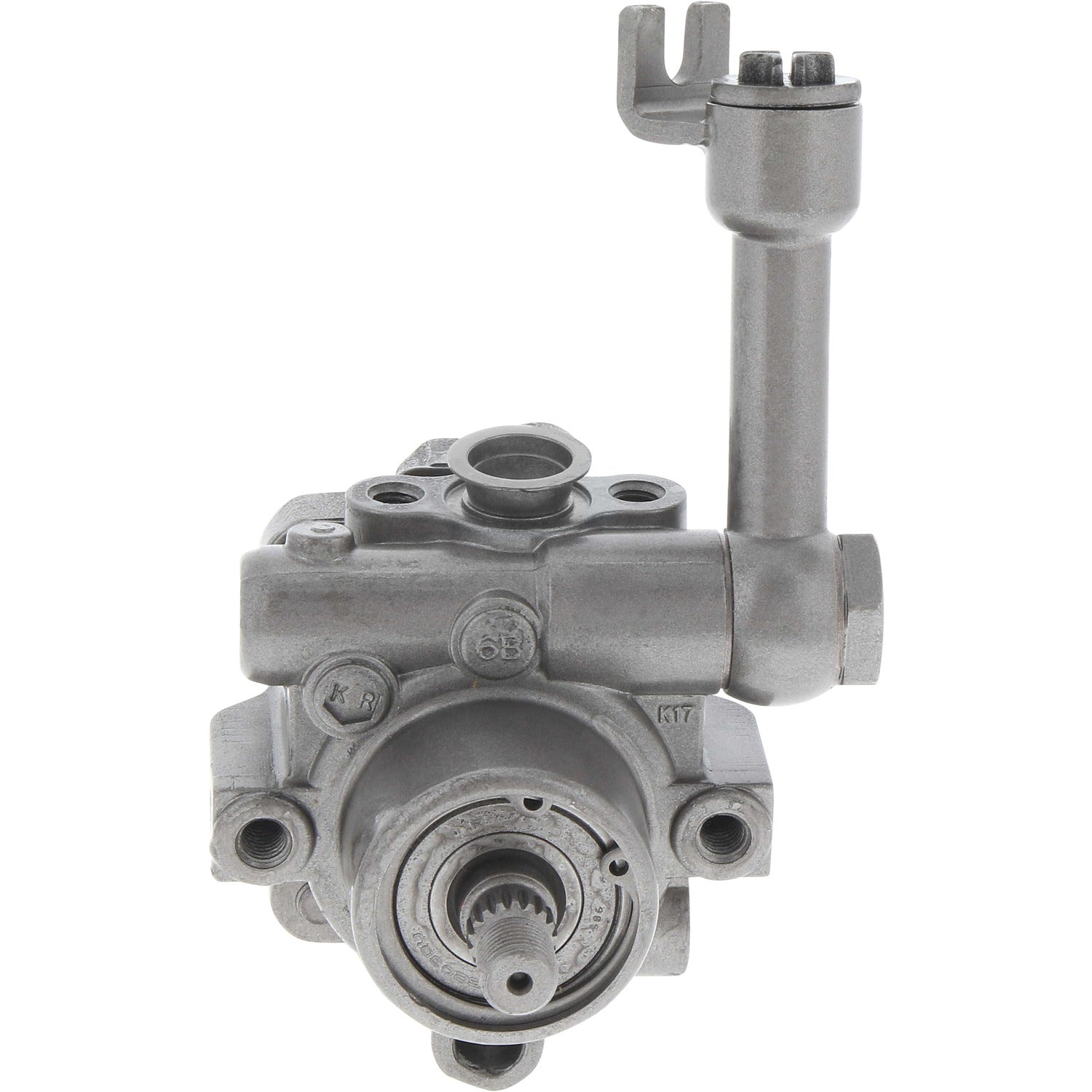

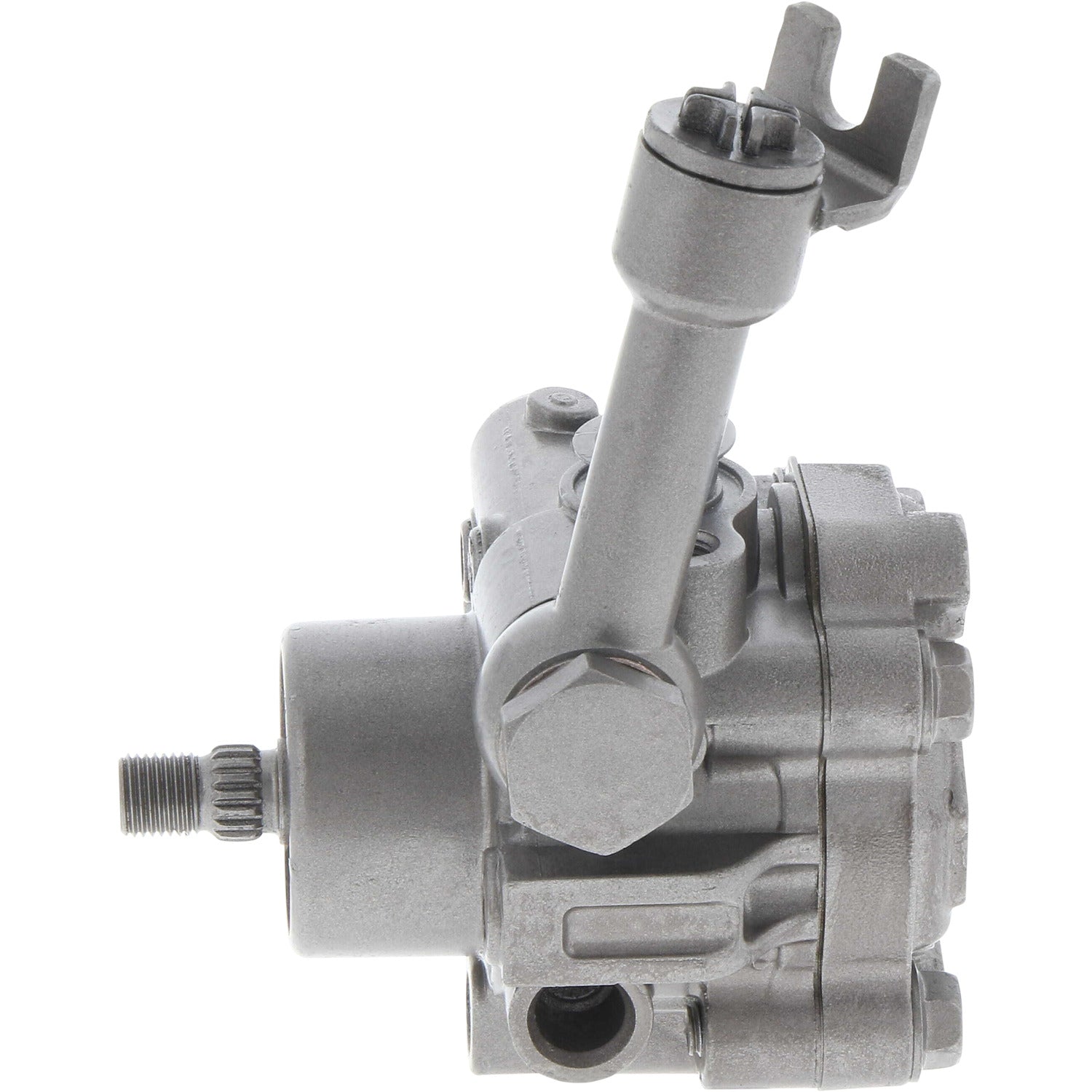

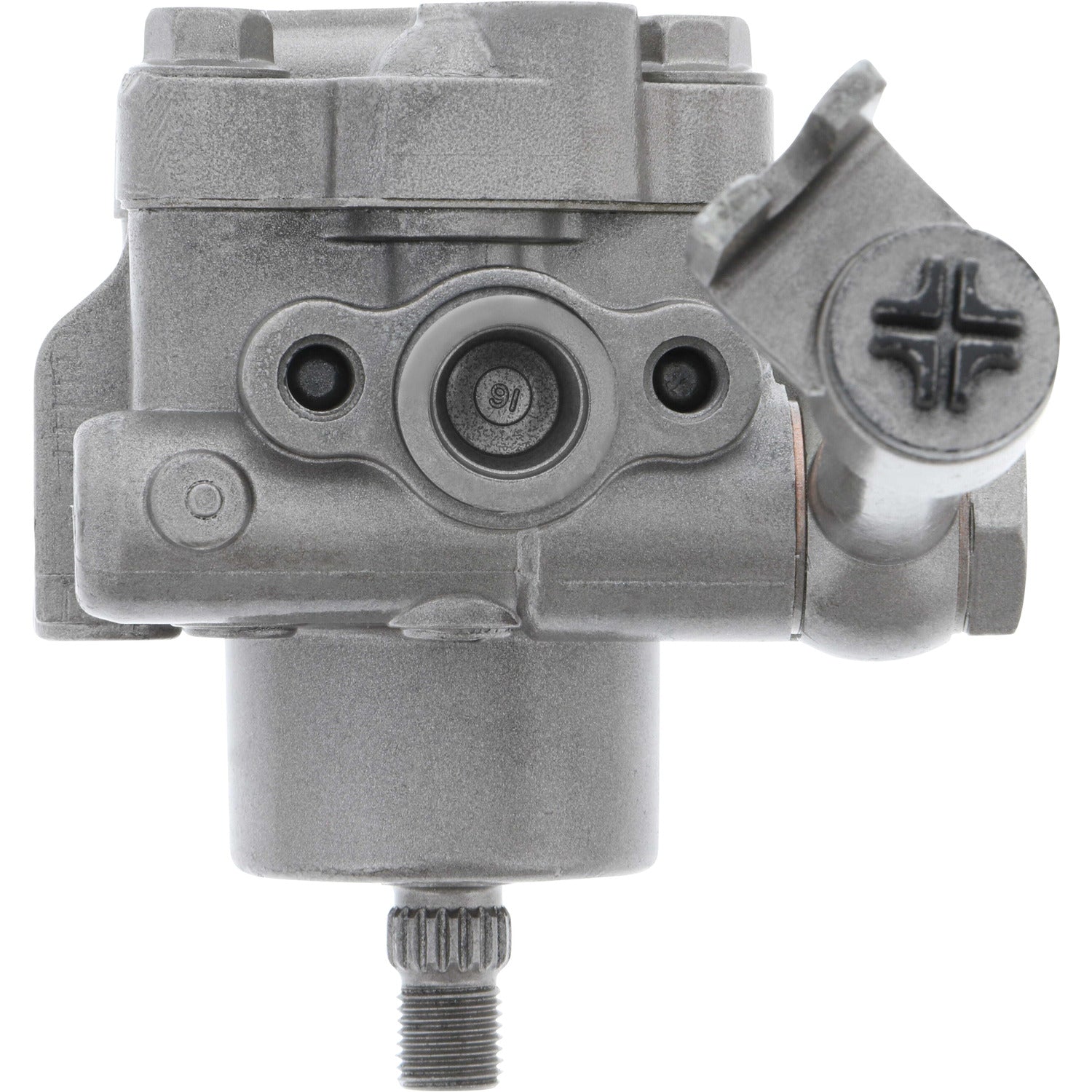

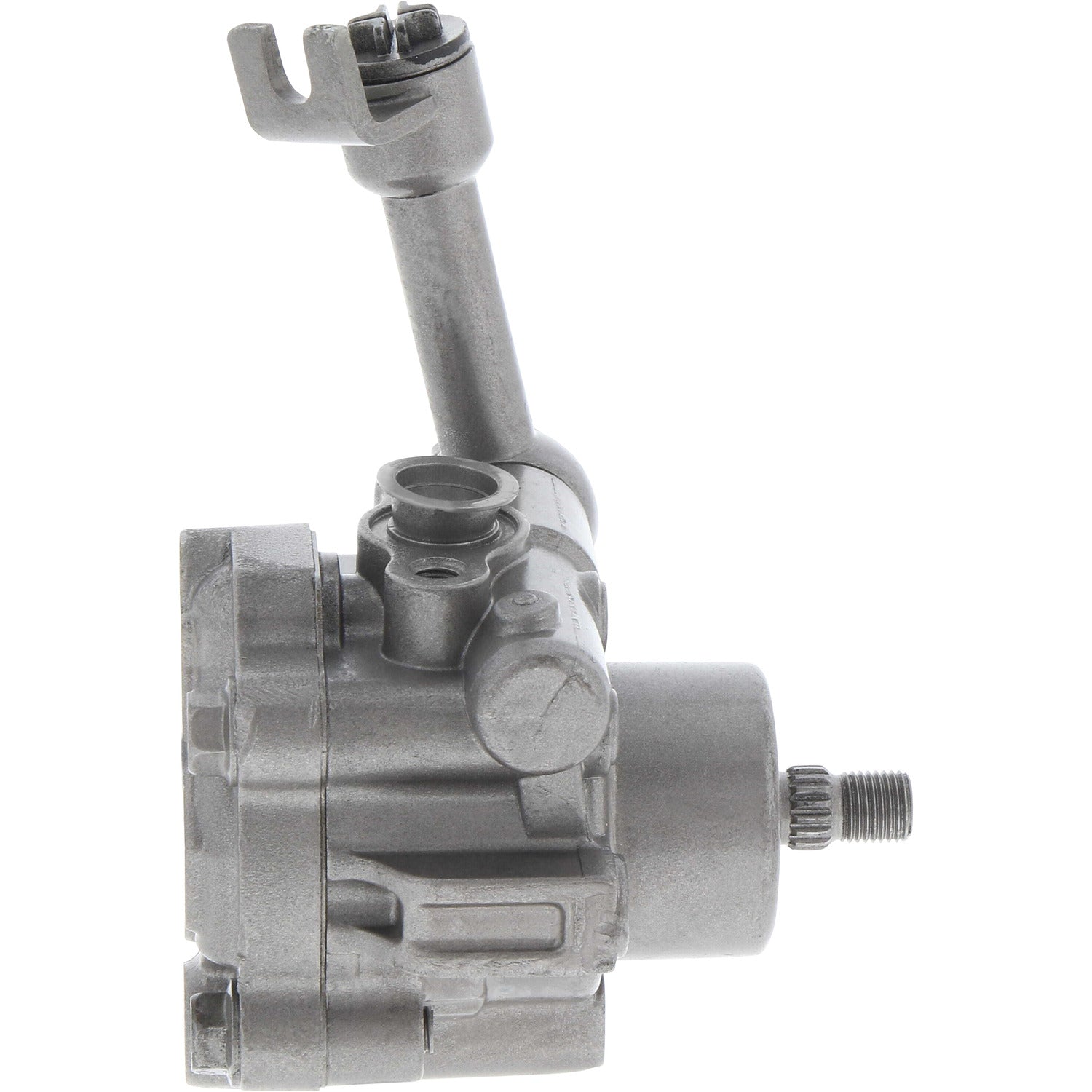

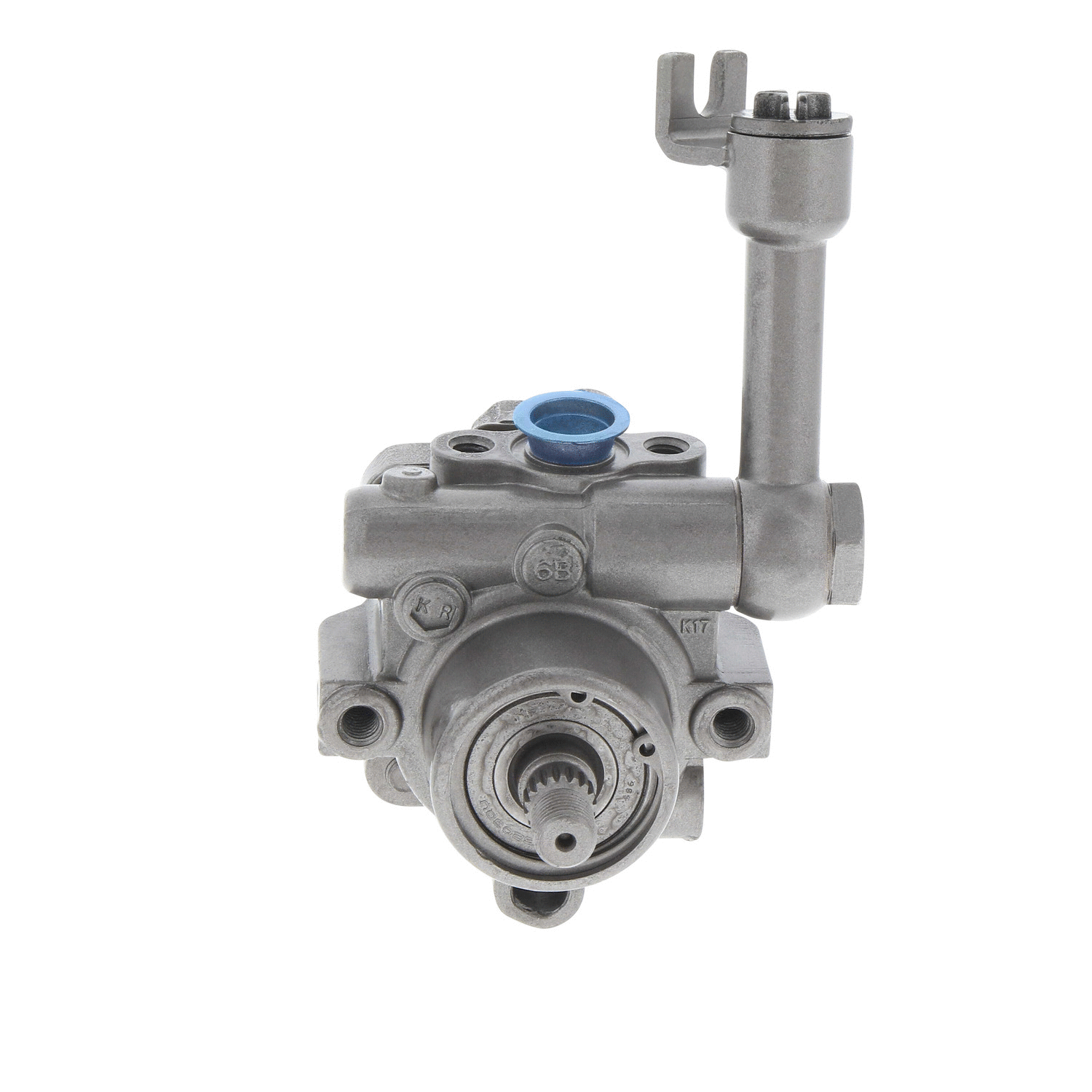

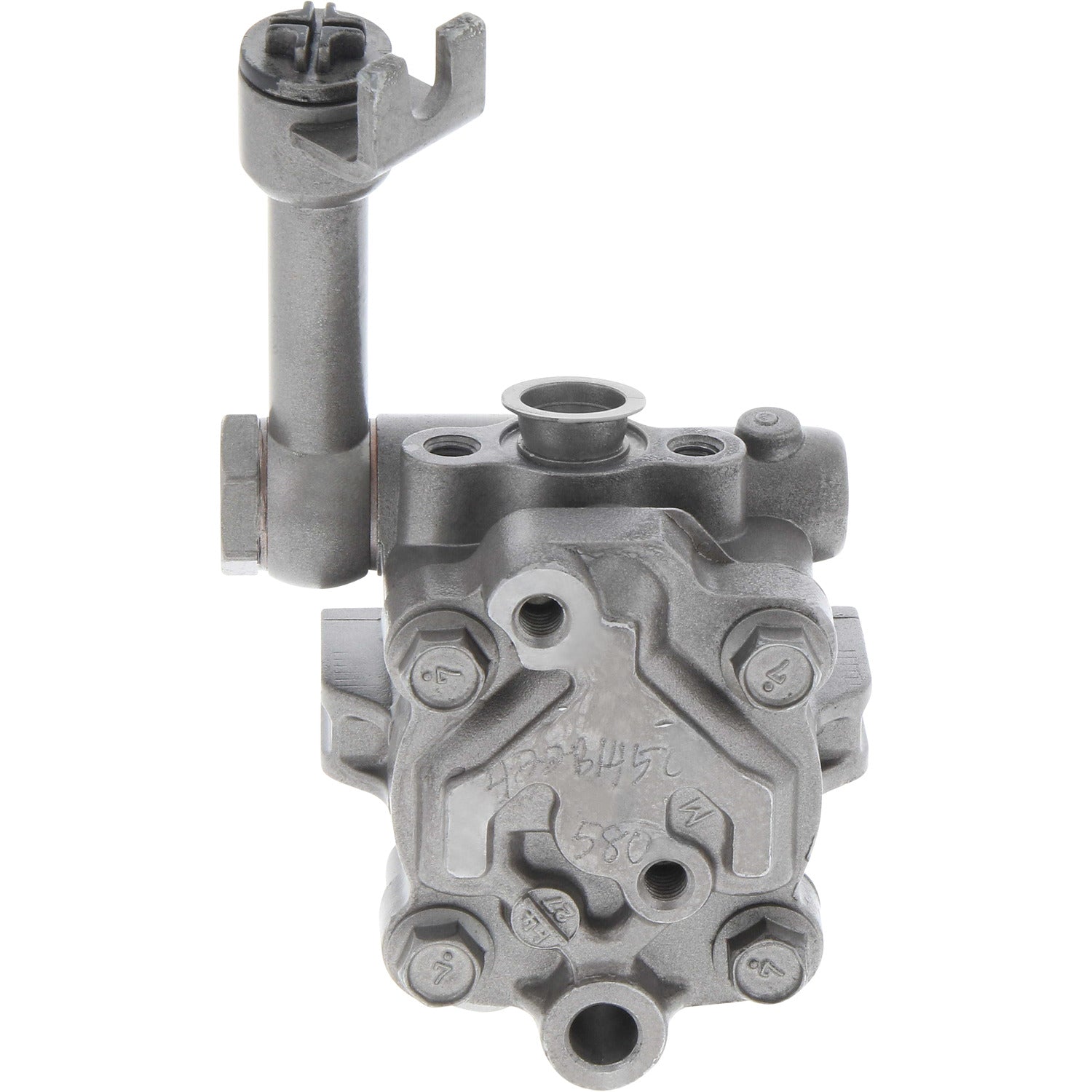

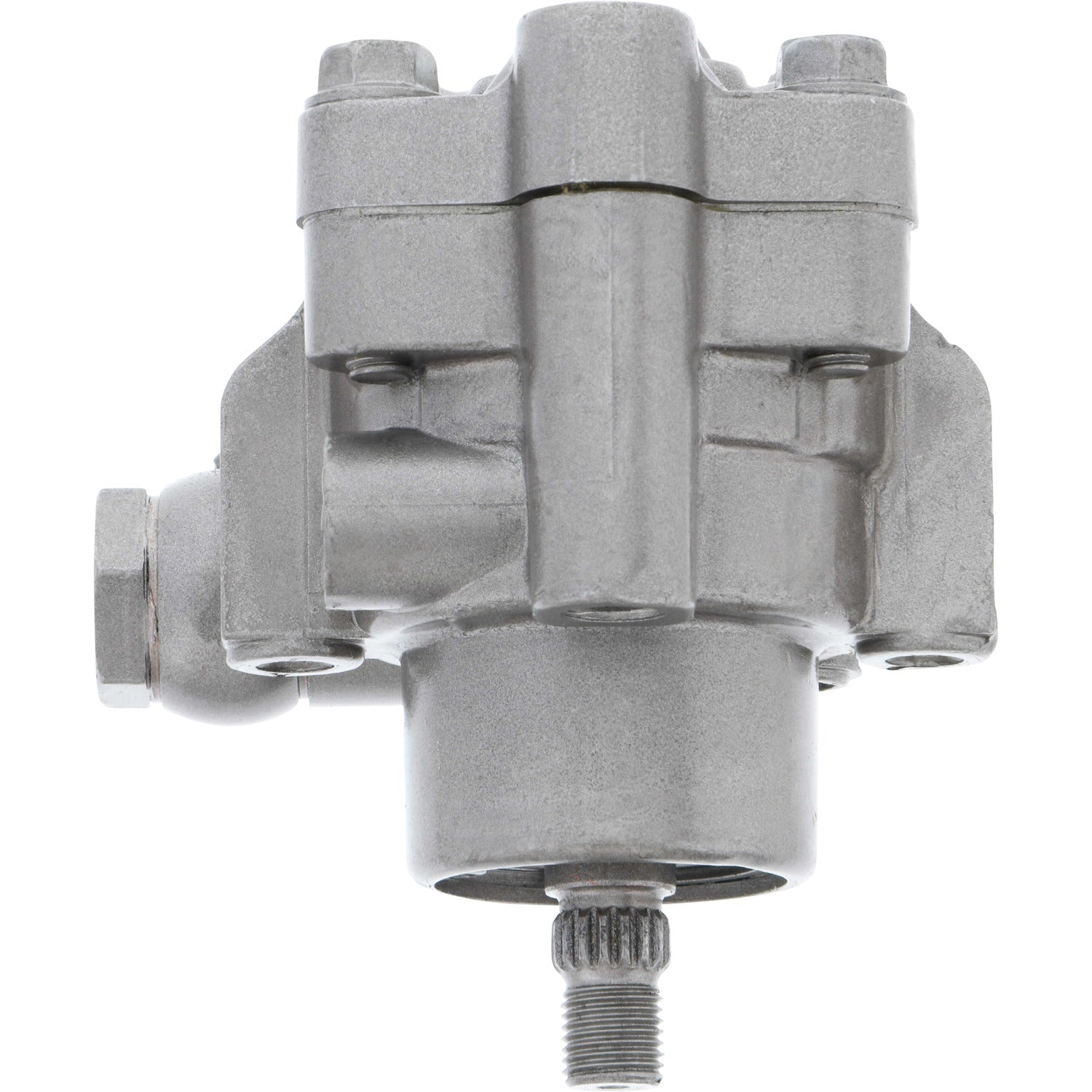

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96580M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96580M

SKU:96580M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type Washer
Housing Material Aluminum
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Pulley Attachment Type Bolt-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No

Application Info: Nissan Quest (2004-09) ***W/O Pulley, W/O Reservoir***

Interchange: 49110-ZF000, 49110-CK000

BBB Cross-Reference: 990-0663

Cardone Cross-Reference: 21-5407

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
