MAVAL

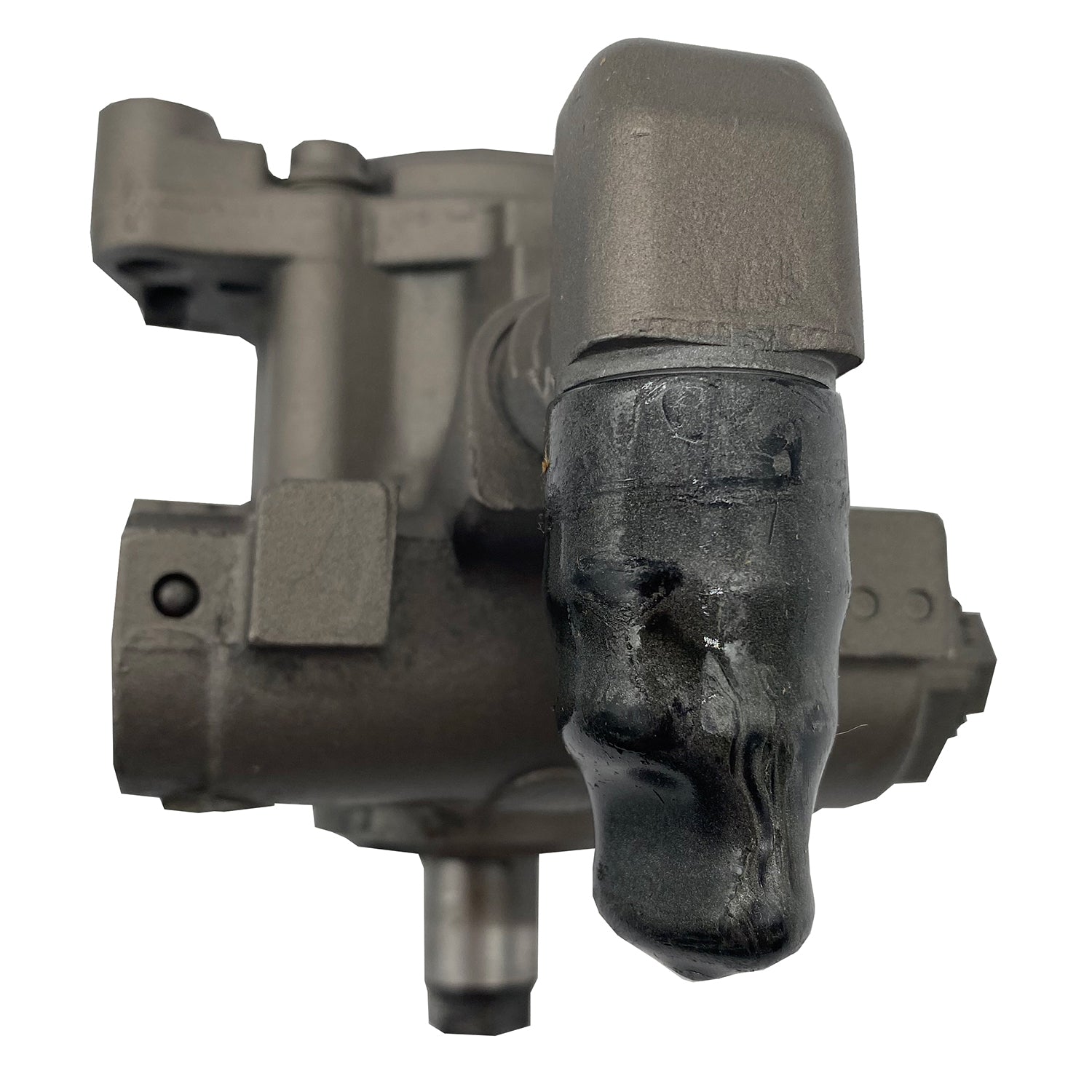

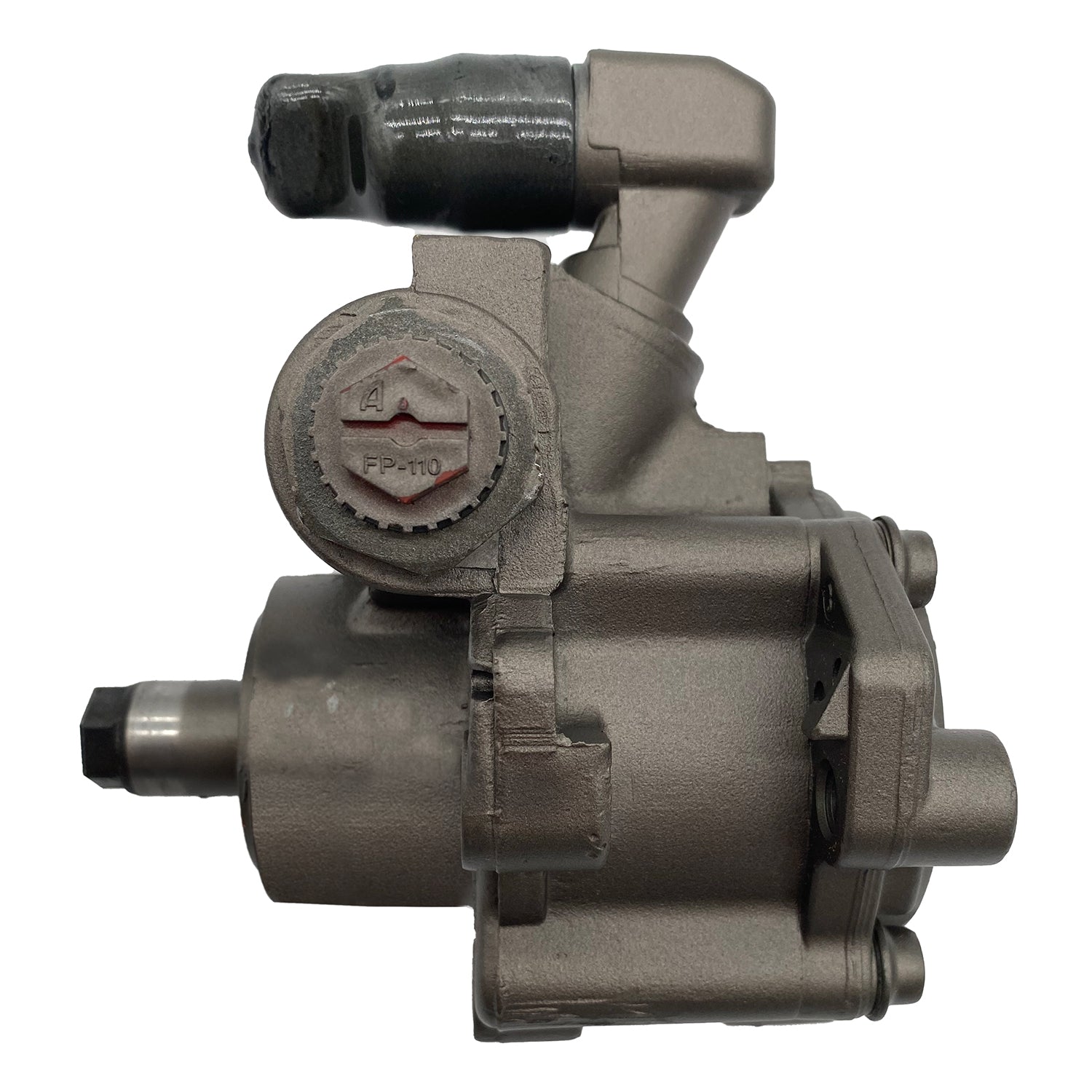

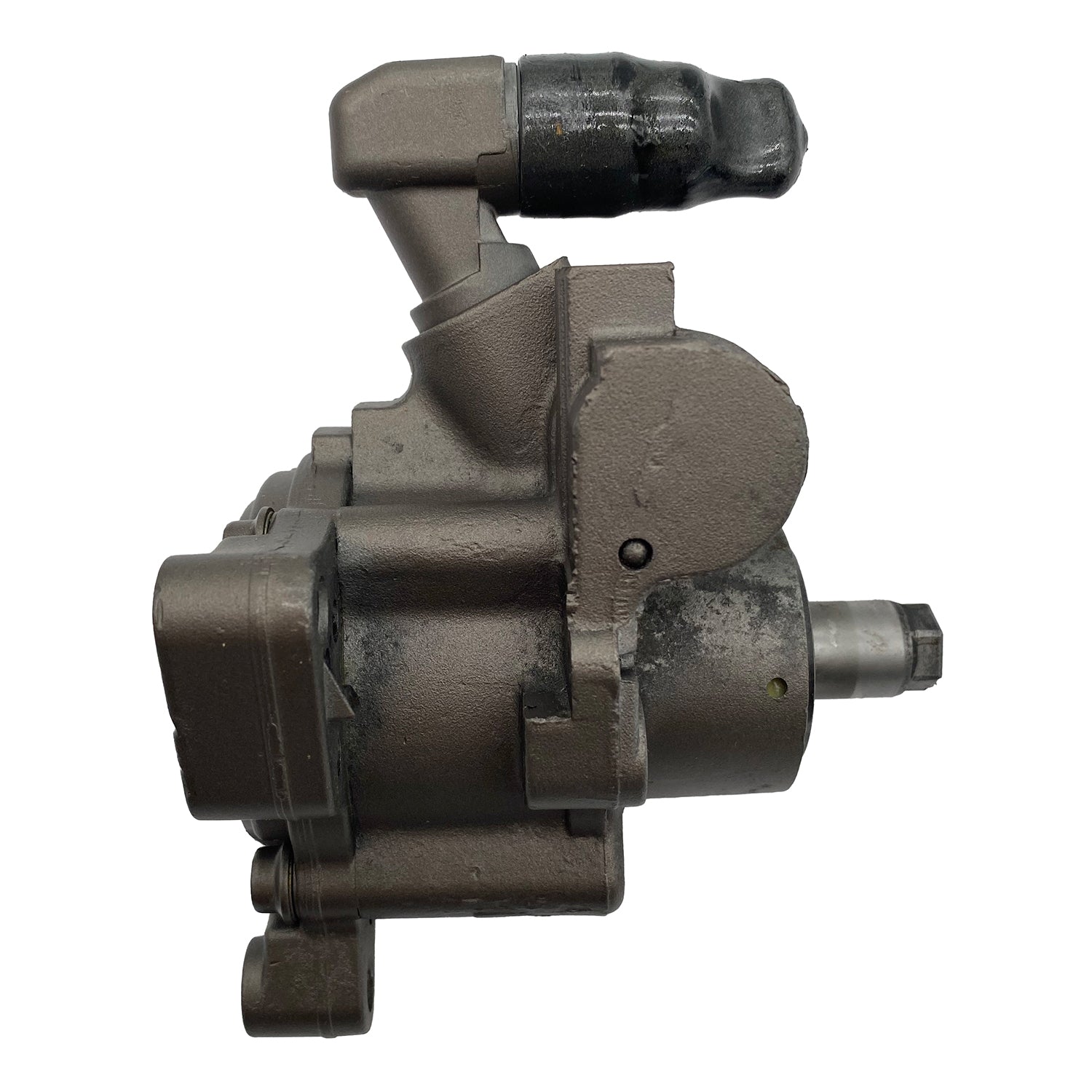

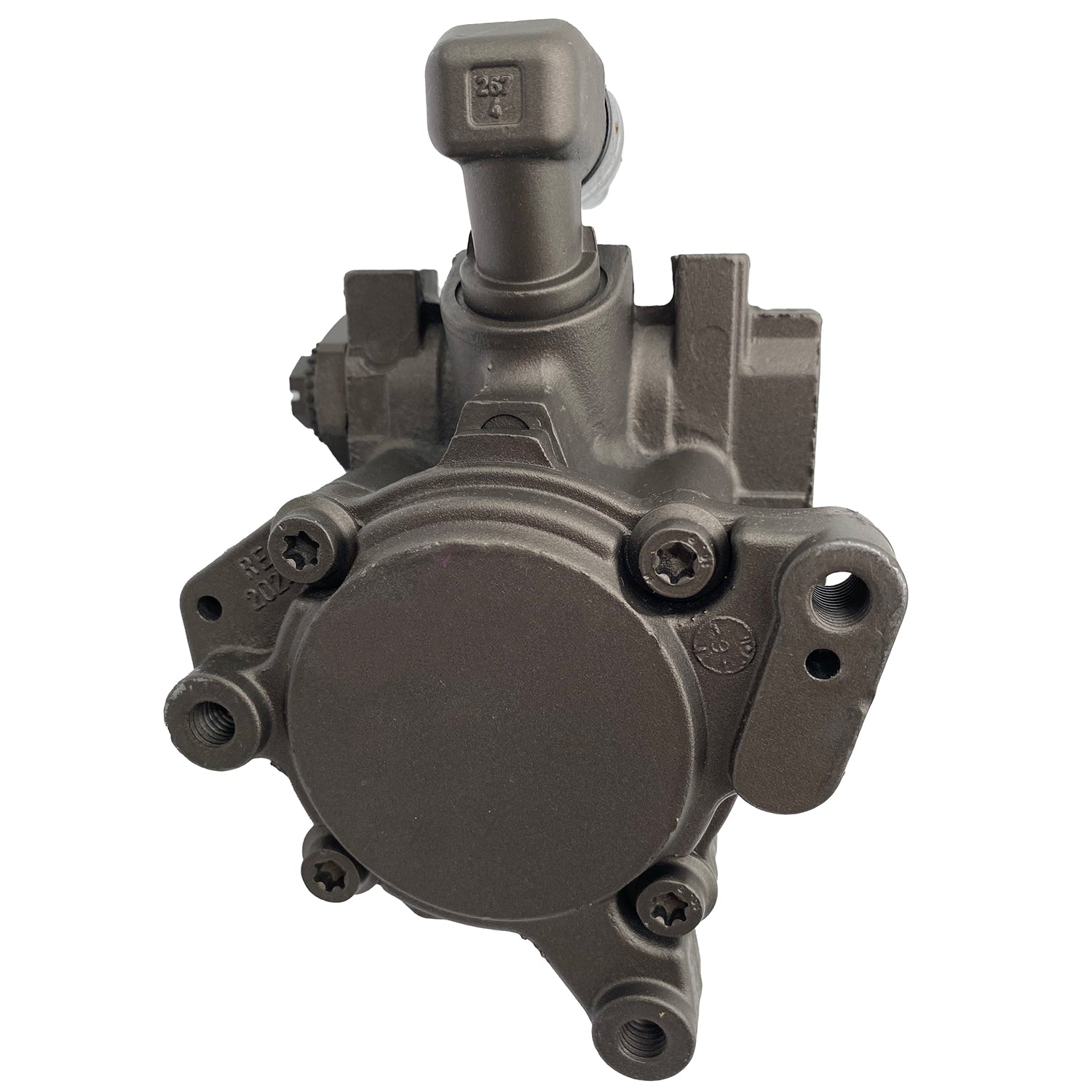

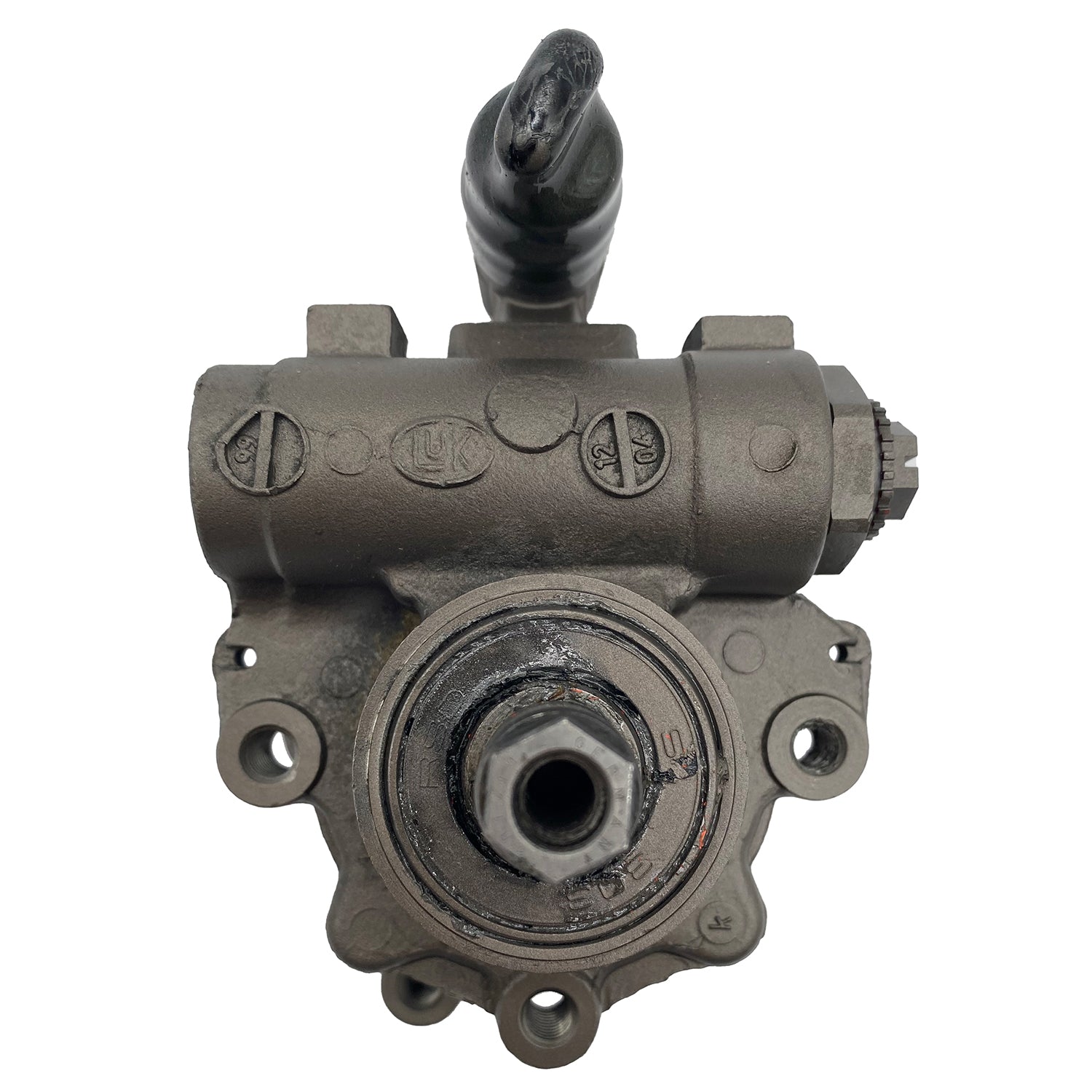

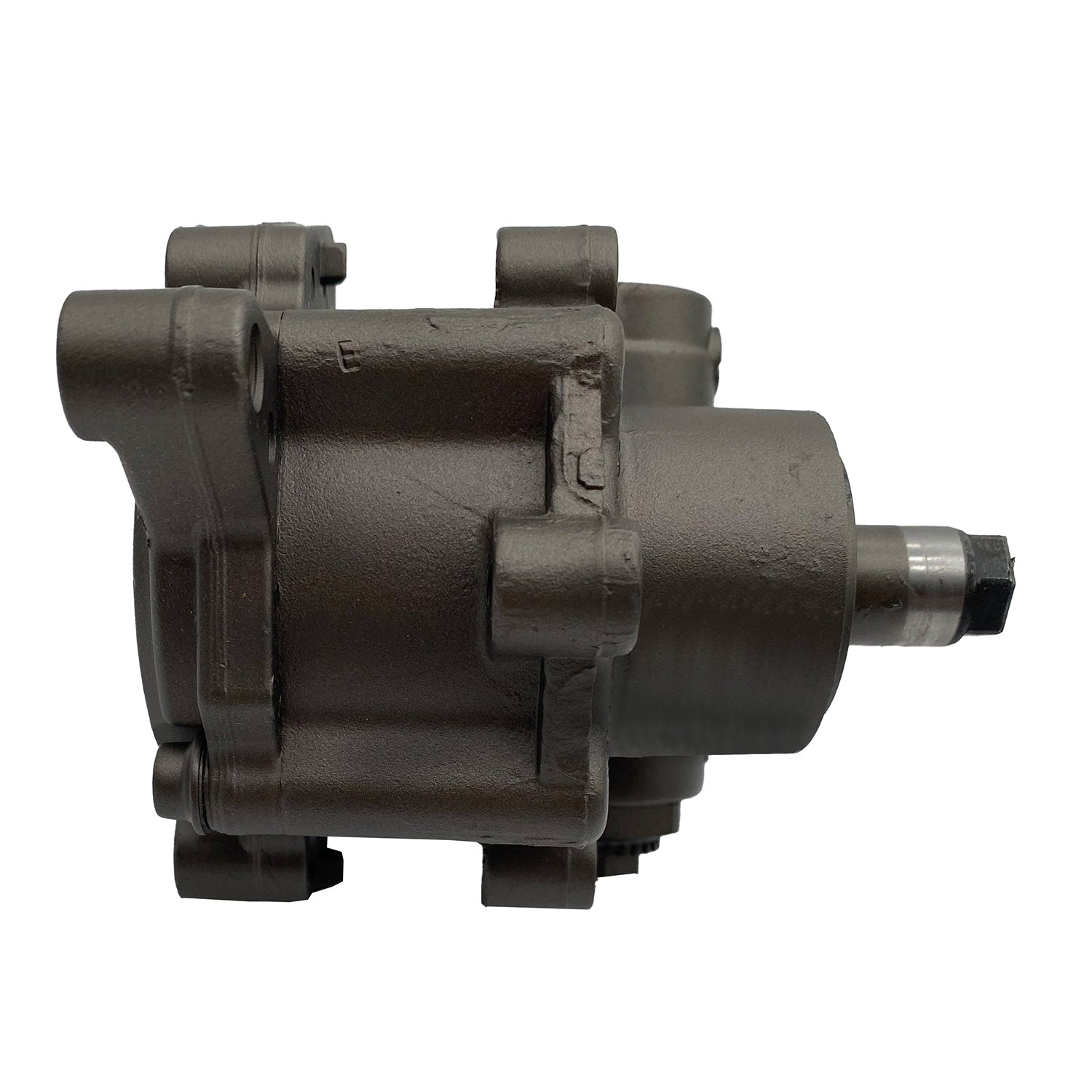

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96530M
Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96530M
SKU:96530M
MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.
Hose Port Type | O-Ring |
Housing Material | Aluminum |
Outlet Thread Size | 16X1.5 |
Inlet Attachement Type | Quick Connect |
Outlet Attachment Type | Threaded |
Outlet Quantity | 1 |
Pulley Attachment Type | Press-on |
Pulley Included | No |
Remote Reservoir | No |
Reservoir Included | No |
Application Info: Mercedes S430 2000-2006 - LUK Pump w/o Self Le
Interchange: Mercedes-Benz - 002-466-86-01
BBB Cross-Reference: 990-0654
Cardone Cross-Reference: 21-5326
Instructions - 1 Instructions - 2
