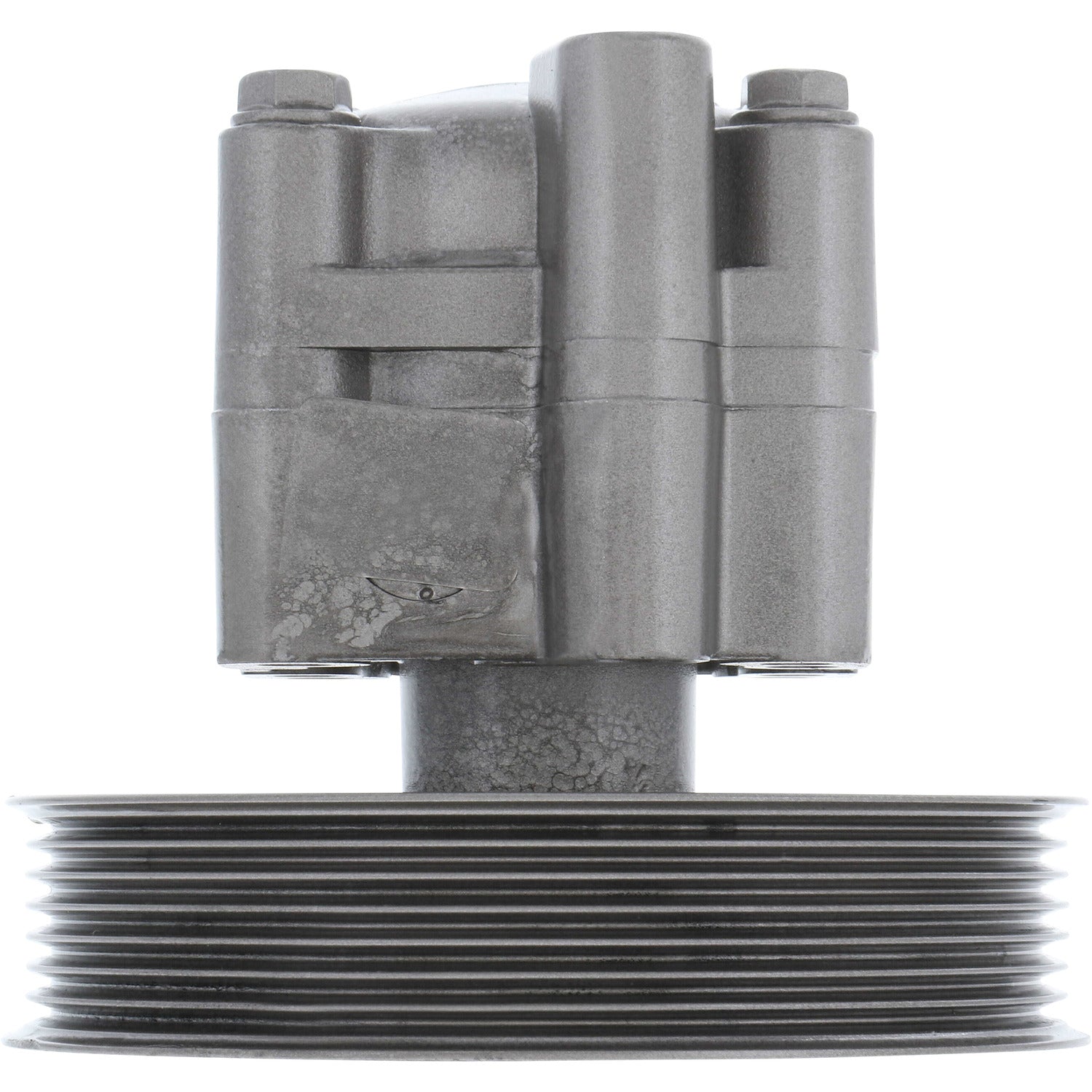

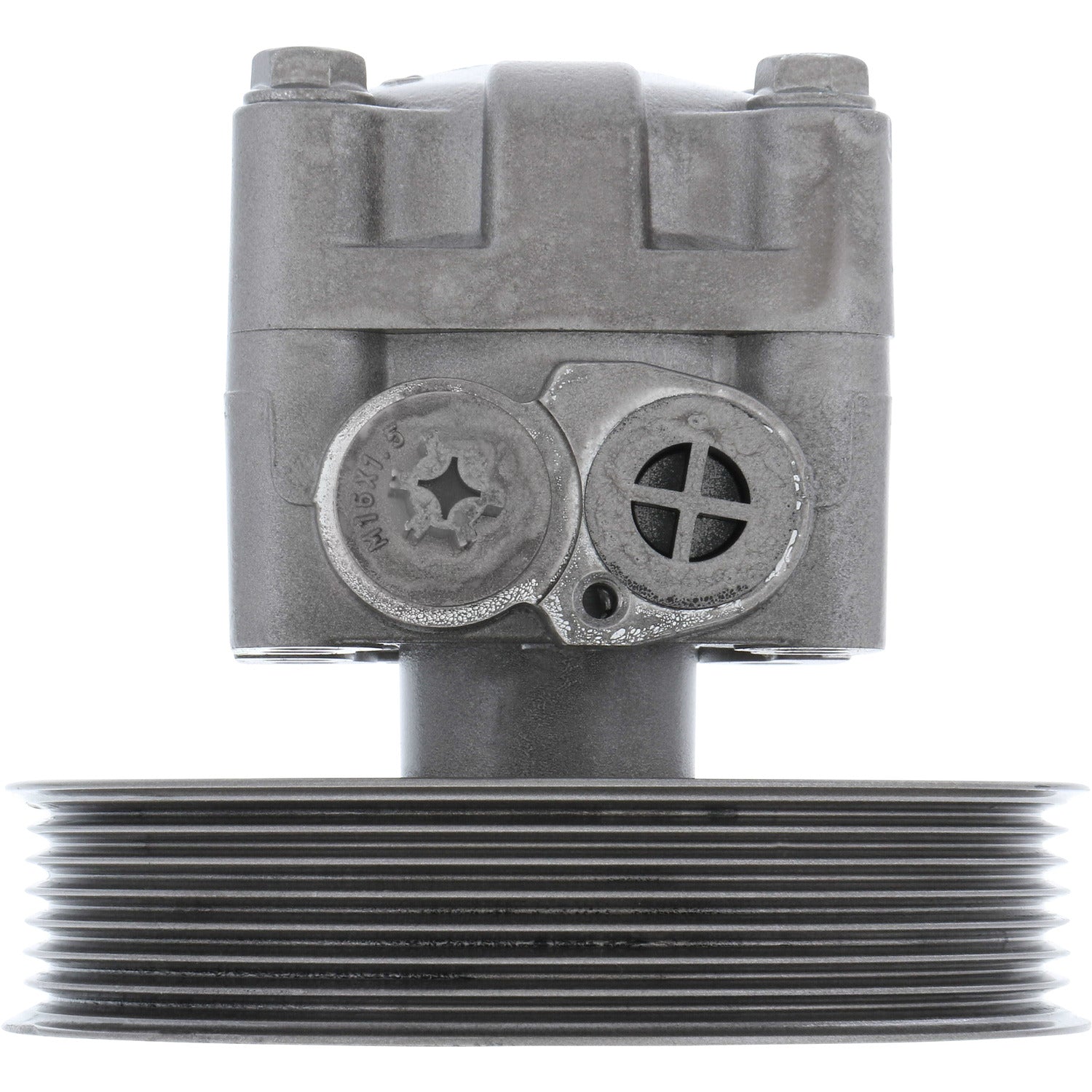

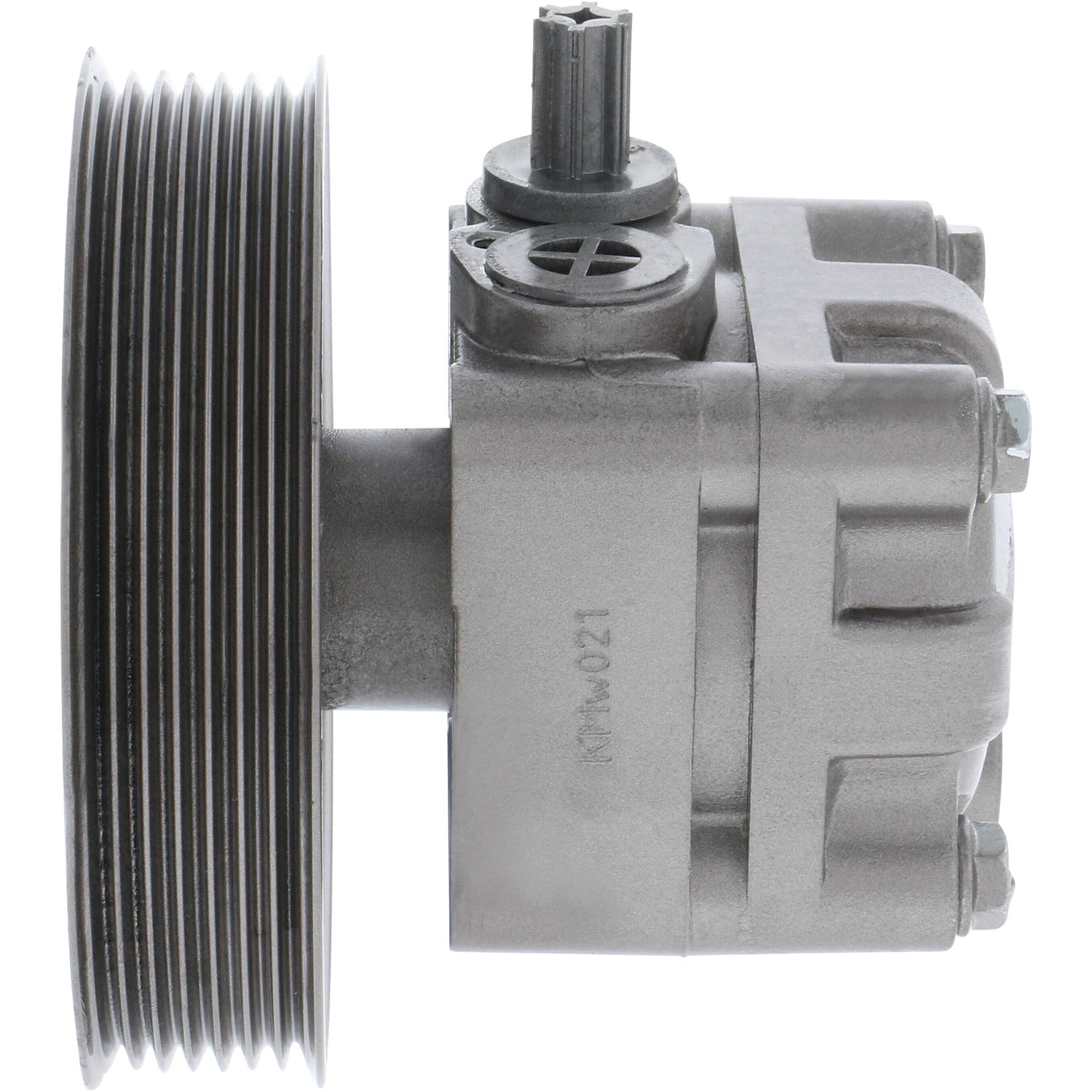

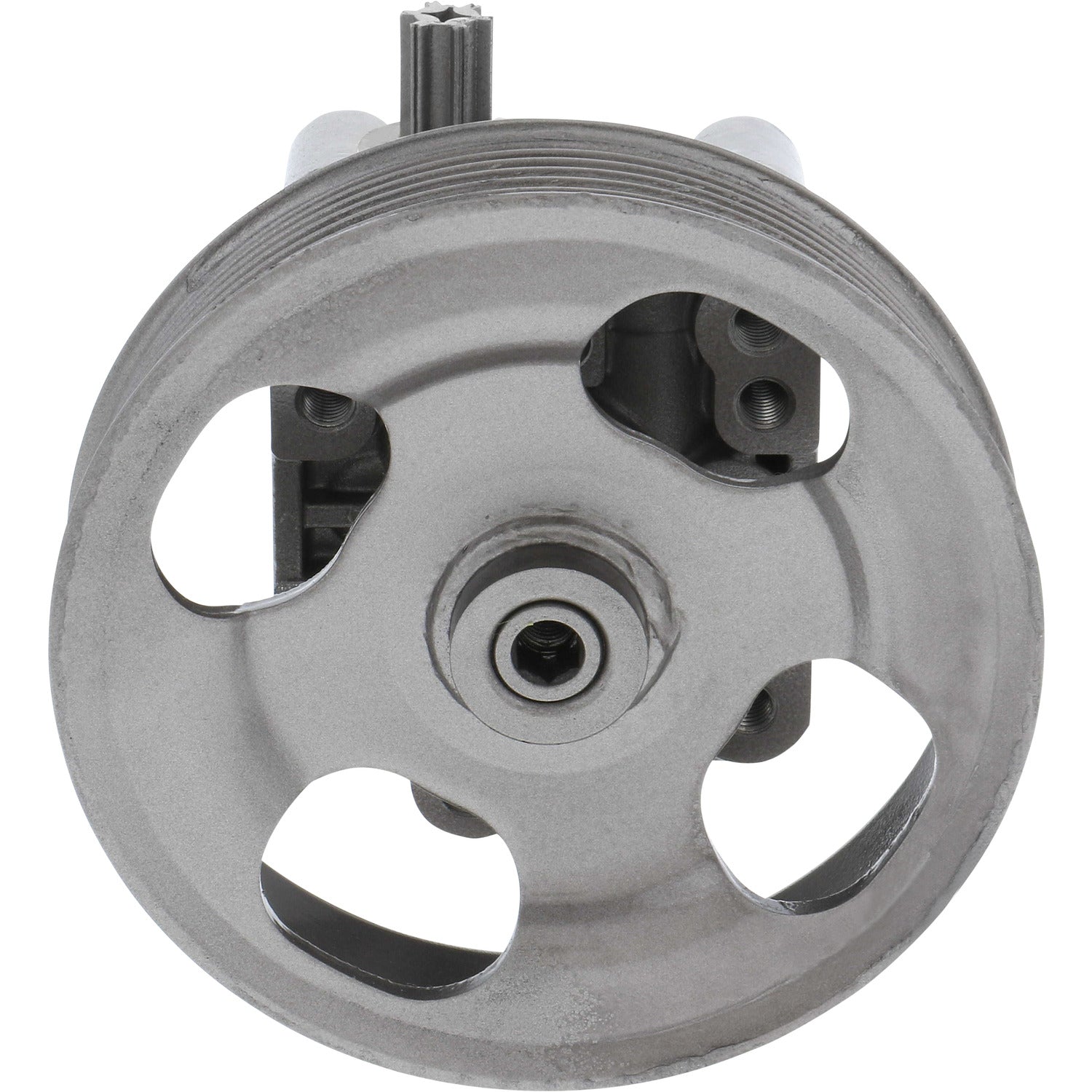

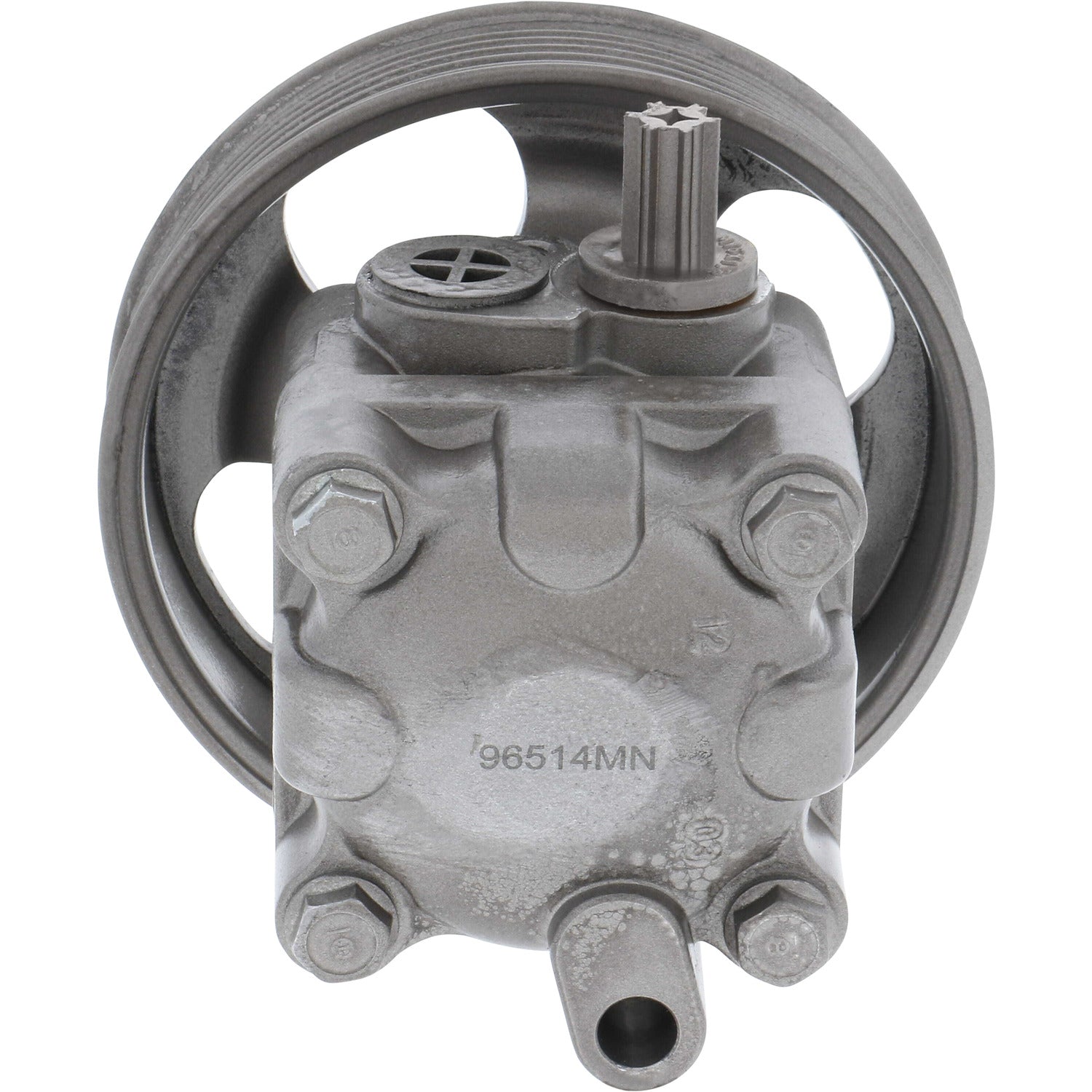

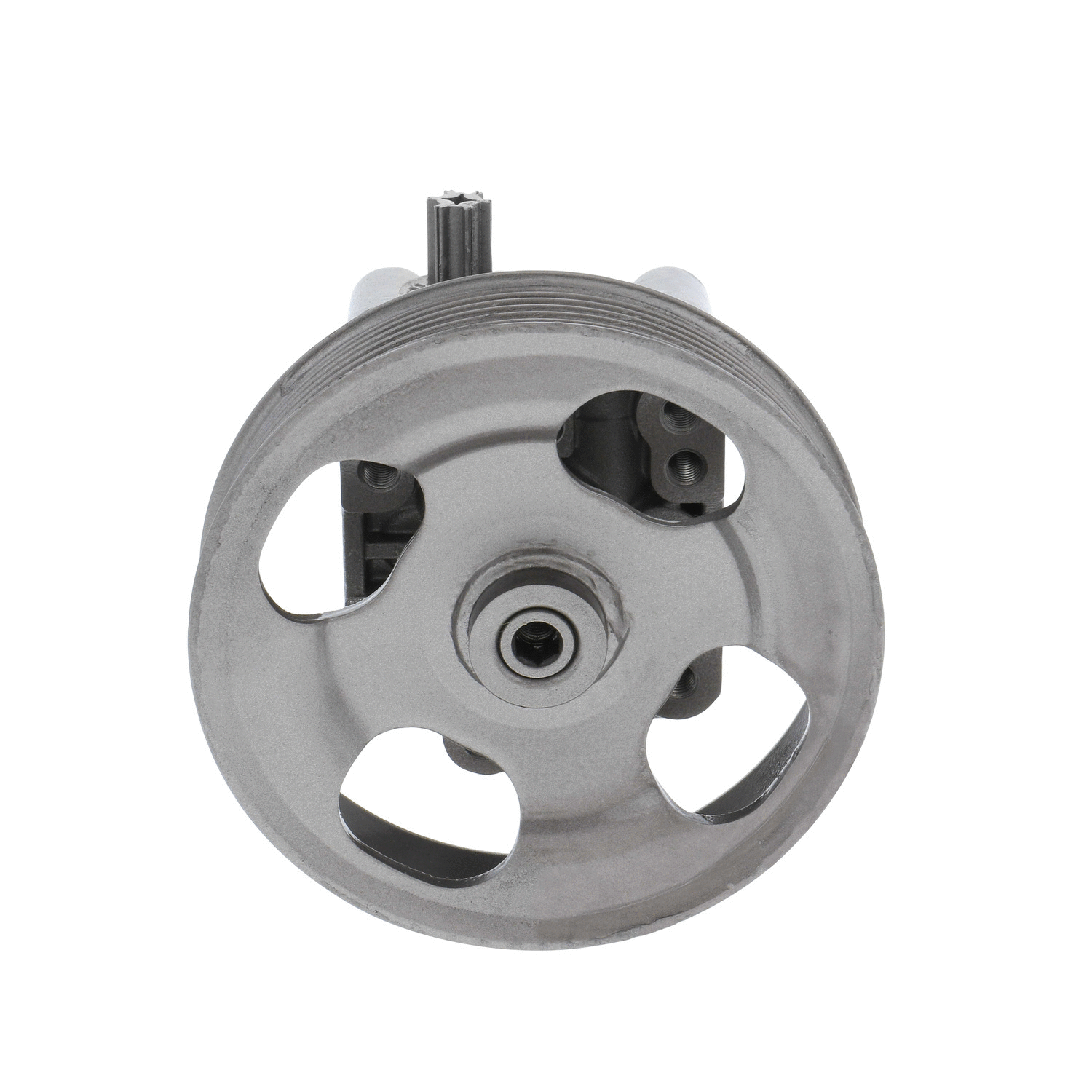

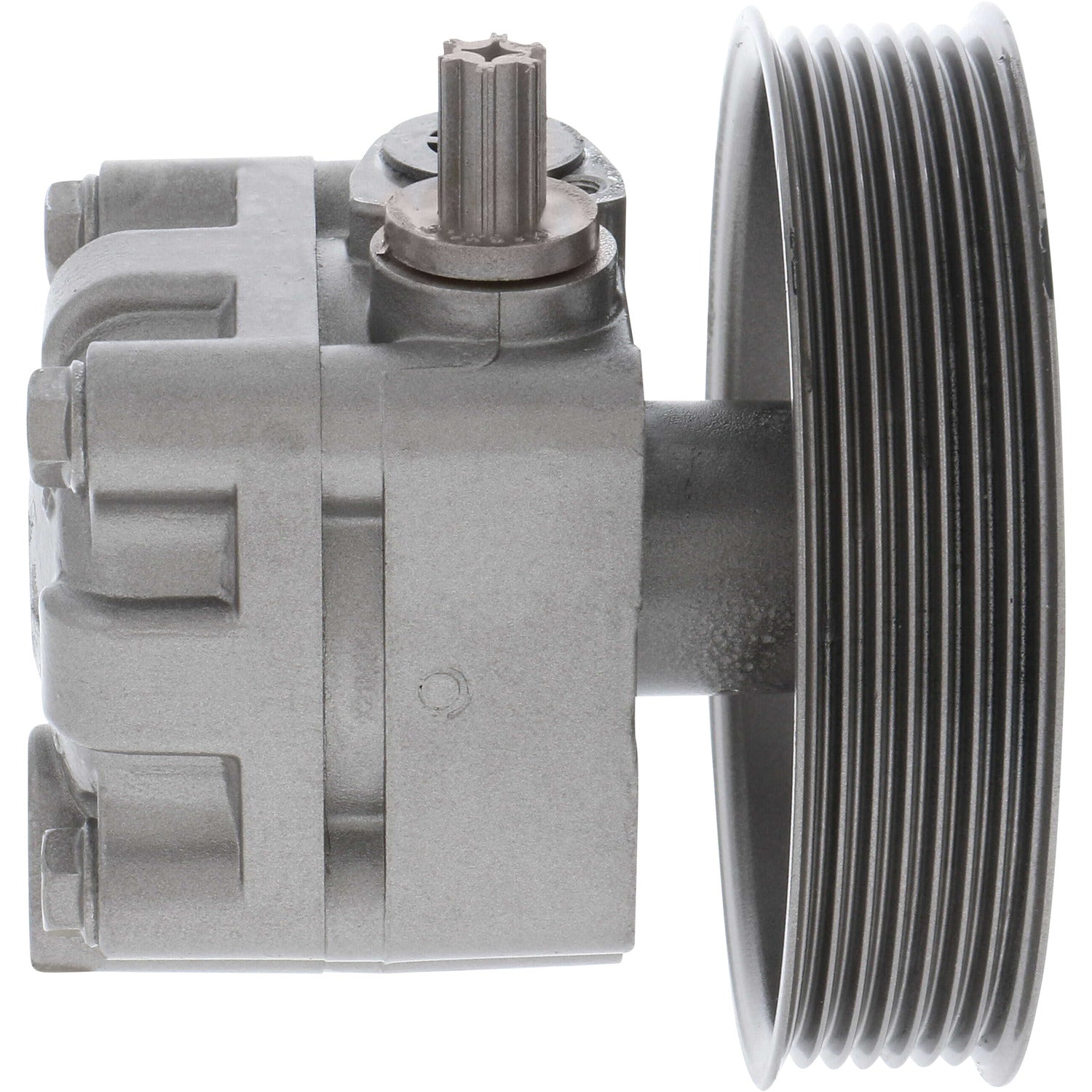

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96514M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Application Info: 2011-2013 INFINITI M37 ; 2013 INFINITI EX37 ; 2014-2016 INFINITI Q50 ; 2014-2017 INFINITI QX50; 2014-2019 INFINITI QX70(3.7); 2014-2015 INFINITI Q60 ; 2014-2019 INFINITI Q70 (Liter: 3.7 ); 2015-2019 INFINITI Q70L(3.7) ; 2015 INFINITI Q40 ; 2009-2010 INFINITI M35 ; 2008-2012 INFINITI EX35; 2007-2008 INFINITI G35 (Models Built after 12/2006) All Qualifier: with Pulley / Note: Without Reservoir,

Interchange: 49100-JK20A, 49110-1CB0B, 49110-JK200

BBB Cross-Reference: 990-0735

Cardone Cross-Reference: 21-394

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
