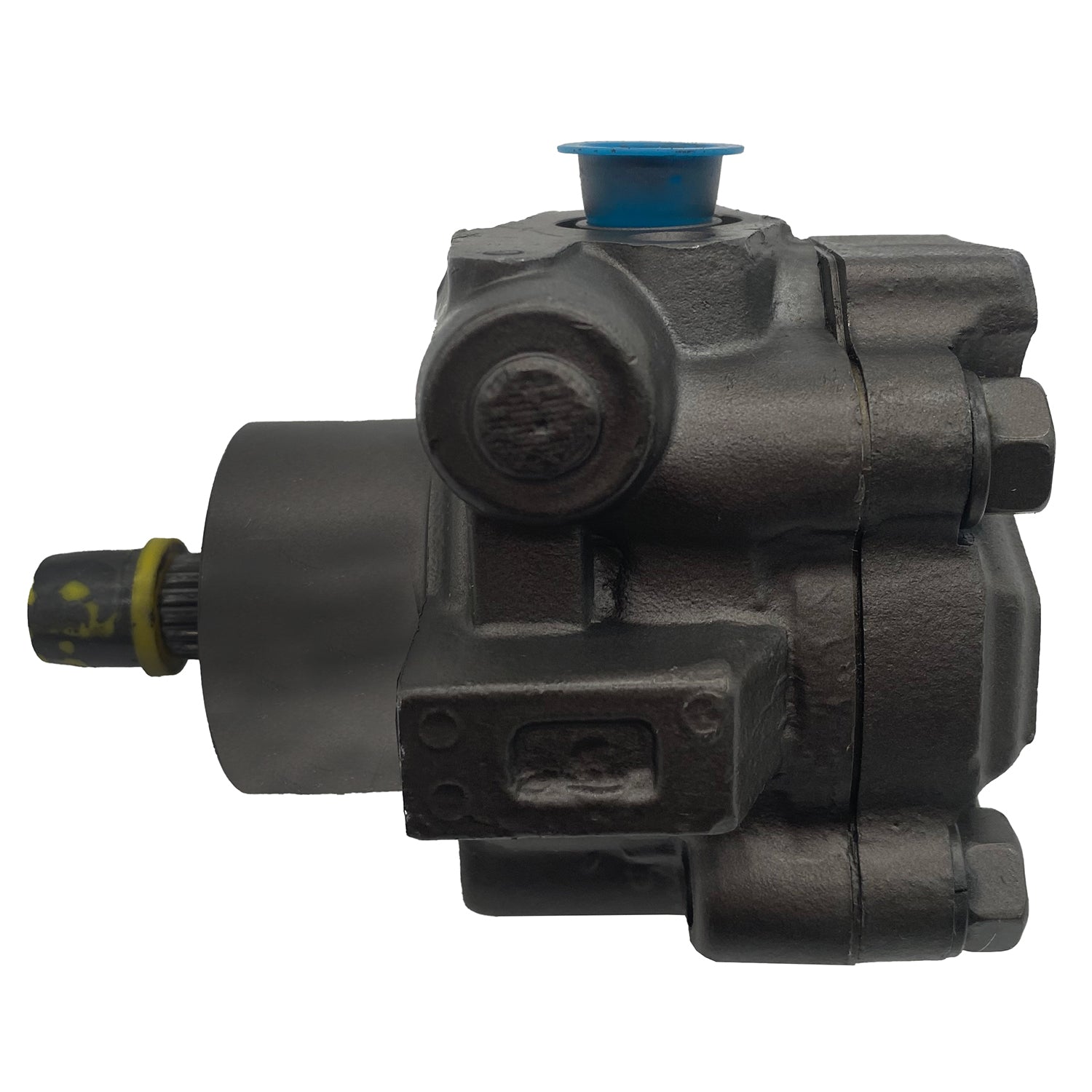

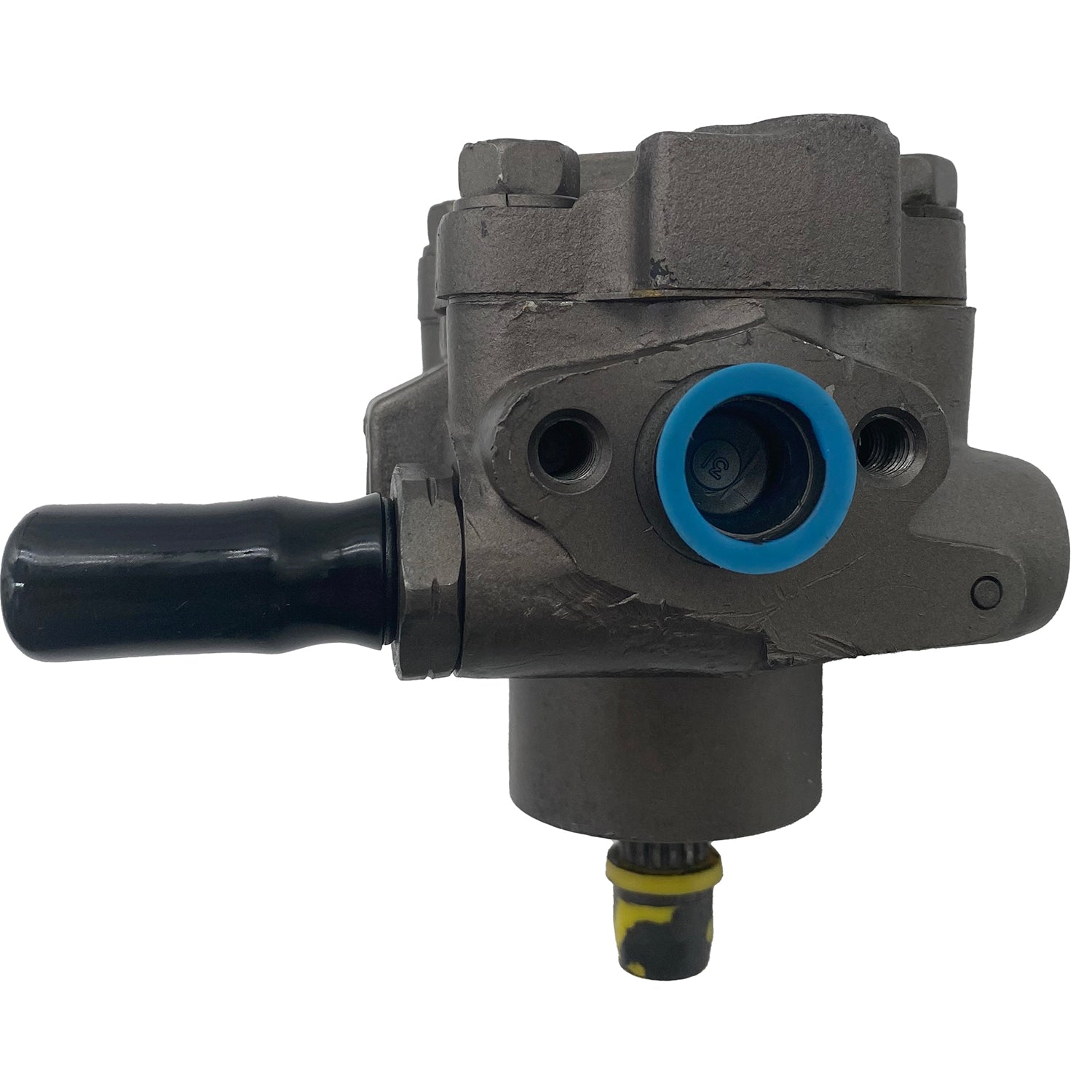

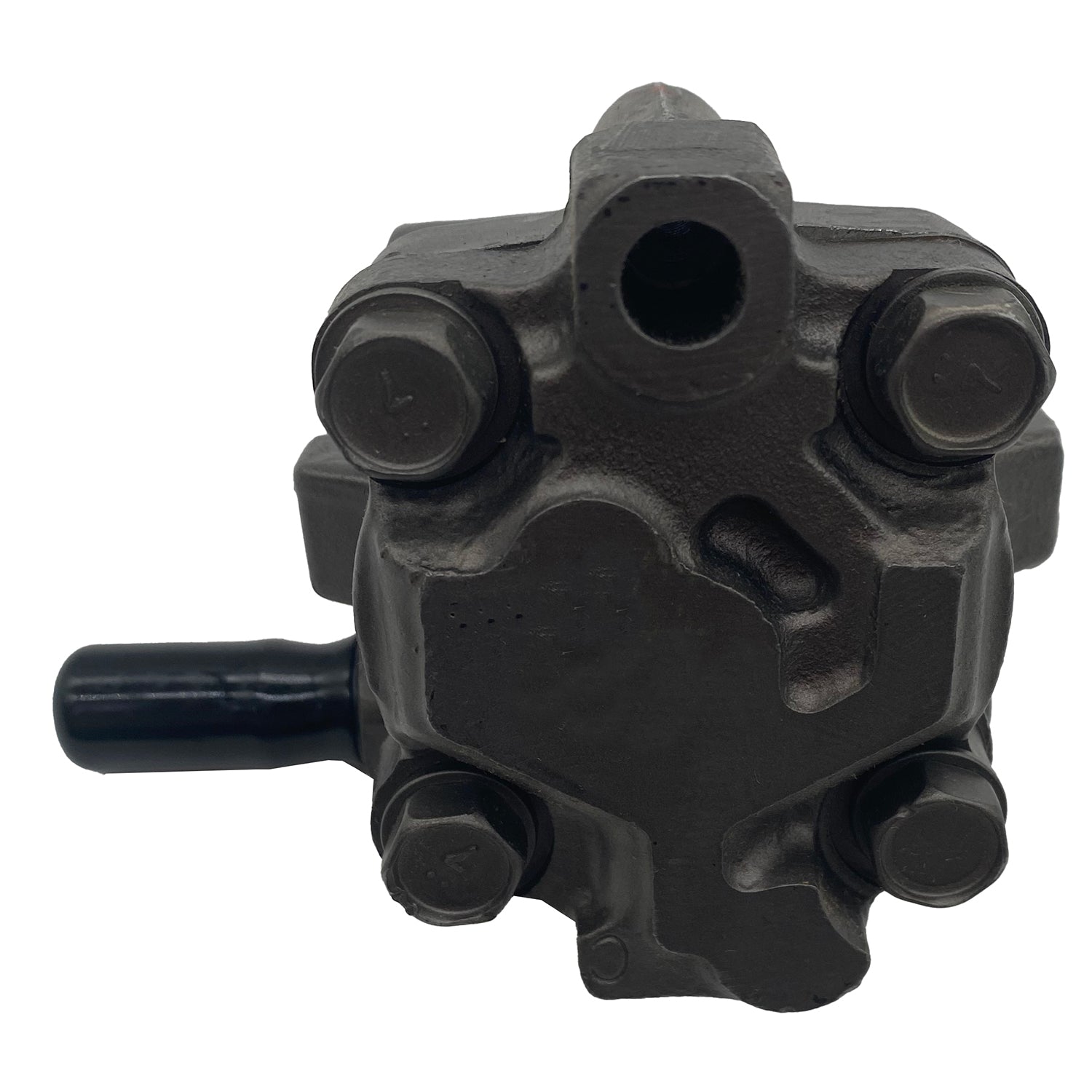

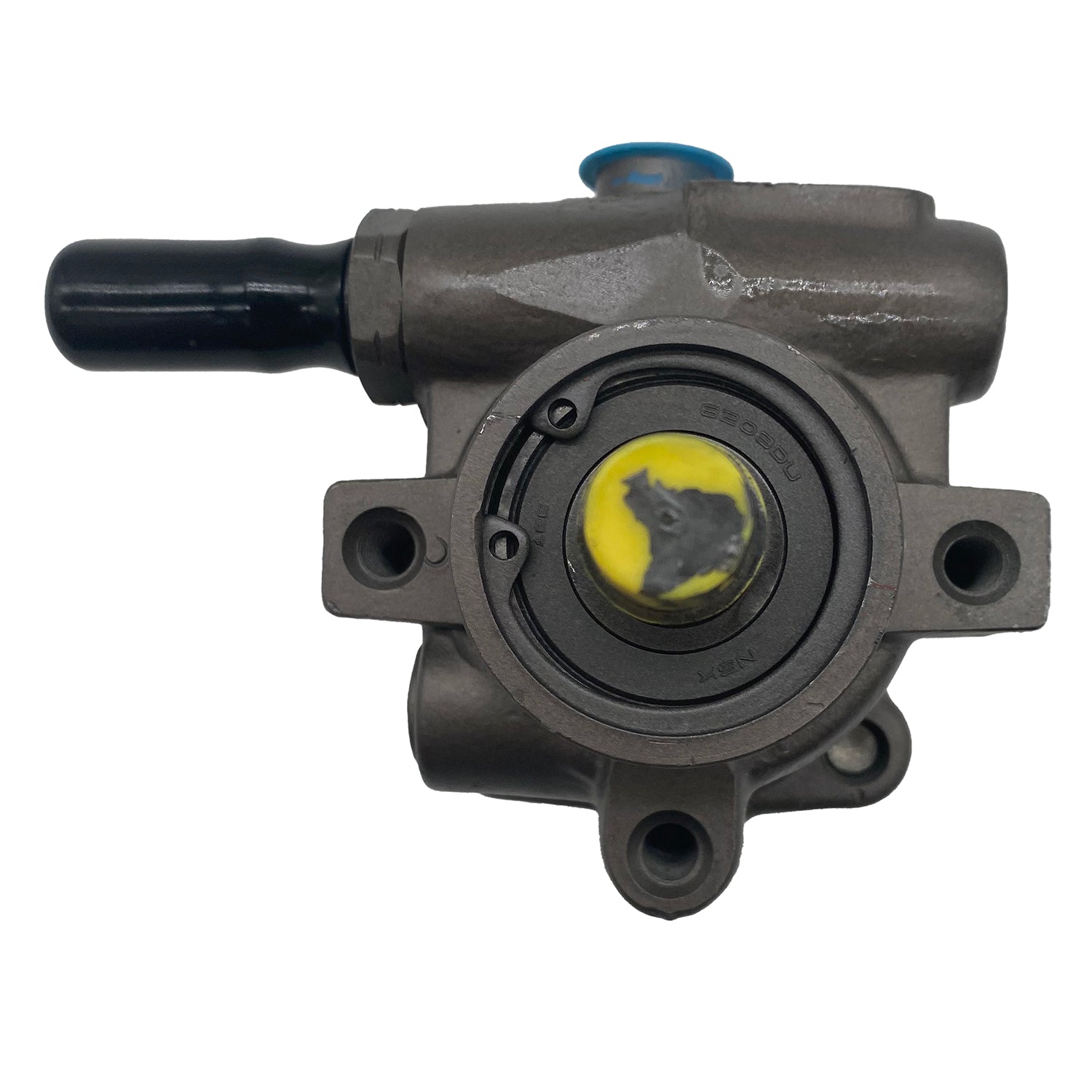

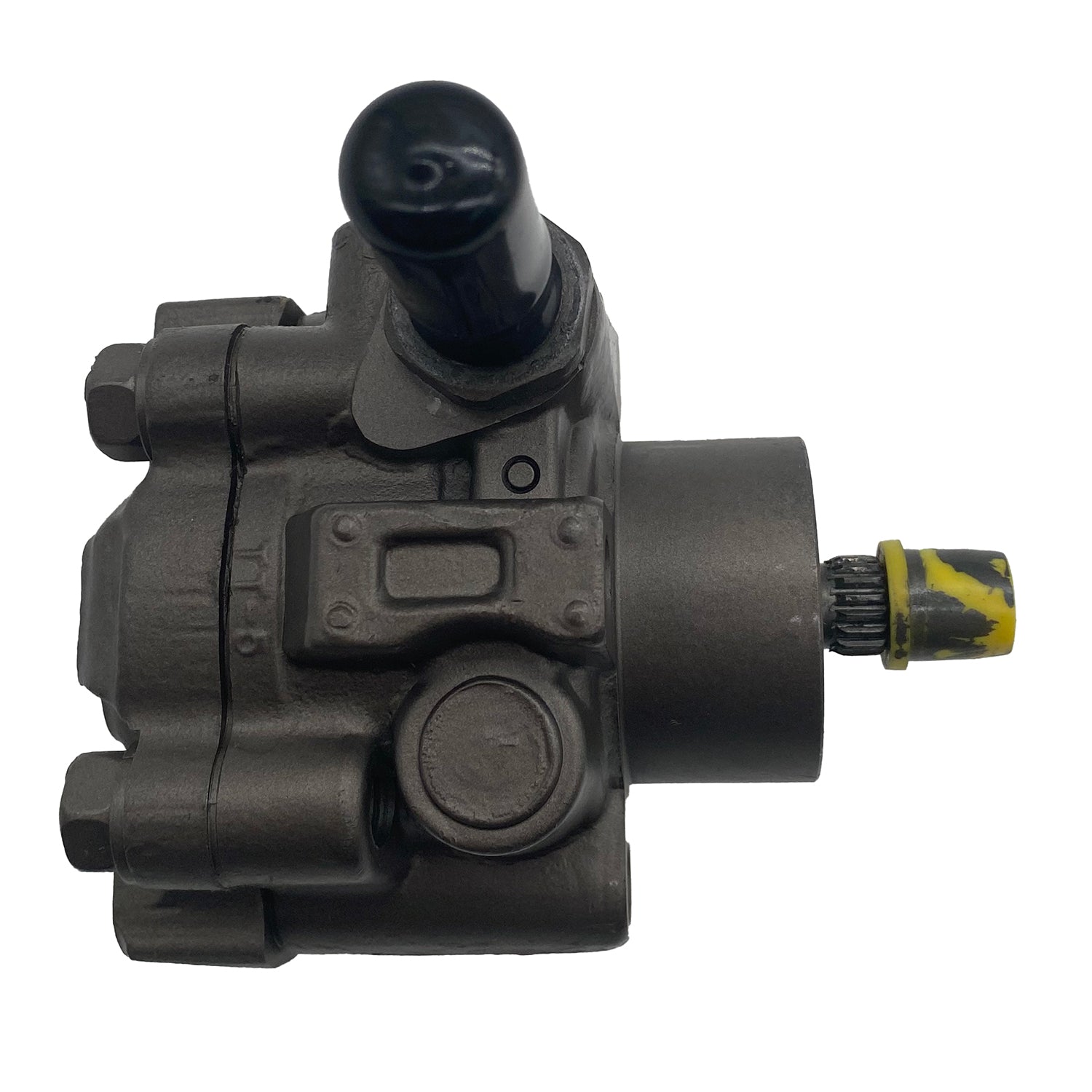

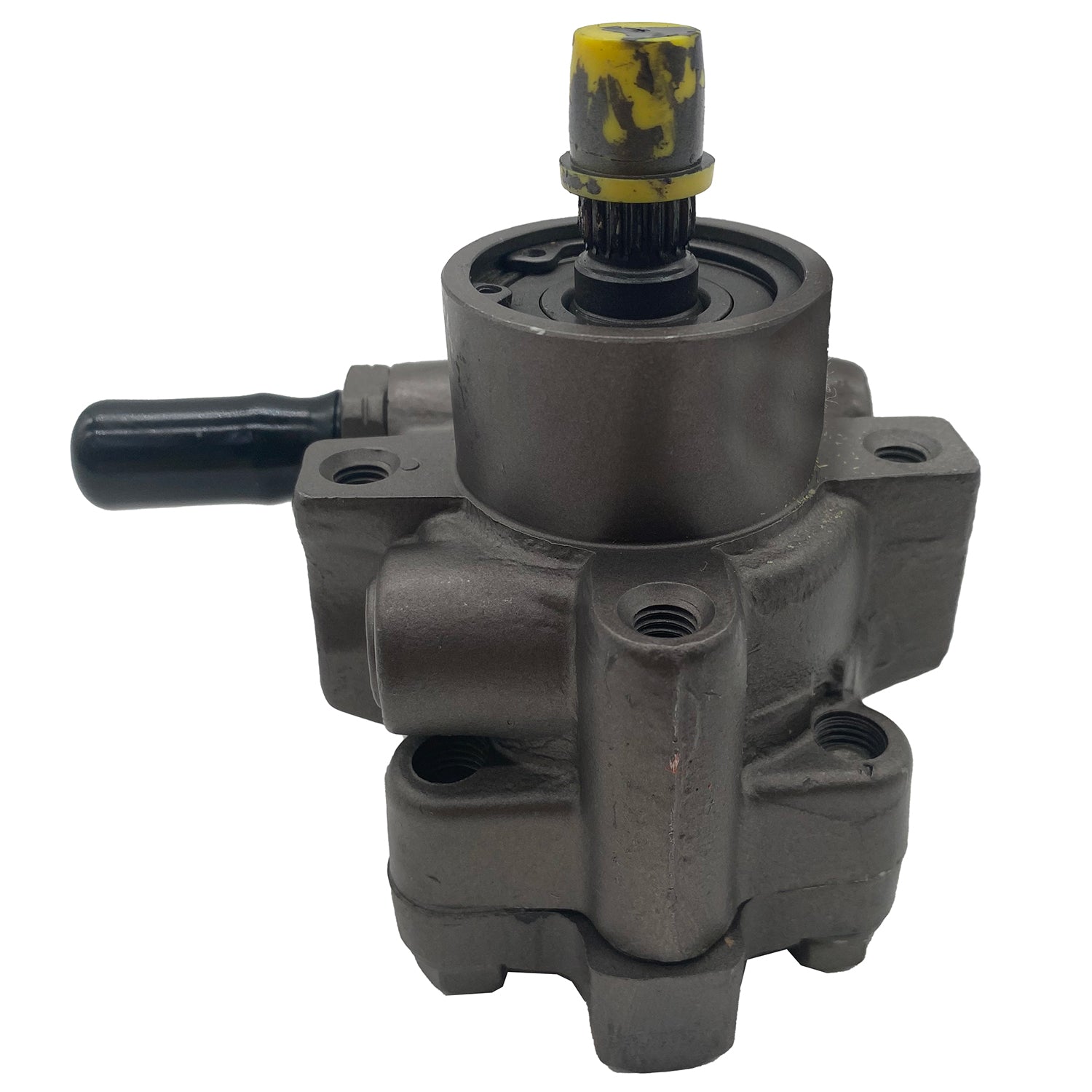

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96451M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96451M

SKU:96451M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type Washer
Housing Material Cast Iron/Aluminum
Mounting Hardware Included No
Outlet Thread Size 12x1.25
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Reservoir Cap Included No
Pulley Attachment Type Bolt-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No



Application Info: Kia Sportage (1995-2001)

Interchange: Kia - 0K-022-32-680B

BBB Cross-Reference: 990-0162

Cardone Cross-Reference: 21-5113

Instructions - 1               Instructions - 2

Instructions - 3               Instructions - 4

Instructions - 5               Instructions - 6
