MAVAL

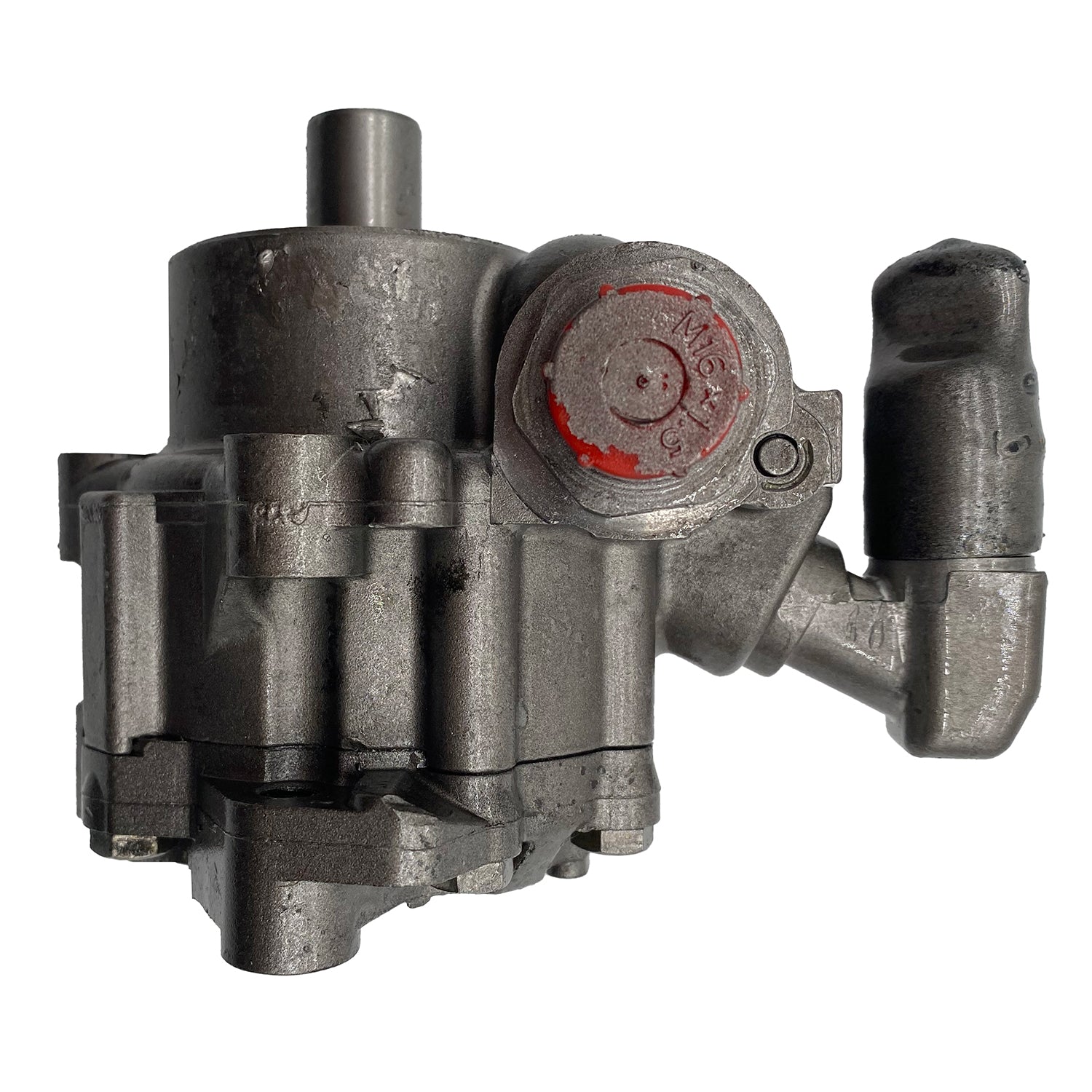

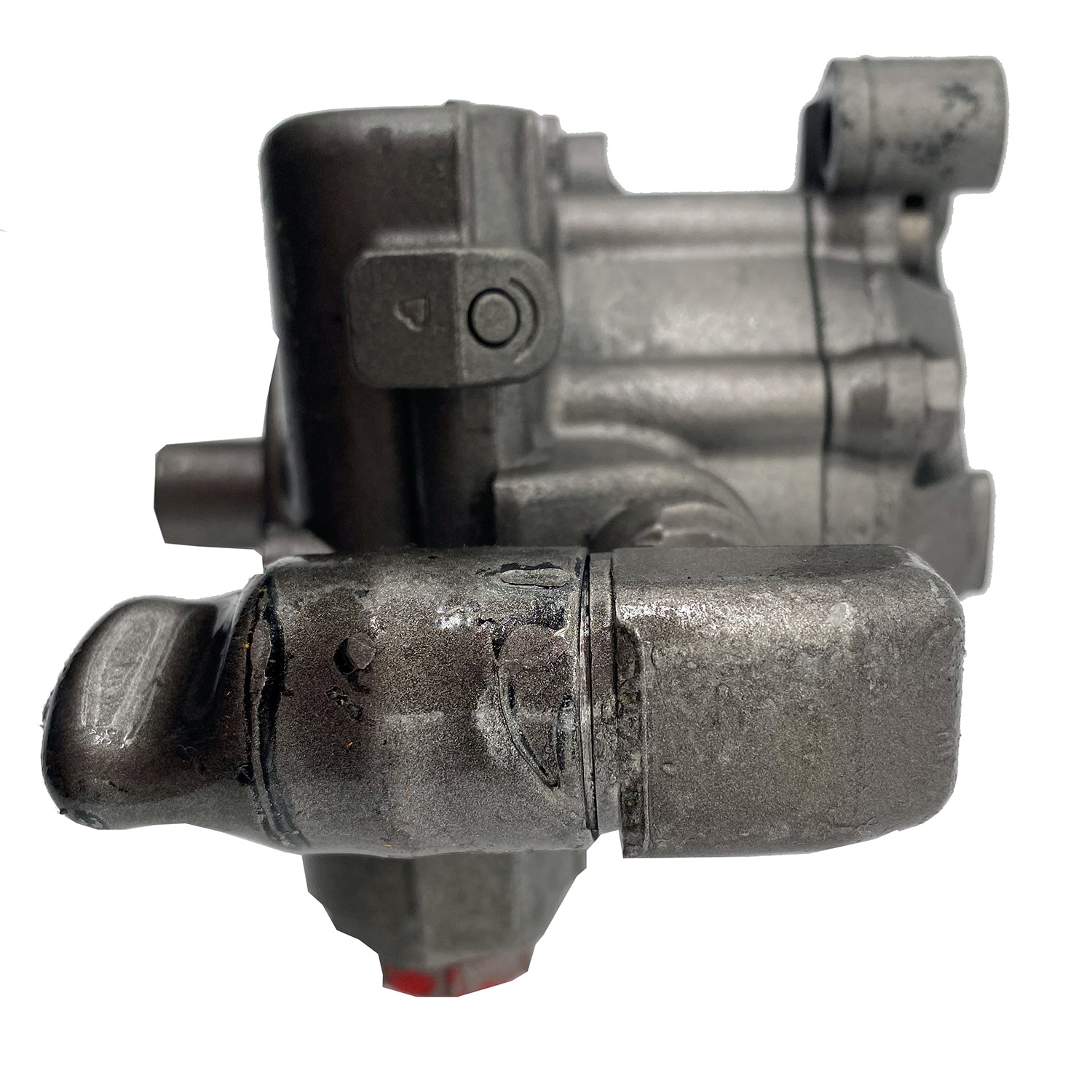

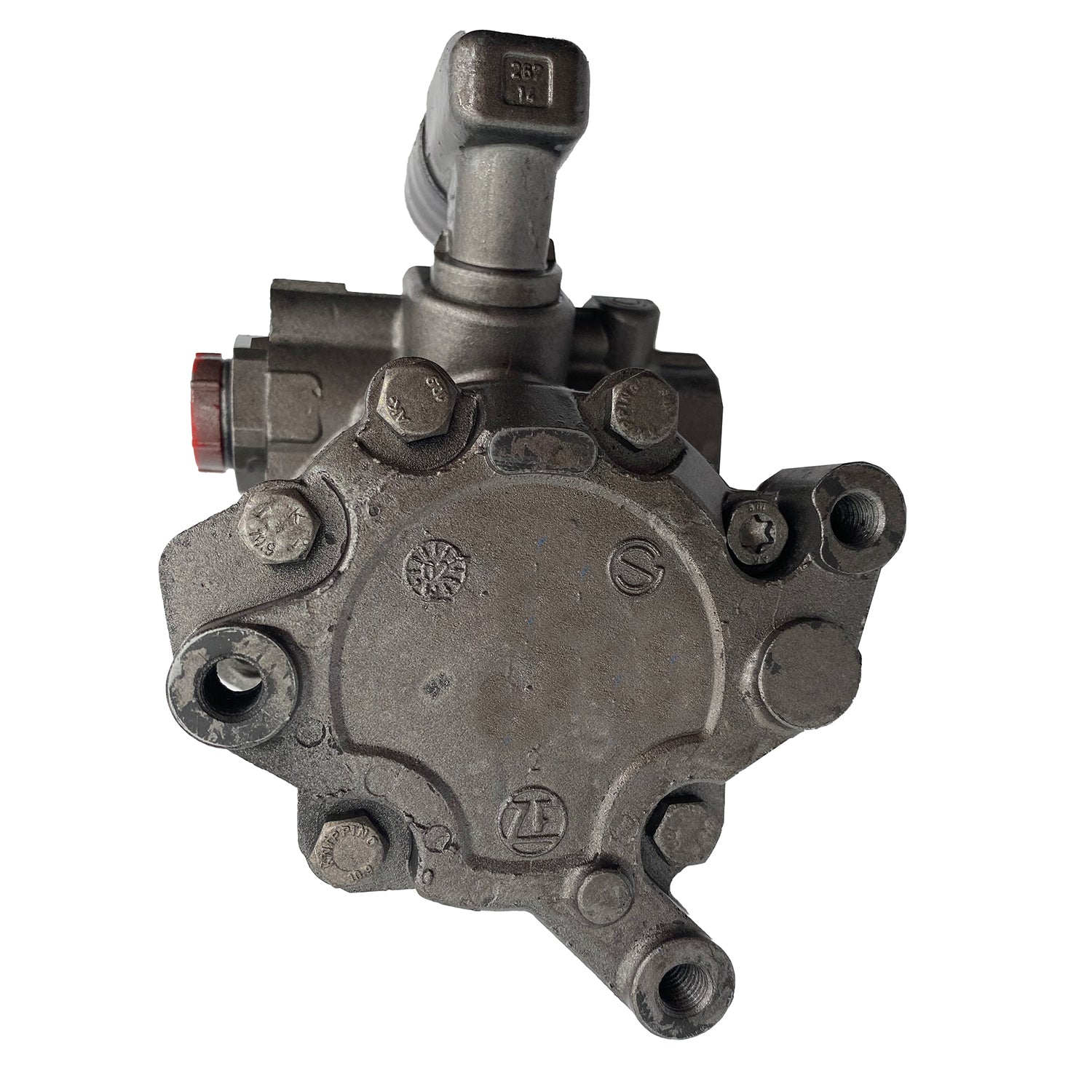

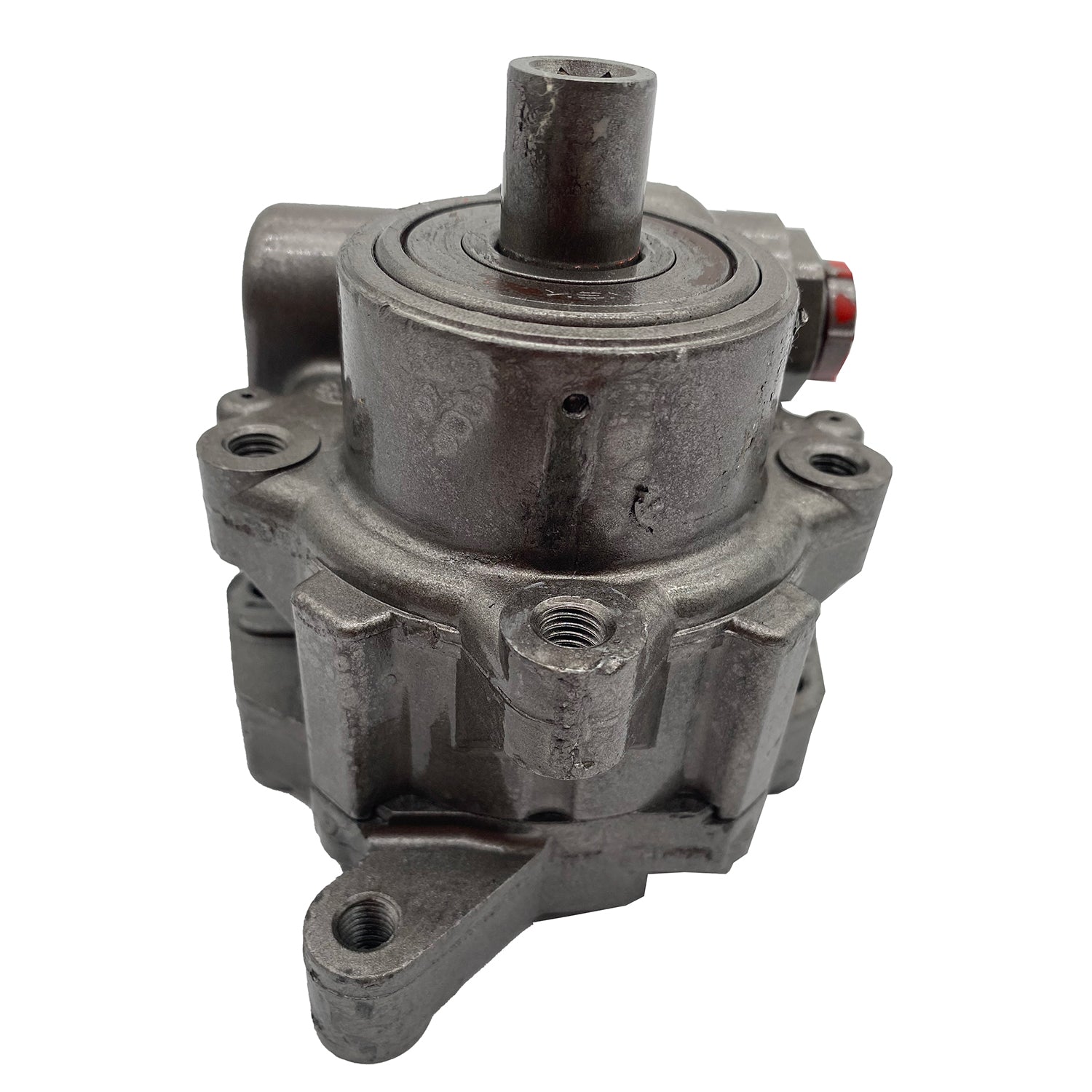

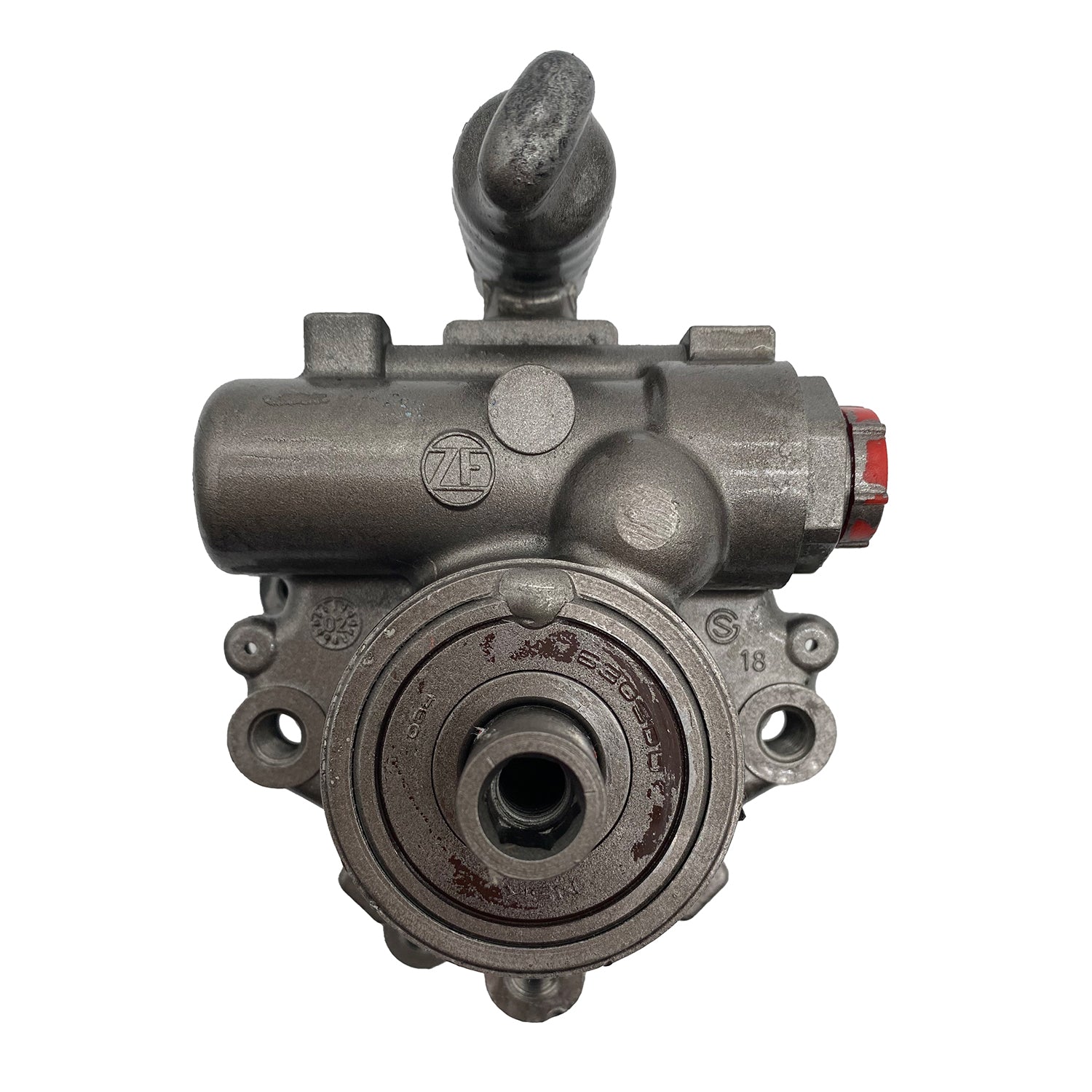

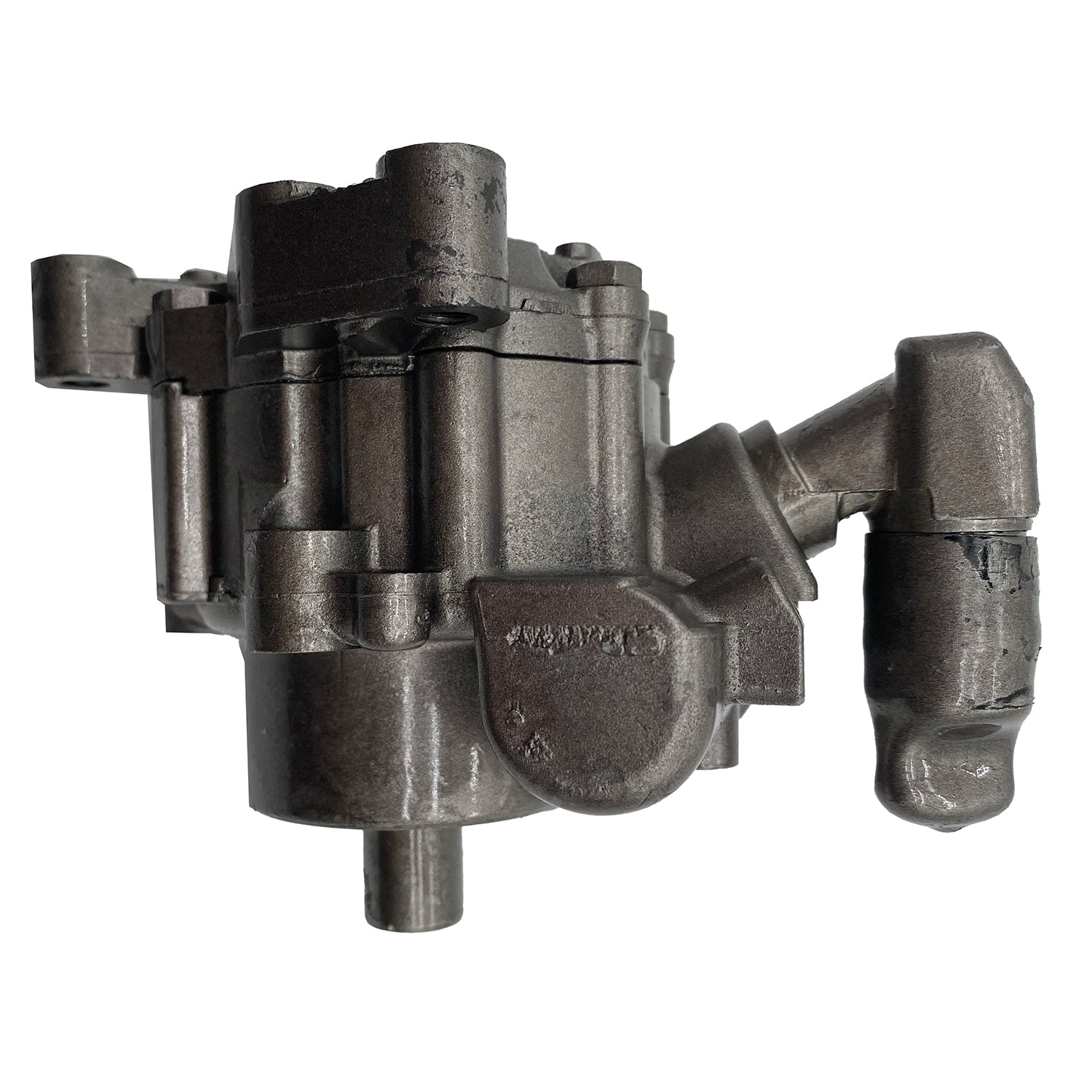

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96427M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96427M

SKU:96427M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Aluminum
Outlet Thread Size 16X1.5
Inlet Attachement Type Quick Connect
Outlet Attachment Type Threaded
Outlet Quantity 1
Pulley Attachment Type Press-on
Pulley Included No
Remote Reservoir No
Reservoir Included No

Application Info: Mercedes-Benz E320 (2003-05), E500 (2003-06), E55 AMG (2004-06), S600 (2001) ***W/O Pulley, W/O Reservoir***

Interchange: 004 466 14 01, 769 395 52 03

BBB Cross-Reference: 990-0695

Cardone Cross-Reference: 21-5361

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
