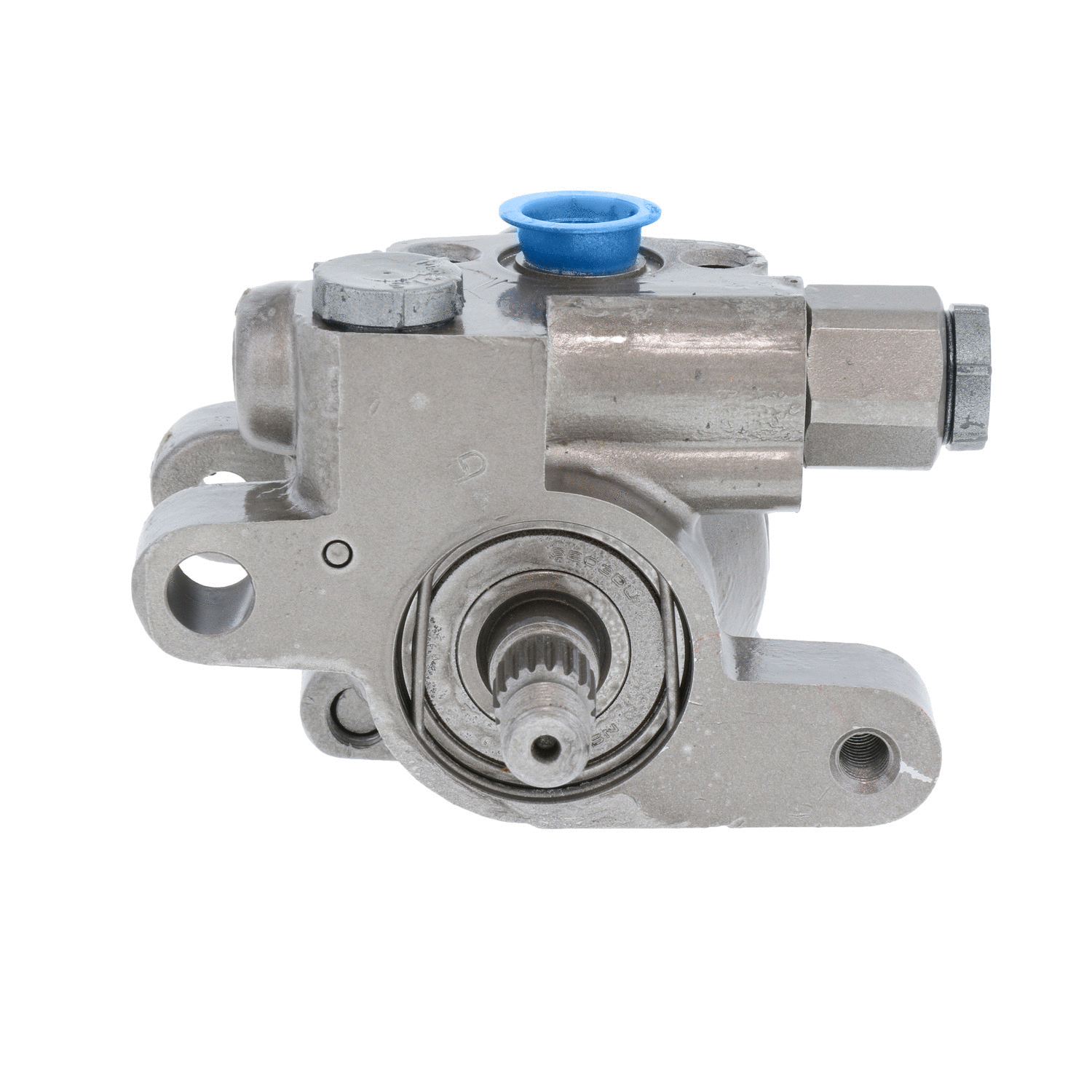

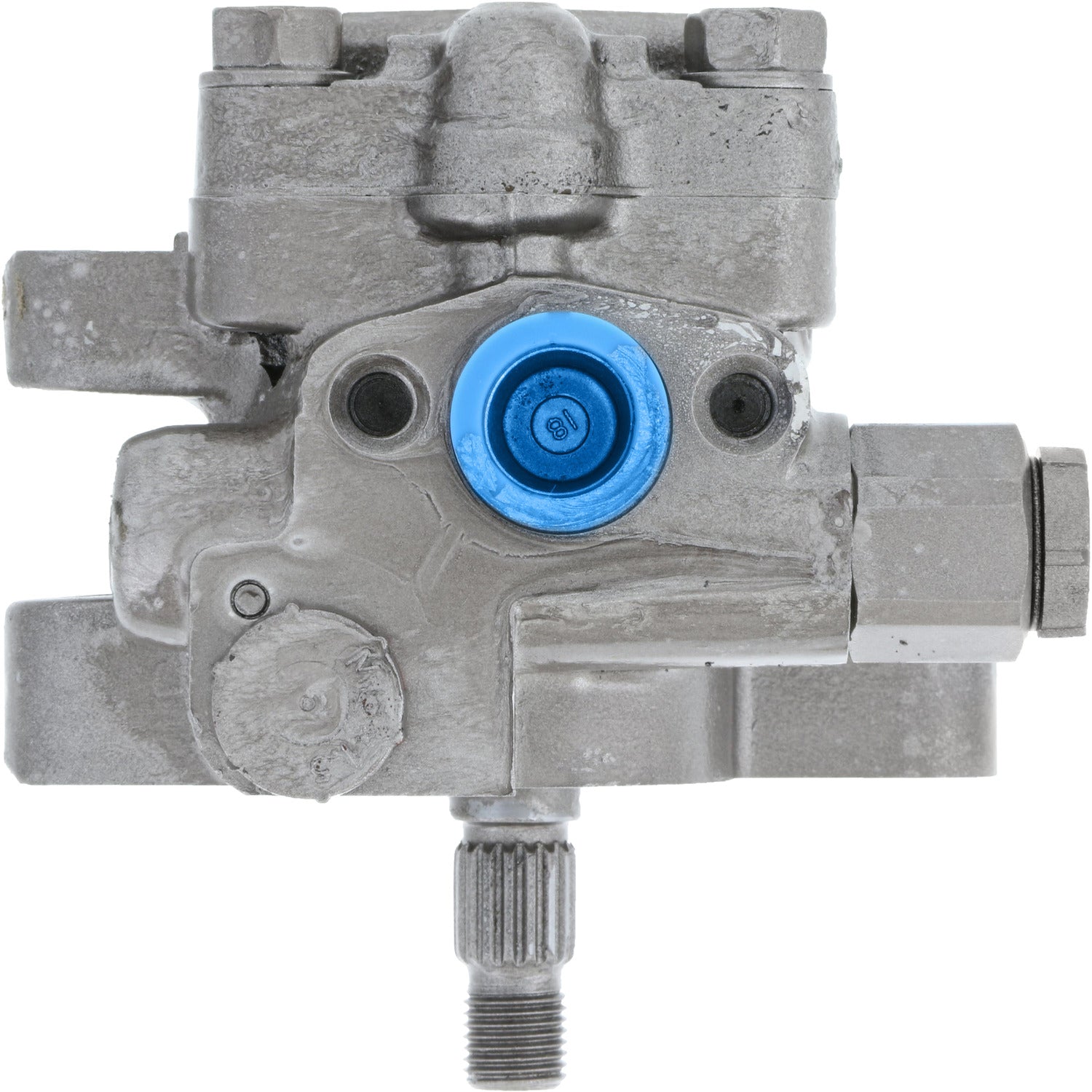

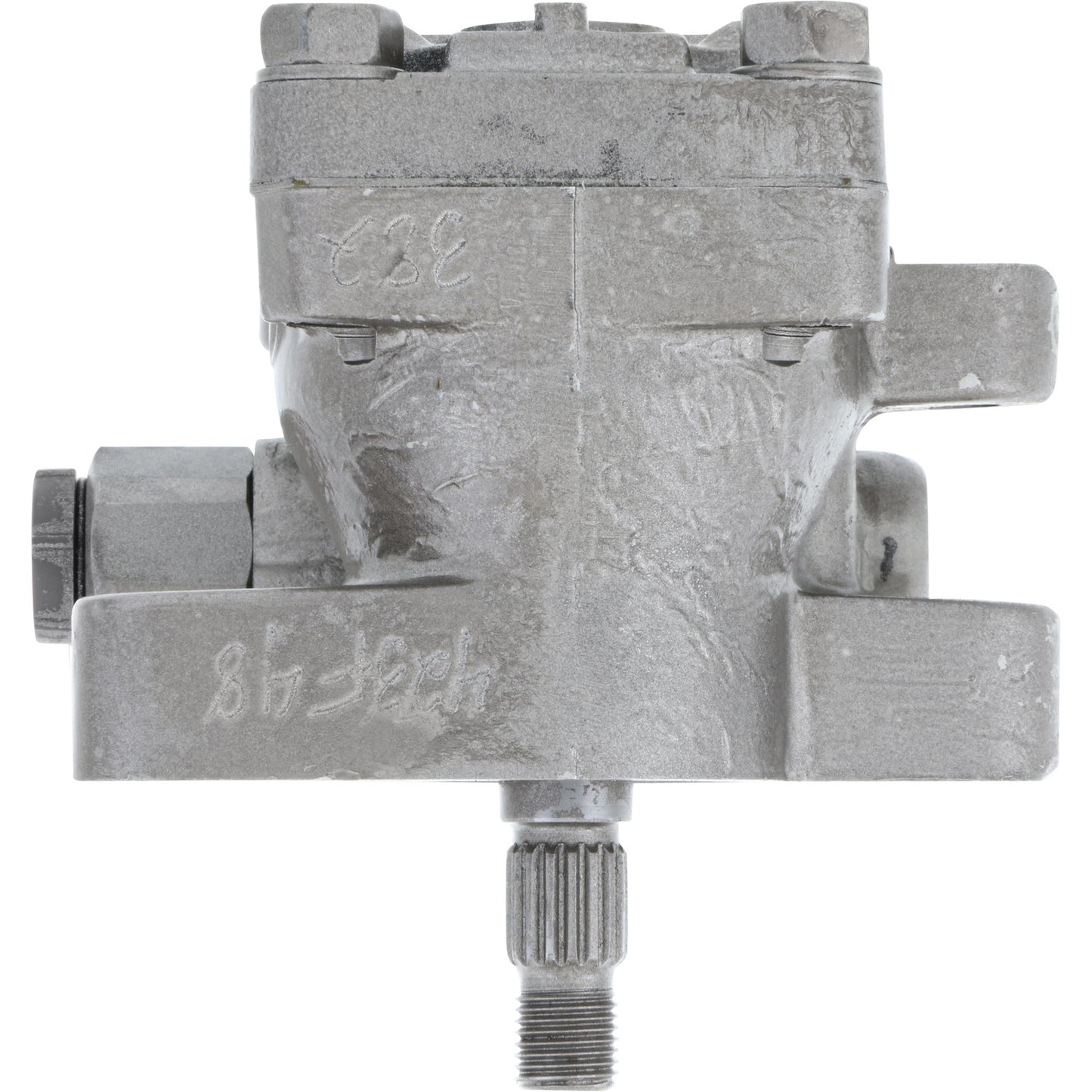

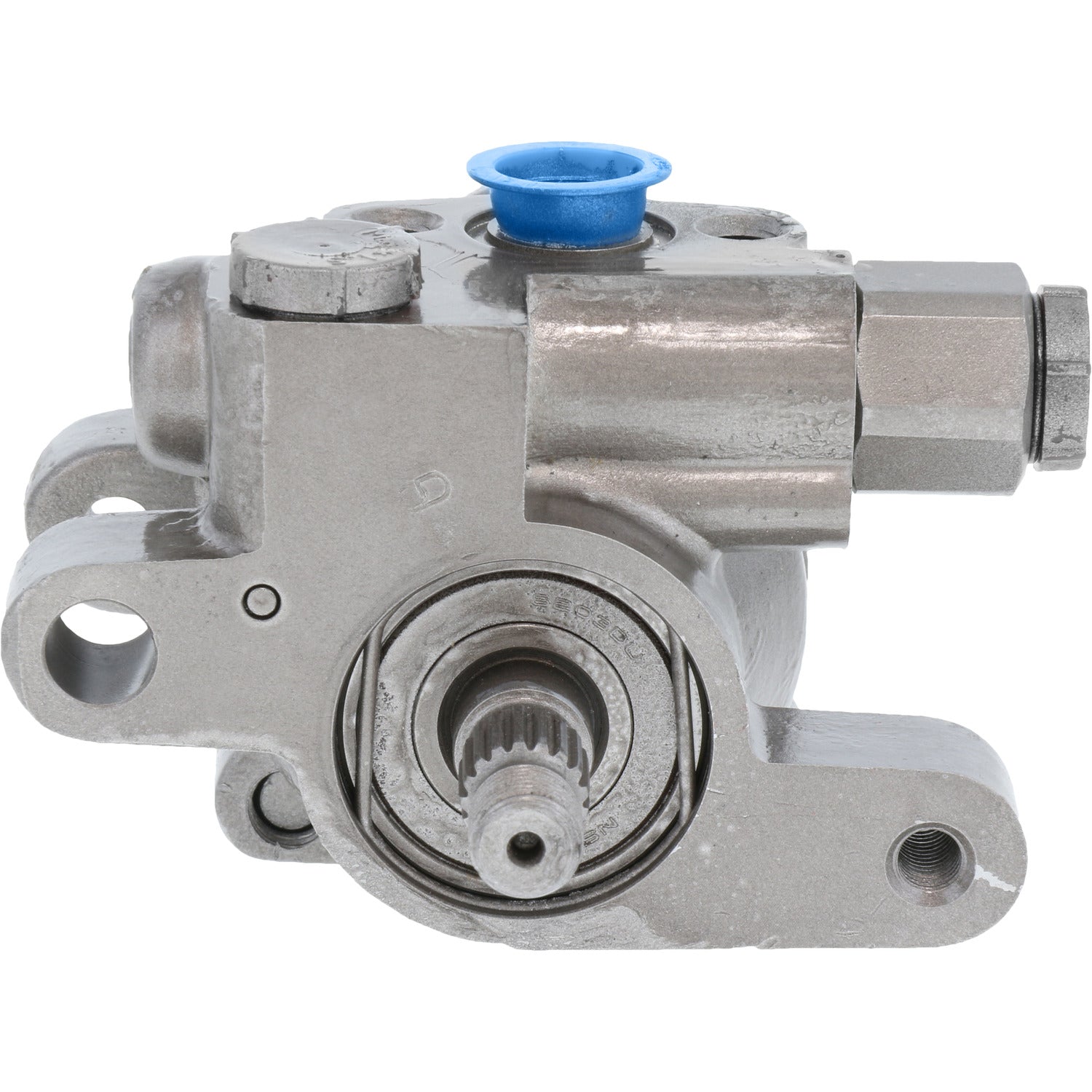

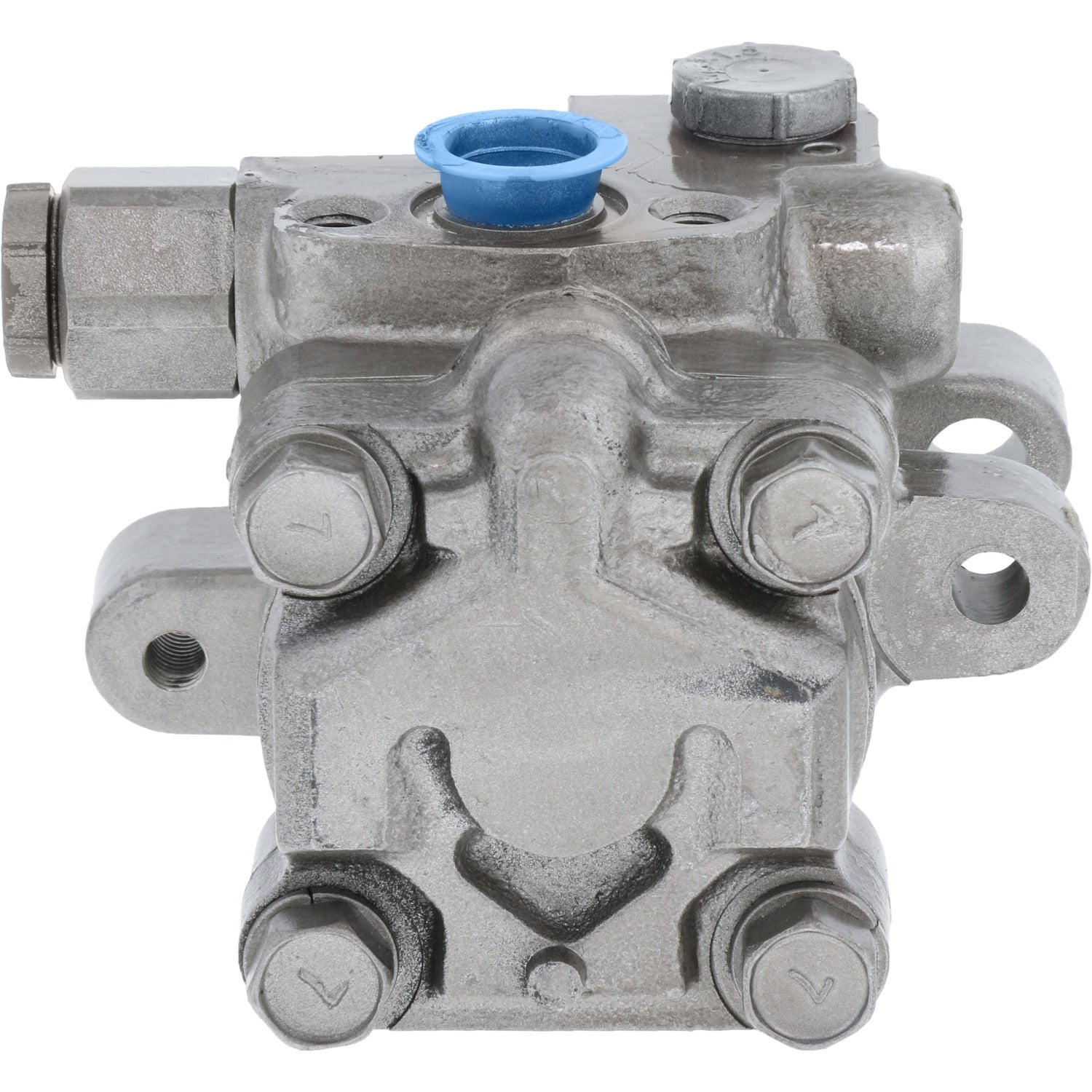

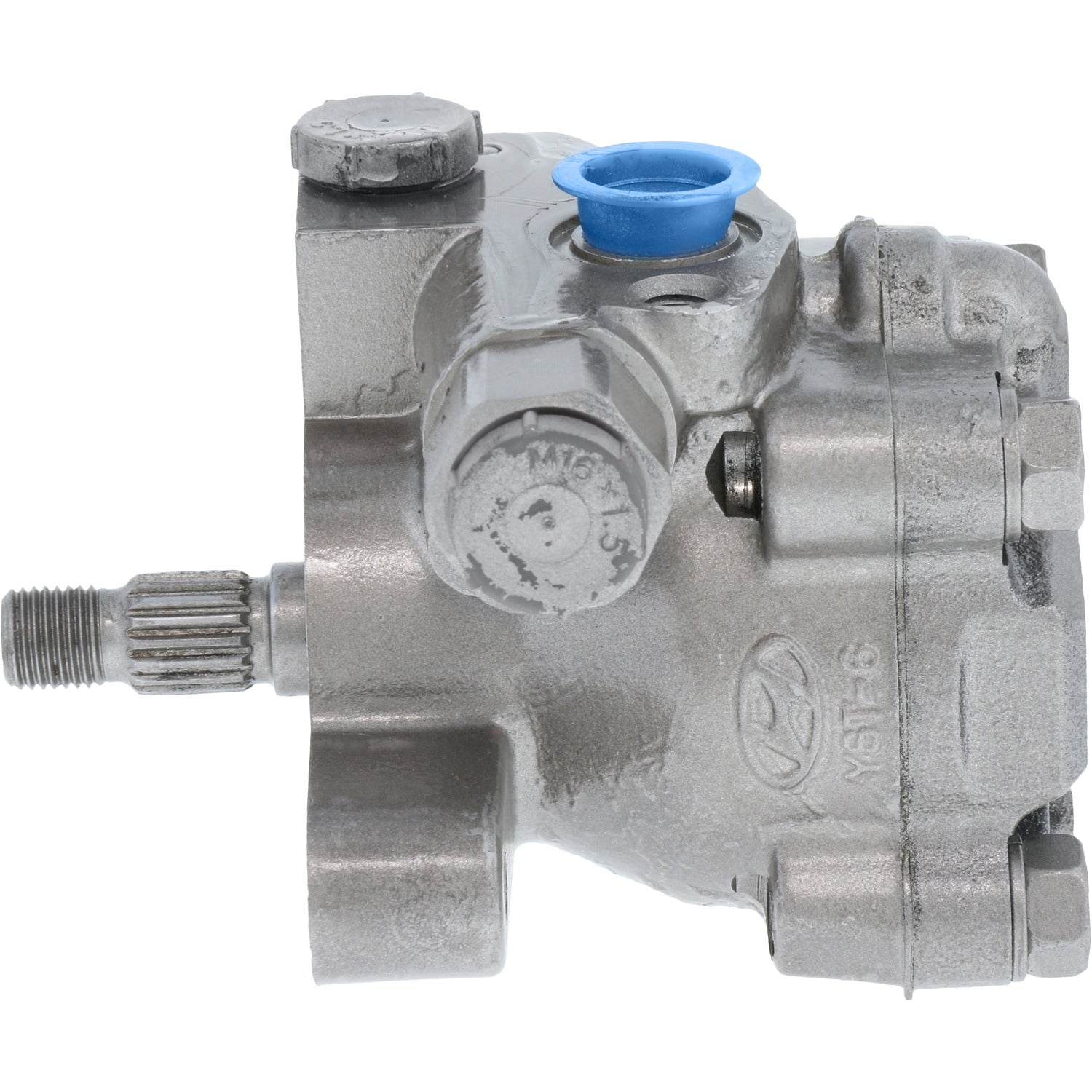

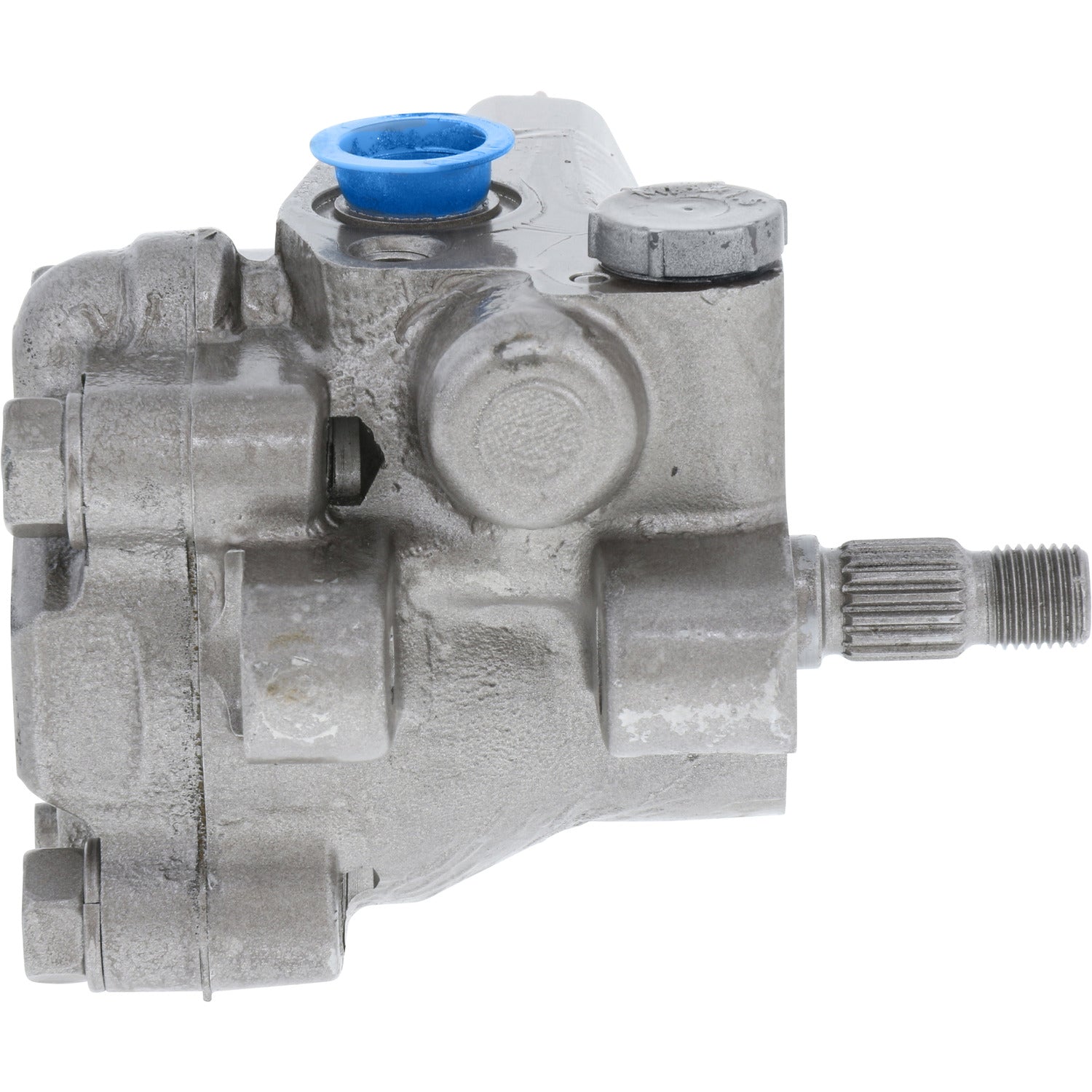

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96382M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96382M

SKU:96382M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Cast Iron/Aluminum
Mounting Hardware Included No
Outlet Thread Size 16X1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Reservoir Cap Included No
Pulley Attachment Type Bolt-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No

Application Info: Hyundai Santa Fe (2001-06) ***W/2.4L L4 Engine, W/Pulley, W/O Reservoir***

Interchange: 57100-26200

BBB Cross-Reference: 990-0643

Cardone Cross-Reference: 21-5309
