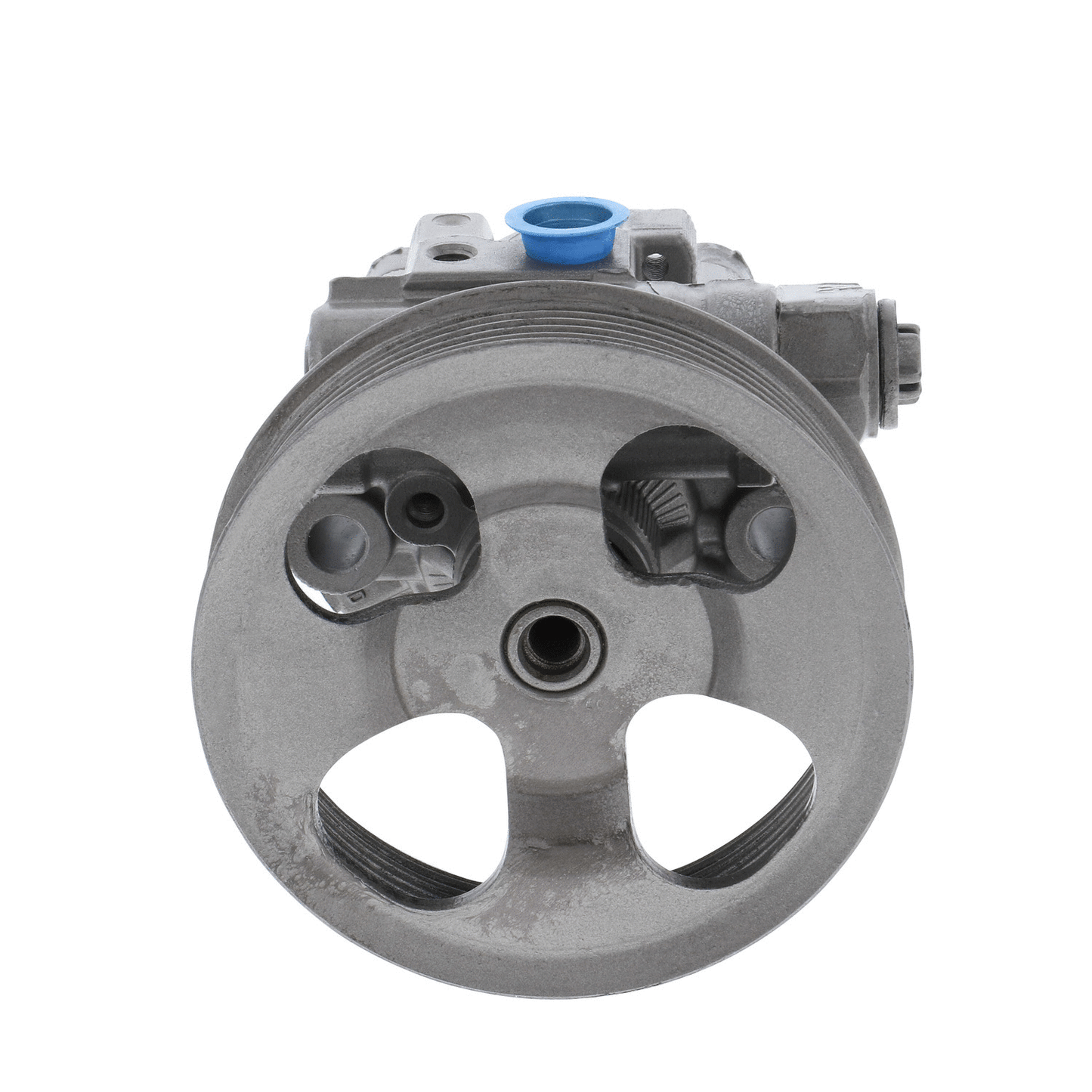

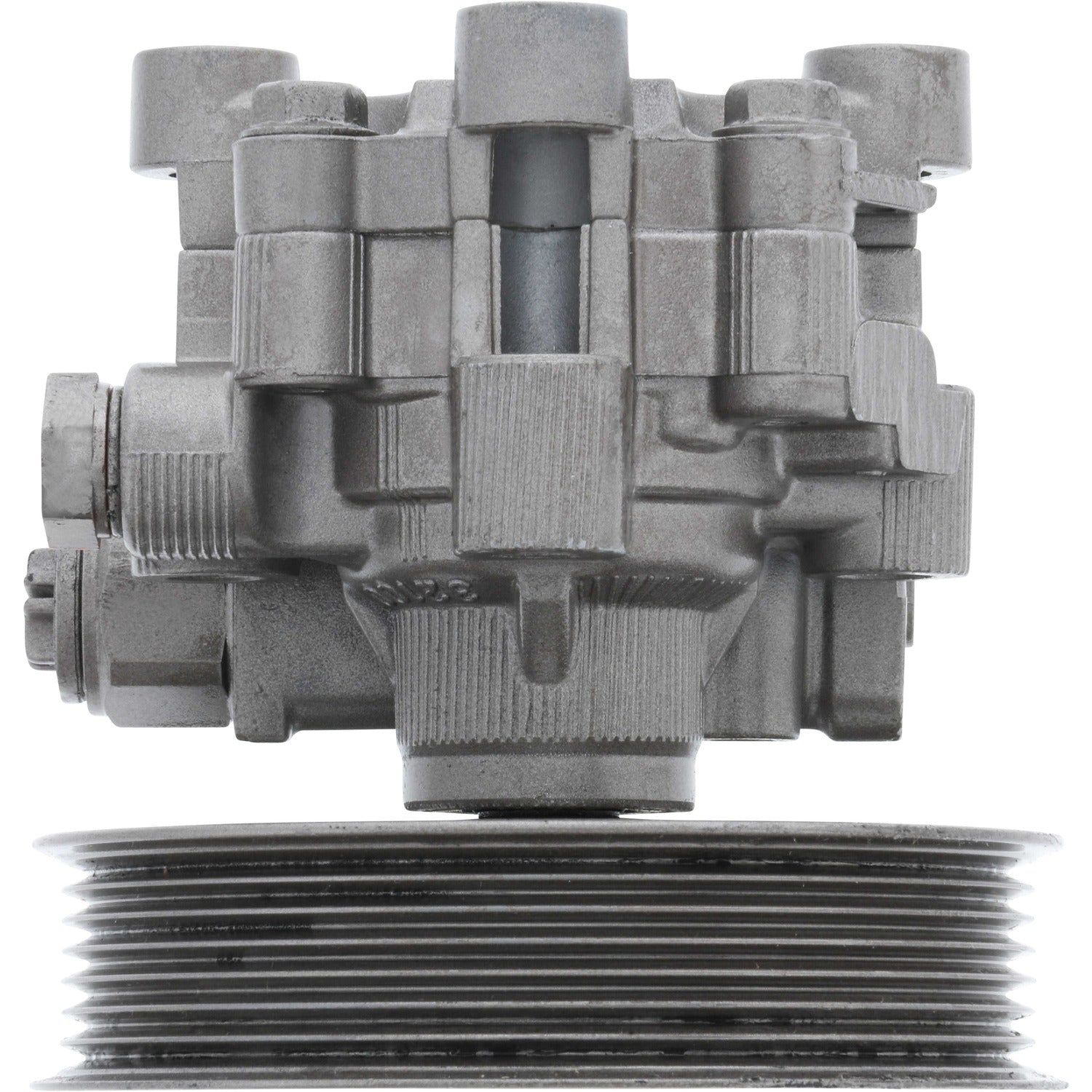

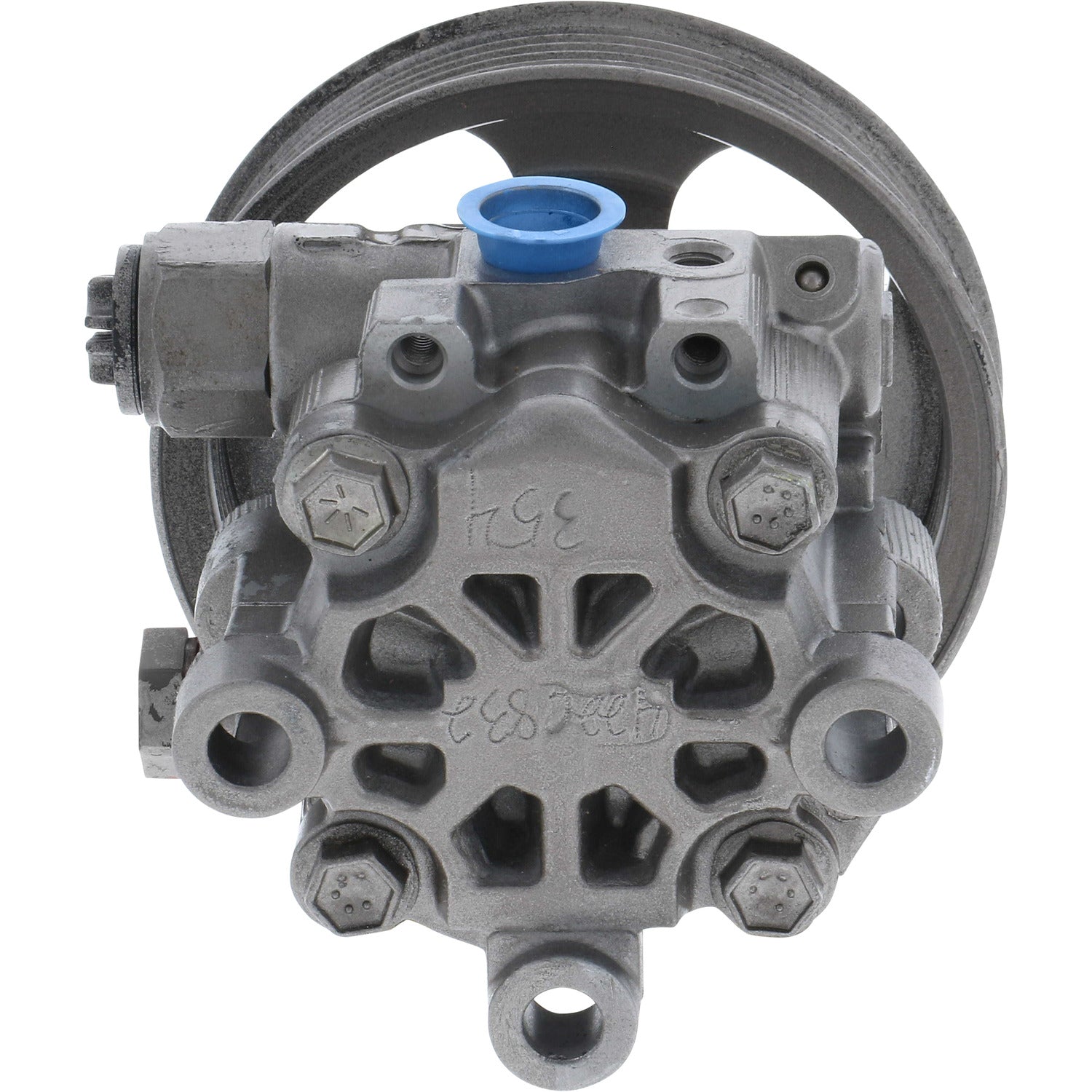

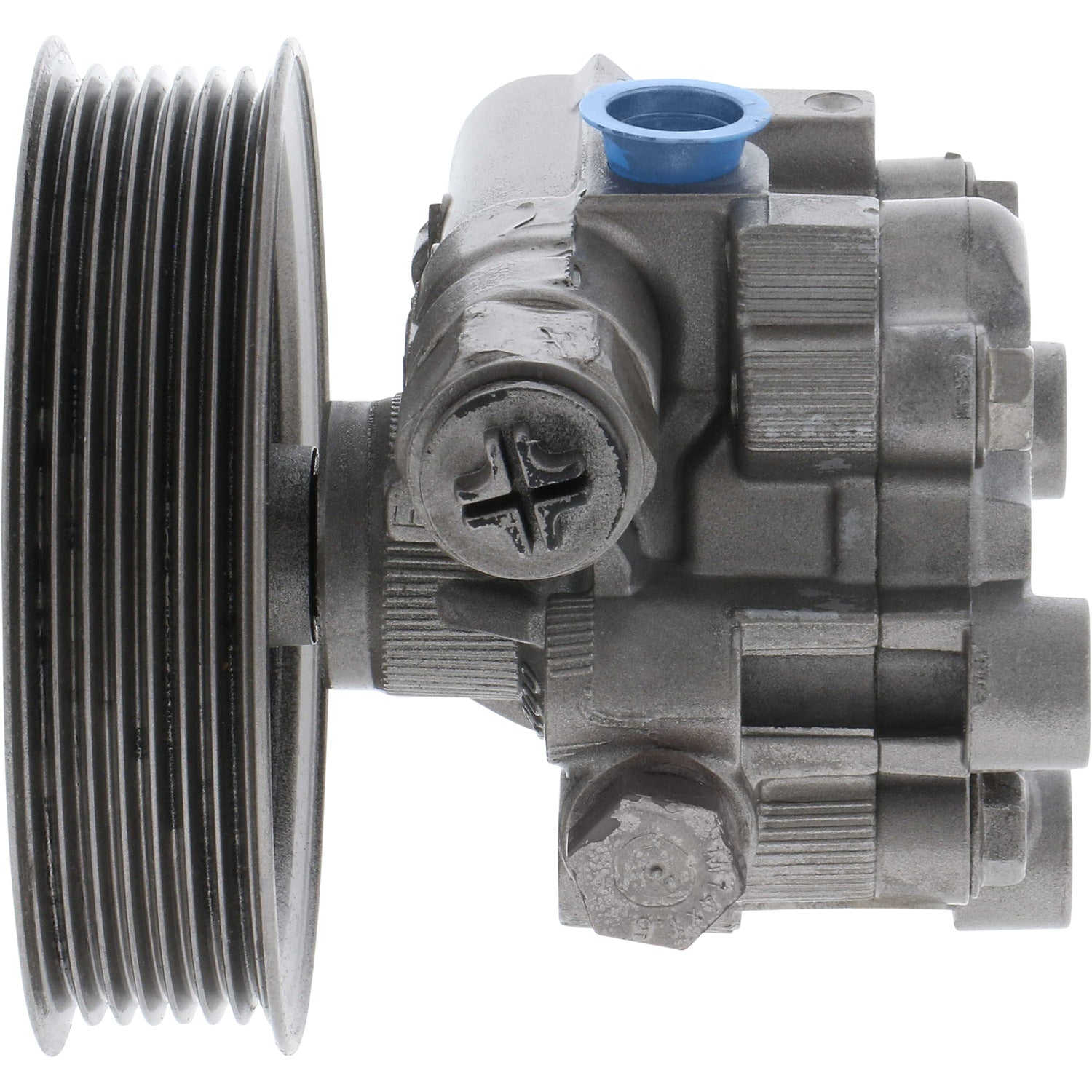

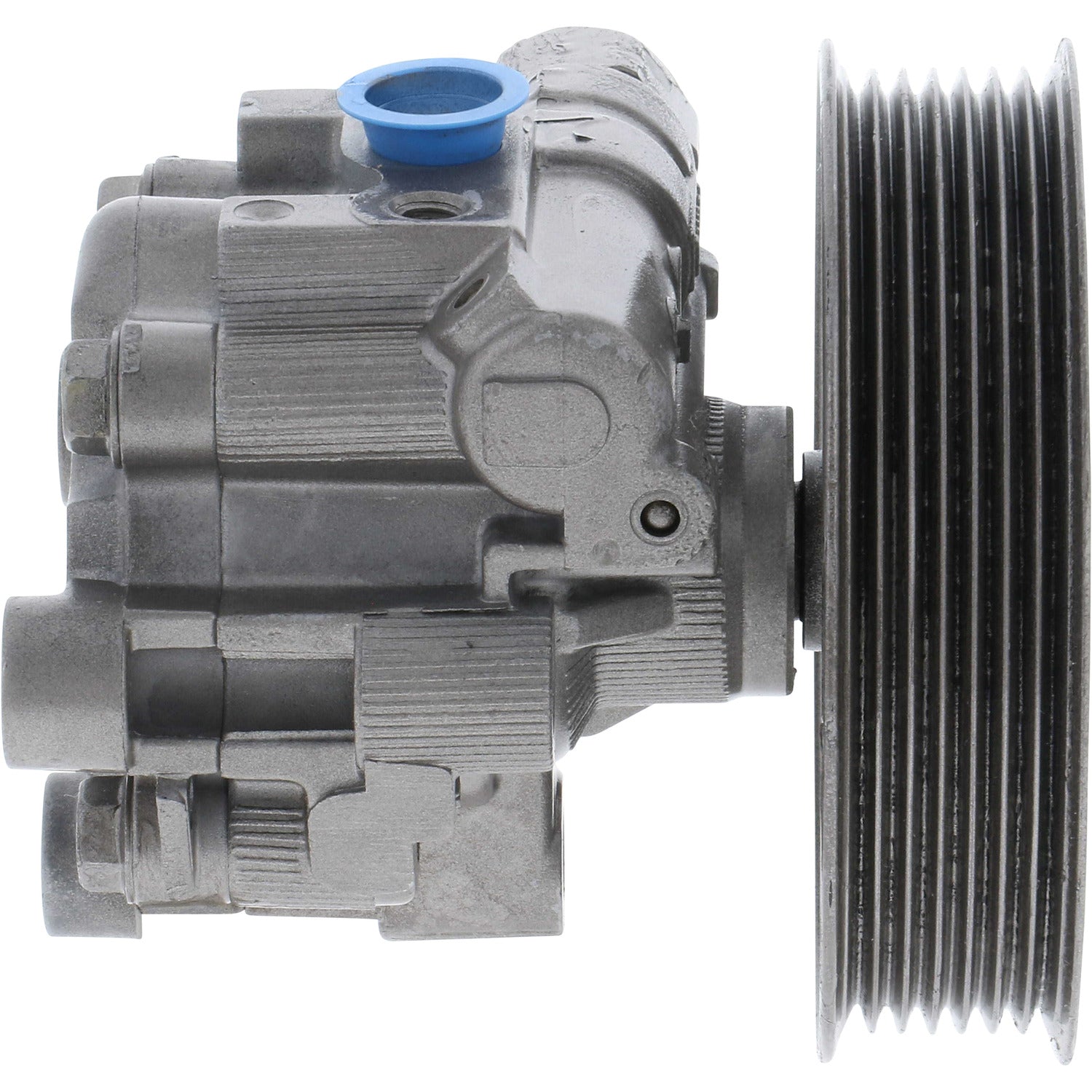

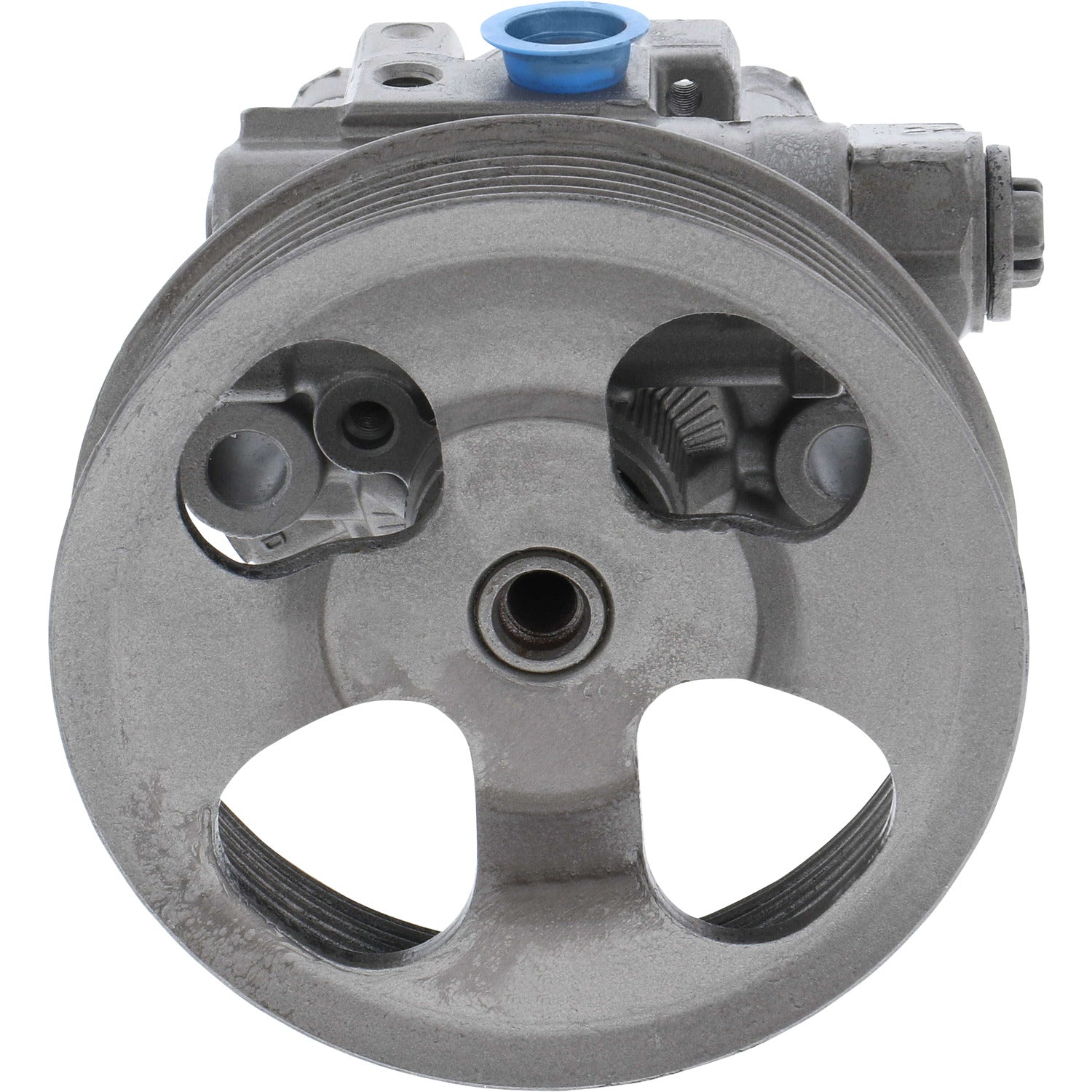

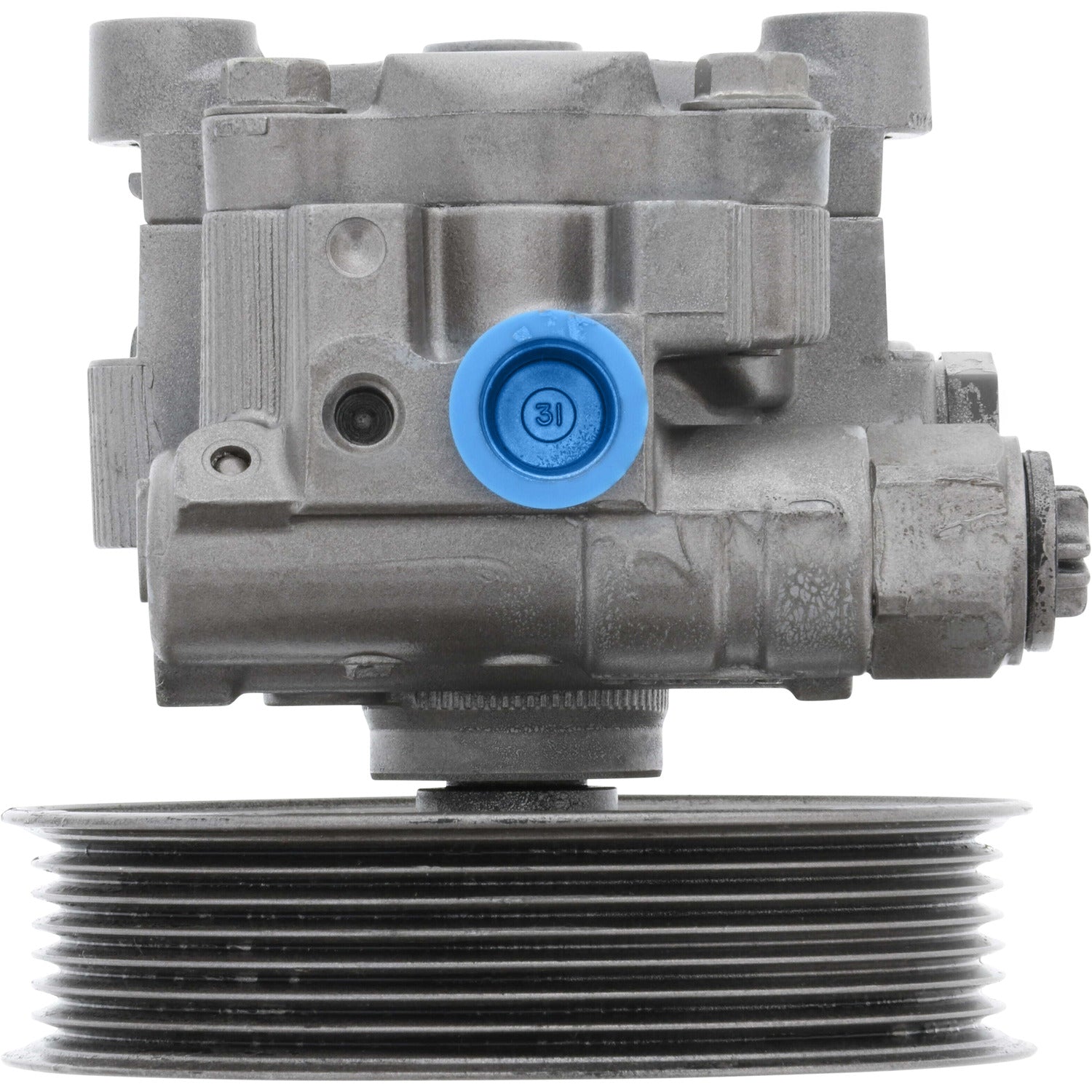

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96354M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96354M

SKU:96354M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type Seat
Housing Material Aluminum
Mounting Hardware Included No
Outlet Thread Size 16X1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Reservoir Cap Included No
Pulley Attachment Type Press-on
Pulley Included Yes
Remote Reservoir Yes
Reservoir Included No



Application Info: Toyota RAV4 (2001-05) ***W/Pulley, W/O Reservoir***

Interchange: 44310-42070, 44320-42070

BBB Cross-Reference: 990-0239

Cardone Cross-Reference: 21-5276

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
