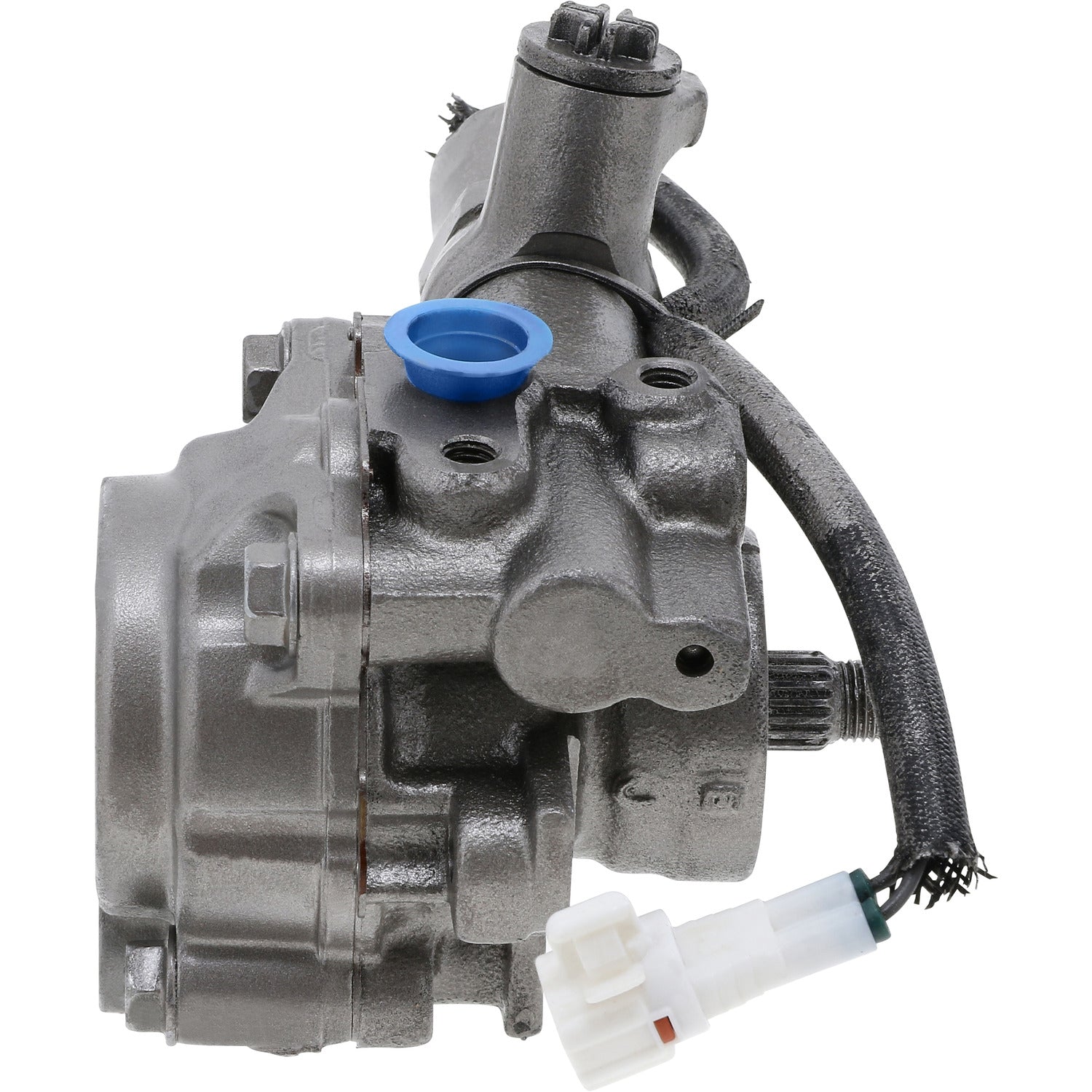

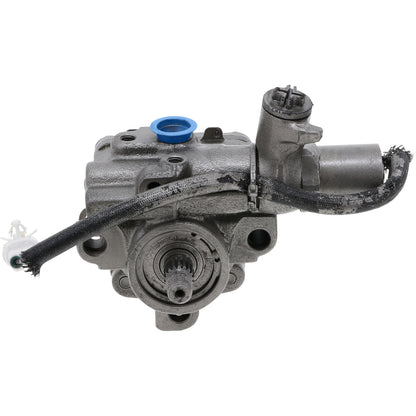

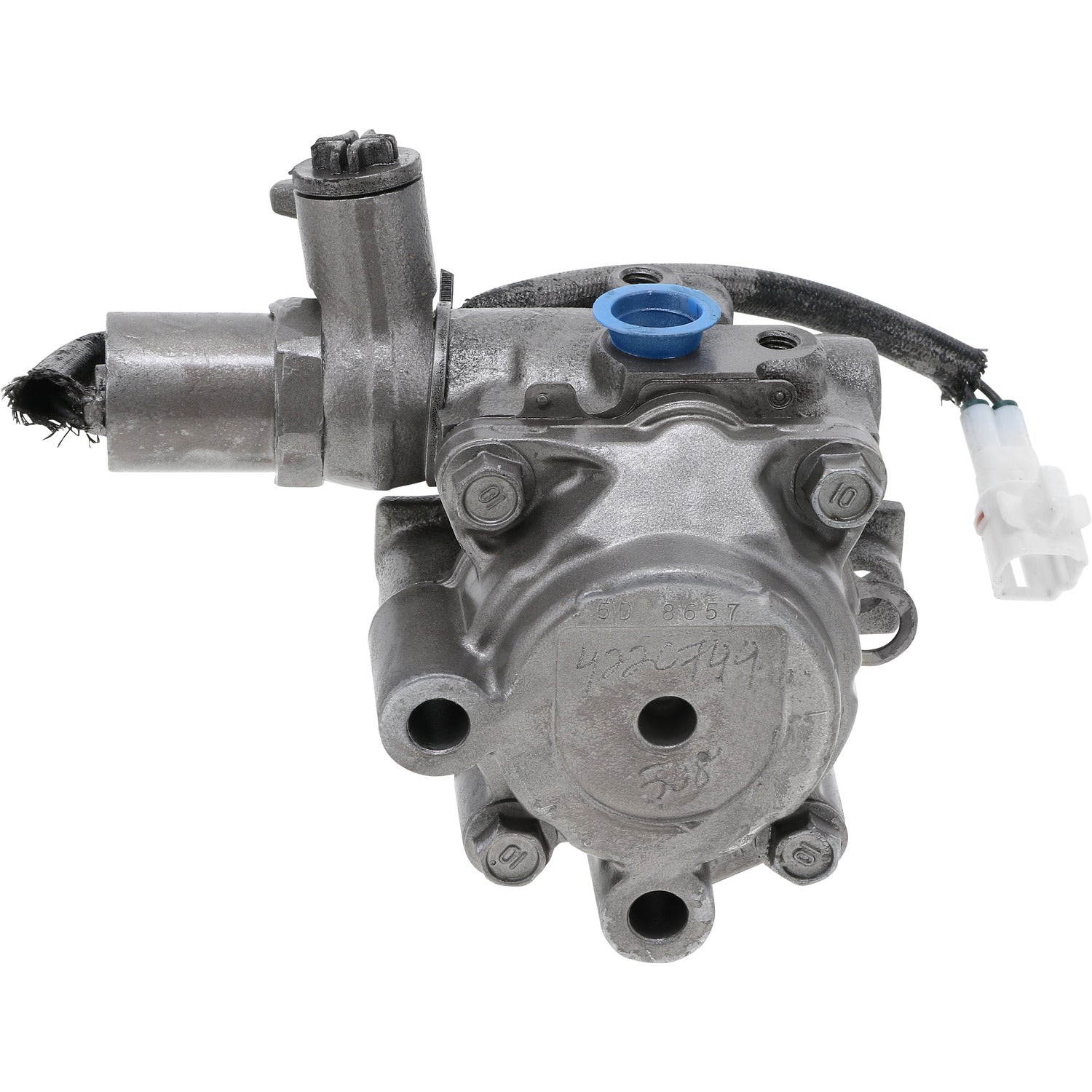

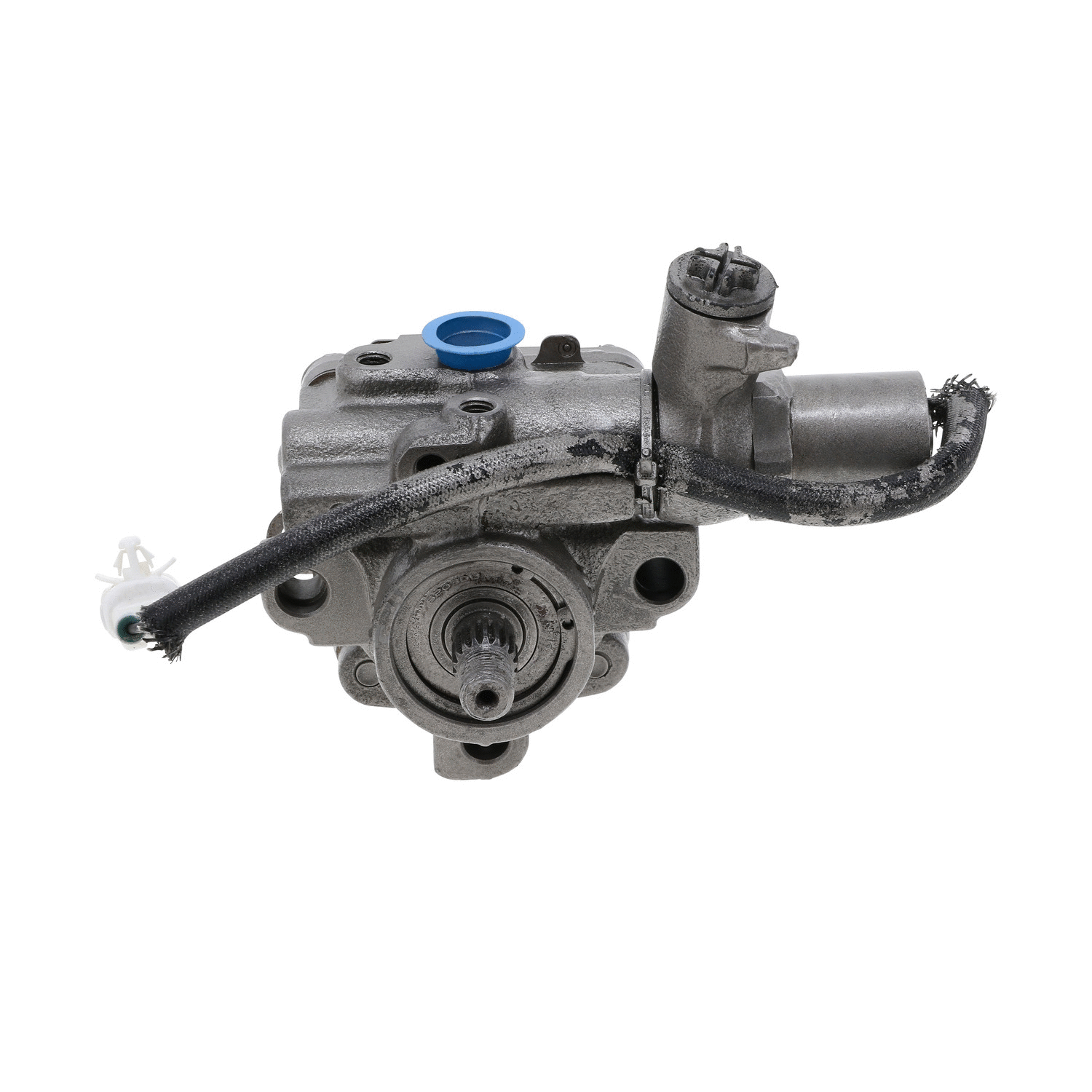

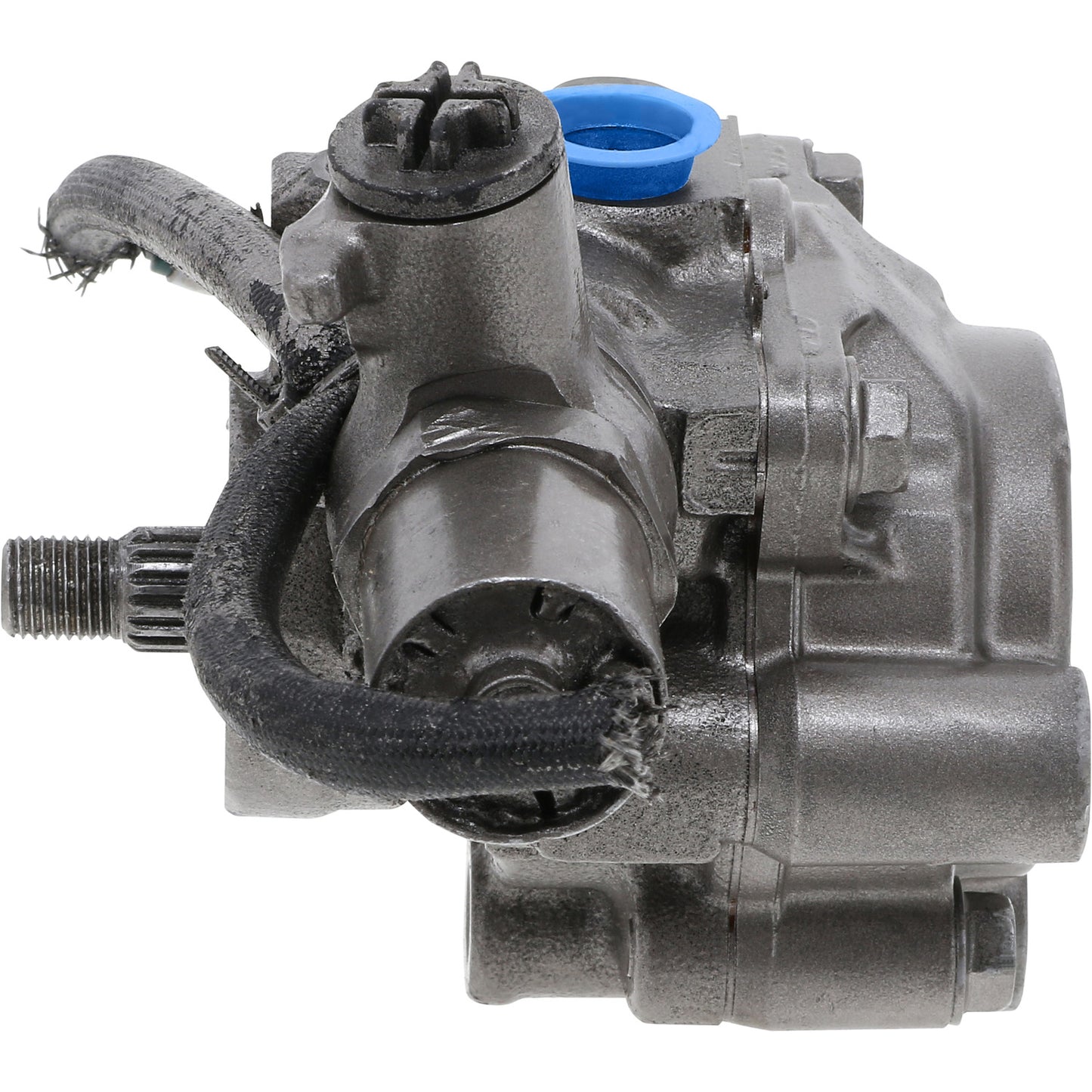

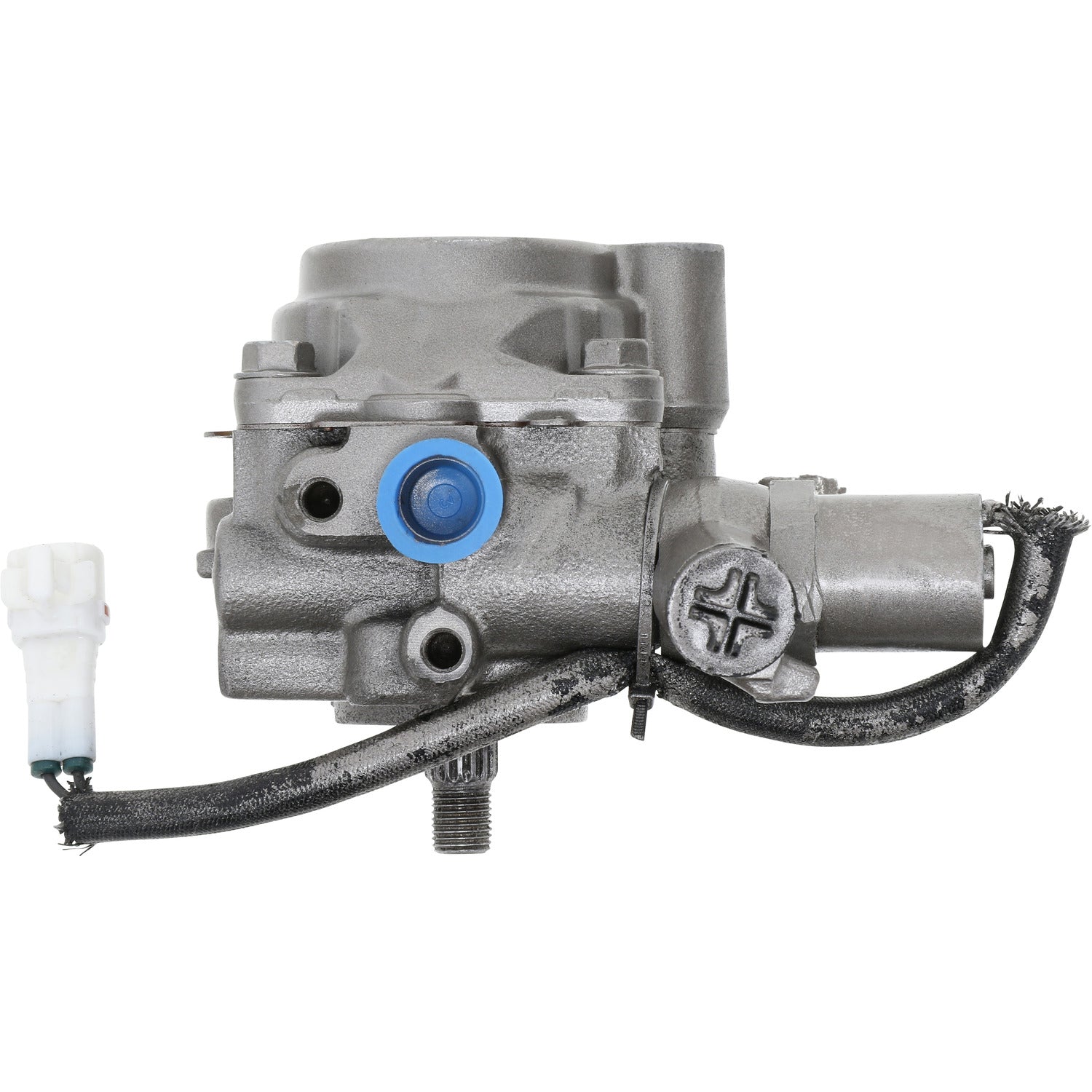

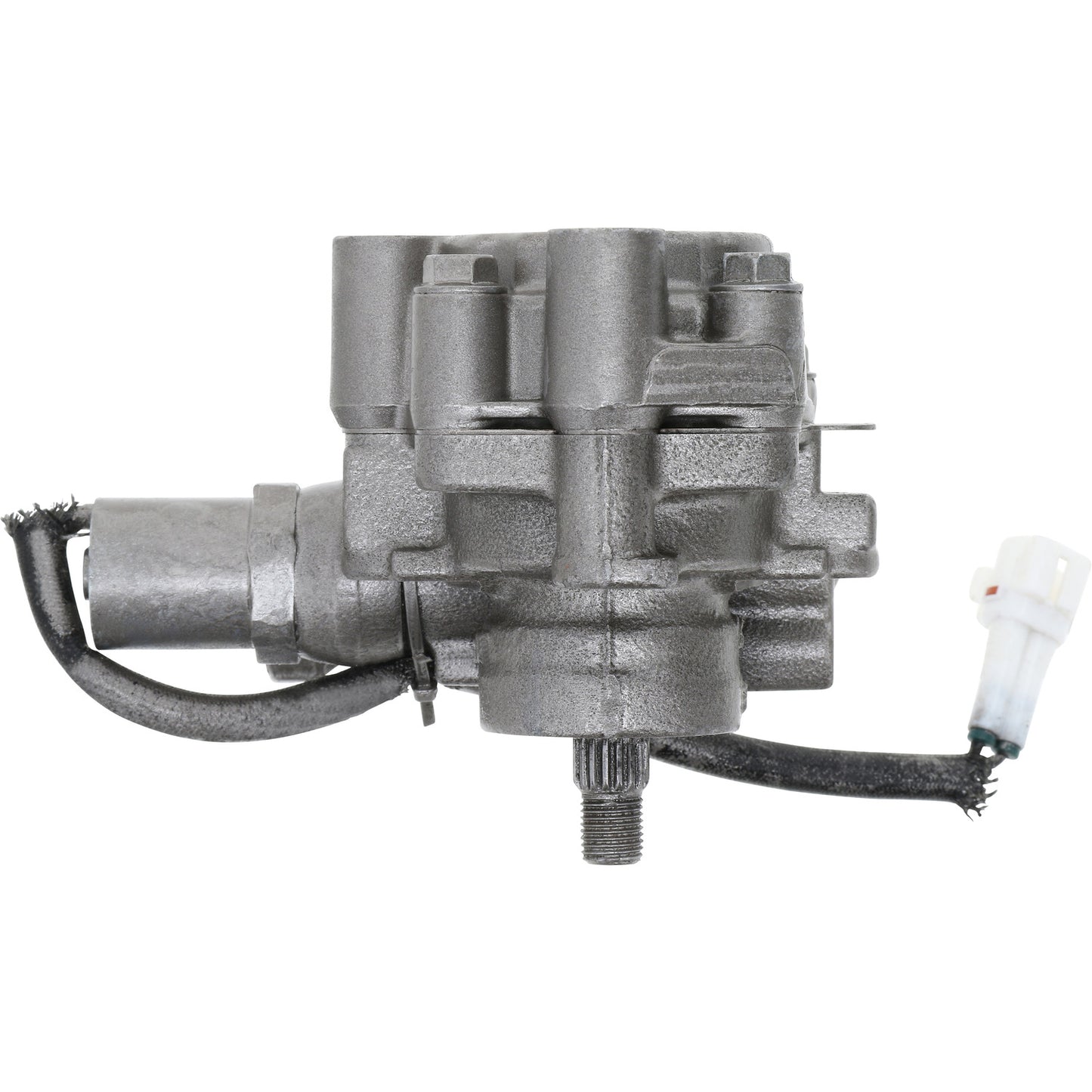

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96308M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96308M

SKU:96308M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type Washer
Housing Material Cast Iron/Aluminum
Mounting Hardware Included No
Outlet Thread Size 20x1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Pulley Attachement Type Bolt-on
Pulley Included No
Remote Reservoir No
Reservoir Included No

Application Info: Lexus GS300 1998-2005 - All Models

Interchange: Toyota - 44320-30580

BBB Cross-Reference: 990-0228

Cardone Cross-Reference: 21-5256

Instructions - 1               Instructions - 2

Instructions - 3               Instructions - 4

Instructions - 5               Instructions - 6

Instructions - 7               Instructions - 8
