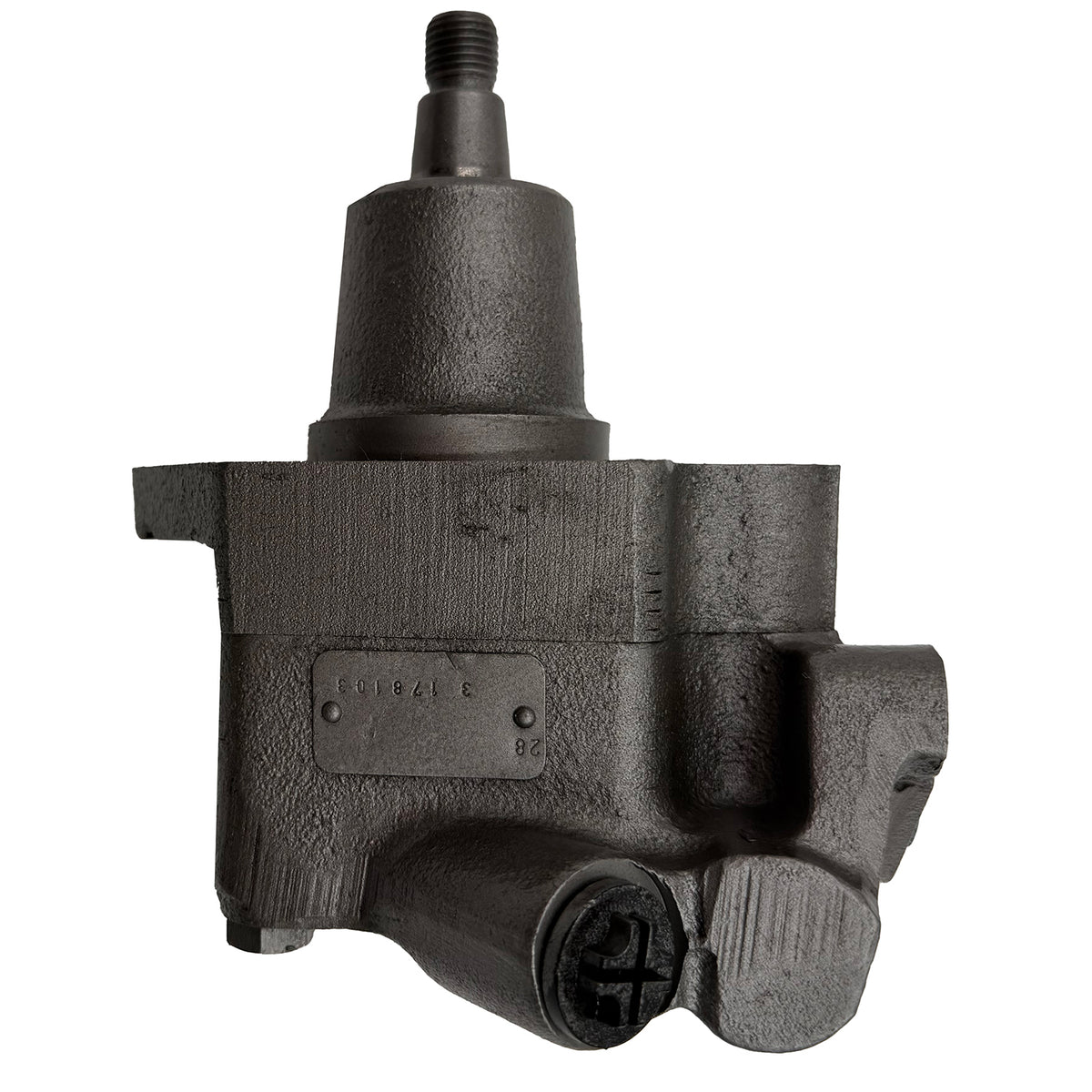

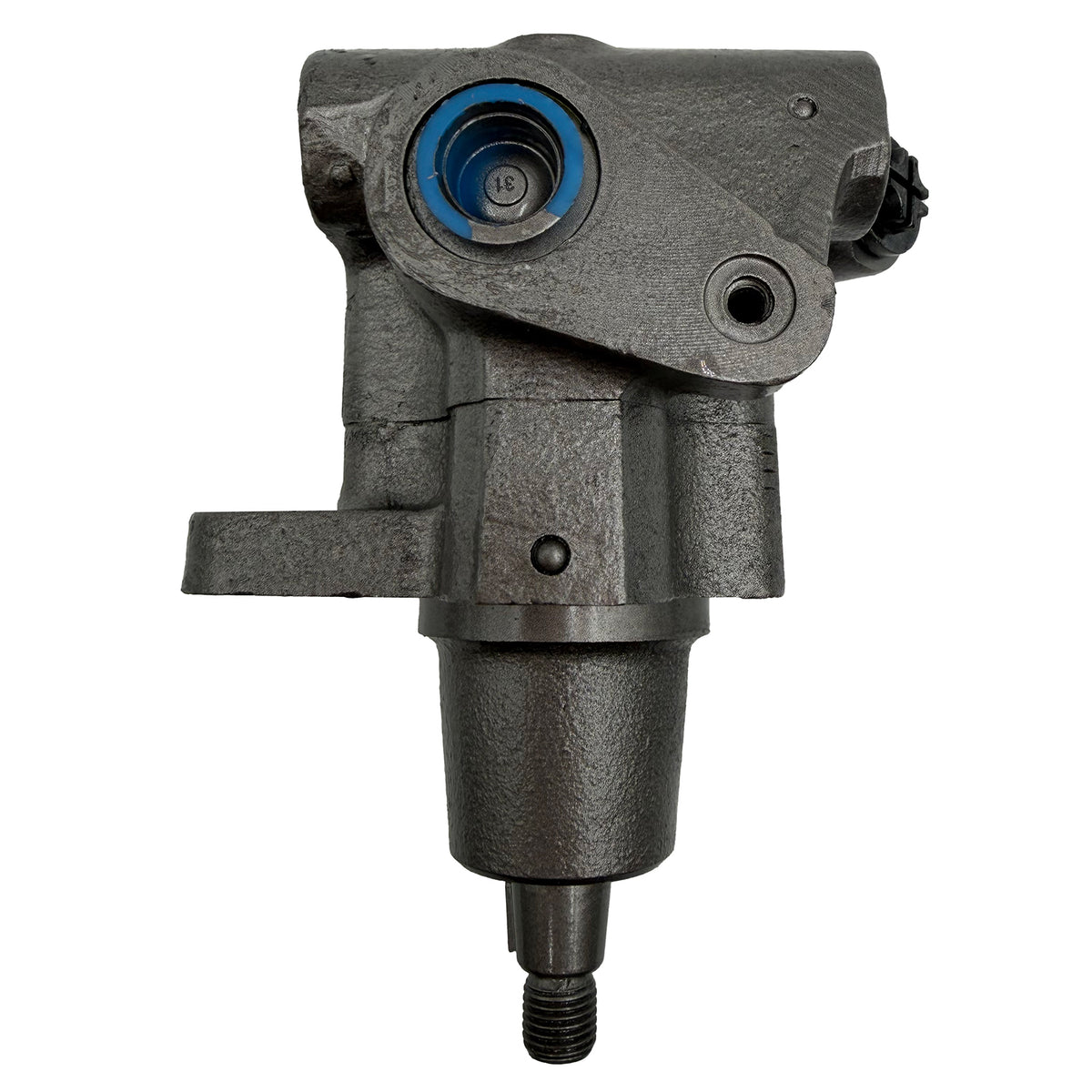

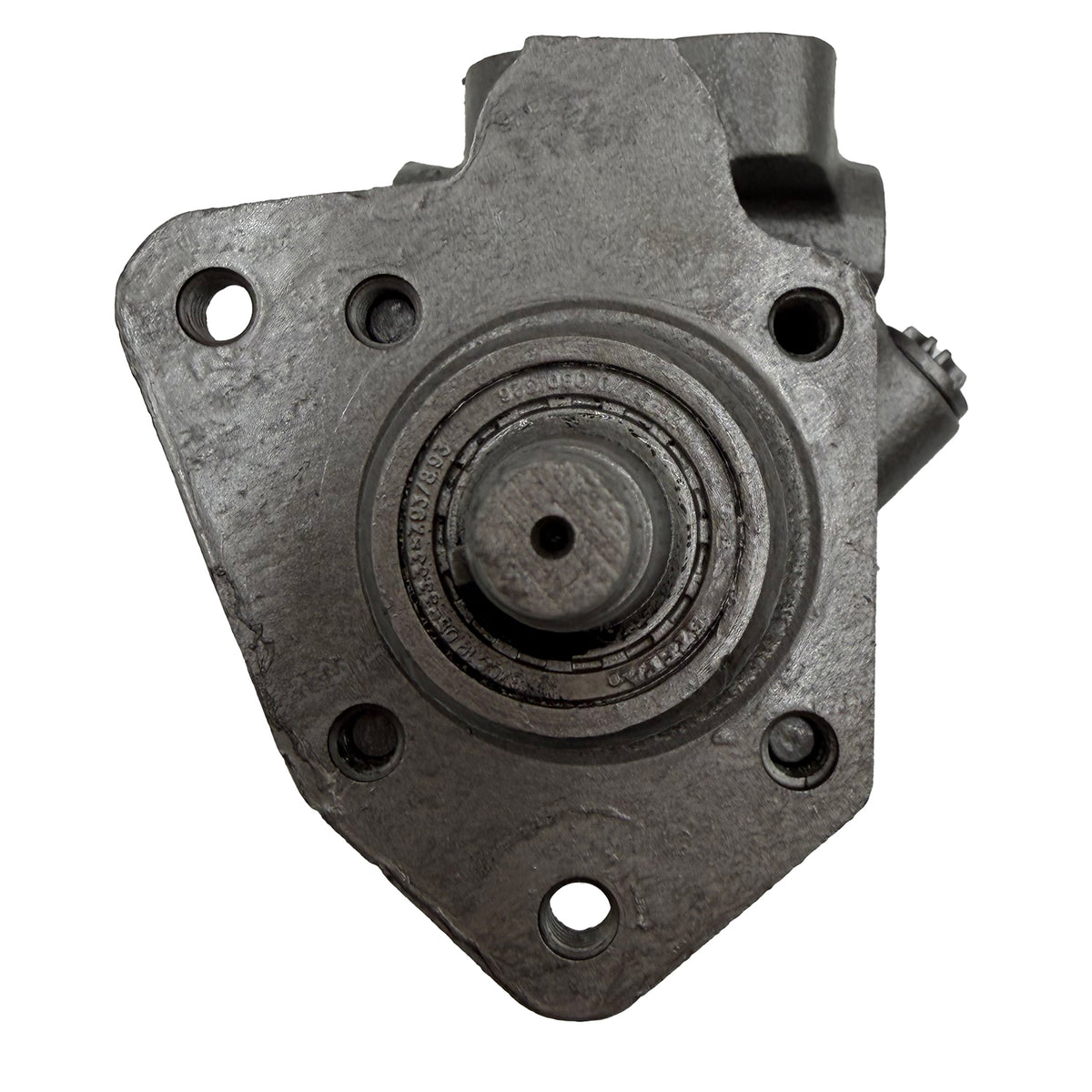

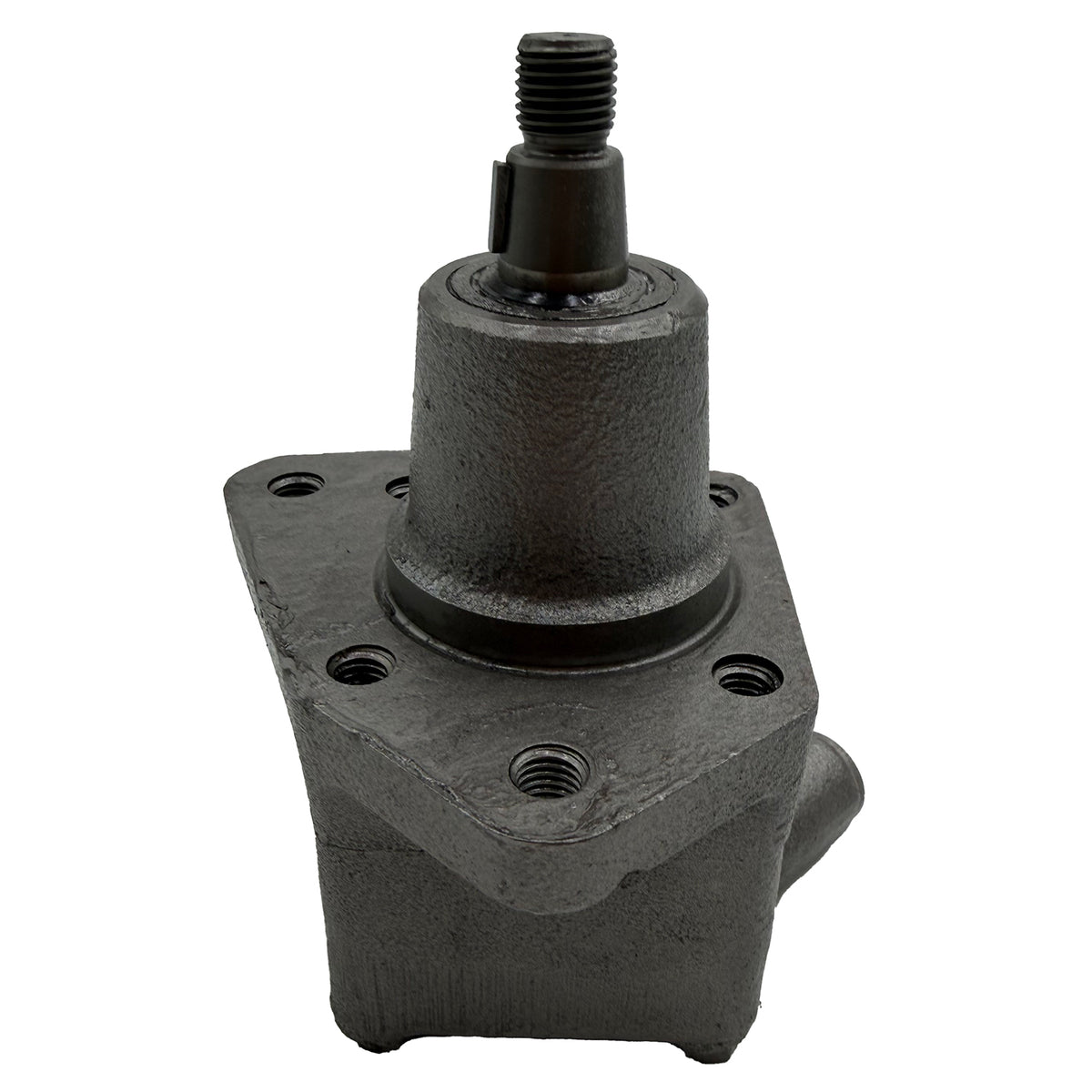

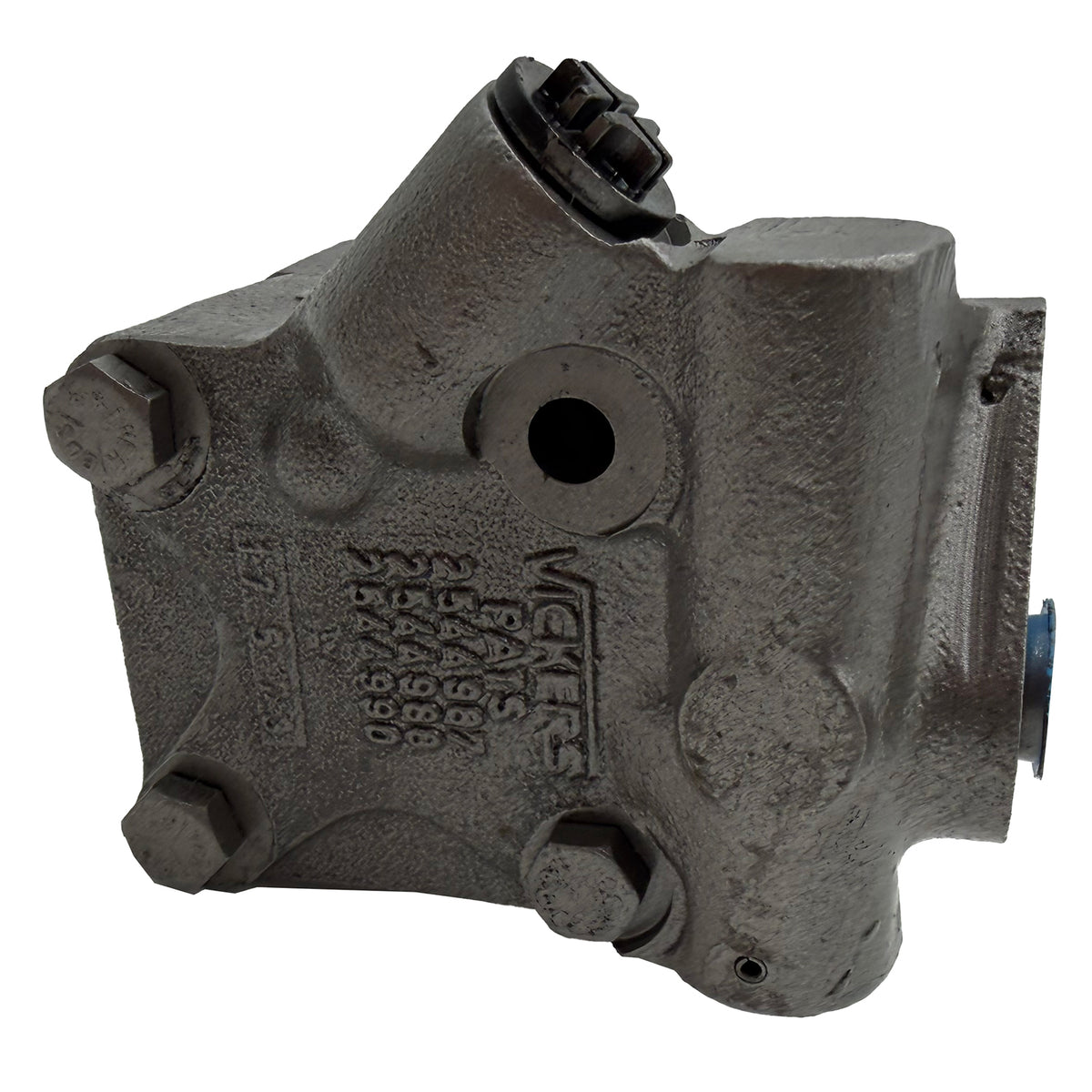

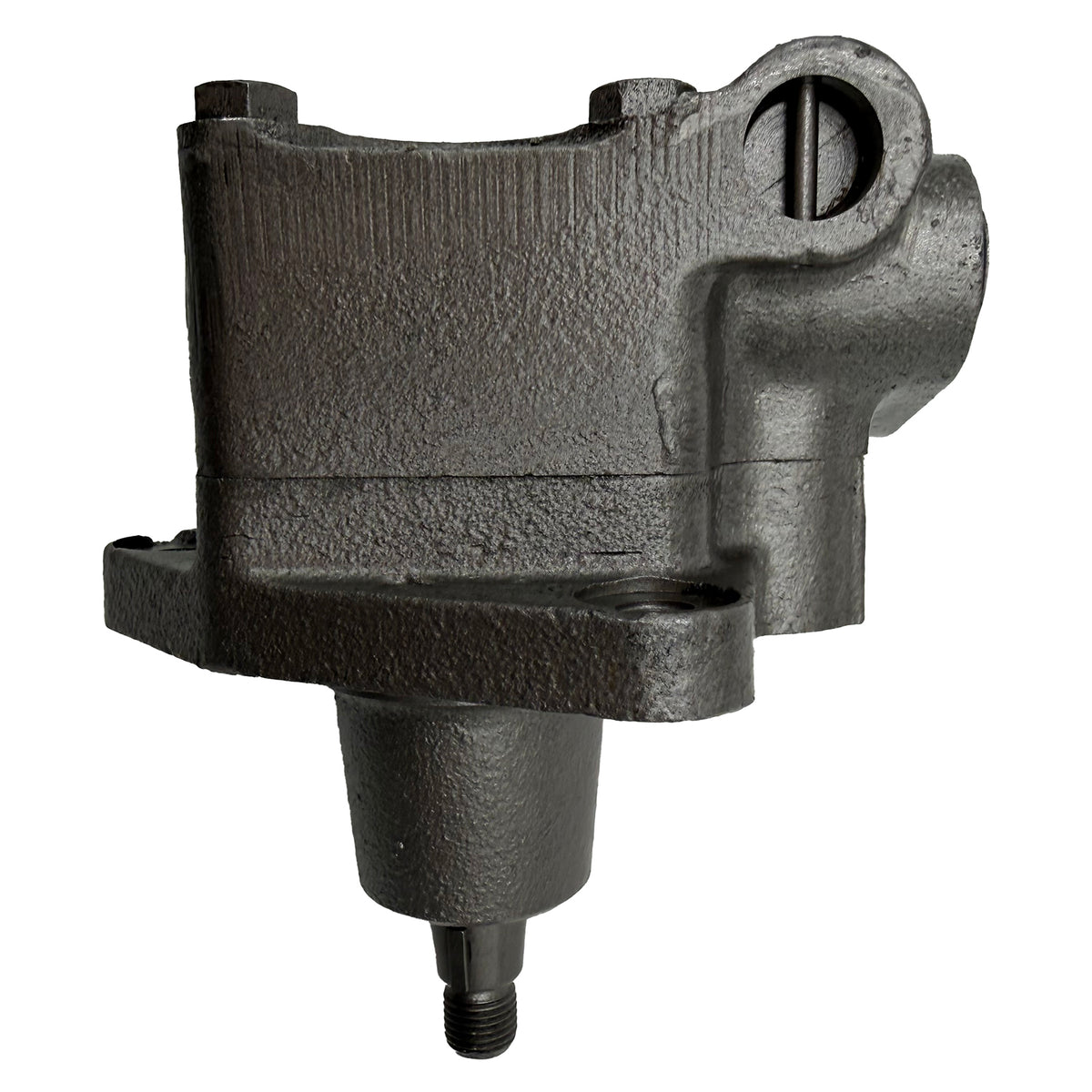

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96271M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96271M


MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type Seat
Housing Material Cast Iron
Mounting Hardware Included No
Outlet Thread Size 16X1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Reservoir Cap Included No
Pulley Attachment Type Bolt-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No


Application Info: Mercedes-Benz 240D (1974-1983), Mercedes-Benz 280SEL (1968-1972), Mercedes-Benz 350SL (1972), Mercedes-Benz 280 (1973-1976), Mercedes-Benz 230 (1968-1969,1974-1978), Mercedes-Benz 280S (1968-1971), Mercedes-Benz 450SL (1973-1975), Mercedes-Benz 280C (1973-1976), Mercedes-Benz 300SEL (1970-1971), Mercedes-Benz 280SE (1968-1972), Mercedes-Benz 300D (1975-1976), Mercedes-Benz 250S (1966-1967)

Interchange: Mercedes-Benz - 115-460-09-80-88

BBB Cross-Reference:

Cardone Cross-Reference: 21-5667

Instructions - 1               Instructions - 2

Instructions - 3               Instructions - 4

Instructions - 5               Instructions - 6
