MAVAL

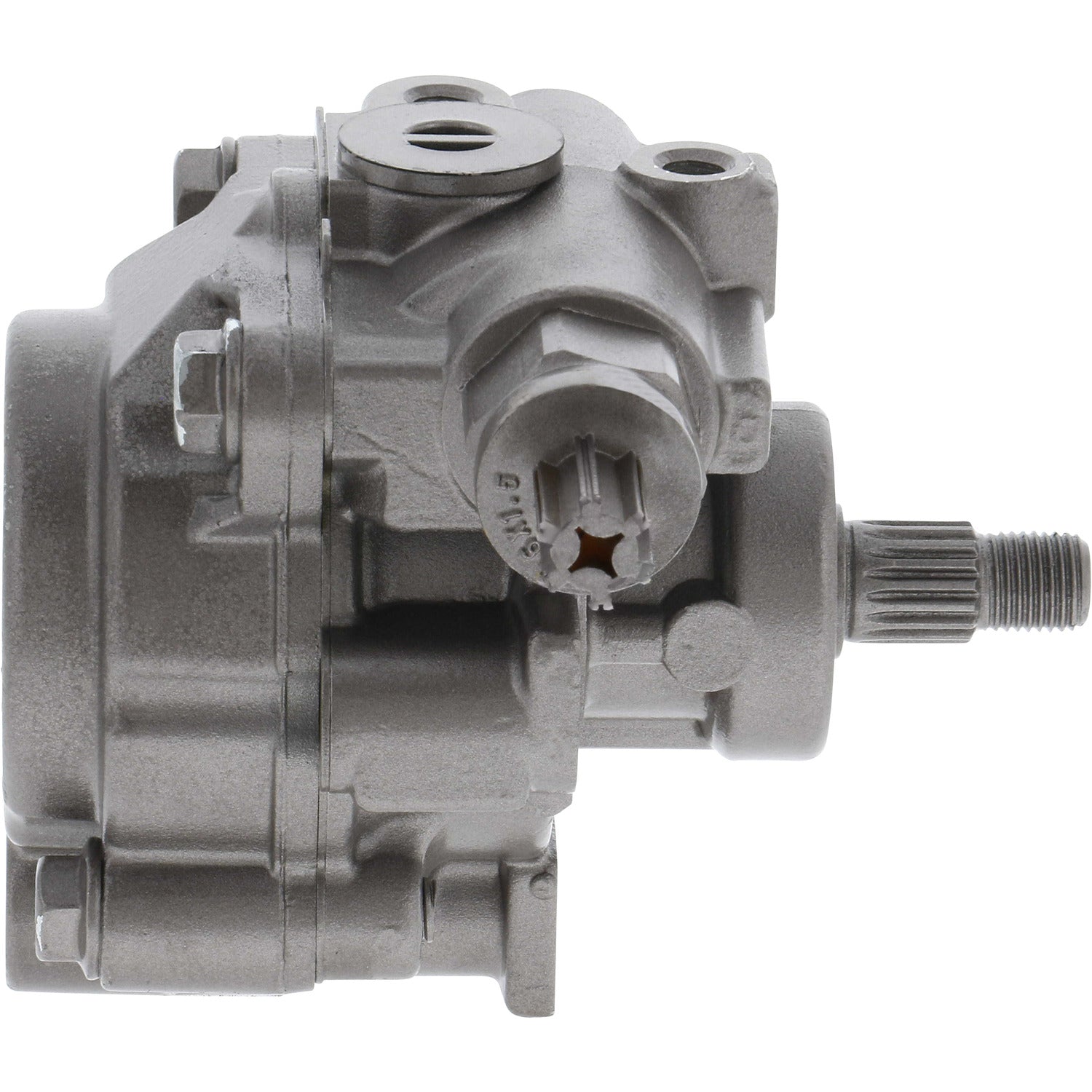

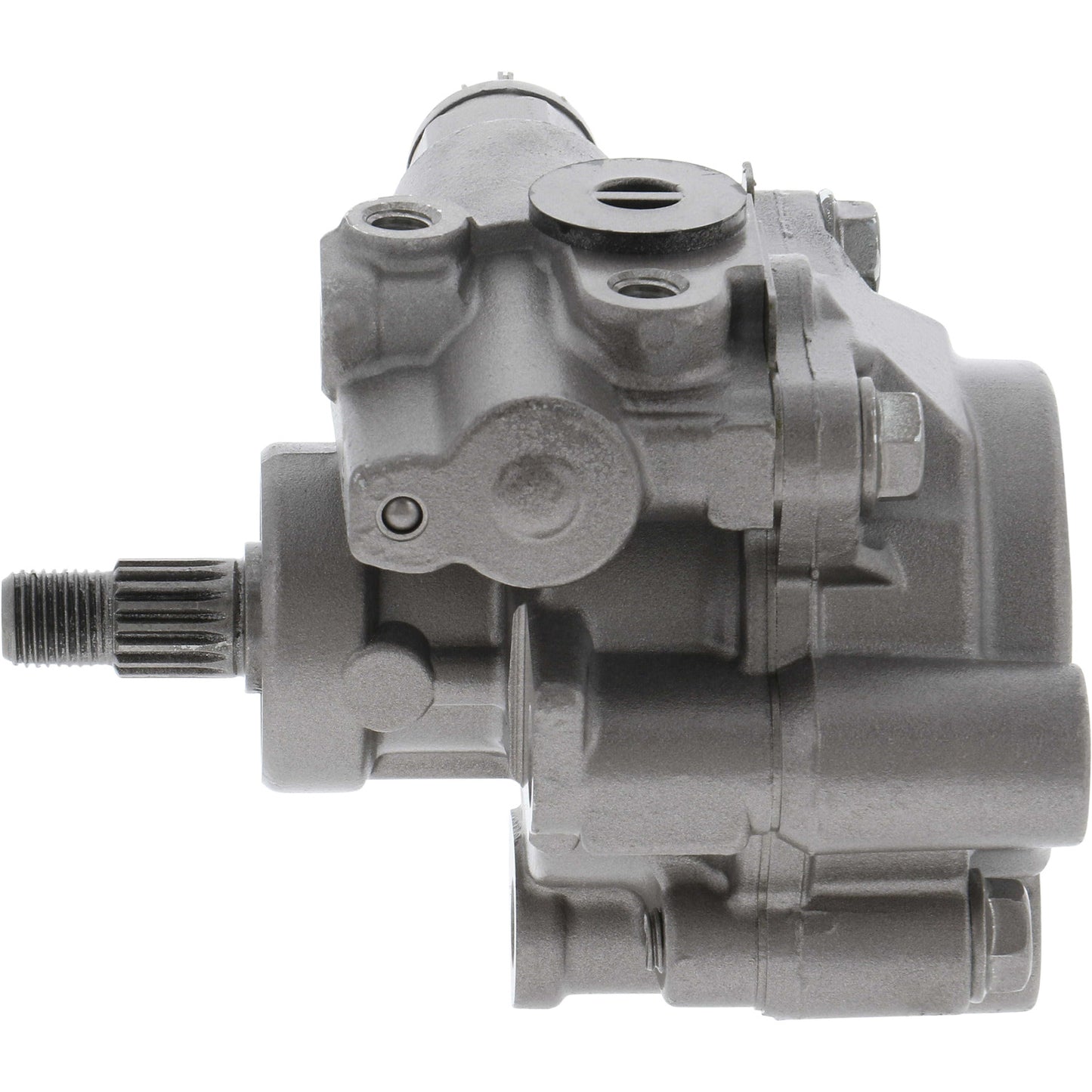

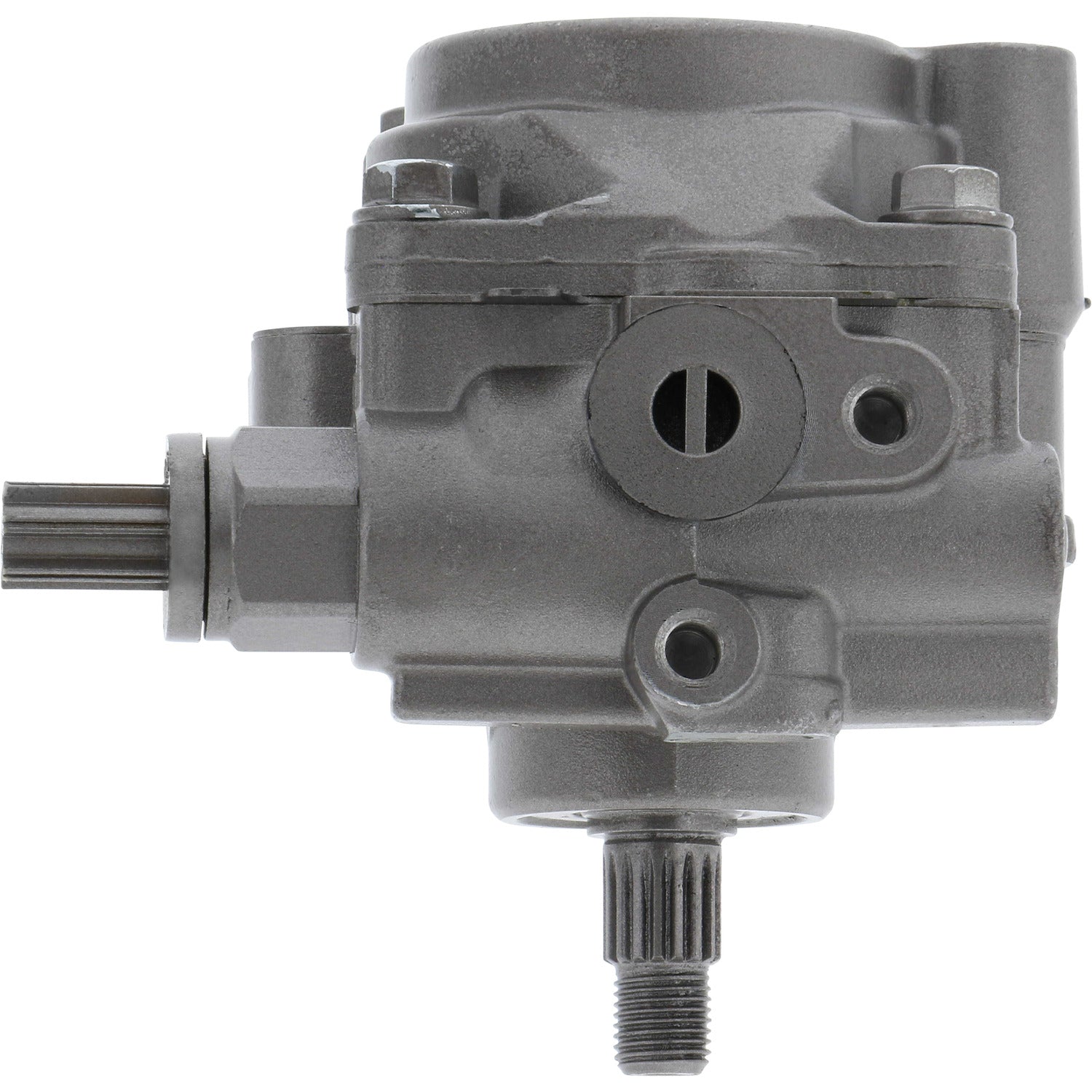

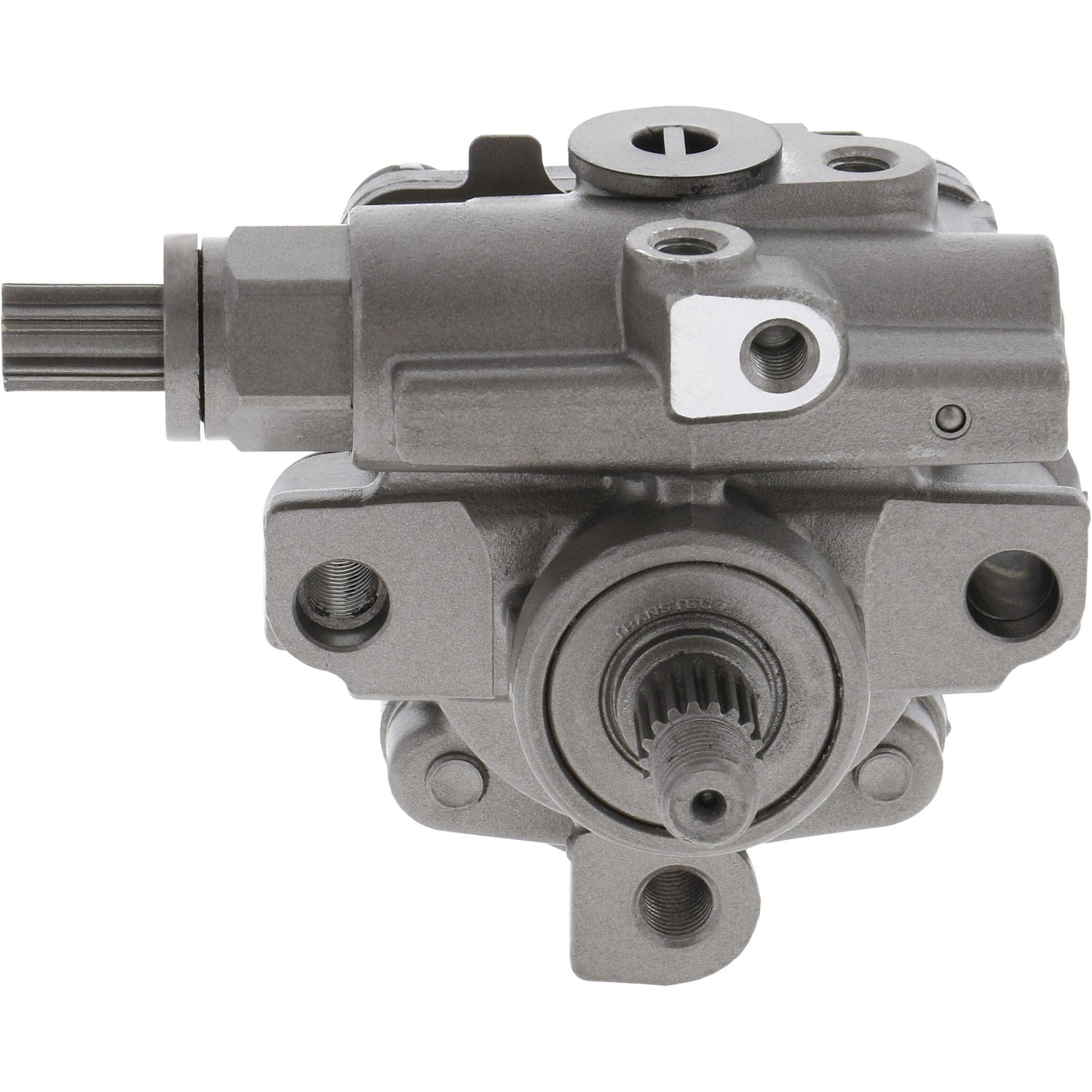

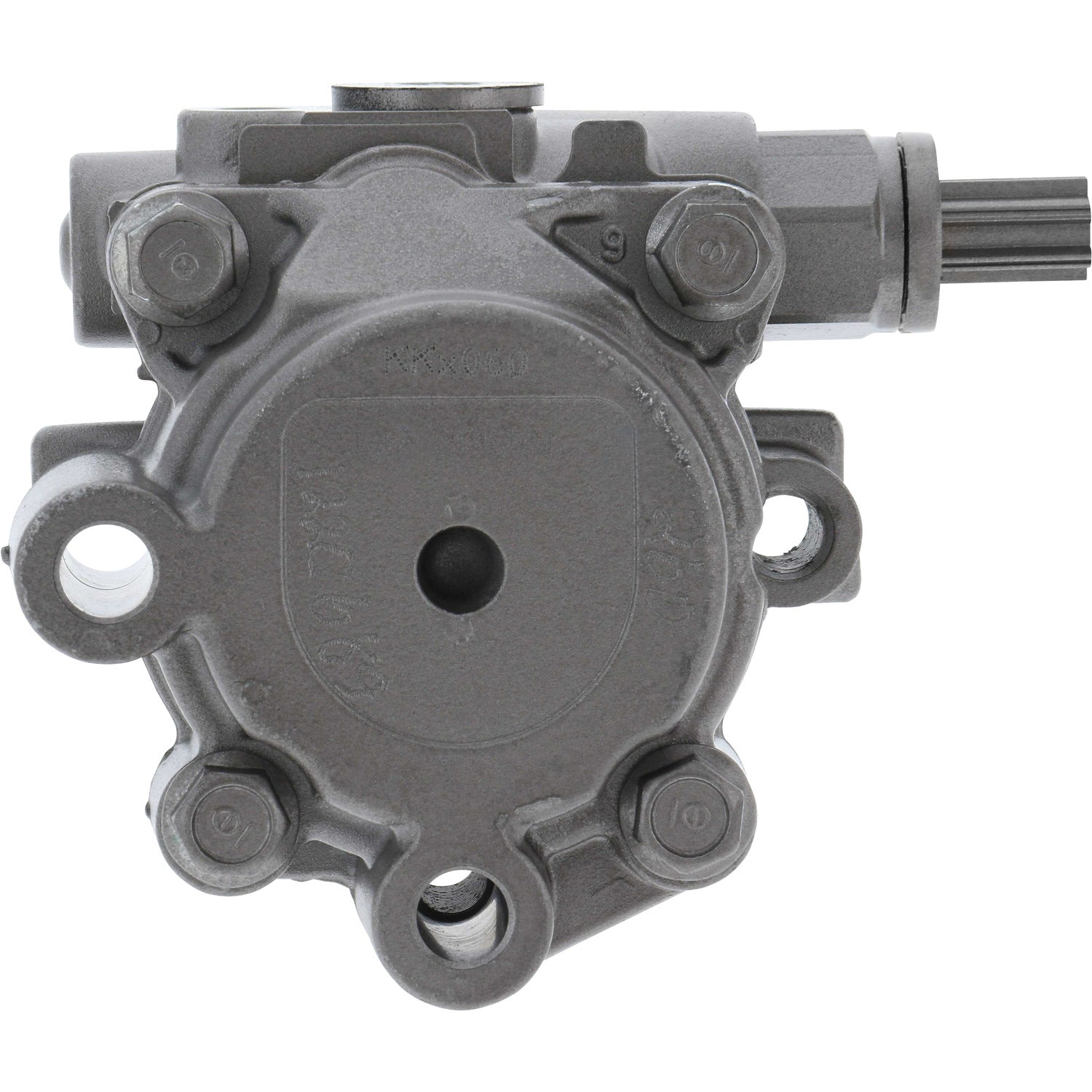

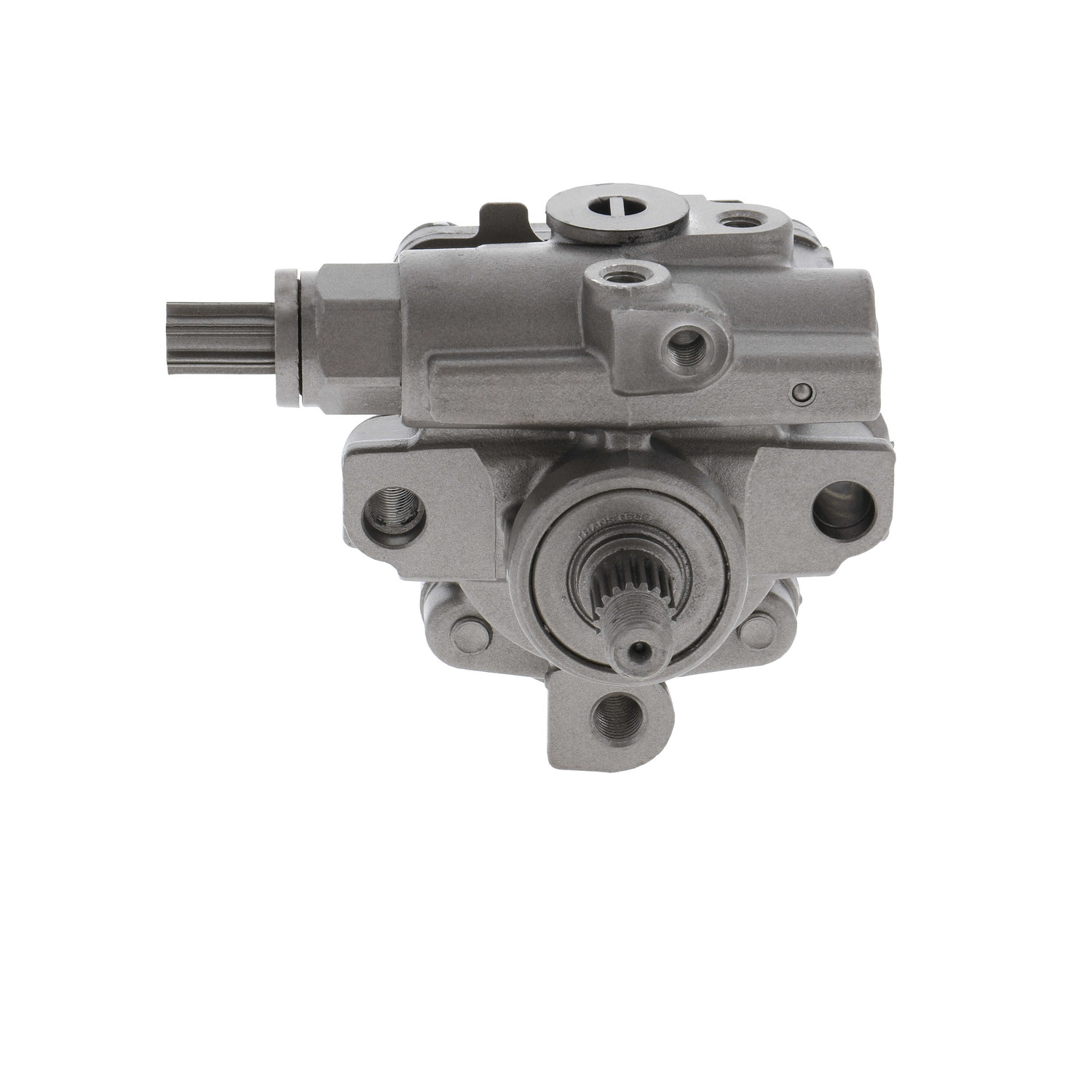

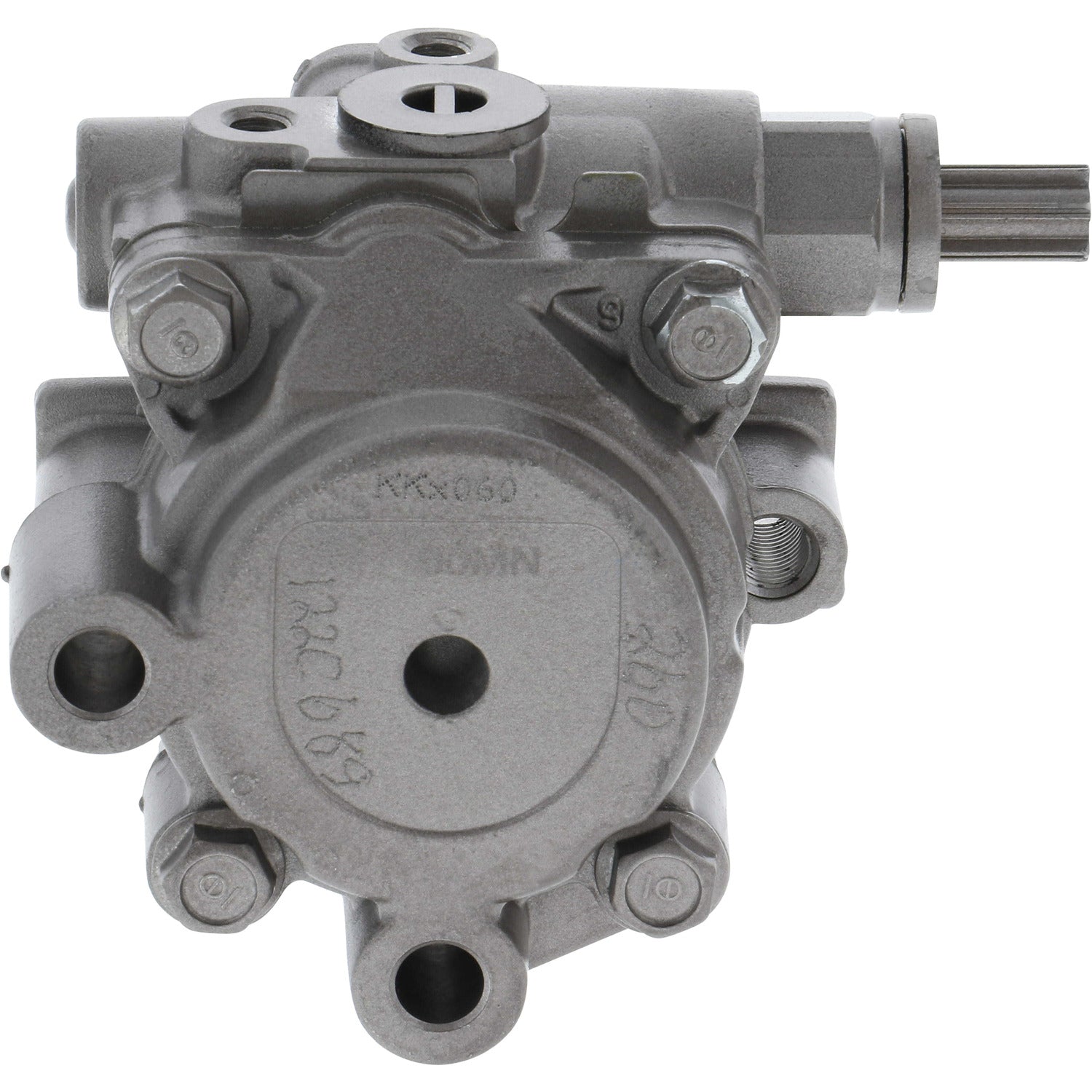

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96260M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96260M

SKU:96260M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type Seat
Housing Material Cast Iron/Aluminum
Mounting Hardware Included No
Outlet Thread Size 16X1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Reservoir Cap Included No
Pulley Attachment Type Bolt-on
Pulley Included No
Remote Reservoir No
Reservoir Included No

Application Info: Toyota 4Runner (1996-02), T100 (1995-98), Tacoma (1995-04) ***W/3.4L V6 Engine, W/O Pulley, W/O Reservoir***

Interchange: 44320-04030, 44320-04050, 44320-04051, 44320-04052, 44320-34050, 44320-34060, 44320-35490

BBB Cross-Reference: 990-0208, 990-0447

Cardone Cross-Reference: 21-5229, 21-5944

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
