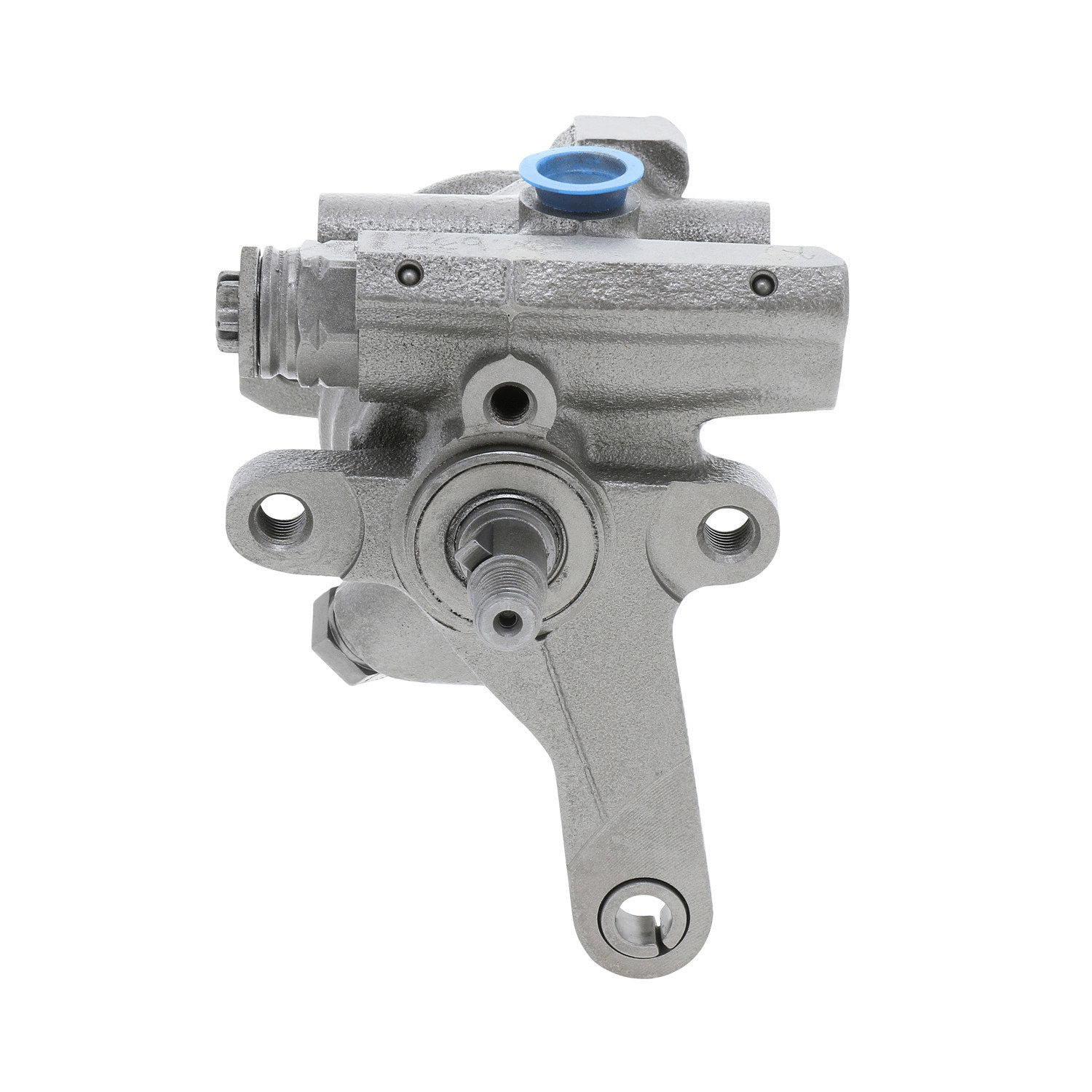

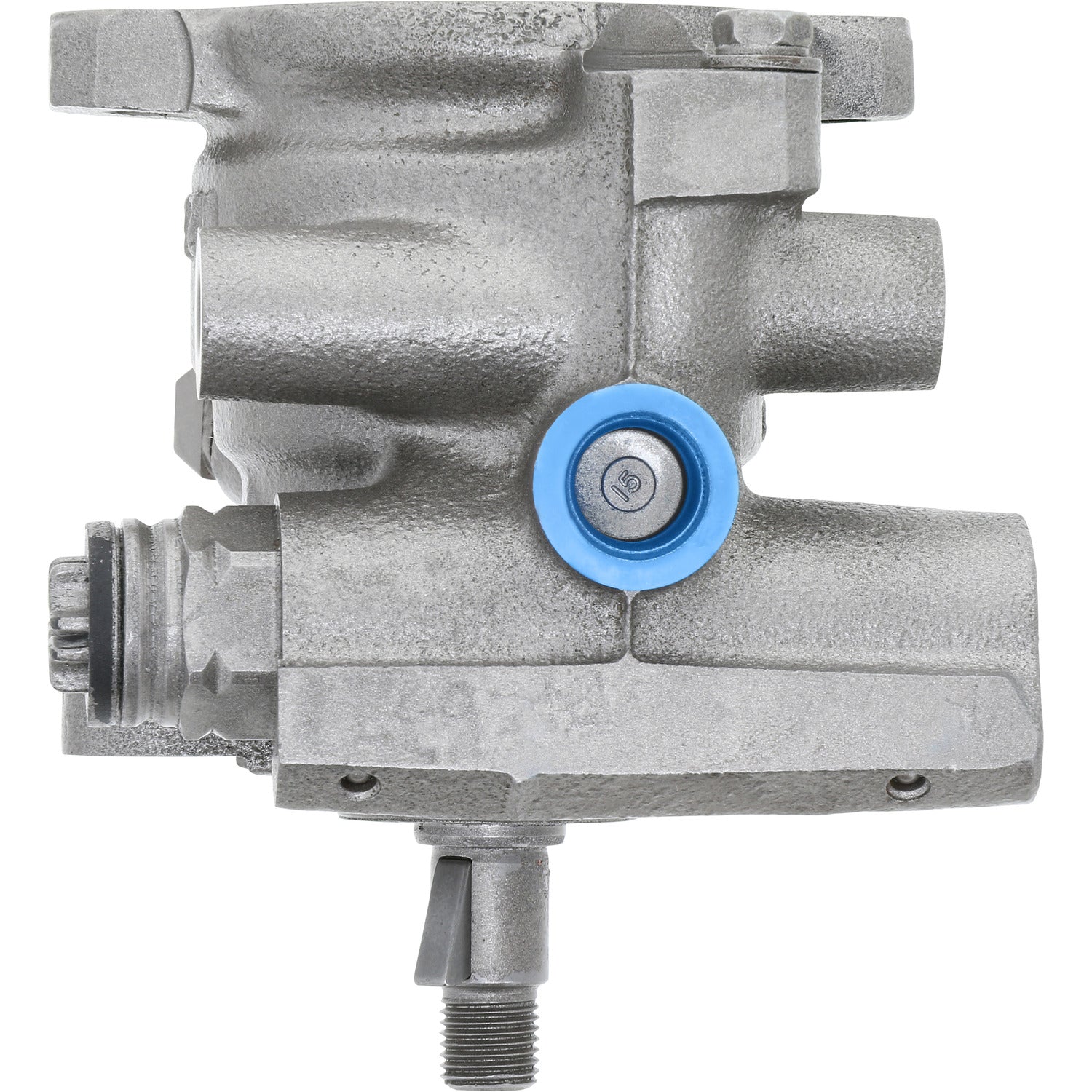

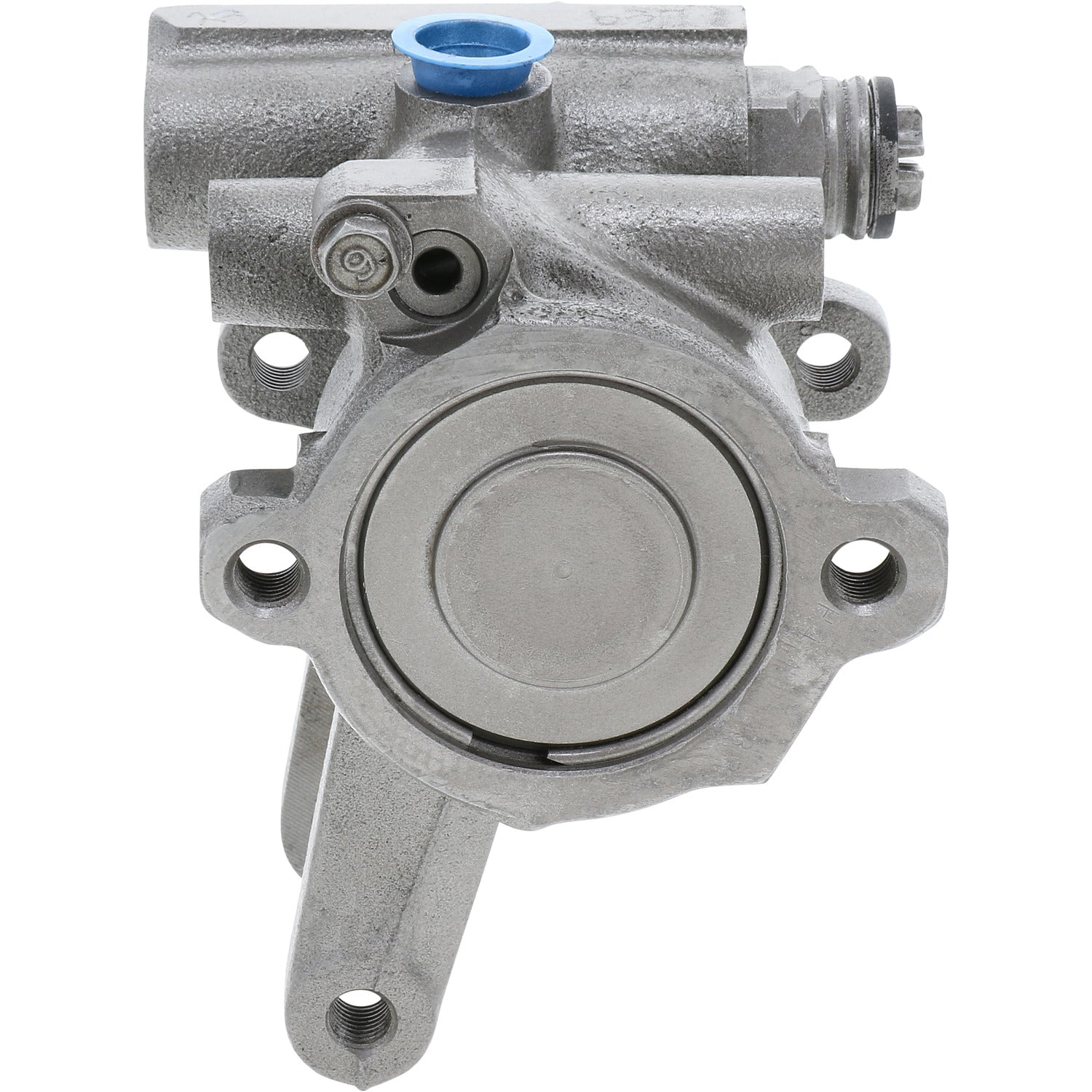

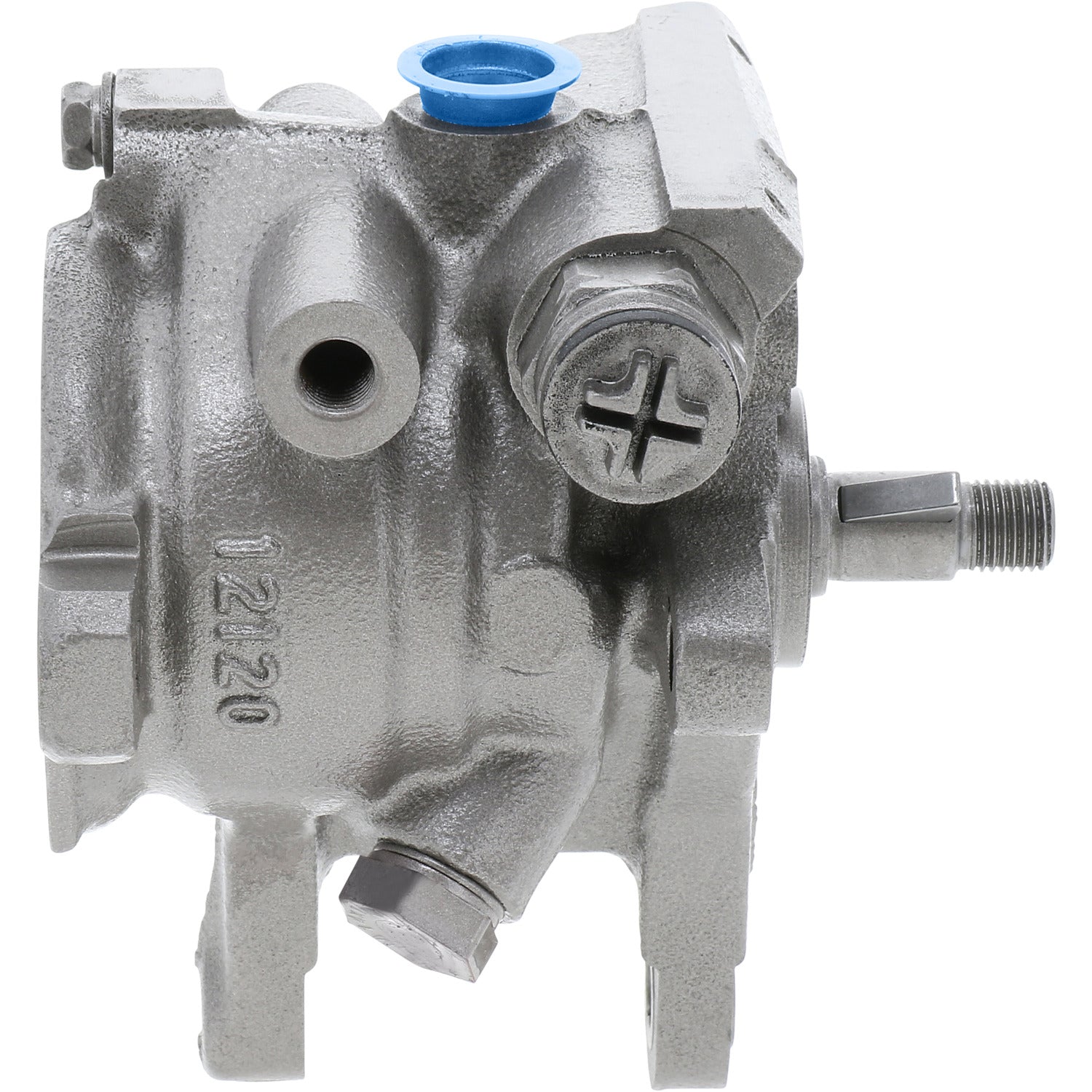

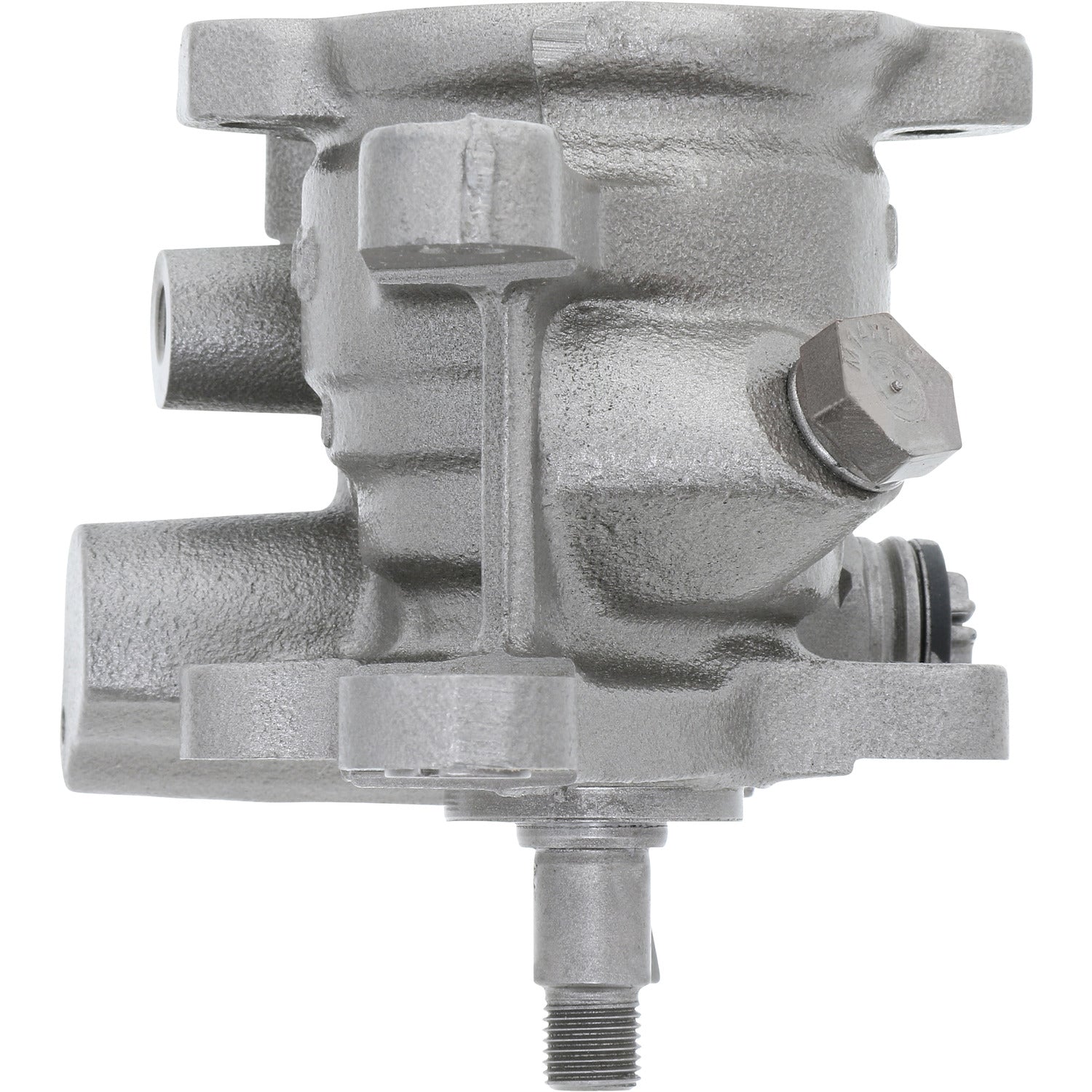

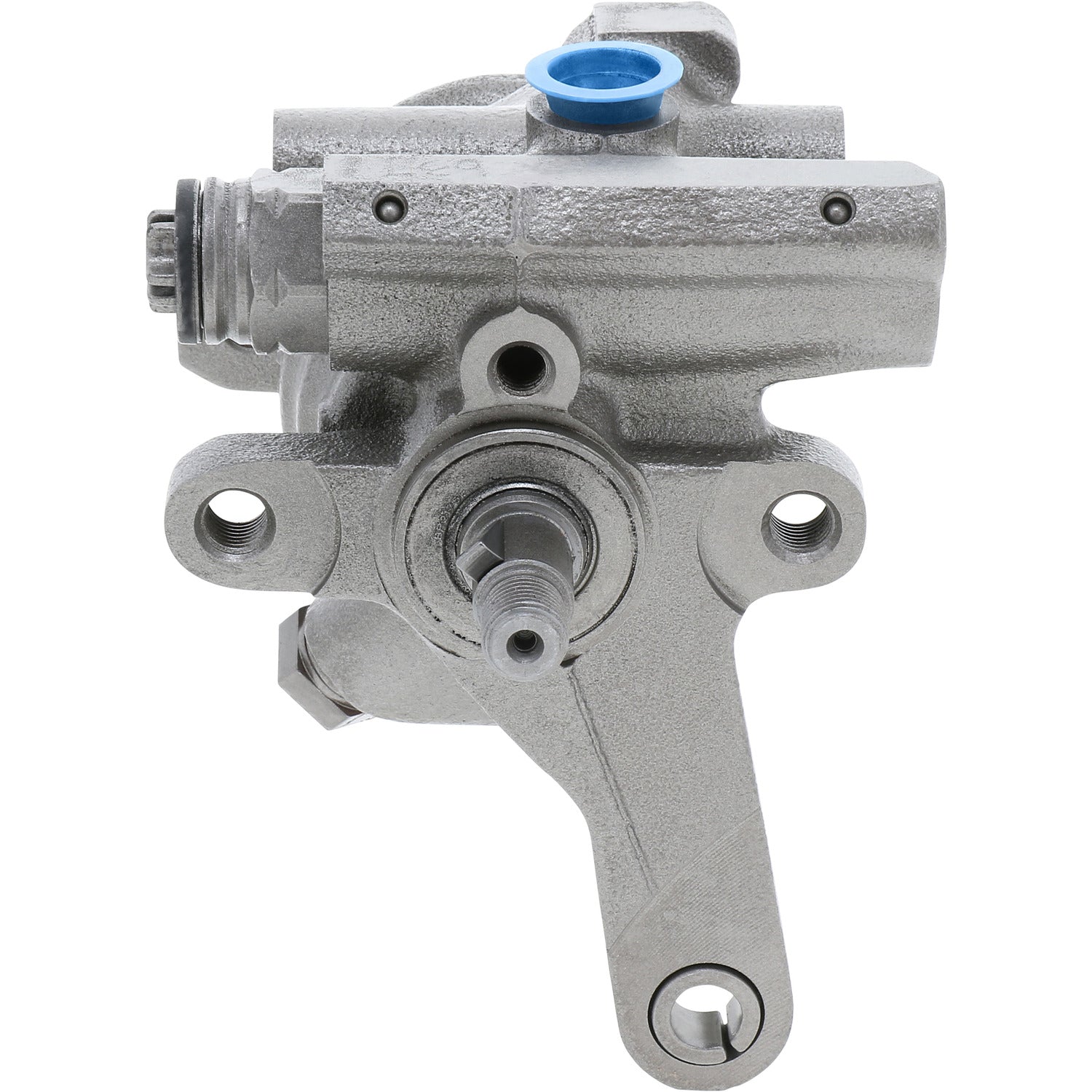

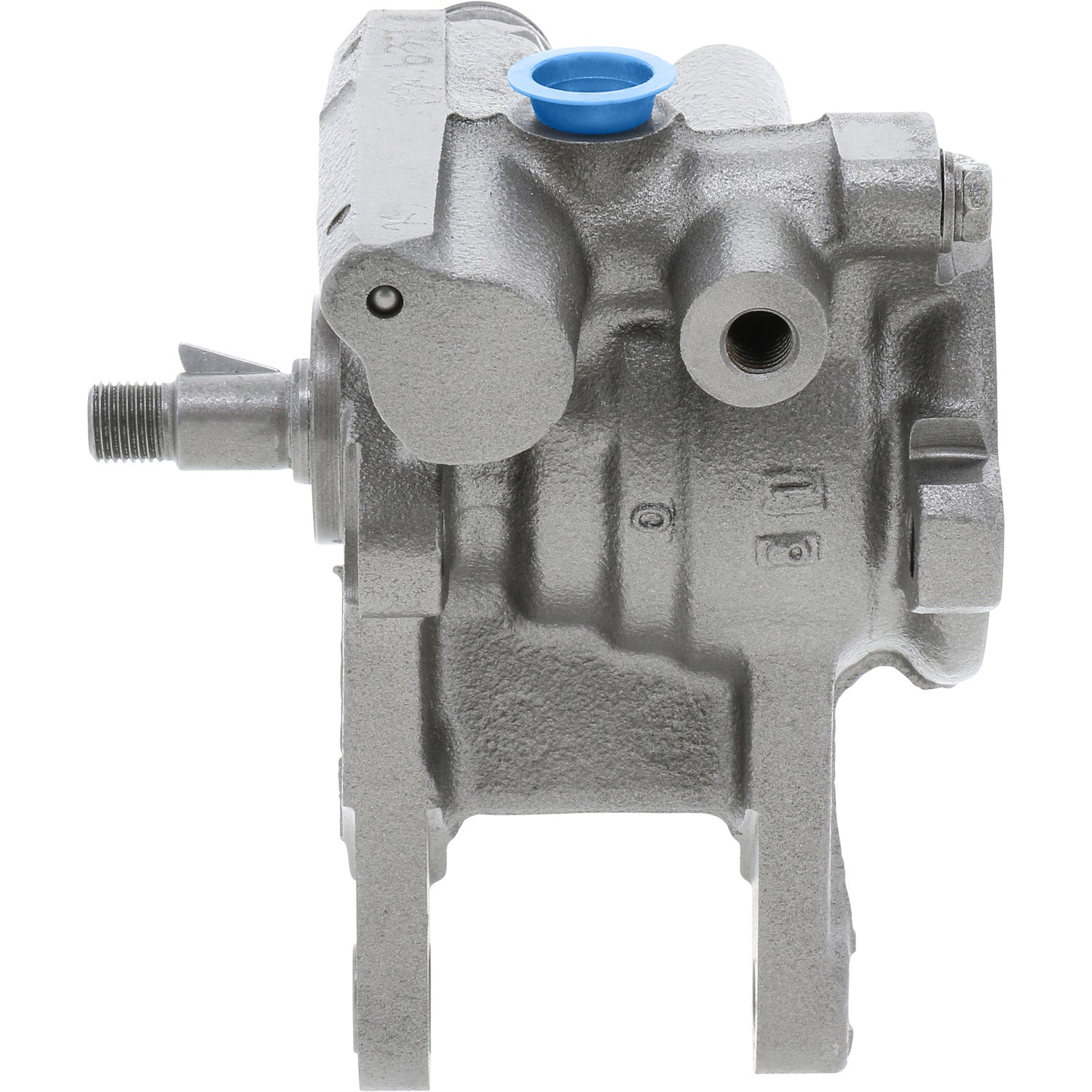

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 9625M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 9625M

SKU:9625M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type Seat
Housing Material Cast Iron
Mounting Hardware Included No
Outlet Thread Size 16X1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Reservoir Cap Included No
Pulley Attachment Type Bolt-on
Pulley Included No
Remote Reservoir No
Reservoir Included No

Application Info: Toyota Celica 1990-1993 - w/1.6L Engine

Interchange: Toyota - 44320-20240

BBB Cross-Reference: 990-0203

Cardone Cross-Reference: 21-5224

Instructions - 1               Instructions - 2

Instructions - 3               Instructions - 4

Instructions - 5               Instructions - 6
