MAVAL

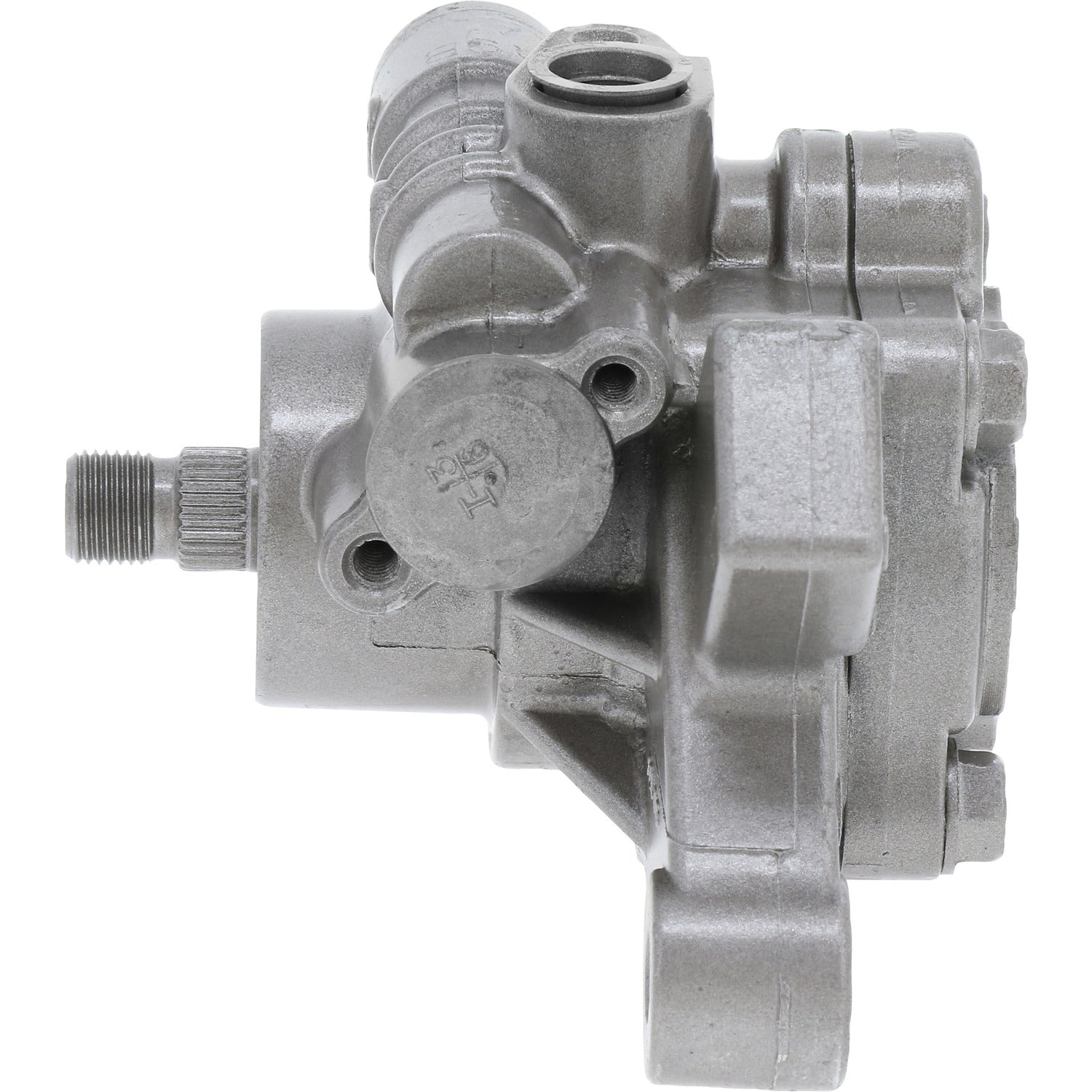

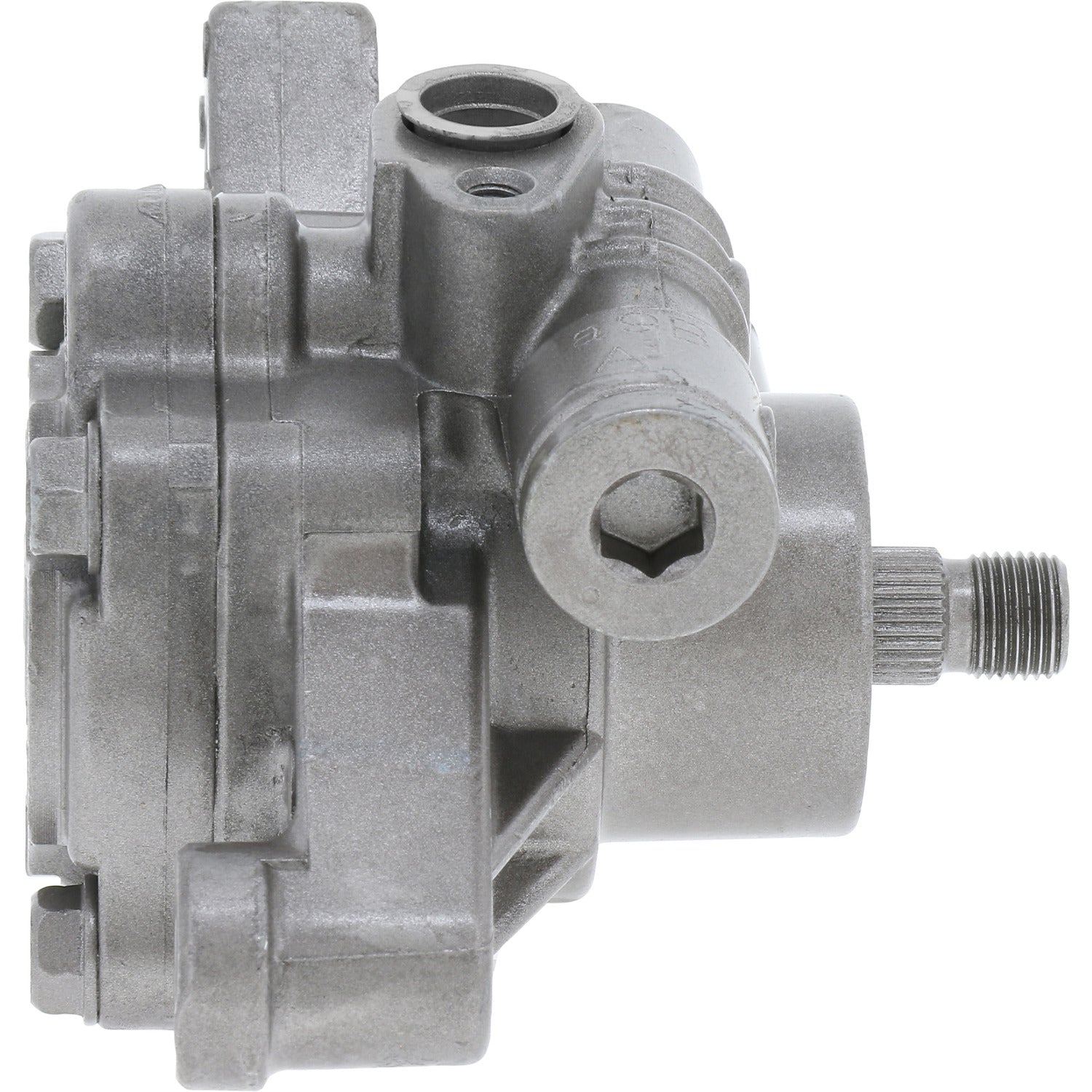

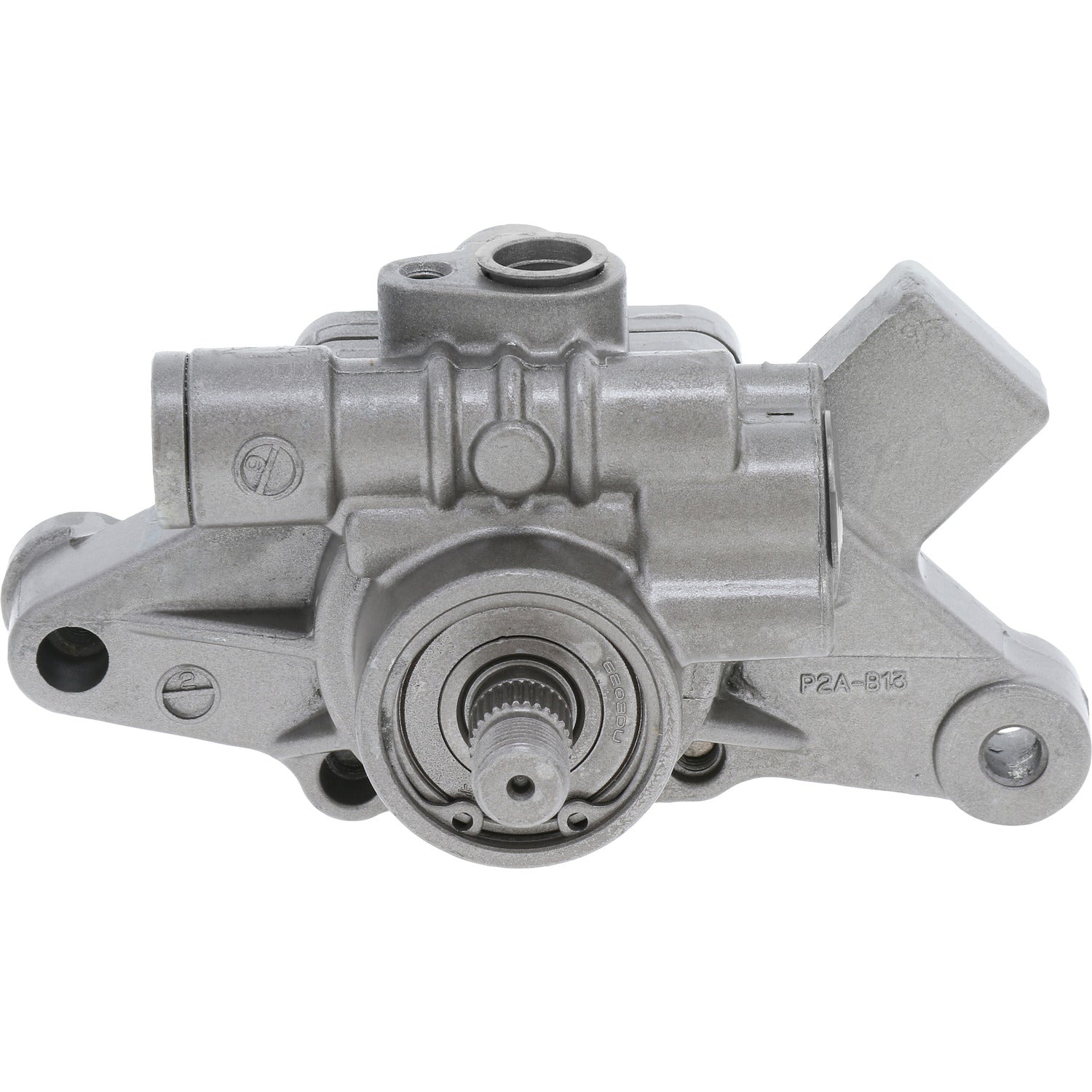

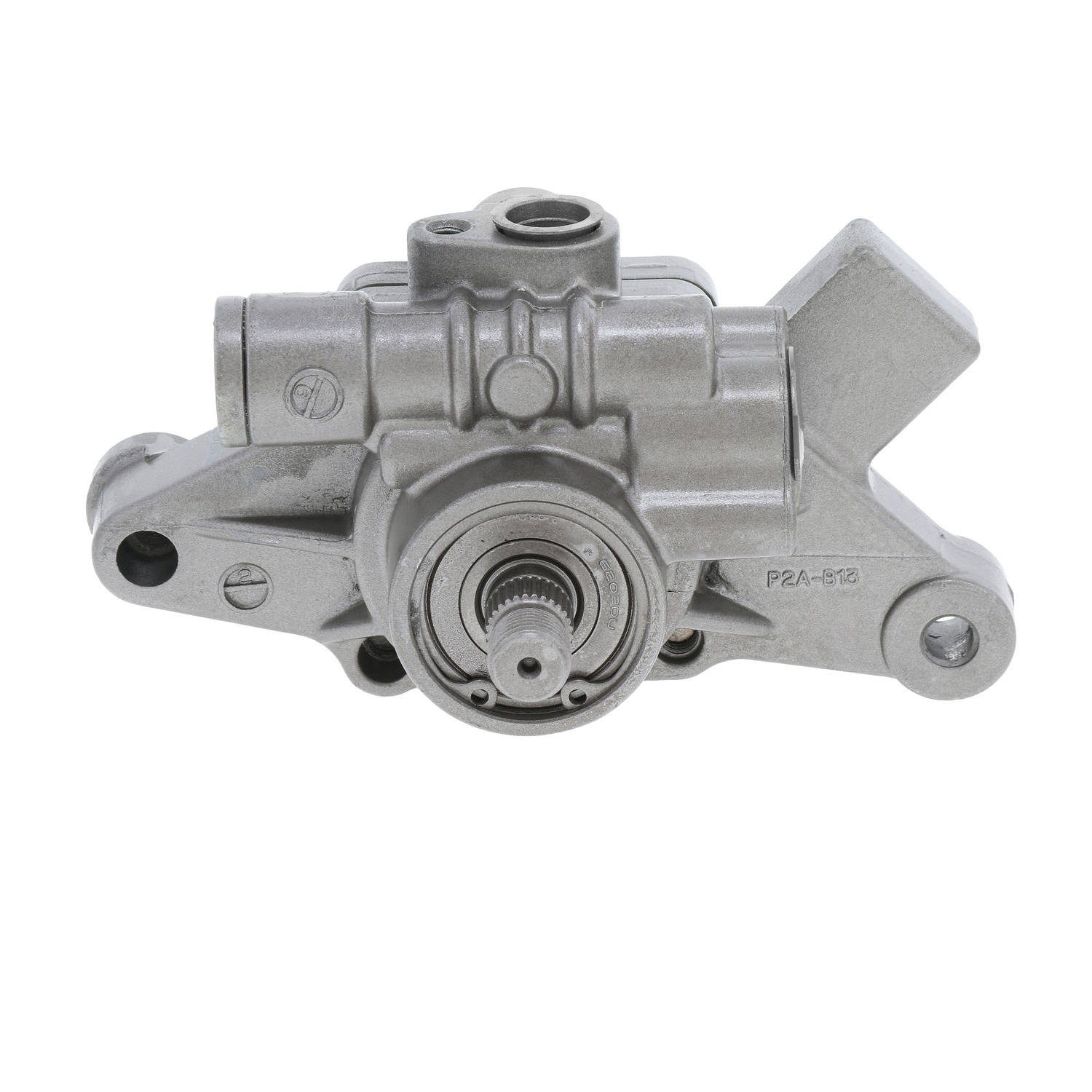

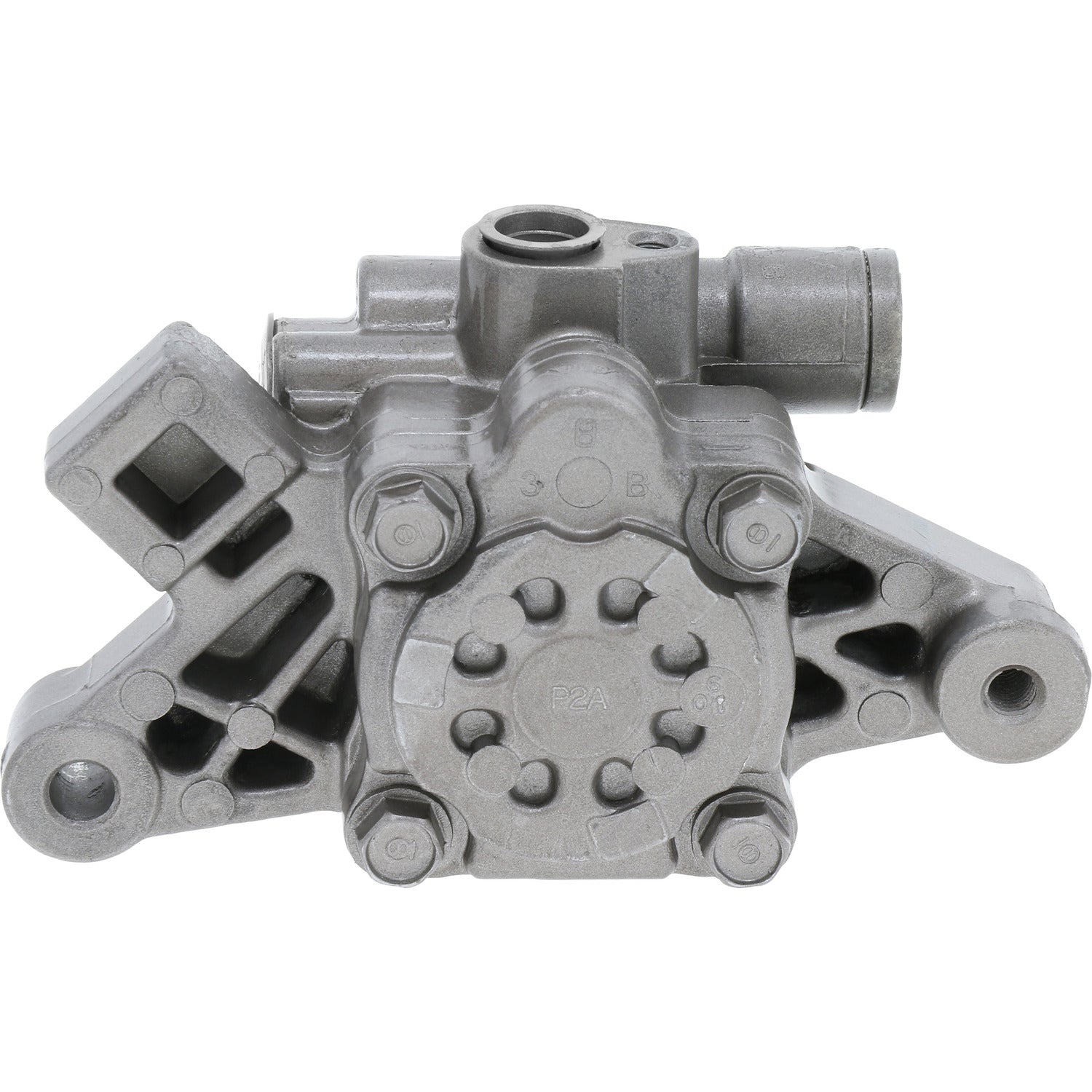

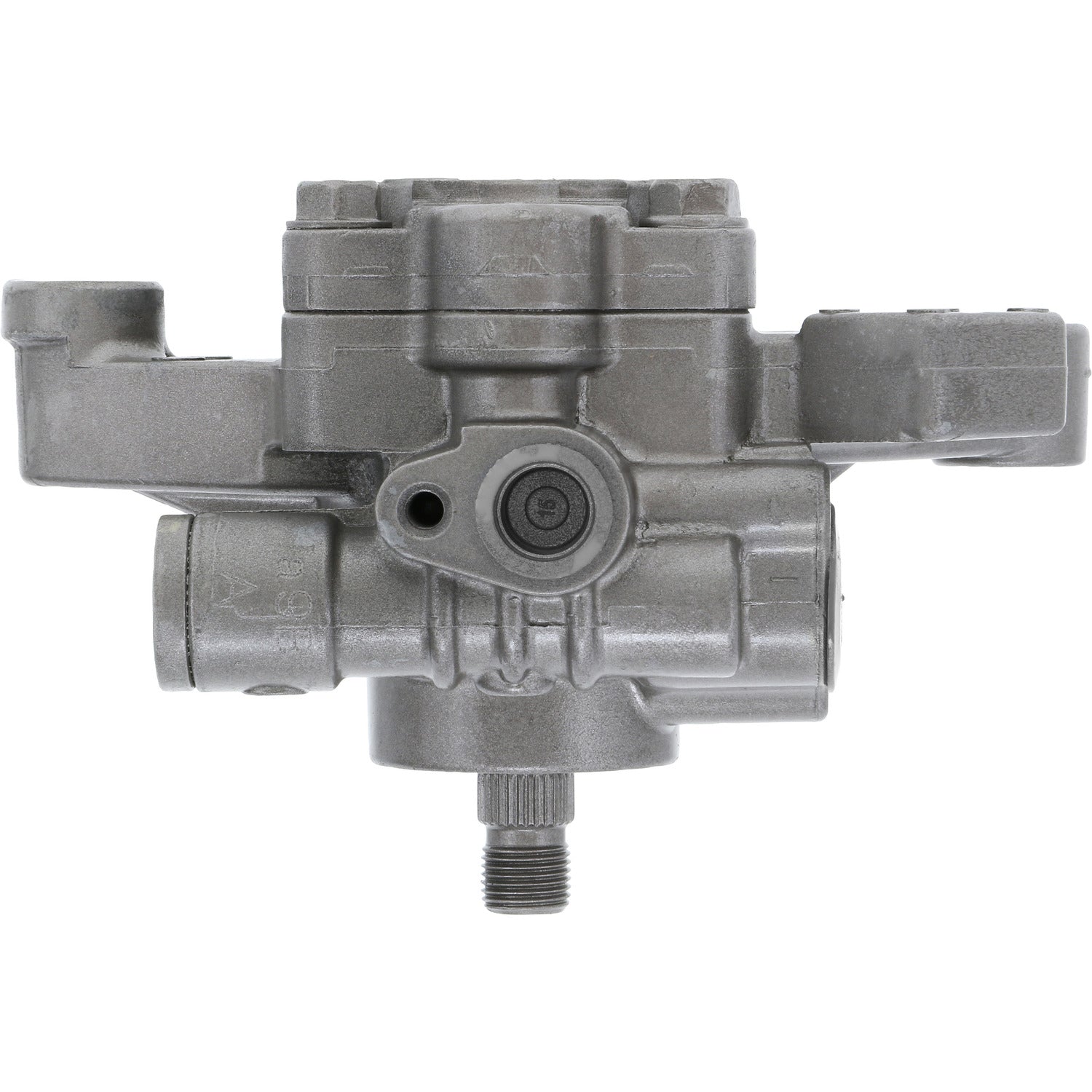

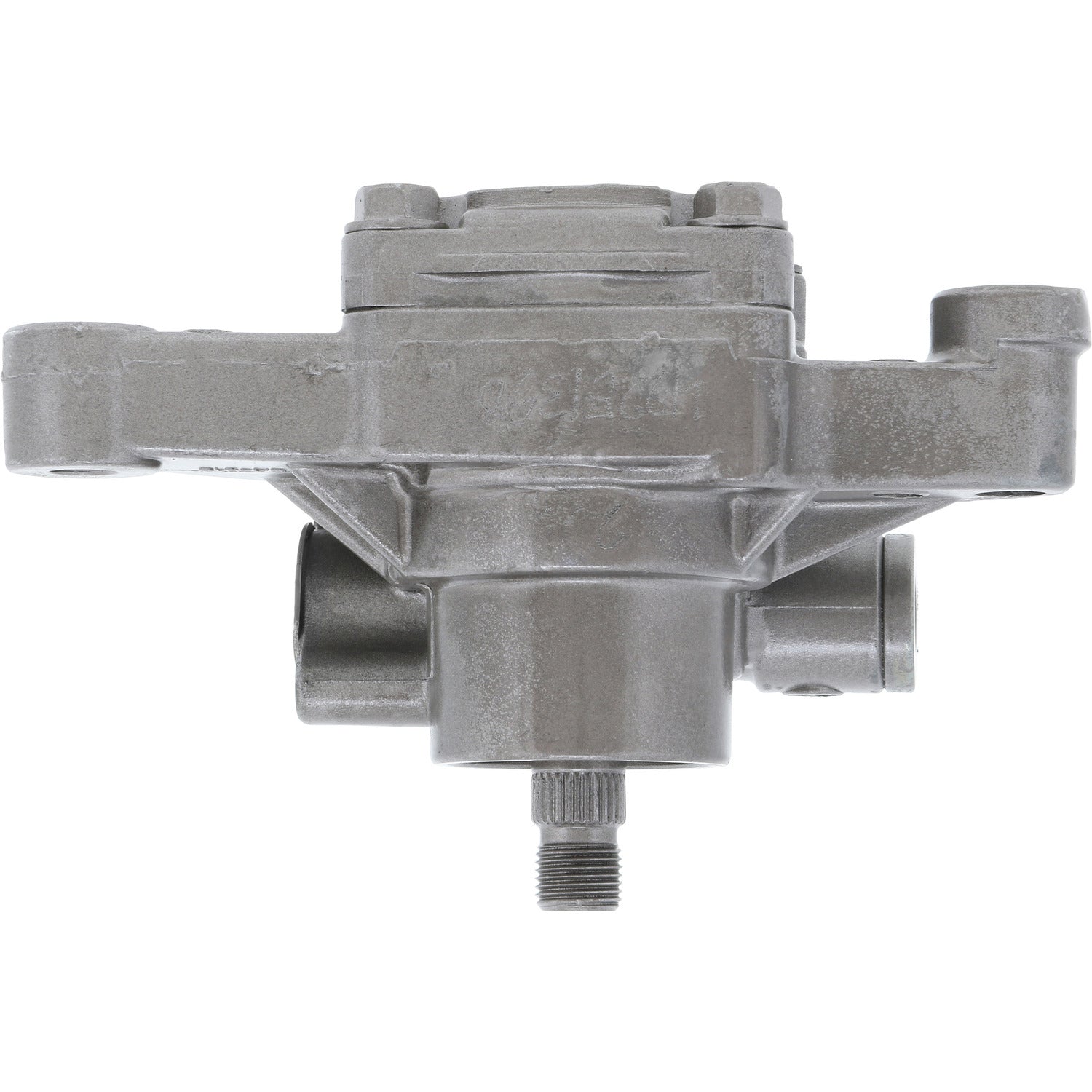

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96254M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96254M

SKU:96254M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Aluminum
Mounting Hardware Included No
Inlet Attachement Type Hose Barb
Outlet Attachment Type Bolt-on
Outlet Quantity 1
Reservoir Cap Included No
Pulley Attachment Type Bolt-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No



Application Info: Acura EL (1997-00); Honda Civic (1996-00), CR-V (1997-01) ***W/O Pulley, W/O Reservoir***

Interchange: 56110-P2A-003, 56110-P2A-013, 56110-P2A-023, 56110-P2A-962, 56110-P2A-963, 56110-P3F-003, 56110-P3F-013

BBB Cross-Reference: 990-0151

Cardone Cross-Reference: 21-5066

To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance. Click For Tech Bulletin.

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
