MAVAL

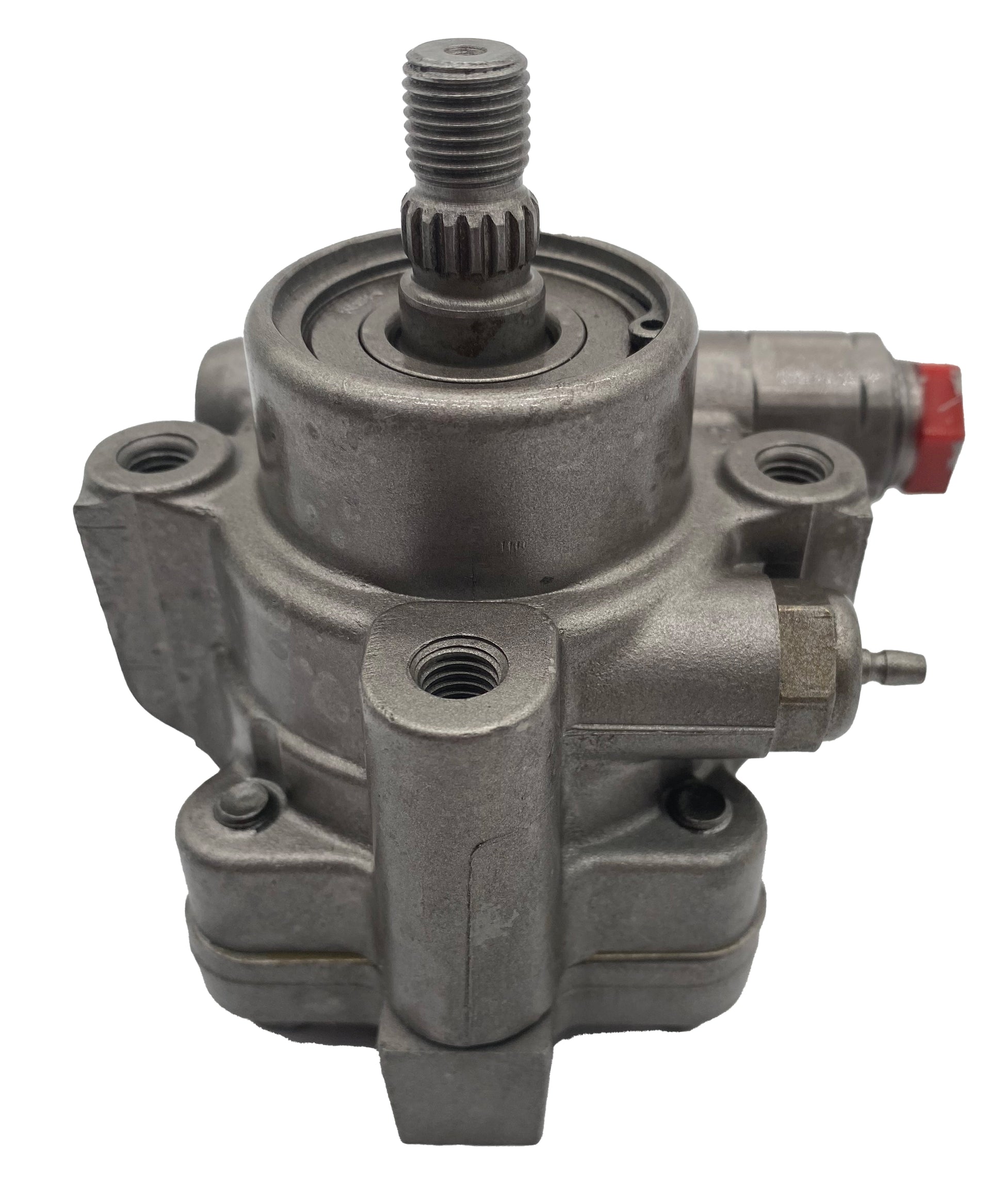

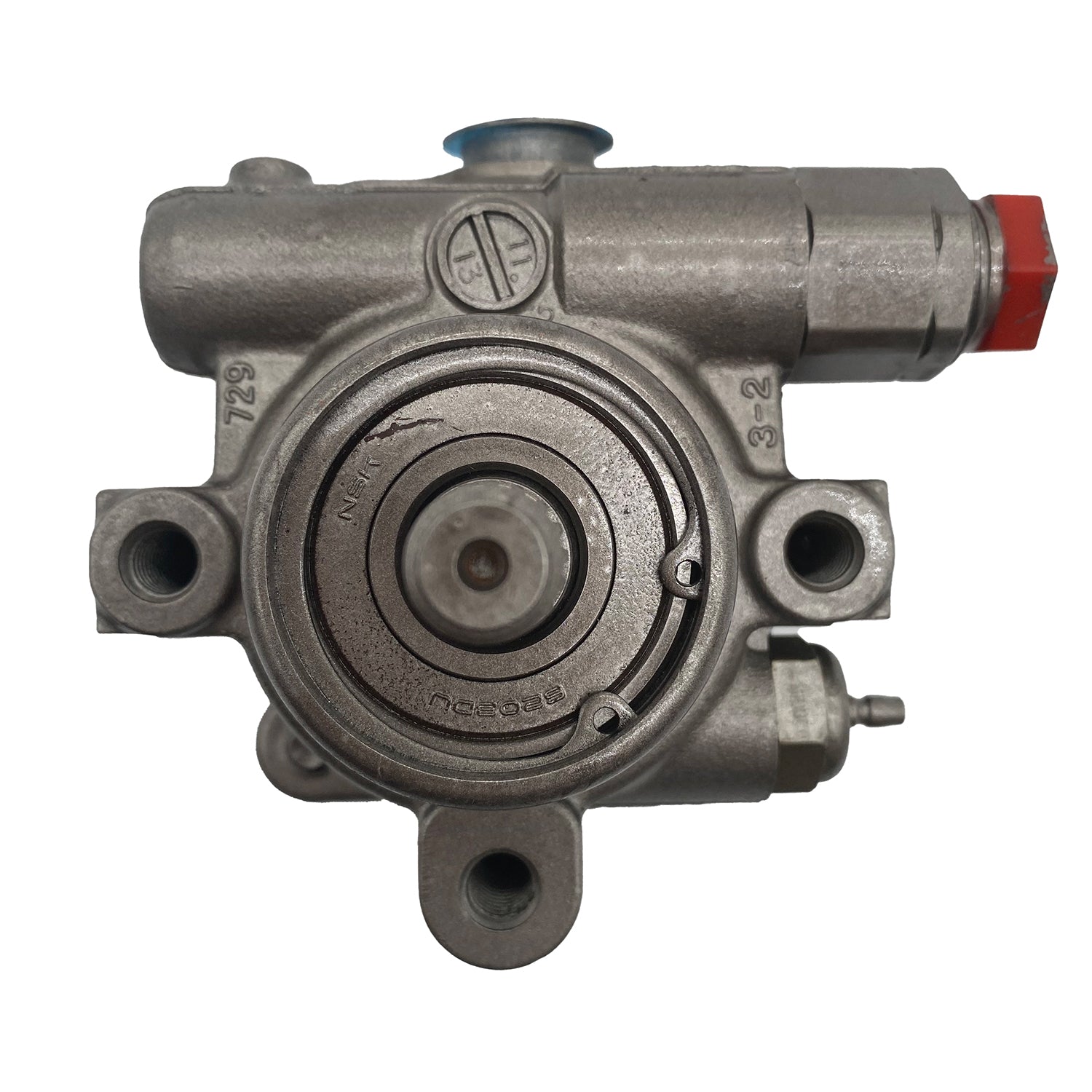

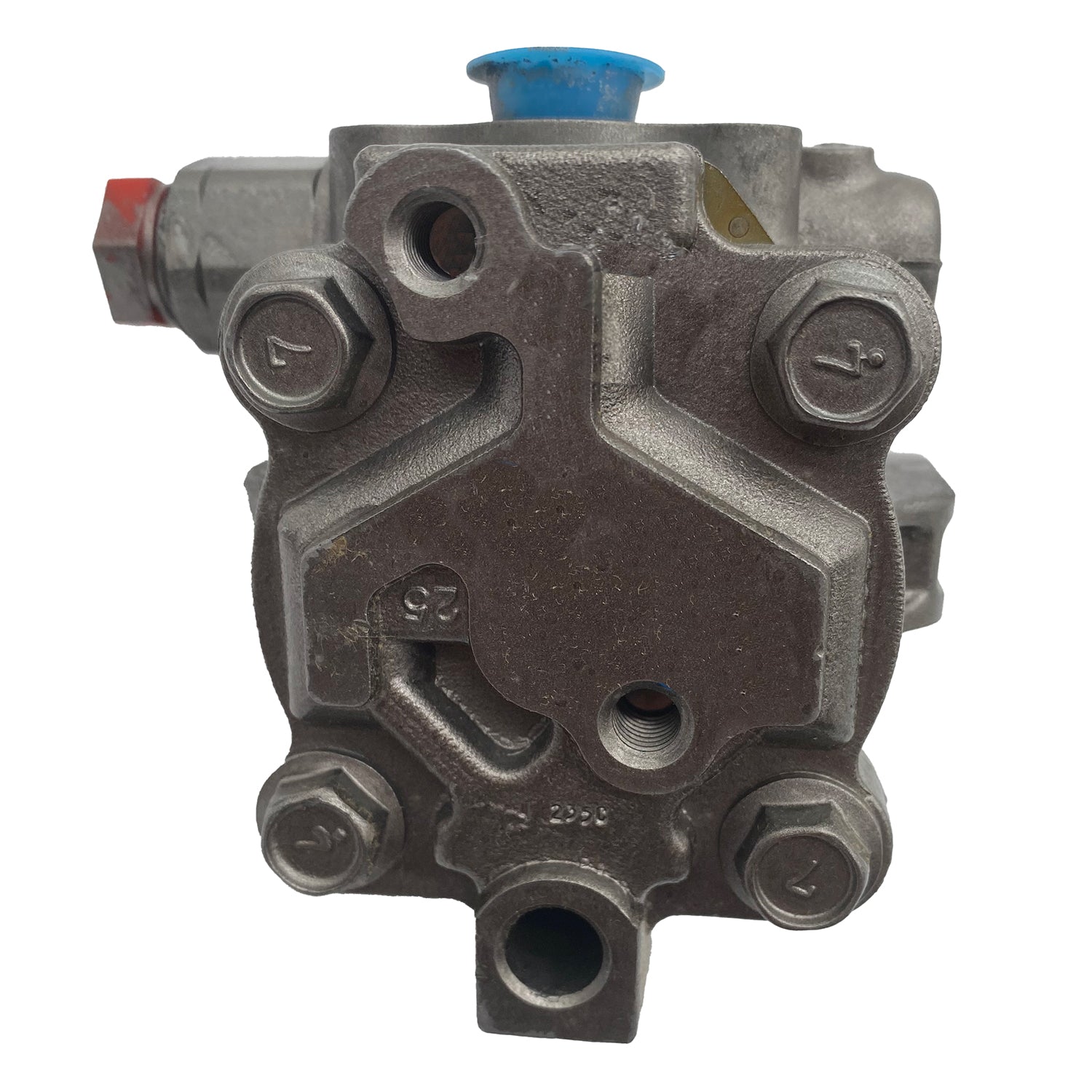

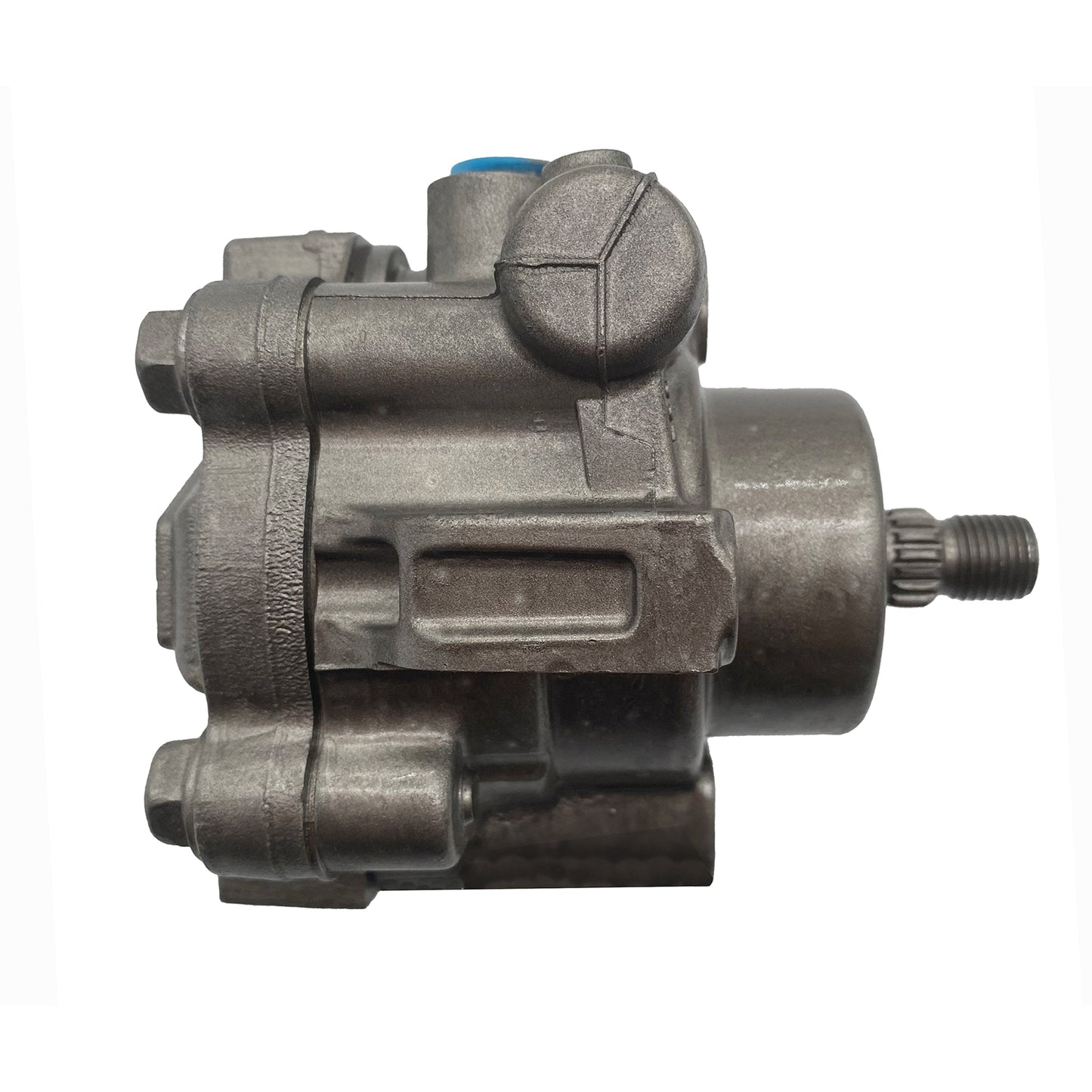

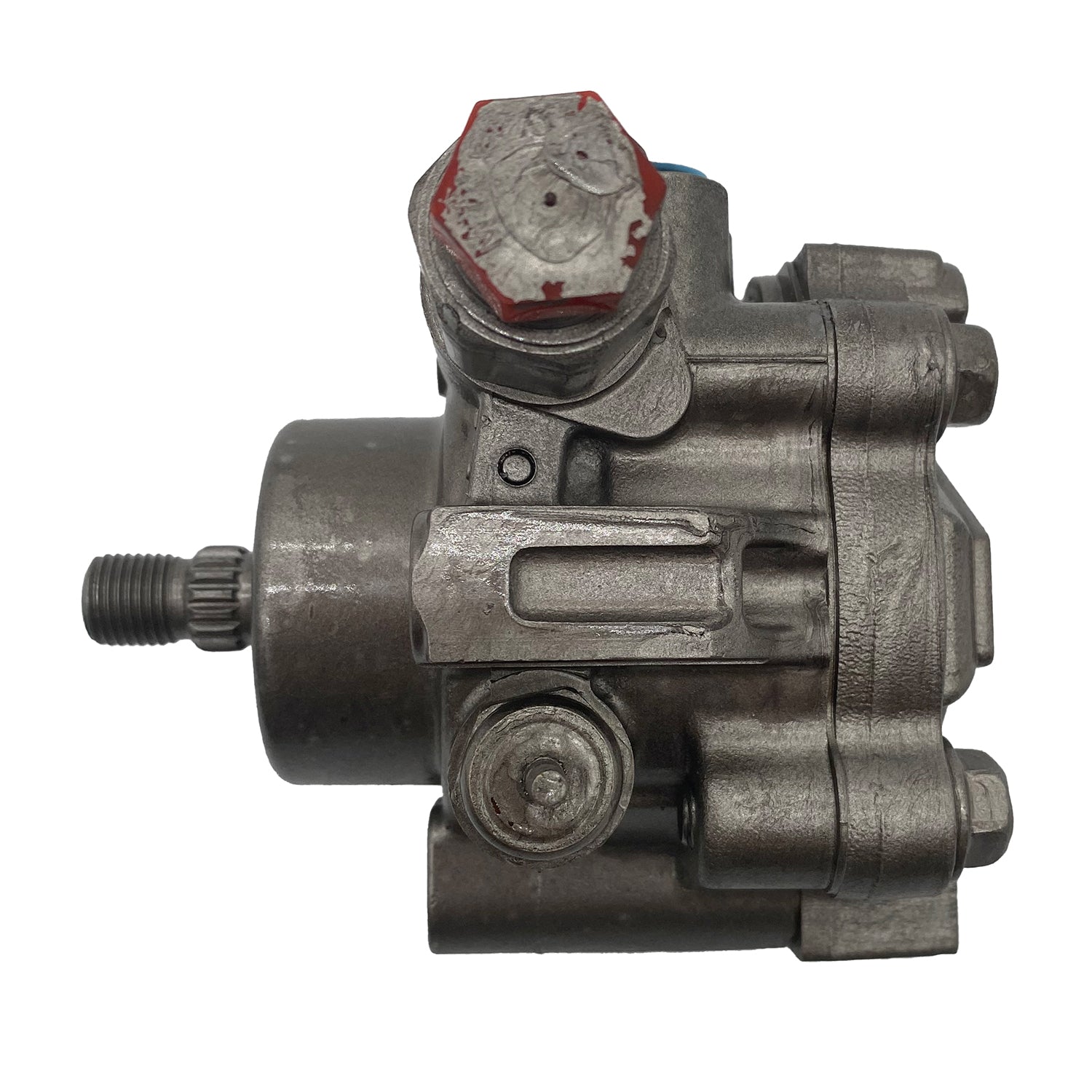

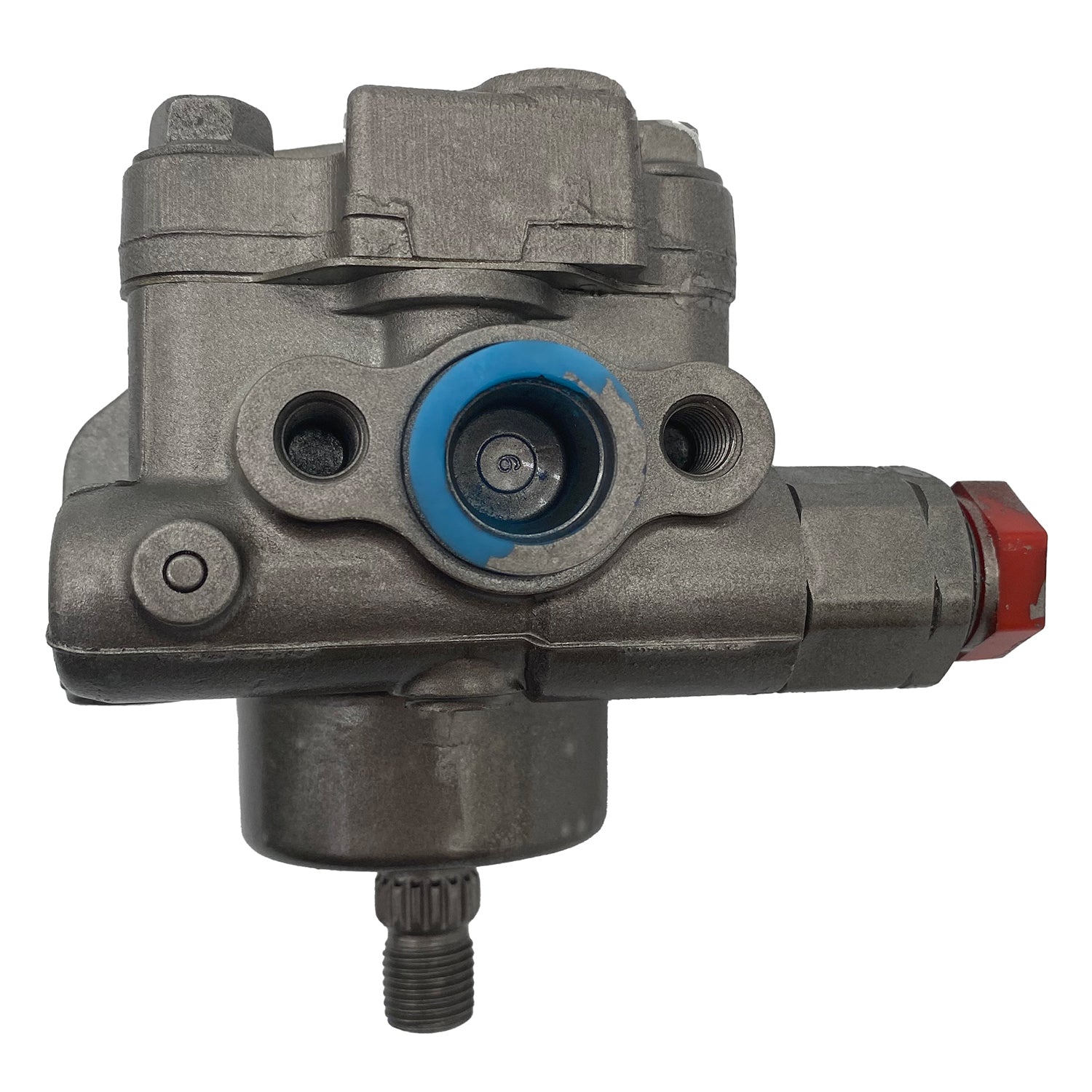

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96140M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96140M

SKU:96140M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Aluminum
Mounting Hardware Included No
Outlet Thread Size 14x1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Reservoir Cap Included No
Pulley Attachment Type Bolt-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No



Application Info: Ford Probe (1993-97); Mazda 626 (1993-95), Millenia (2001), MX-6 (1993-95) ***W/2.5L V6 Engine, W/O Pulley, W/O Reservoir***

Interchange: F32Z3A674B, F32Z3A674C, F32Z3A674D, F62Z3A674A, GA2B32650F, GA2B32650G, GA2G32650E, GA2G32650G, T06032600C

BBB Cross-Reference: 910-0112

Cardone Cross-Reference: 21-5864

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
