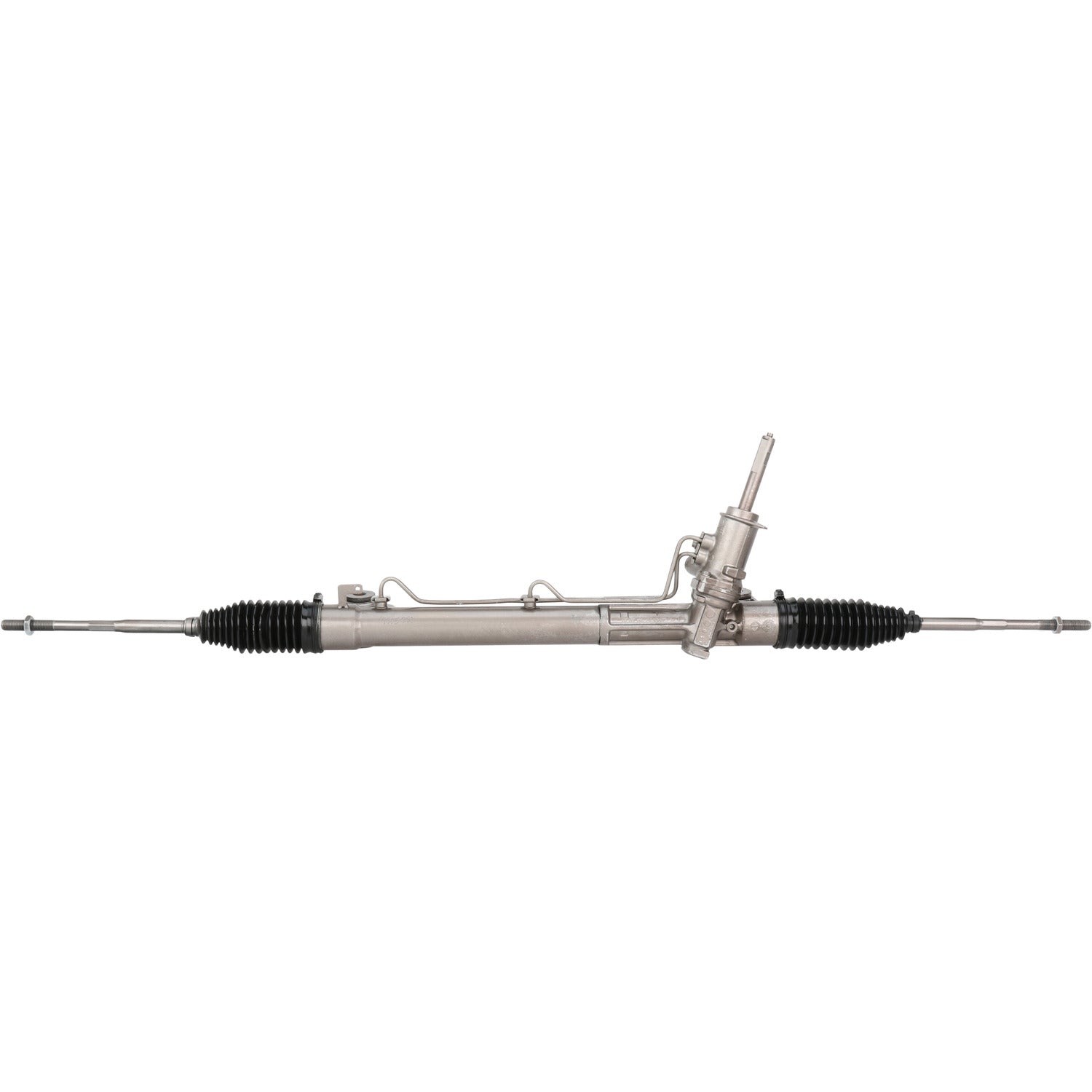

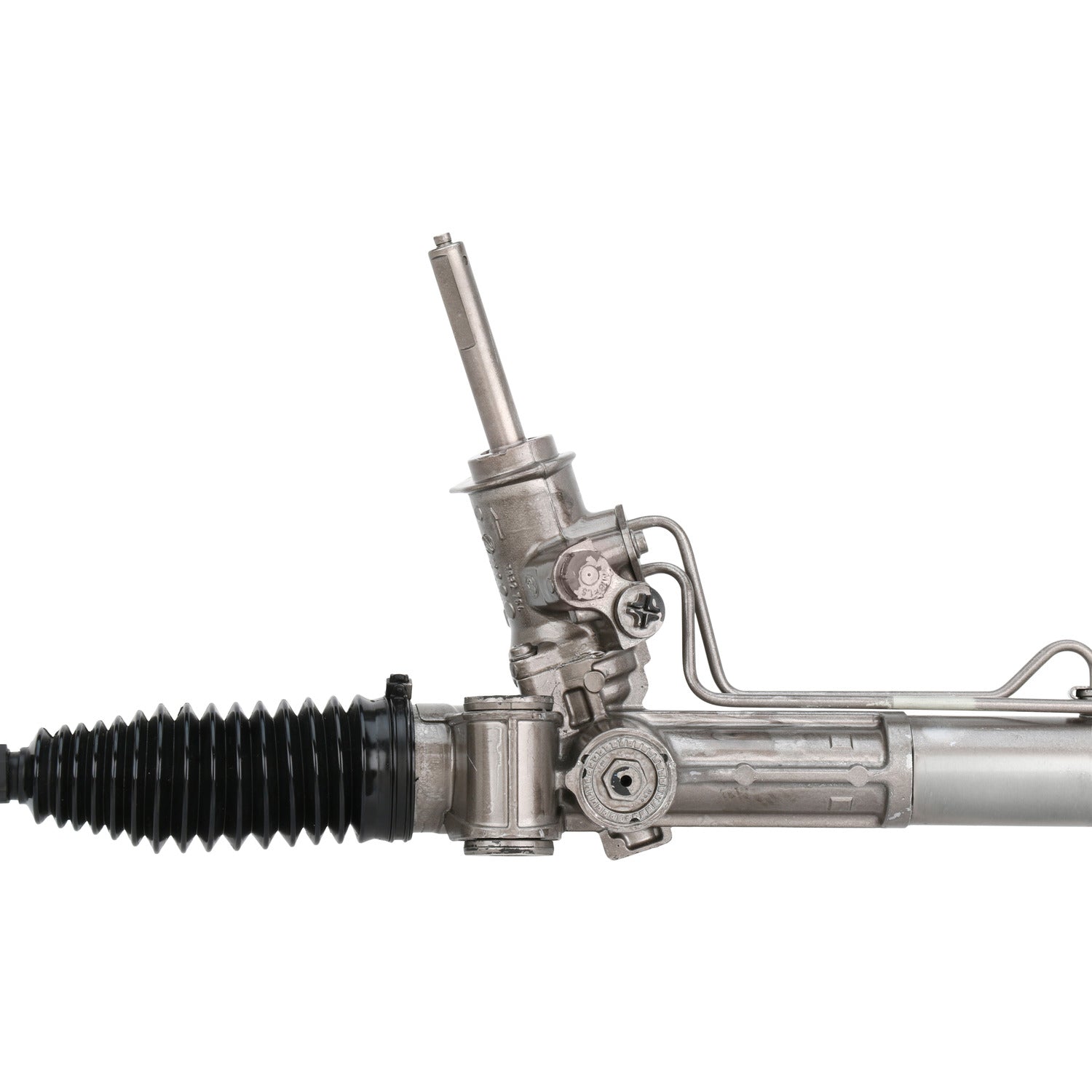

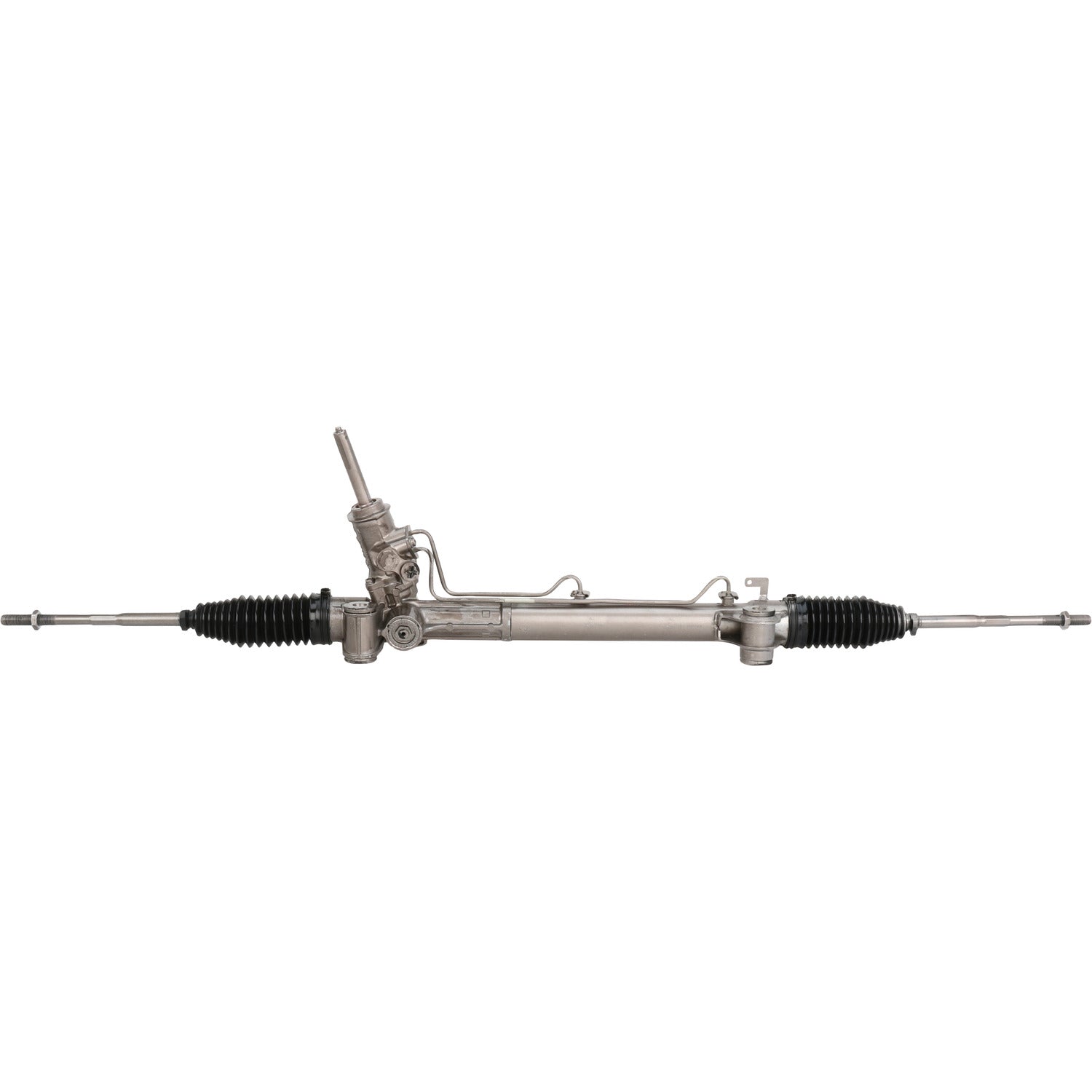

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95507M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95507M

SKU:95507M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 18.5 IN
Distance Between Mounting Holes 469.9 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.78 IN
Input Shaft Diameter 19.74 MM
Input Shaft Length 3.87 IN
Input Shaft Length 98.3 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 51.88 IN
Rack Length 1317.63 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.48 IN
Thread Length 62.99 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.75

Application Info: Cadillac SRX (2010-16) ***W/Non-Variable Steering (N40)***

Interchange: 15950145

BBB Cross-Reference: 103-0291

Cardone Cross-Reference: 22-1123
