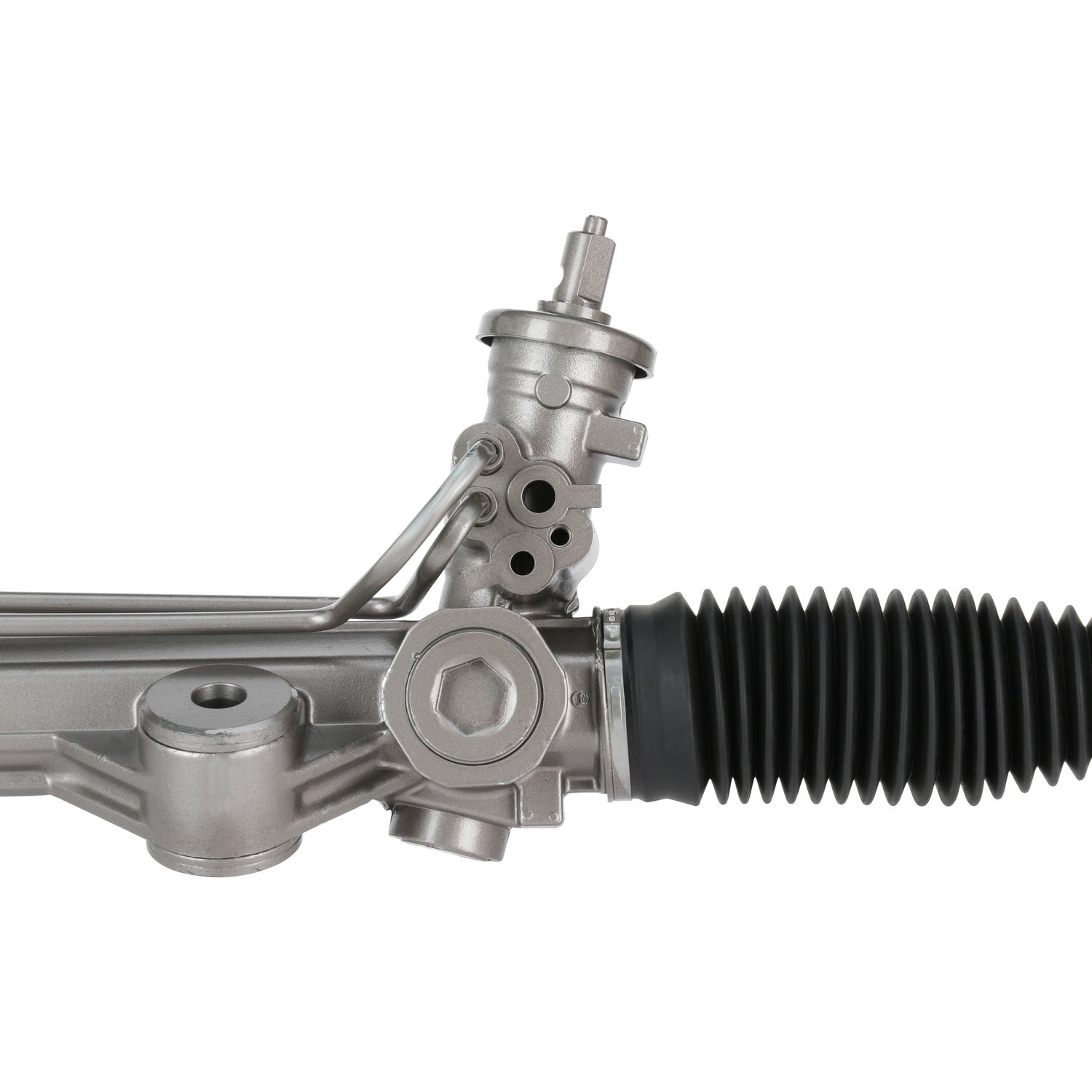

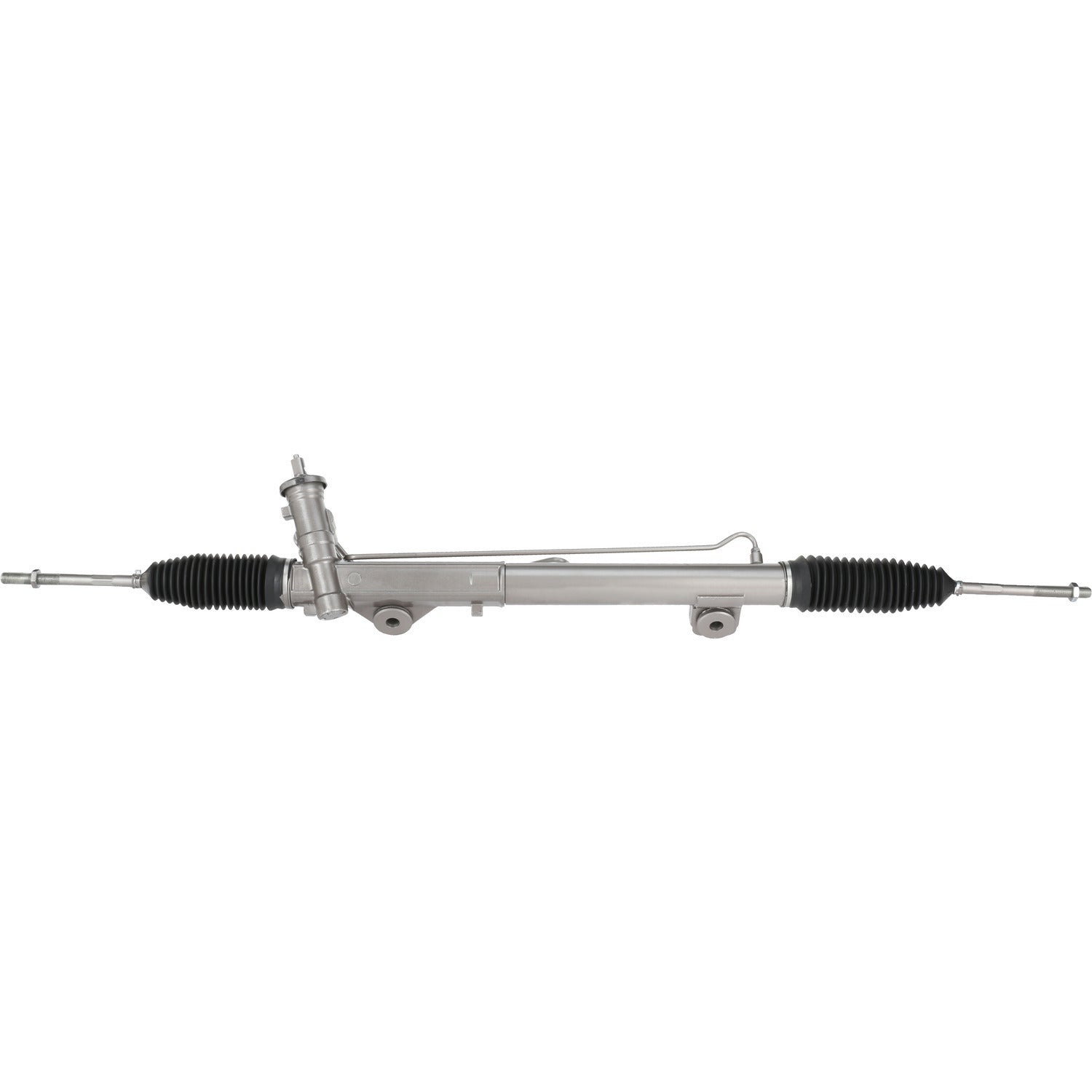

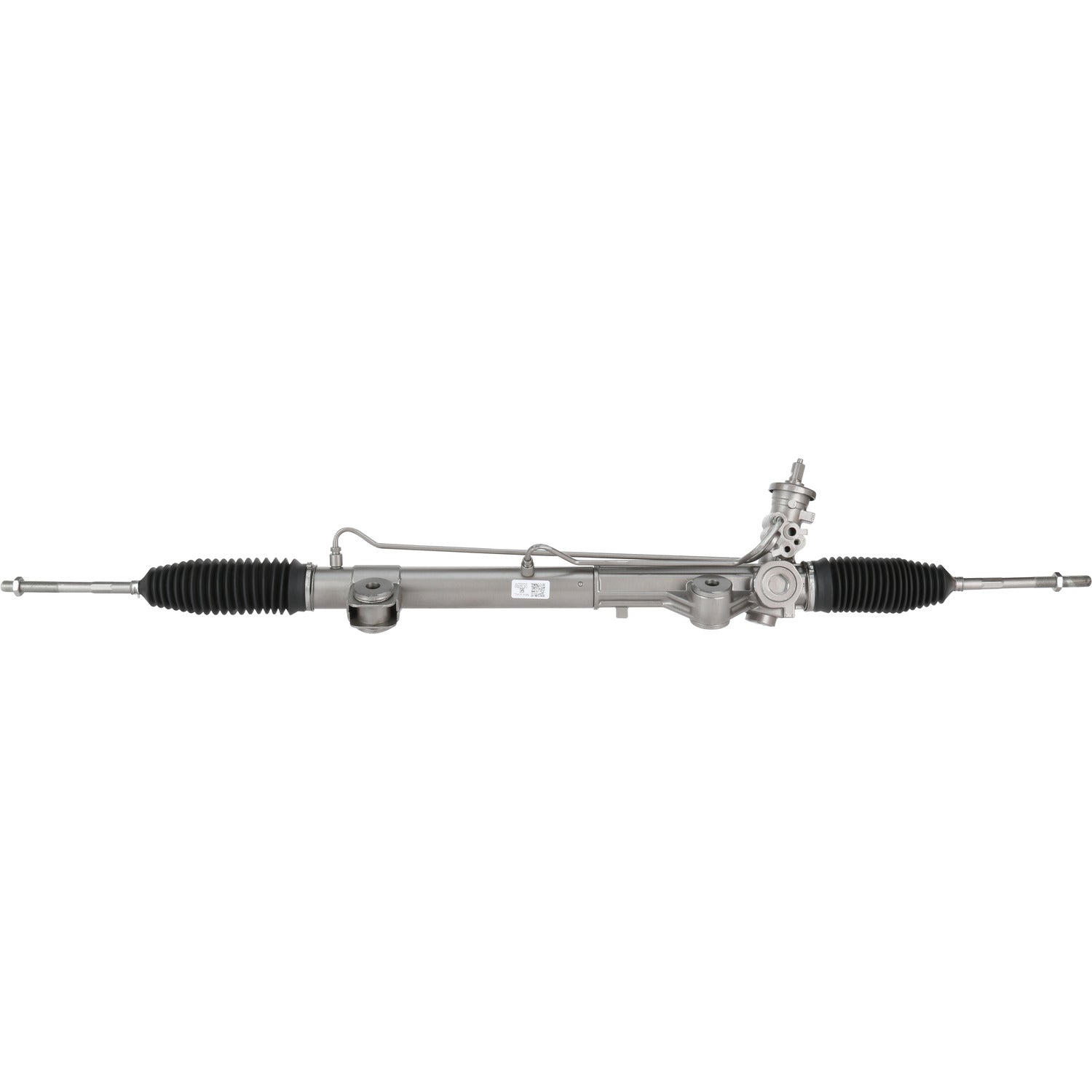

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95365M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95365M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 17.56 IN
Distance Between Mounting Holes 446.1 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.81 IN
Input Shaft Diameter 20.62 MM
Input Shaft Length 1.81 IN
Input Shaft Length 46.05 MM
Number of Mounting Holes 2
Rack Length 57.75 IN
Rack Length 1466.85 MM
Thread Length 2.81 IN
Thread Length 71.4 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.31

Application Info: Ford F-150 (2004-08); Lincoln Mark LT (2006-08) ***W/4WD***

Interchange: 4L3Z3280DA, 4L3Z3504BB, 4L3Z3504DB, 5L3Z3504FA, 5L3Z3504HA, 6L3Z3280B, 6L3Z3504BA, 6L3Z3504DA, 7L3Z3504B, 7L3Z3504D, 8L3Z3504B, 8L3Z3504D

BBB Cross-Reference: 101-0214

Cardone Cross-Reference: 22-279
