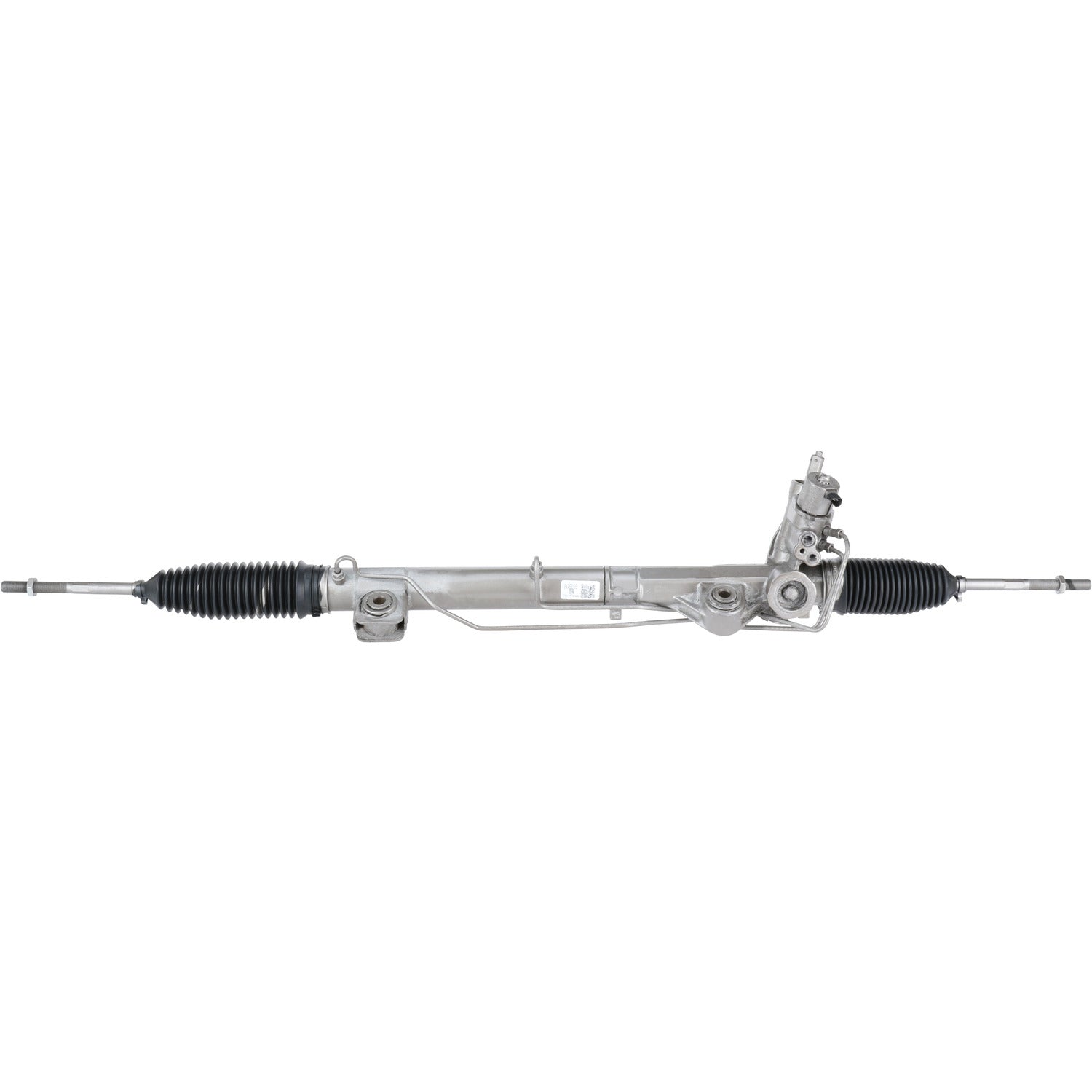

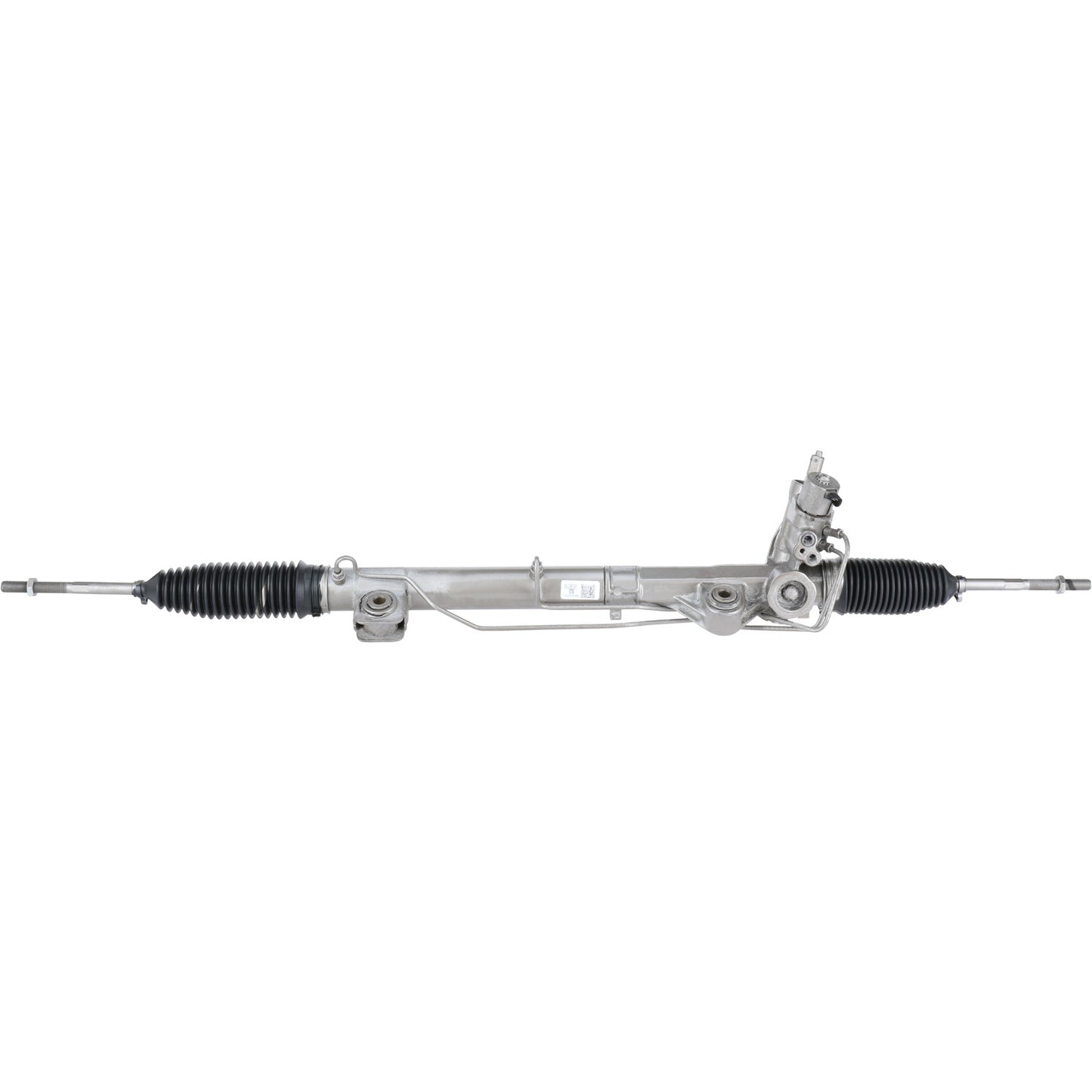

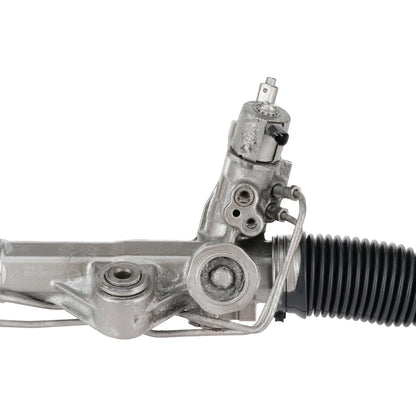

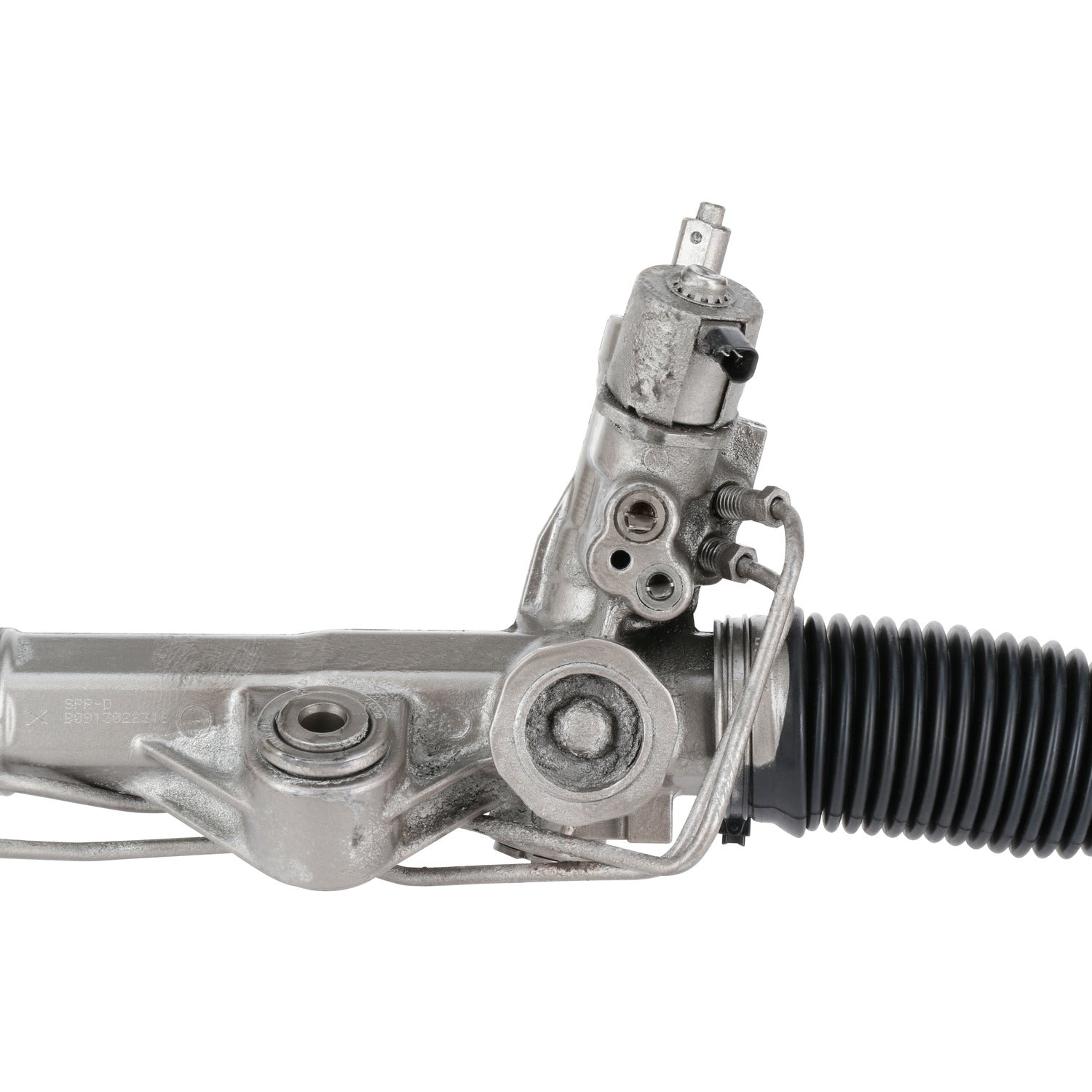

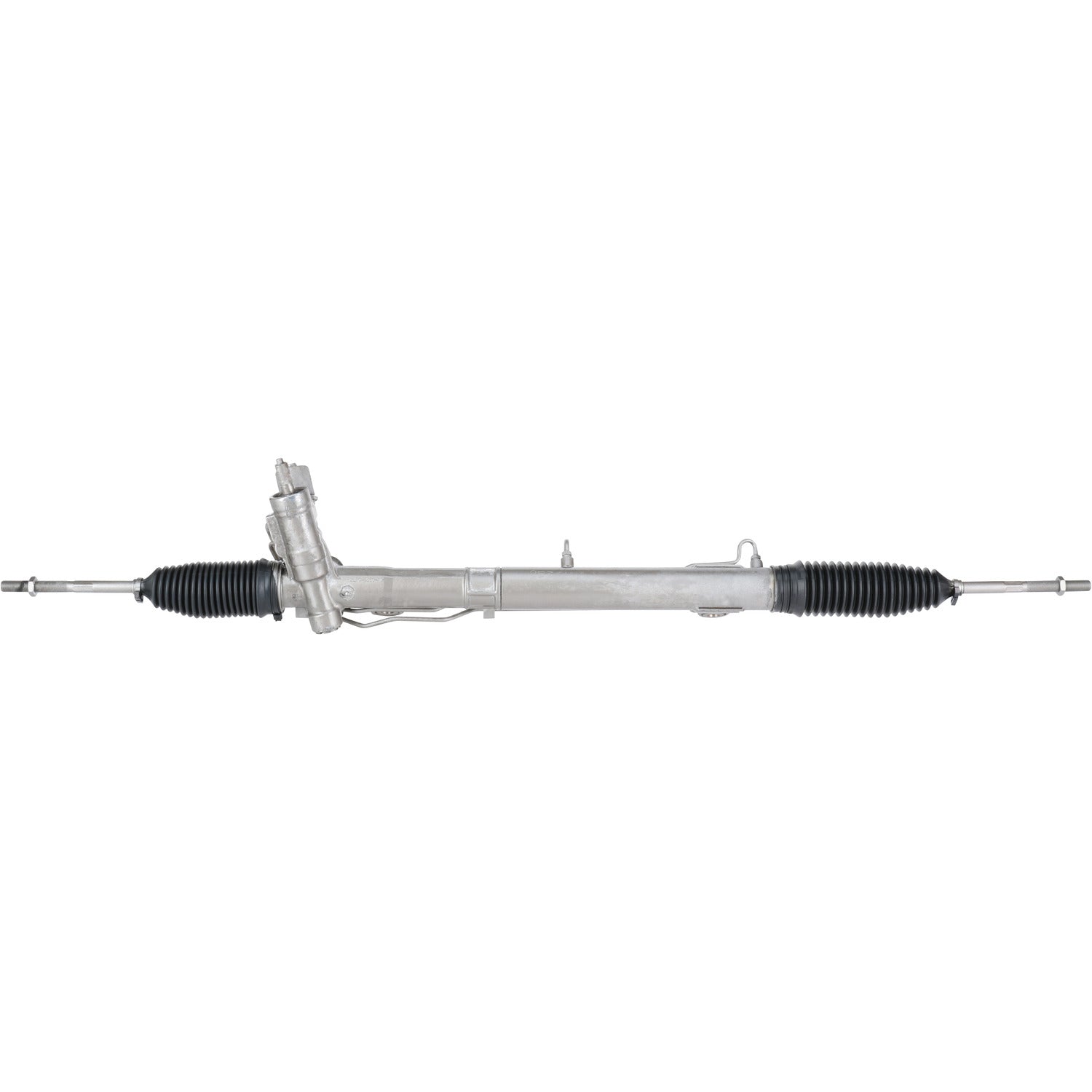

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95361M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95361M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 17.5 IN
Distance Between Mounting Holes 444.5 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Input Shaft Length 1.81 IN
Input Shaft Length 46.05 MM
Number of Mounting Holes 2
Rack Length 56.75 IN
Rack Length 1441.45 MM
Thread Length 3.23 IN
Thread Length 82.04 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.25

Application Info: Lincoln Navigator 2003-2006 - All Models

Interchange: Ford - 4U2Z-3V504-JARM

BBB Cross-Reference: 101-0202

Cardone Cross-Reference: 22-260
