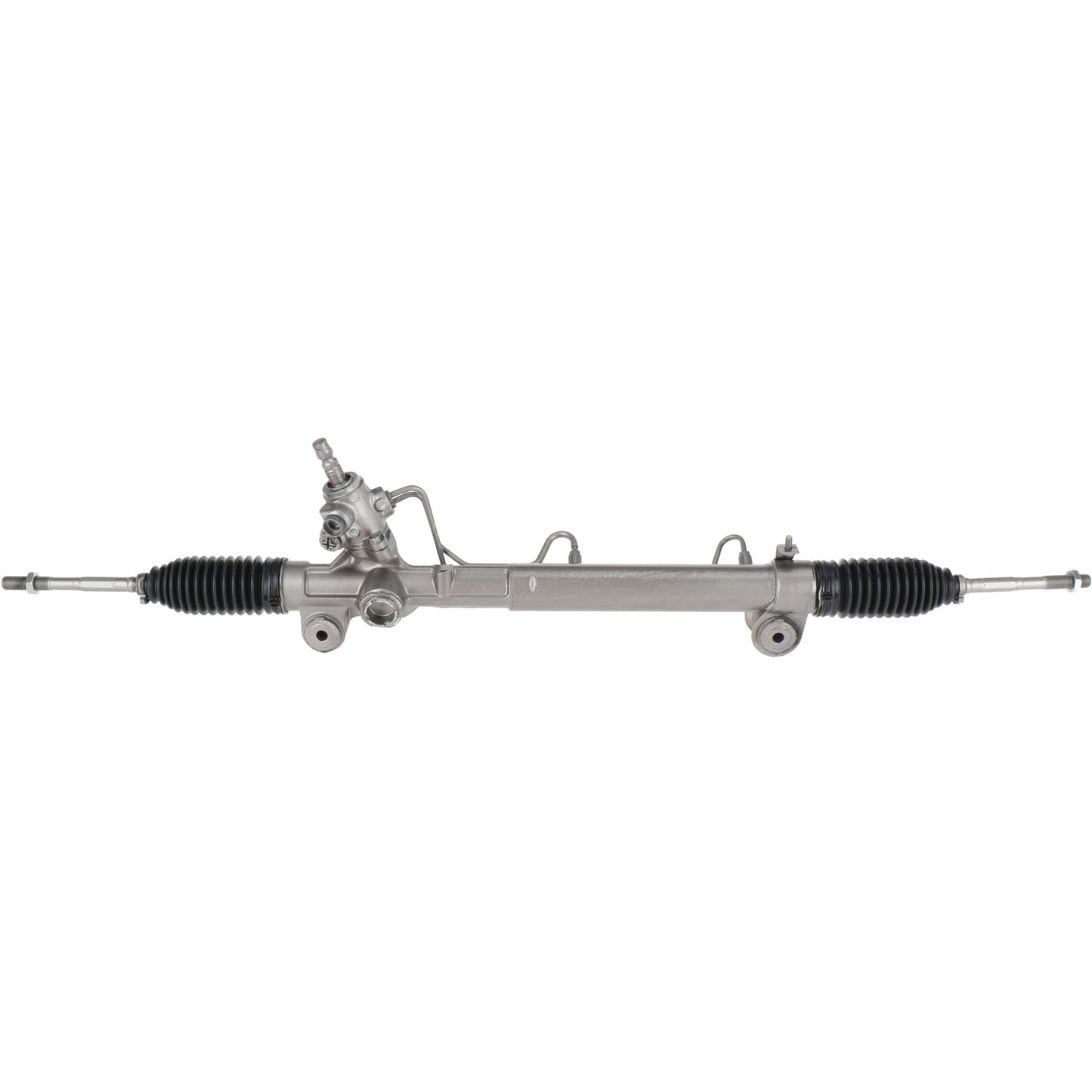

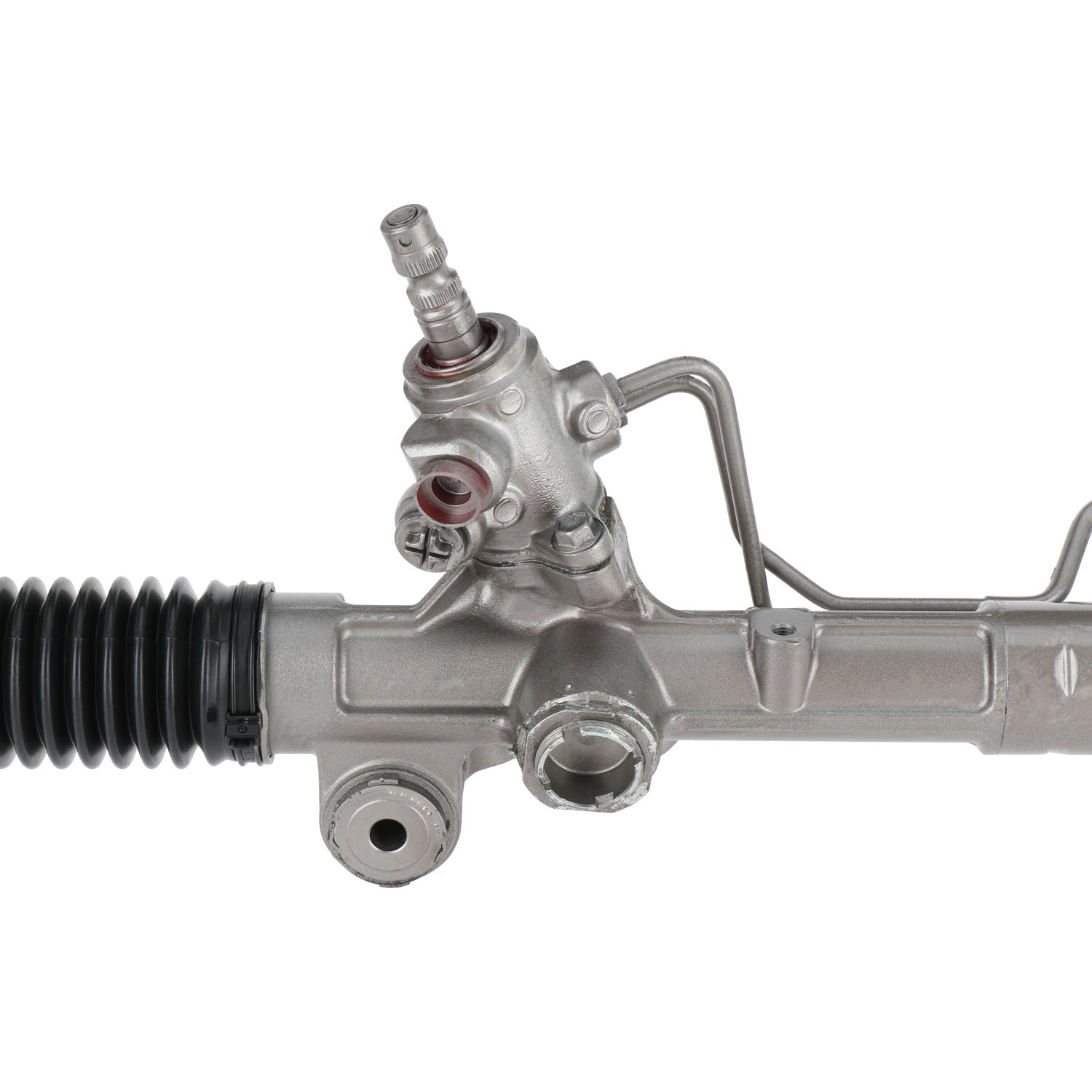

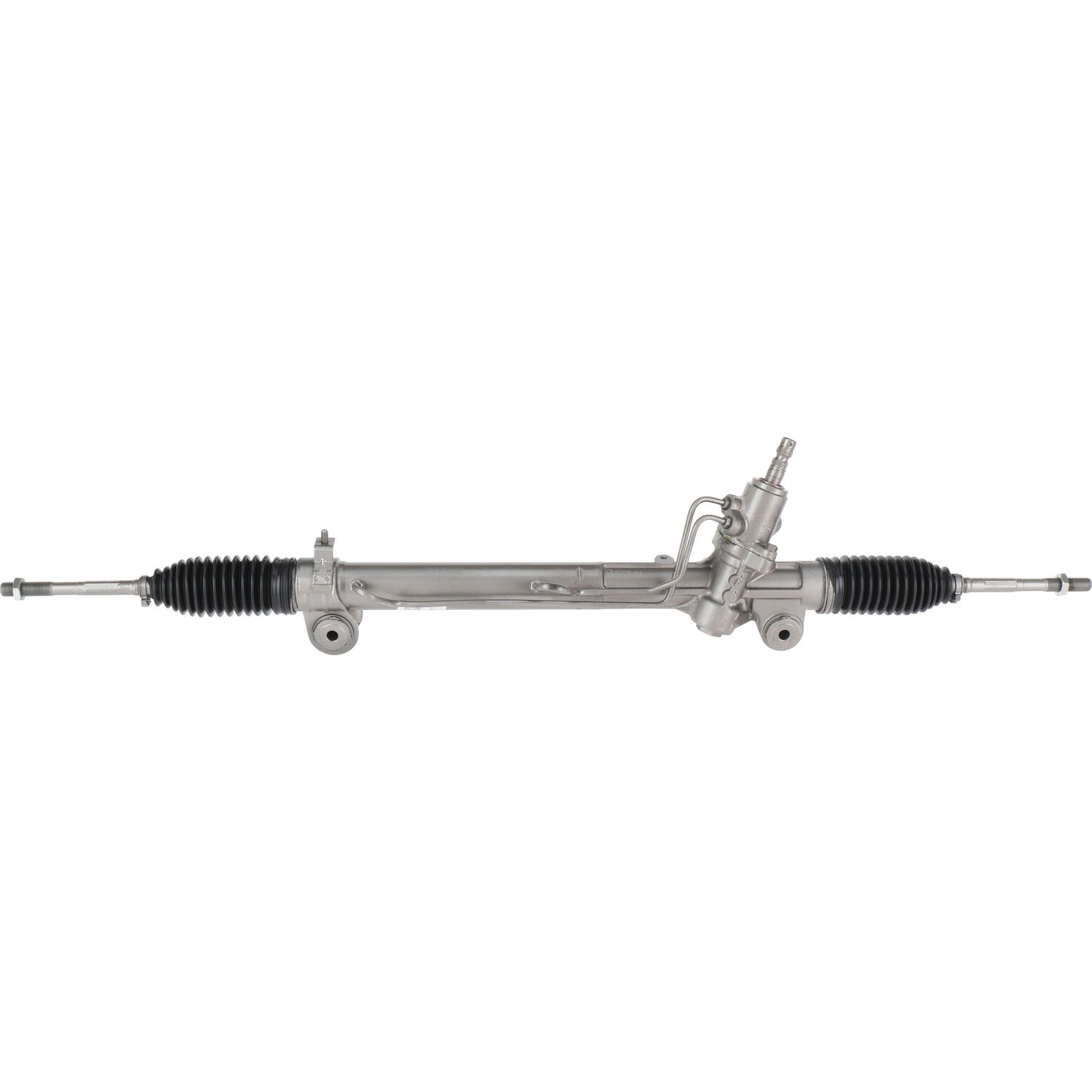

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9377M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9377M

SKU:9377M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 19.13 IN
Distance Between Mounting Holes 486 MM
Hose Port Type O-Ring/O-Ring
Input Shaft Diameter 0.69 IN
Input Shaft Diameter 17.5 MM
Input Shaft Length 49.5 IN
Input Shaft Length 1257.3 MM
Number of Mounting Holes 2
Pressure Port Thread Size M16 x 1.5
Rack Length 46.77 IN
Rack Length 1188 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.05 IN
Thread Length 52 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.32

Application Info: Toyota Sienna (2004-10)

Interchange: 44250-08030, 44250-08040

BBB Cross-Reference: 311-0203

Cardone Cross-Reference: 26-2619

Instructions - 1          Instructions - 2

Instructions - 3
