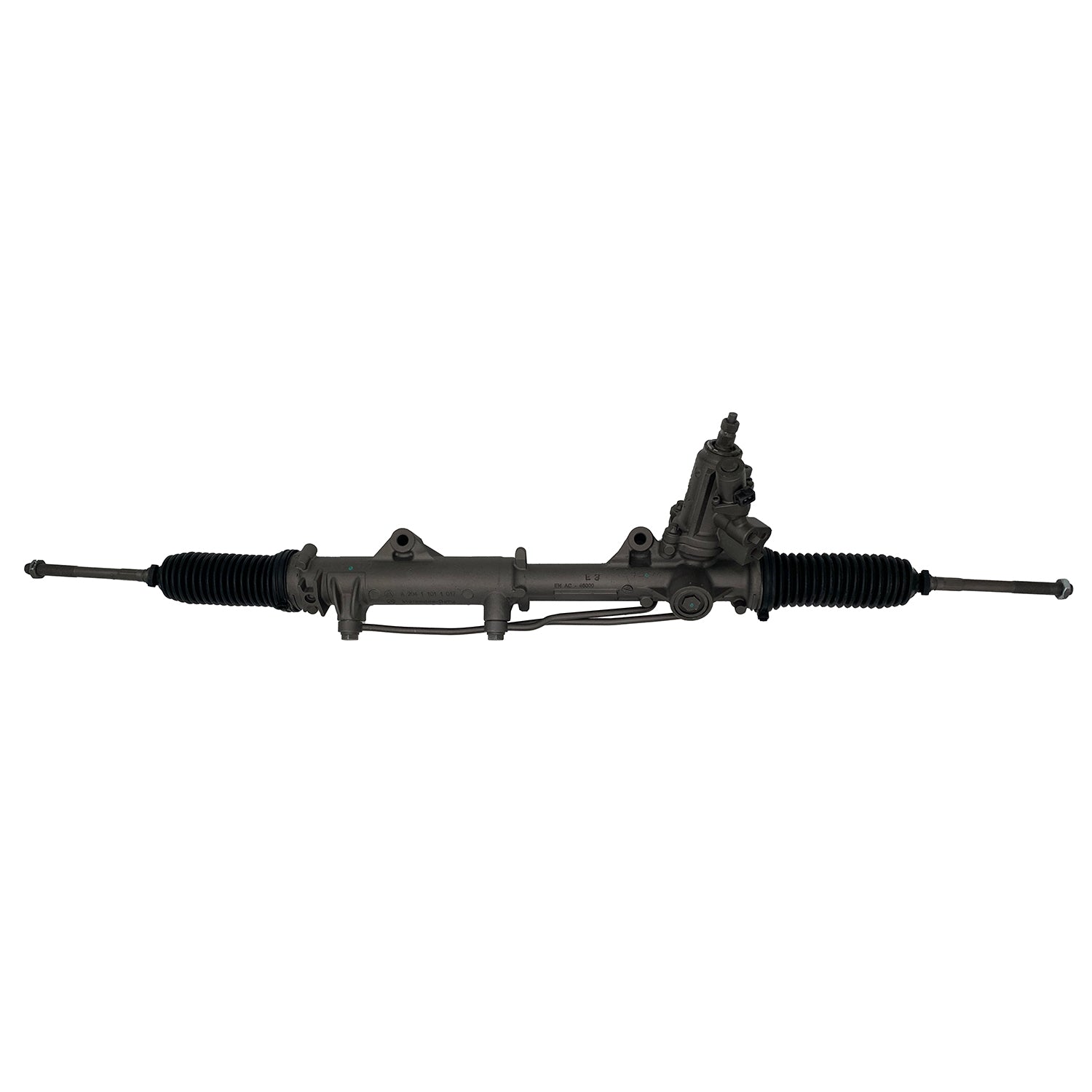

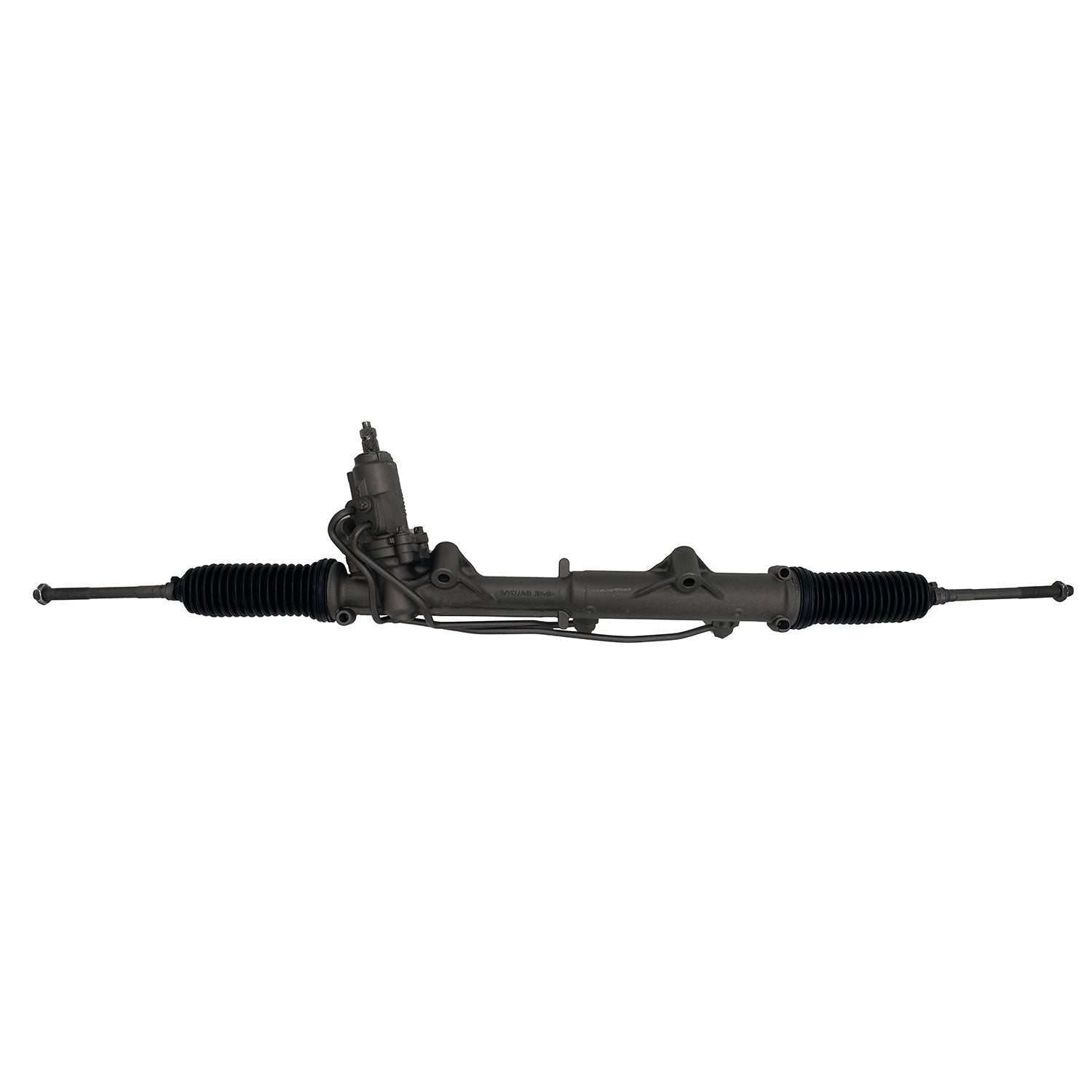

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93451M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93451M
SKU:93451M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Aluminum | |
| Distance Between Mounting Holes | 10.375 | IN |
| Distance Between Mounting Holes | 263.53 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.784 | IN |
| Input Shaft Diameter | 19.91 | MM |
| Input Shaft Length | 1.125 | IN |
| Input Shaft Length | 28.58 | MM |
| Mounting Hole Quantity | 2 | |
| Port ID Size | 0.185 | |
| Rack Length | 45.56 | IN |
| Rack Length | 1157.29 | MM |
| Return Port ID Size | 0.272 | |
| Thread Length | 2.41 | IN |
| Thread Length | 61.21 | MM |
| Inner Tie Rods Included | Yes | |
| Total Turns Lock To Lock | 2.5 |
Application Info: Mercedes-Benz C350 (2008-2015), Mercedes-Benz C300 (2008-2011), Mercedes-Benz C250 (2012-2015) ***RWD W/Speed Sensitive Steering***
Interchange: Mercedes-Benz - 204 460 0101 - Mercedes-Benz - 204 460 1700 - Mercedes-Benz - 204 460 4700 - Mercedes-Benz - 204 460 5700 - Mercedes-Benz - 204 460 9600
BBB Cross-Reference: 313-0264
Cardone Cross-Reference: 26-4043
