Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93380M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93380M
SKU:93380M

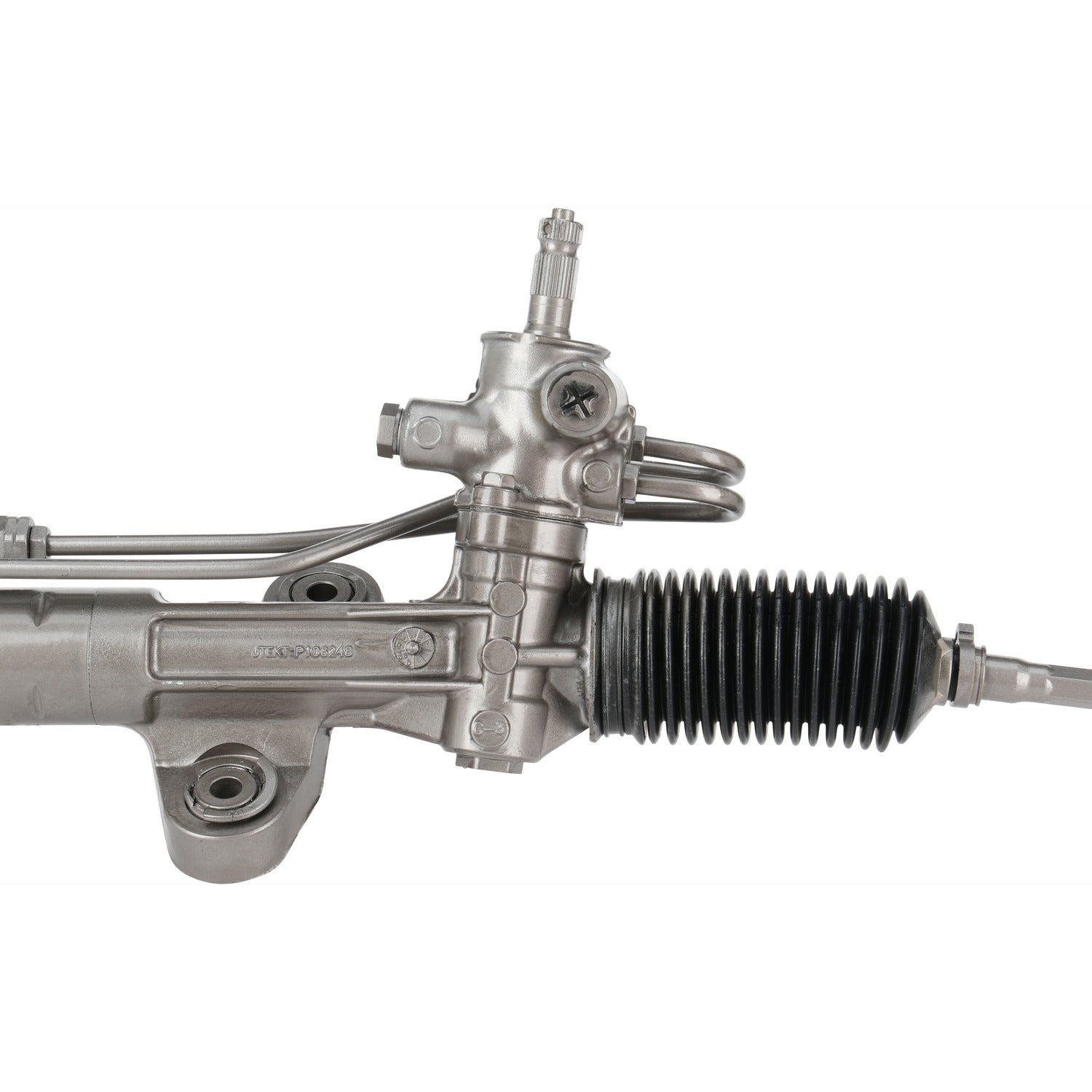

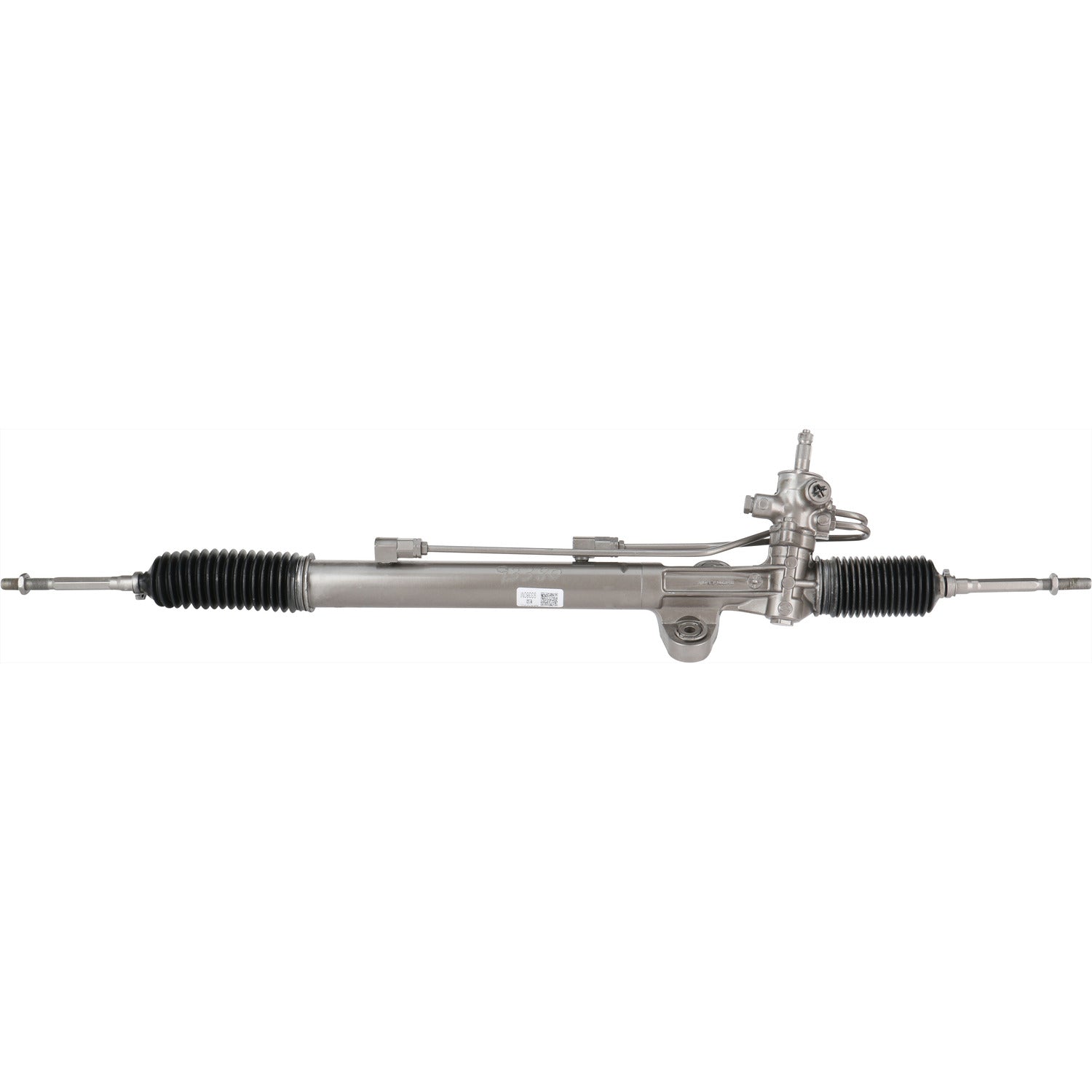

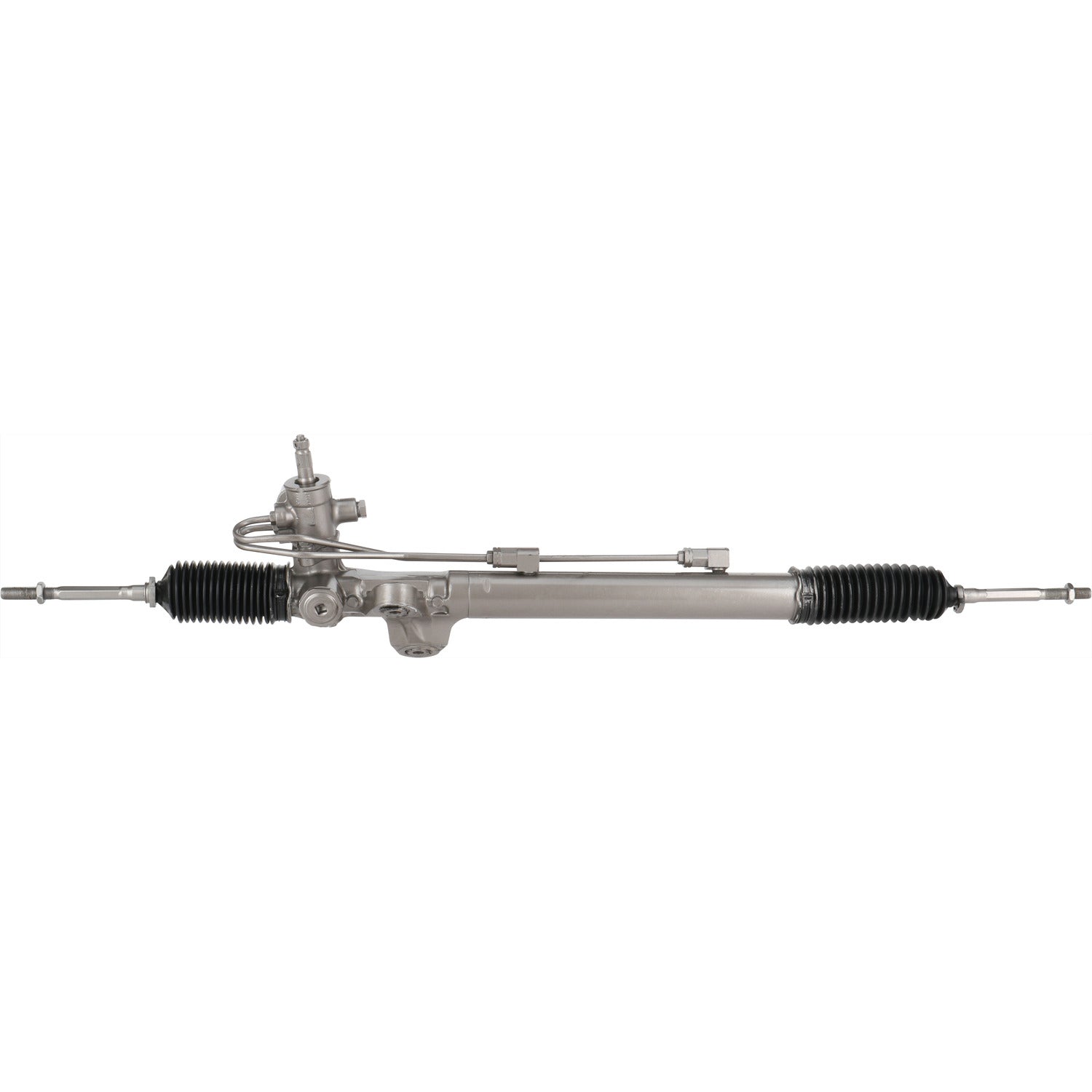

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Steel; Aluminum | |
| Distance Between Mounting Holes | 4.07 | IN |
| Distance Between Mounting Holes | 103.43 | MM |
| Hose Port Type | Washer | |
| Input Shaft Diameter | 0.75 | IN |
| Input Shaft Diameter | 19.05 | MM |
| Input Shaft Length | 2 | IN |
| Input Shaft Length | 50.8 | MM |
| Mounting Hole Quantity | 2 | |
| Pressure Port Thread Size | M14 x 1.5 | |
| Rack Length | 46.5 | IN |
| Rack Length | 1181.1 | MM |
| Return Port Thread Size | M16 x 1.5 | |
| Thread Length | 2.03 | IN |
| Thread Length | 51.66 | MM |
| Tie Rod Ends Included | Yes | |
| Total Turns Lock To Lock | 3.44 |
Application Info: Honda Odyssey (2007-10)
Interchange: 53010SHJA02, 53601SHJA06, 53601SHJA84, 53601SHJA86
BBB Cross-Reference: 305-0177
Cardone Cross-Reference: 26-2747
To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance. Click For Tech Bulletin.
