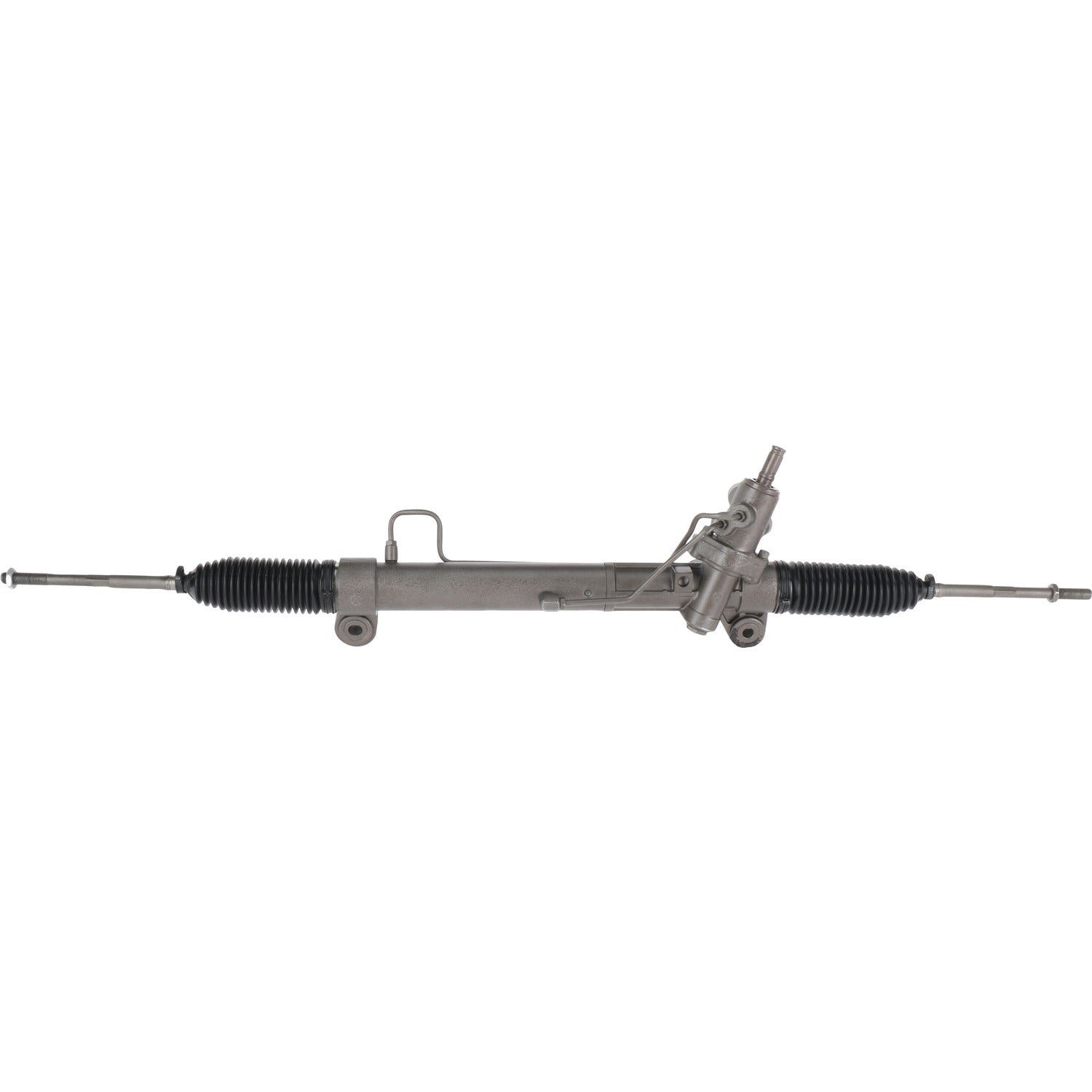

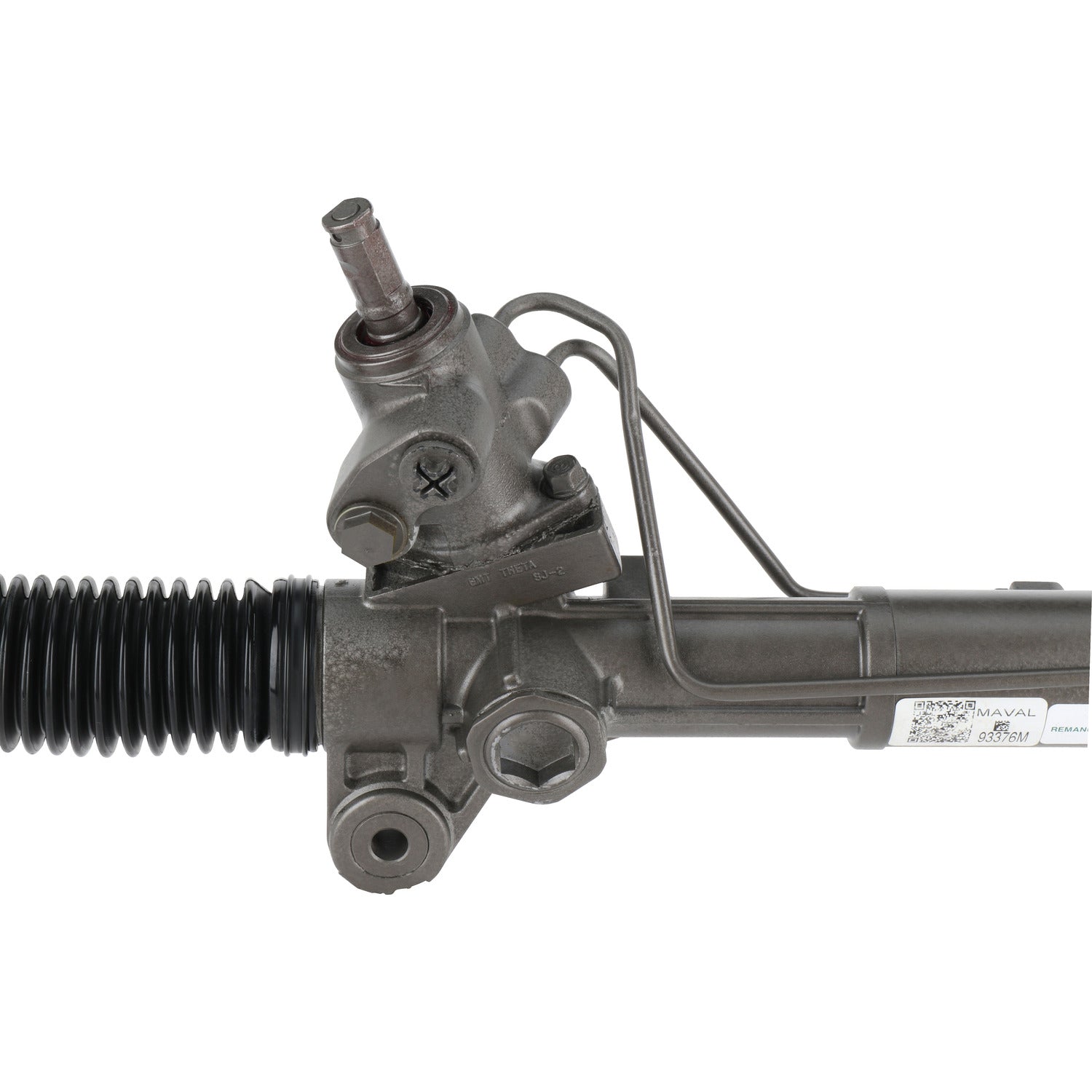

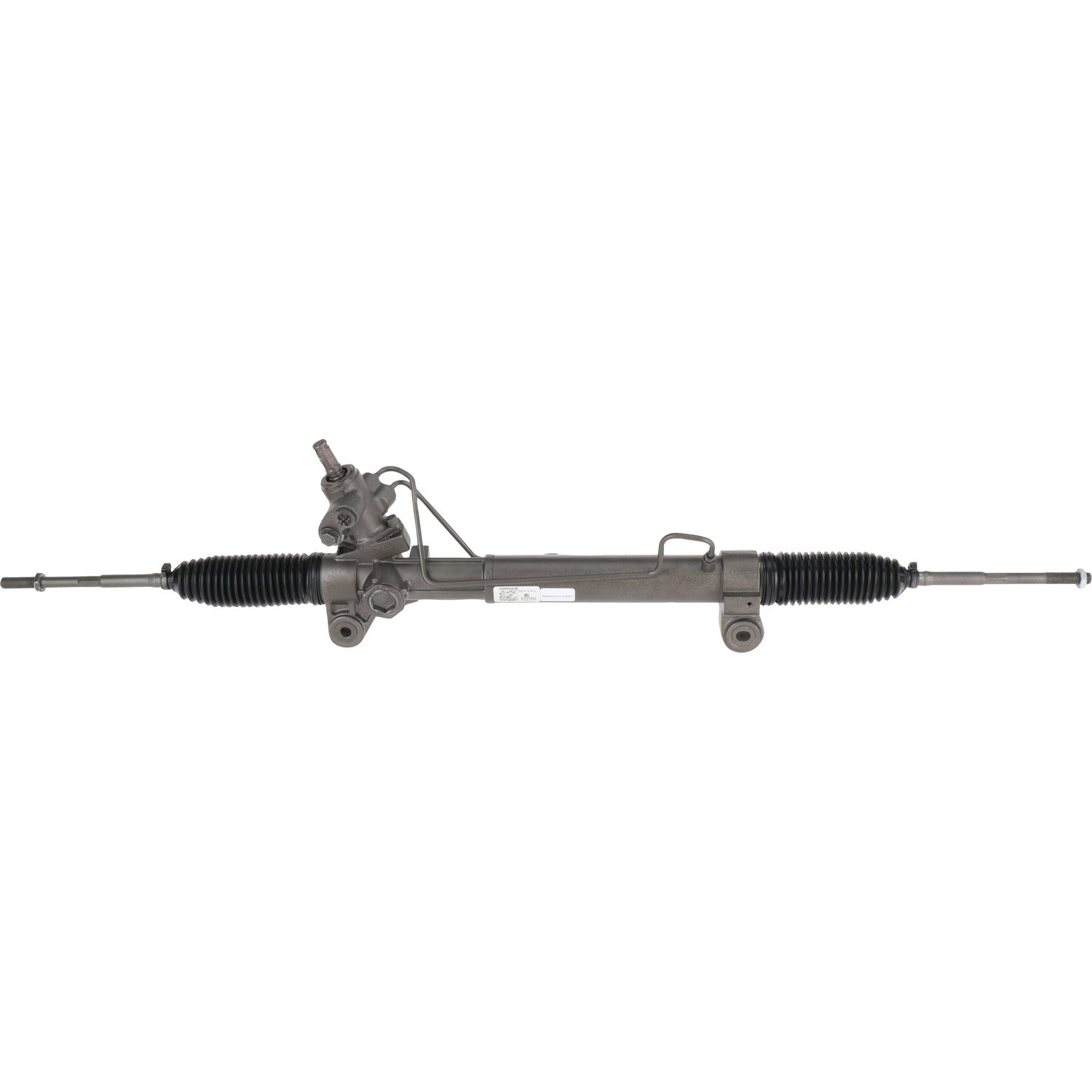

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93376M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93376M
SKU:93376M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Steel; Aluminum | |
| Distance Between Mounting Holes | 17.5 | IN |
| Distance Between Mounting Holes | 444.5 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.65 | IN |
| Input Shaft Diameter | 16.59 | MM |
| Input Shaft Length | 1.5 | IN |
| Input Shaft Length | 38.1 | MM |
| Mounting Hole Quantity | 2 | |
| Pressure Port Thread Size | M18 x 1.5 | |
| Rack Length | 48.38 | IN |
| Rack Length | 1228.73 | MM |
| Return Port Thread Size | M16 x 1.5 | |
| Thread Length | 2.02 | IN |
| Thread Length | 51.41 | MM |
| Tie Rod Ends Included | Yes | |
| Total Turns Lock To Lock | 2.75 |
Application Info:2007-2009 Suzuki XL-7; 2012-2015 Chevrolet Captiva Sport; 2008-2009 Chevrolet Equinox Sport (Qualifier: with Hydraulic Power Assist); 2008-2009 Pontiac Torrent GXP (Qualifier: with Hydraulic Power Assist); 2008-2010 Saturn Vue
Interchange: 19178132, 19180760, 19180761, 19180762, 19257432, 19257638, 25788418, 25832593, 25832595, 48500-78J03, 48500-78J04
BBB Cross-Reference: 103-0240
Cardone Cross-Reference: 22-1050
