MAVAL

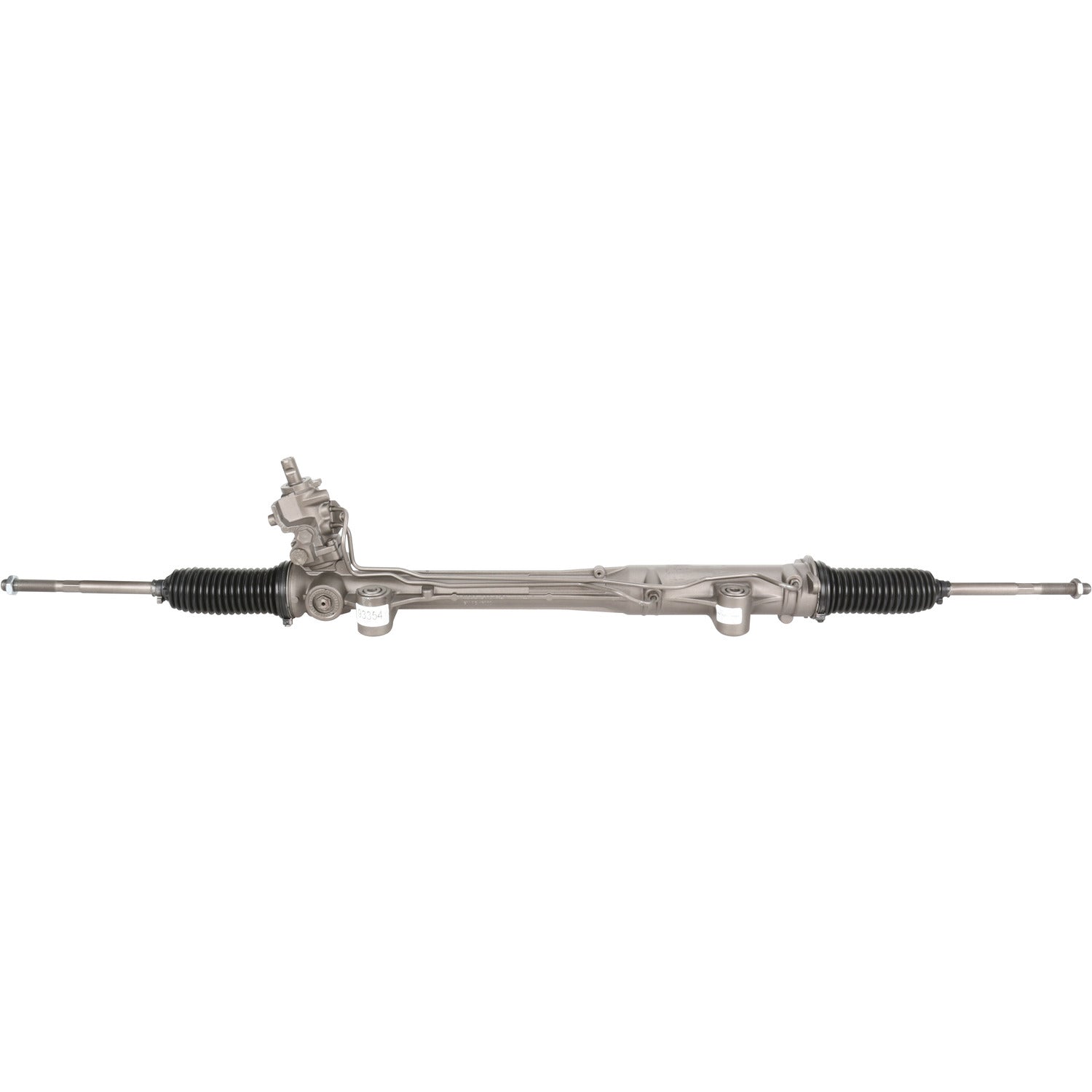

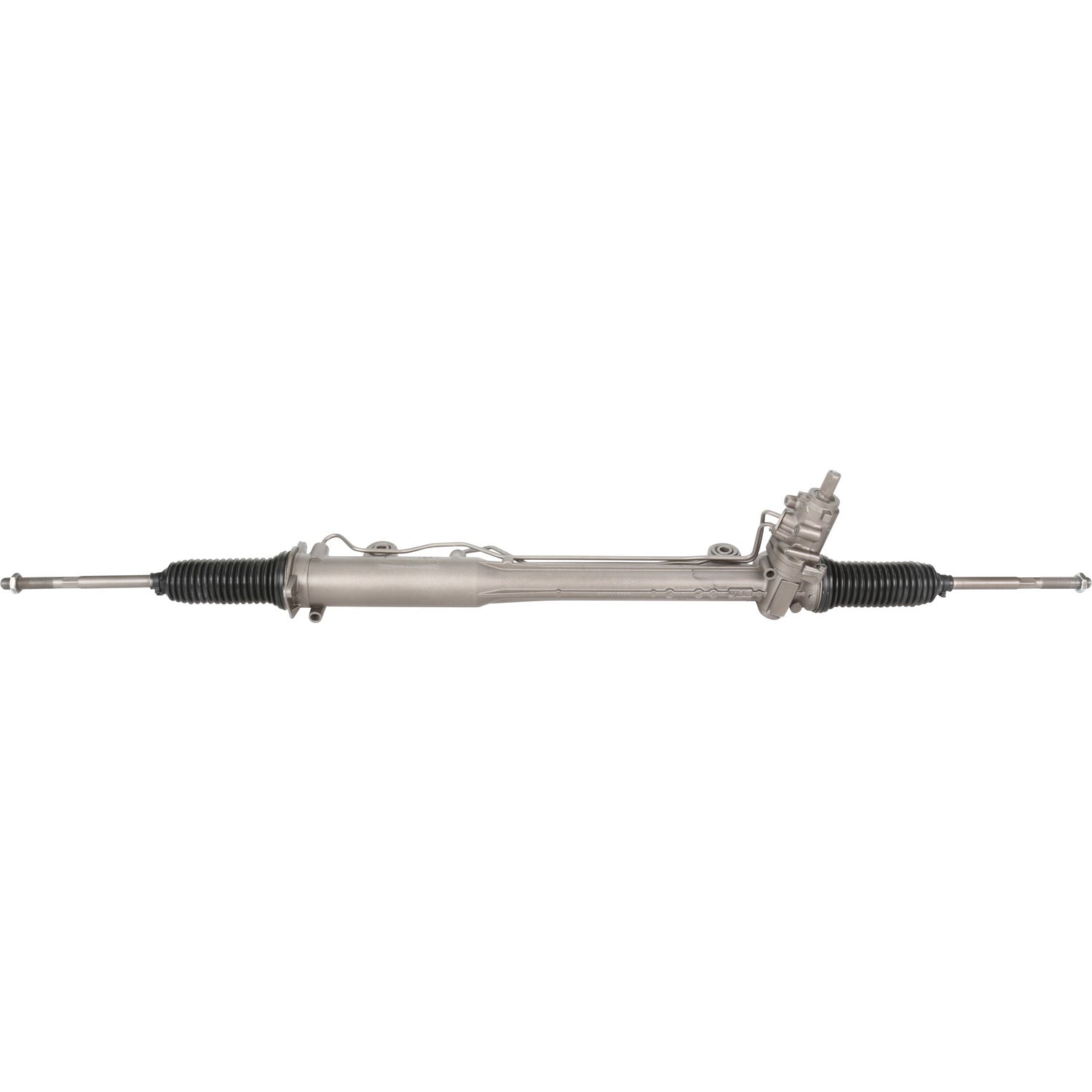

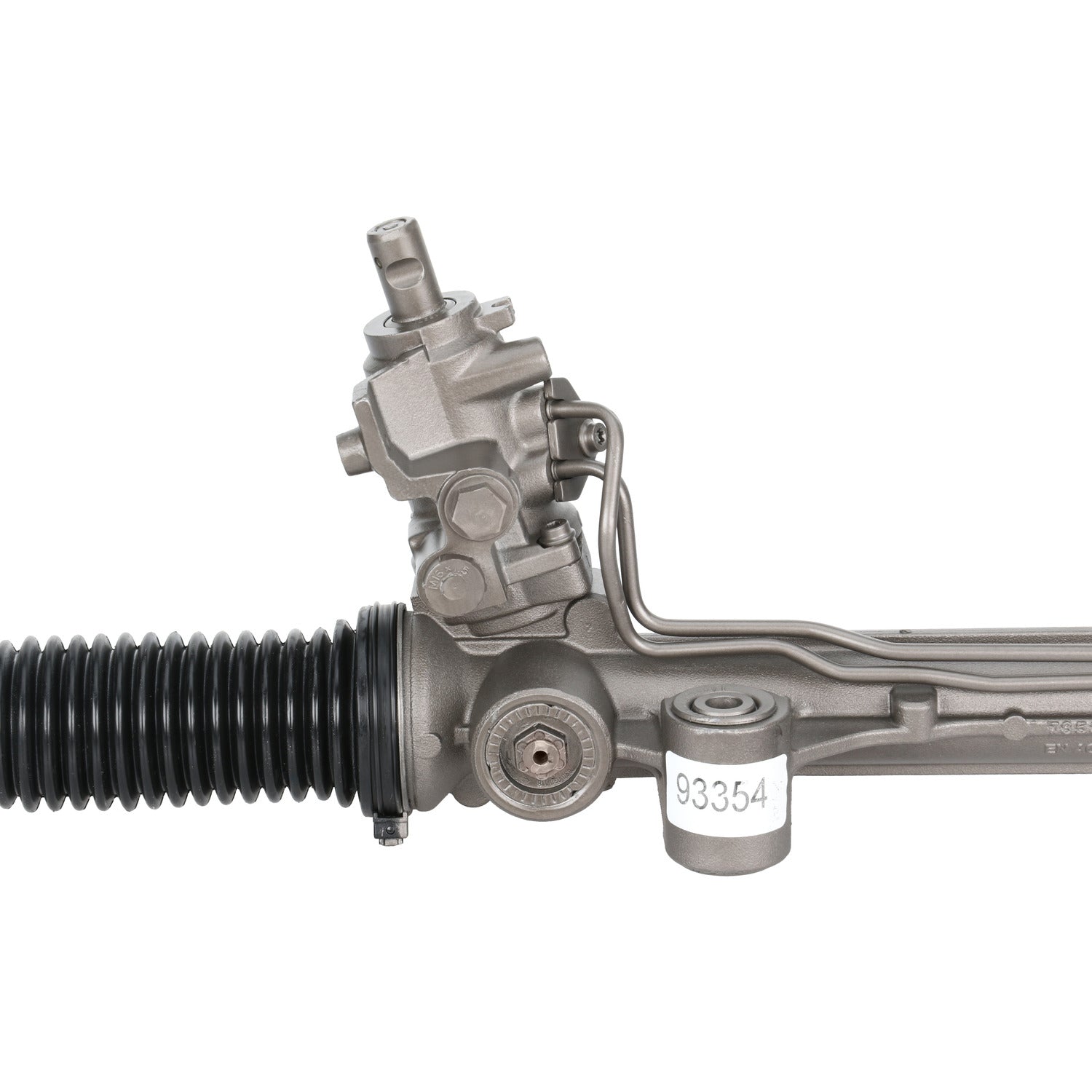

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93354M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93354M
SKU:93354M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Type | Hydraulic | |
| Input Shaft Diameter | 0.726 | IN |
| Input Shaft Diameter | 18.448 | MM |
| Input Shaft Length | 1.25 | IN |
| Input Shaft Length | 31.75 | MM |
| New Or Remanufactured | Remanufactured | |
| Pressure Port Thread Size | M18x1.50 | |
| Rack Length | 54.75 | IN |
| Rack Length | 1390.65 | MM |
| Return Port Thread Size | M16x1.50 | |
| Total Turns Lock To Lock | 2.625 |
Application Info: Volkswagen Touareg (2004-2010)
Interchange: Volkswagen - 7L6 422 063B
BBB Cross-Reference: 312-0180
Cardone Cross-Reference: 26-2924
