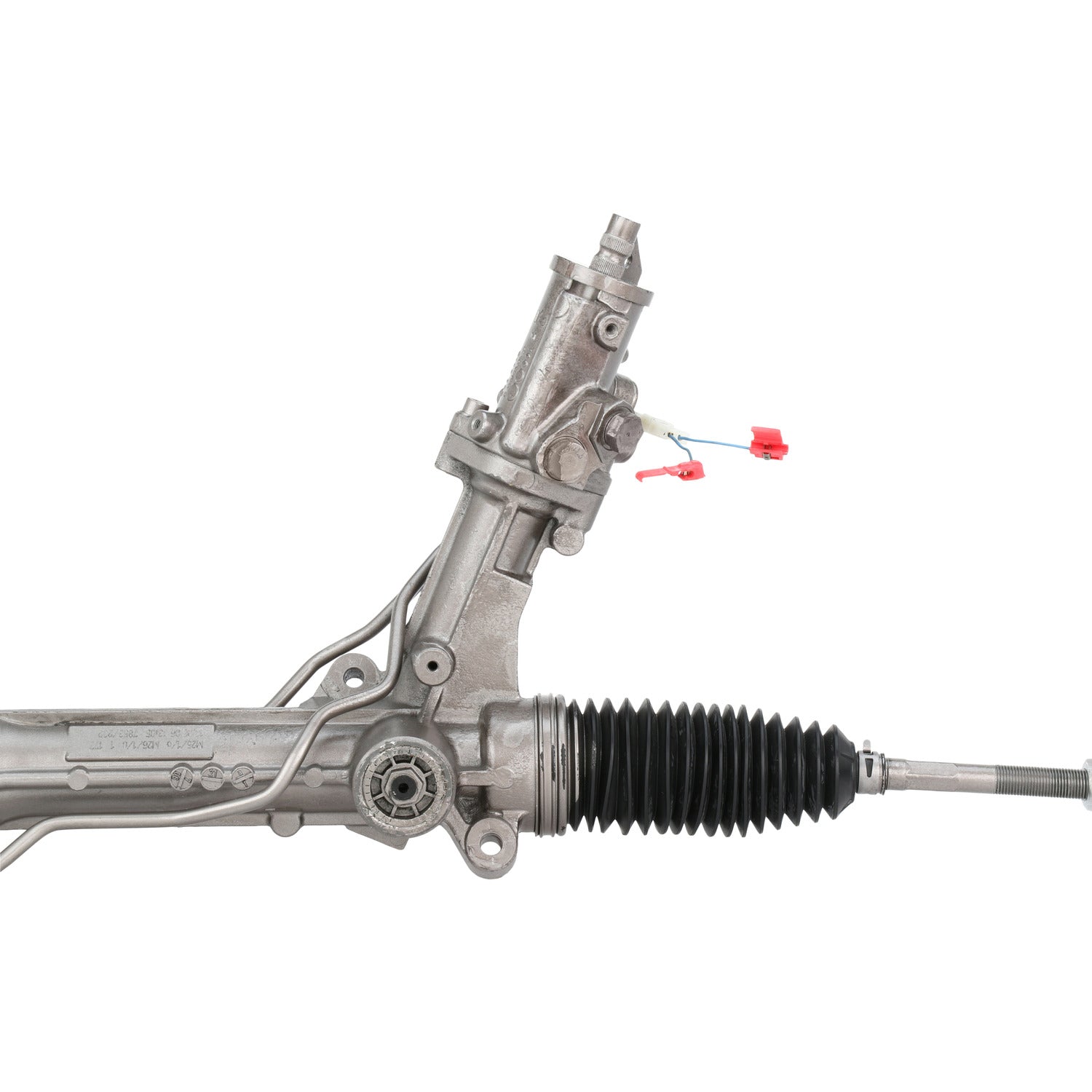

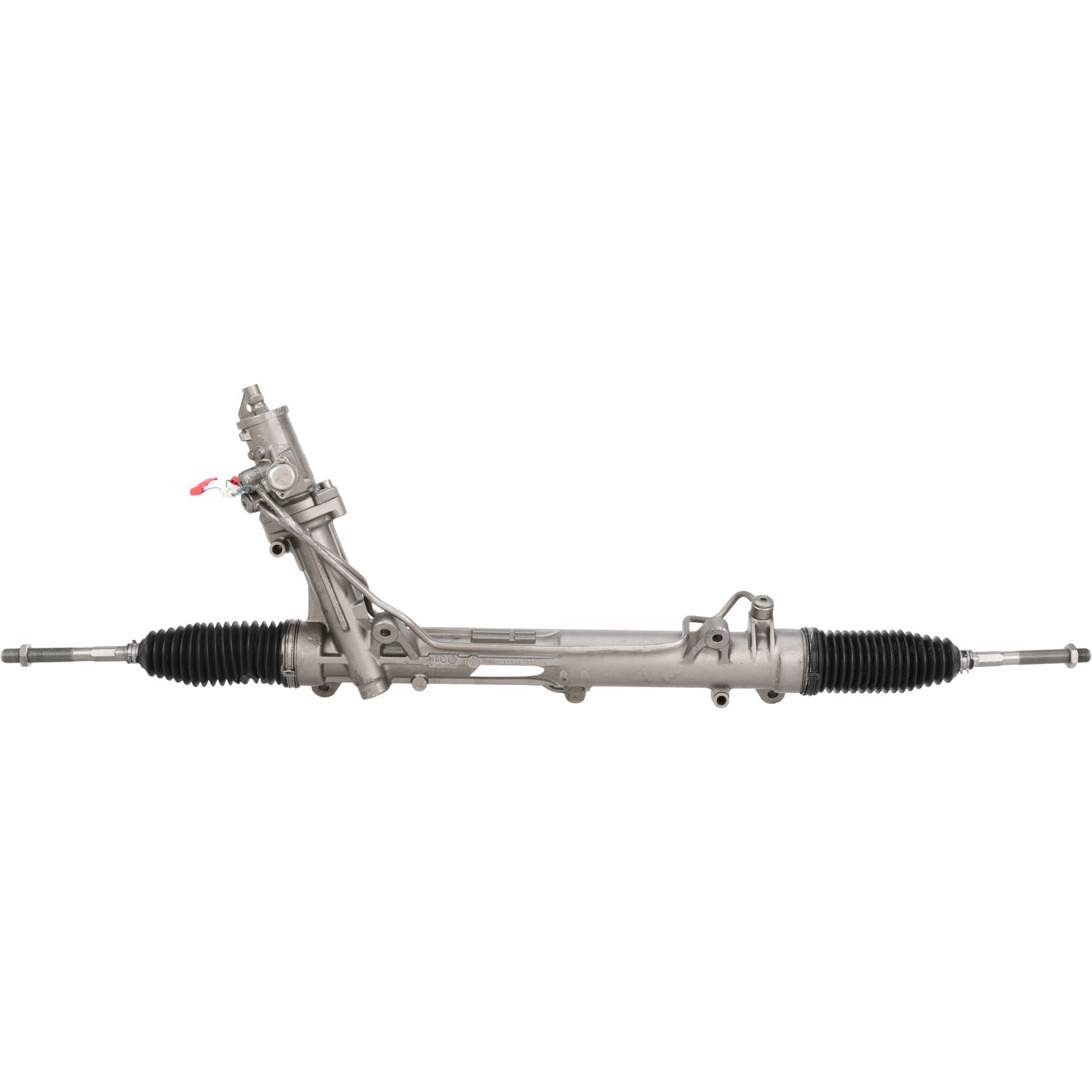

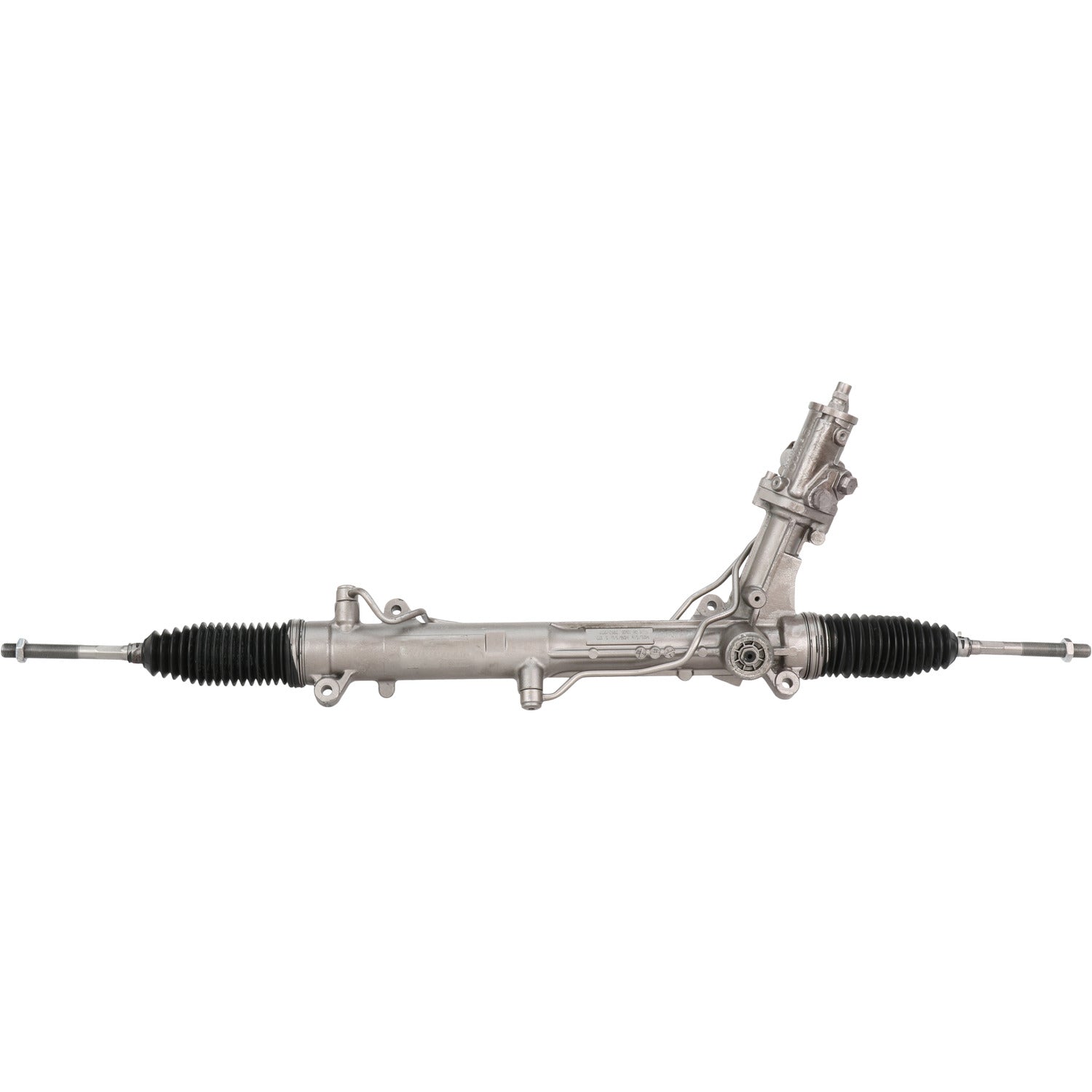

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93352M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93352M
SKU:93352M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Aluminum | |
| Distance Between Mounting Holes | 18.88 | IN |
| Distance Between Mounting Holes | 479.43 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.79 | IN |
| Input Shaft Diameter | 19.94 | MM |
| Input Shaft Length | 0.75 | IN |
| Input Shaft Length | 19.05 | MM |
| Mounting Hole Quantity | 4 | |
| Pressure Port Thread Size | M14 x 1.5 | |
| Rack Length | 44.69 | IN |
| Rack Length | 1135.08 | MM |
| Return Port Thread Size | M16 x 1.5 | |
| Thread Length | 2.81 | IN |
| Thread Length | 71.37 | MM |
| Tie Rod Ends Included | Yes | |
| Total Turns Lock To Lock | 2.94 |
Application Info: 2006-2007 BMW 525i (Qualifier: with Servotronic Steering / Note: Without Active steering, From 07/05); 2008-2010 BMW 528i (Note: Without Active steering); 2006-2007 BMW 530i (Qualifier: with Servotronic Steering / Note: Without Active steering, From 07/05); 2008-2010 BMW 535i (Note: Without Active steering); 2004-2005 BMW 645Ci (Note: Without Active steering); 2006-2010 BMW 550i (Note: Without Active steering); 2006-2010 BMW 650i (Note: Without Active steering); 2009 BMW 528i xDrive (Note: Without Active steering)
Interchange: BMW - 32 10 6 775 423
BBB Cross-Reference: 306-0133
Cardone Cross-Reference: 26-2812
