Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93348M

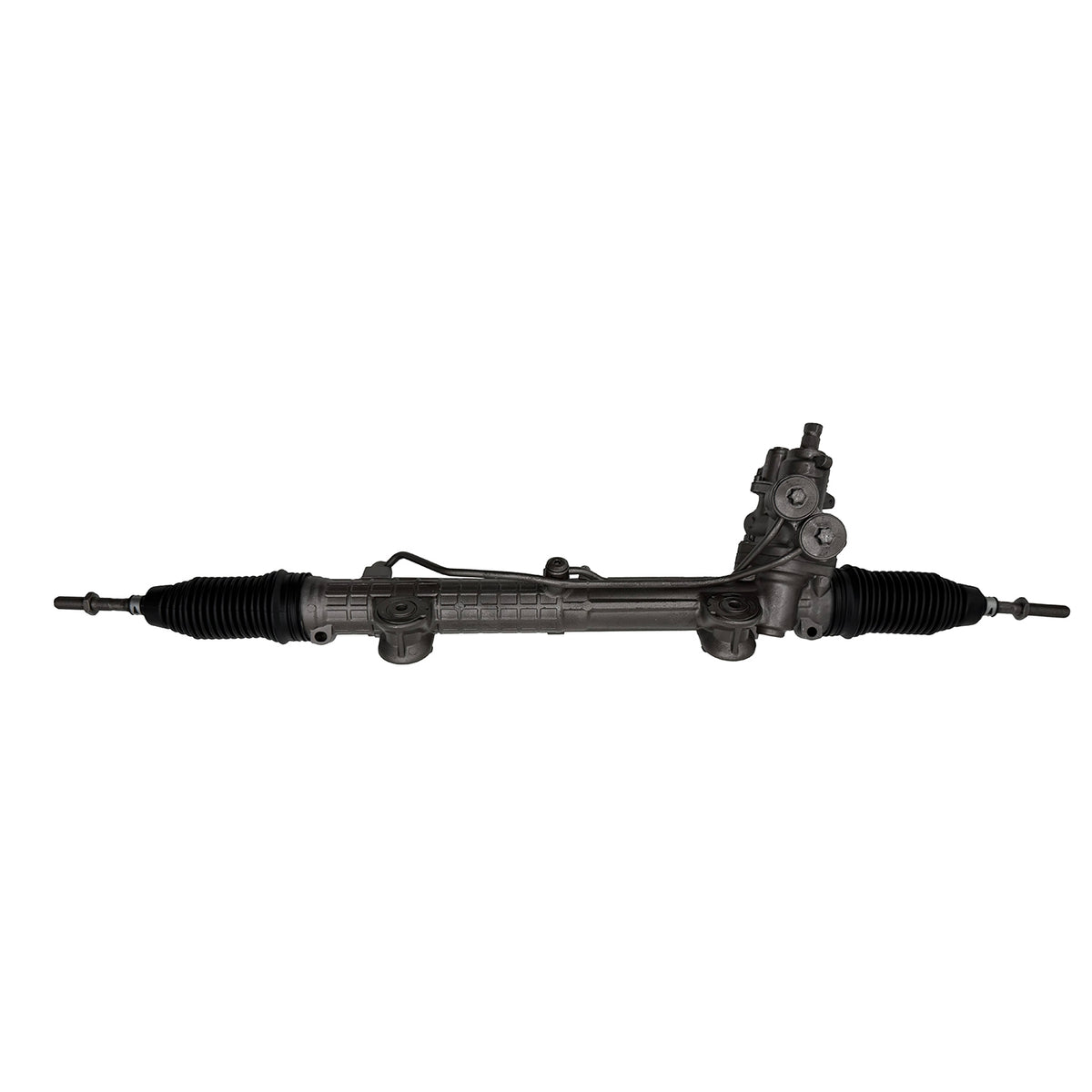

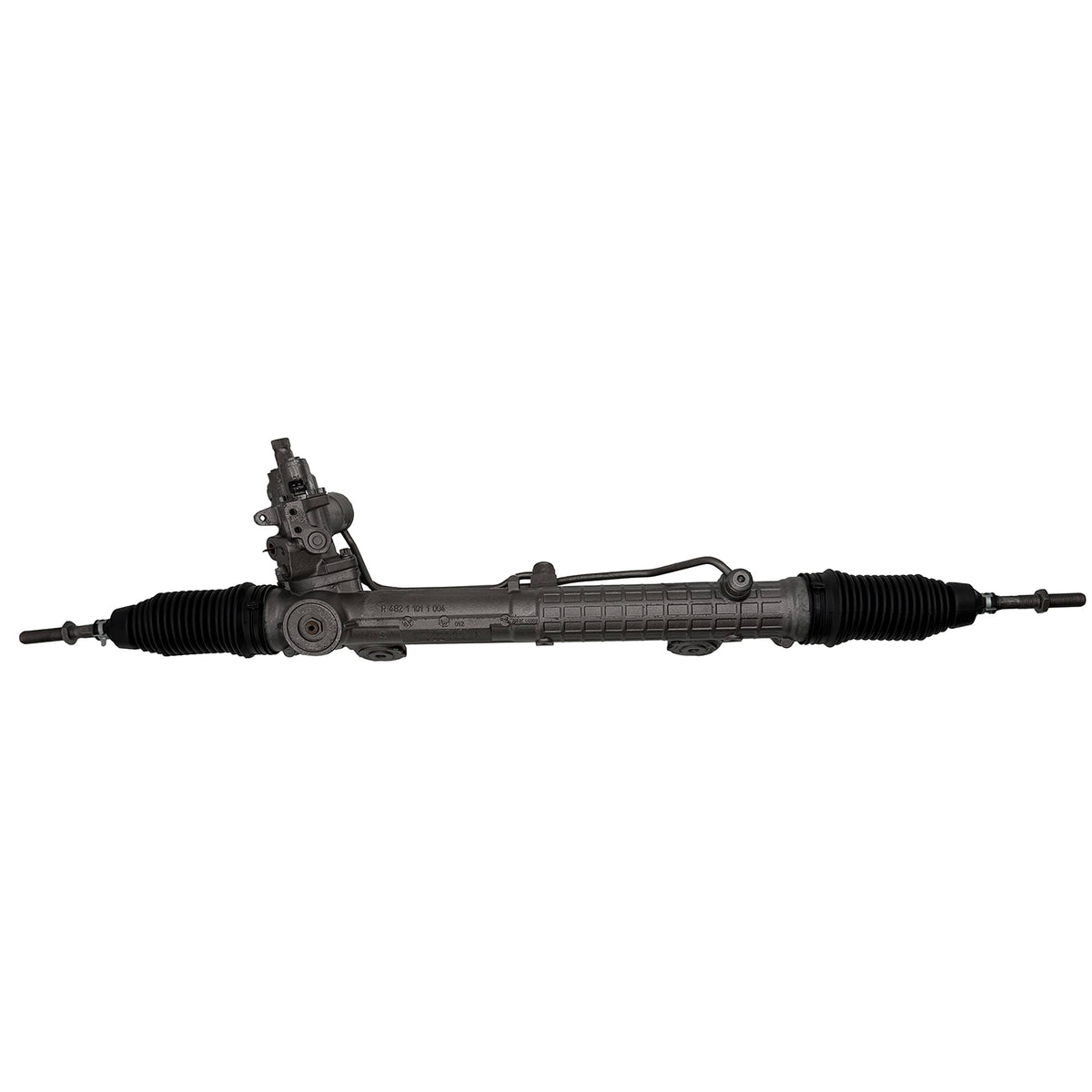

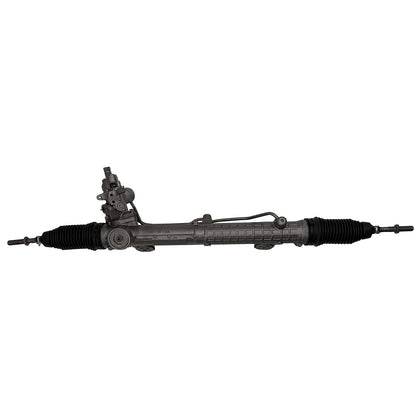

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93348M
SKU:93348M

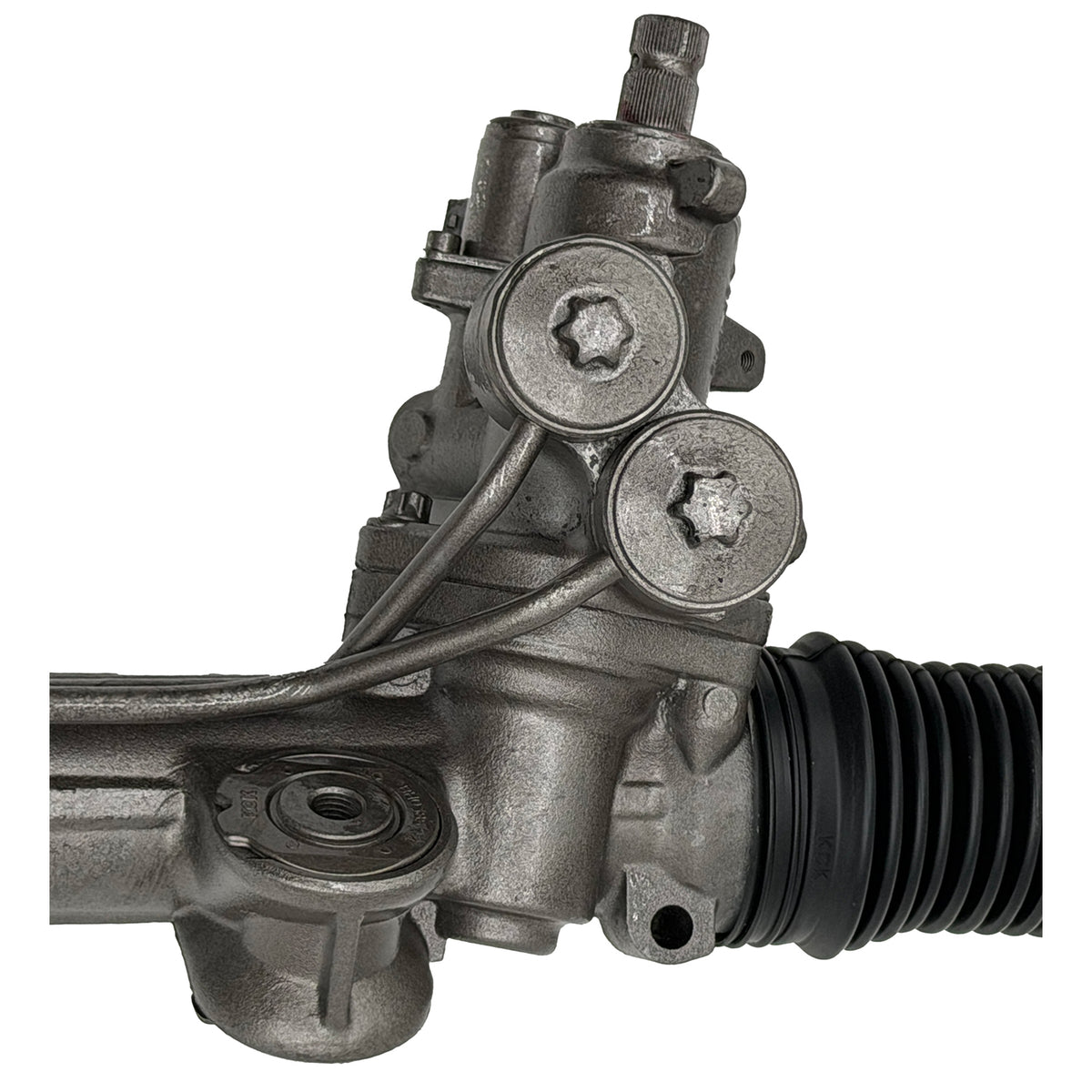

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Aluminum | |
| Distance Between Mounting Holes | 12.81 | IN |
| Distance Between Mounting Holes | 325.45 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.79 | IN |
| Input Shaft Diameter | 19.99 | MM |
| Input Shaft Length | 1.06 | IN |
| Input Shaft Length | 27 | MM |
| Mounting Hole Quantity | 2 | |
| Rack Length | 41.19 | IN |
| Rack Length | 1046.18 | MM |
| Return Port ID Size | 0.472 | |
| Thread Length | 2.4 | IN |
| Thread Length | 60.96 | MM |
| Tie Rod Ends Included | Yes | |
| Total Turns Lock To Lock | 3.88 |
Application Info: Mercedes-Benz C240 (2003-05), C280 (2006), C320 (2003-05), C350 (2006-07) ***W/4Matic, W/Electronic Speed Sensitive Steering***
Interchange: 203 335 02 15, 203 460 32 00
BBB Cross-Reference:
Cardone Cross-Reference: 26-4032
