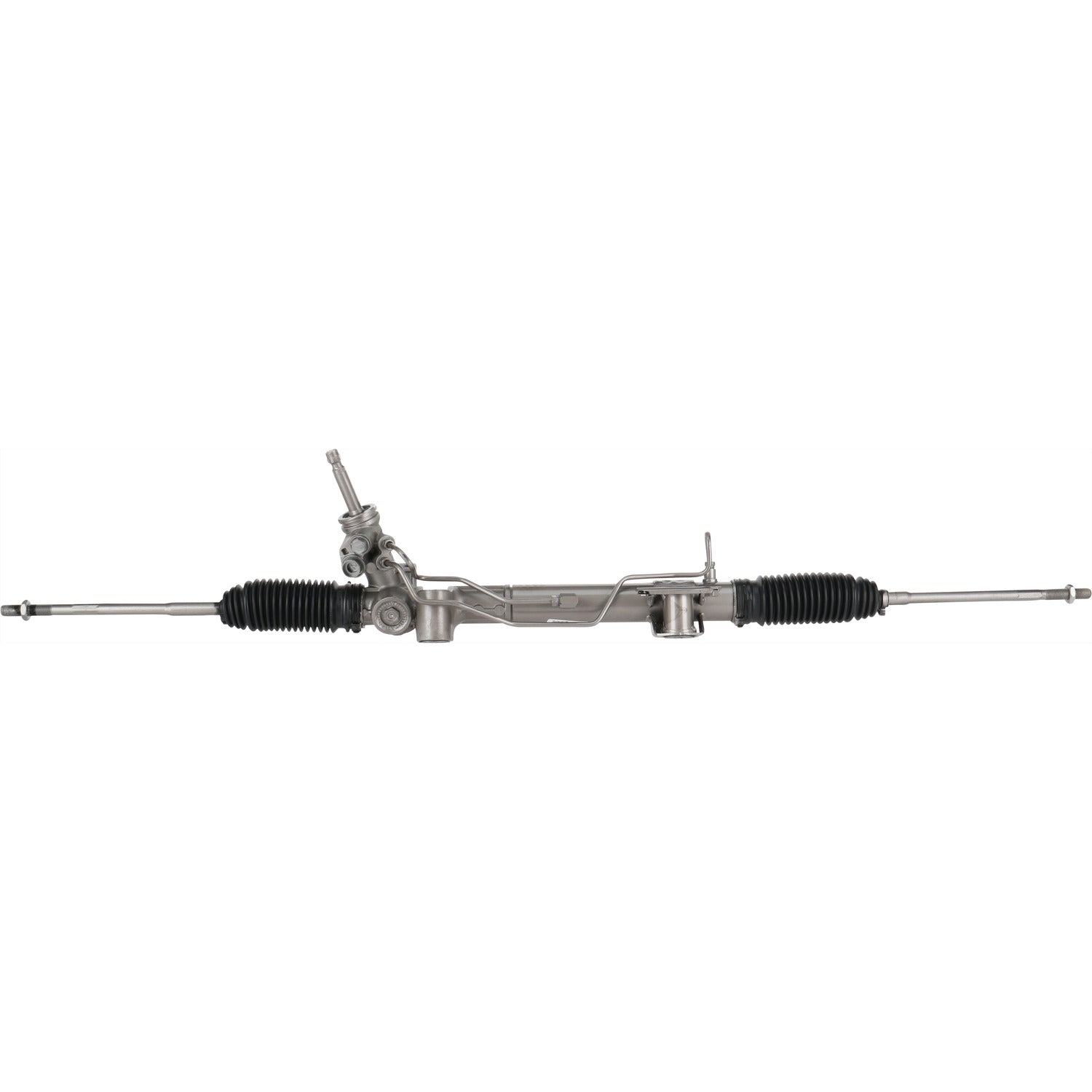

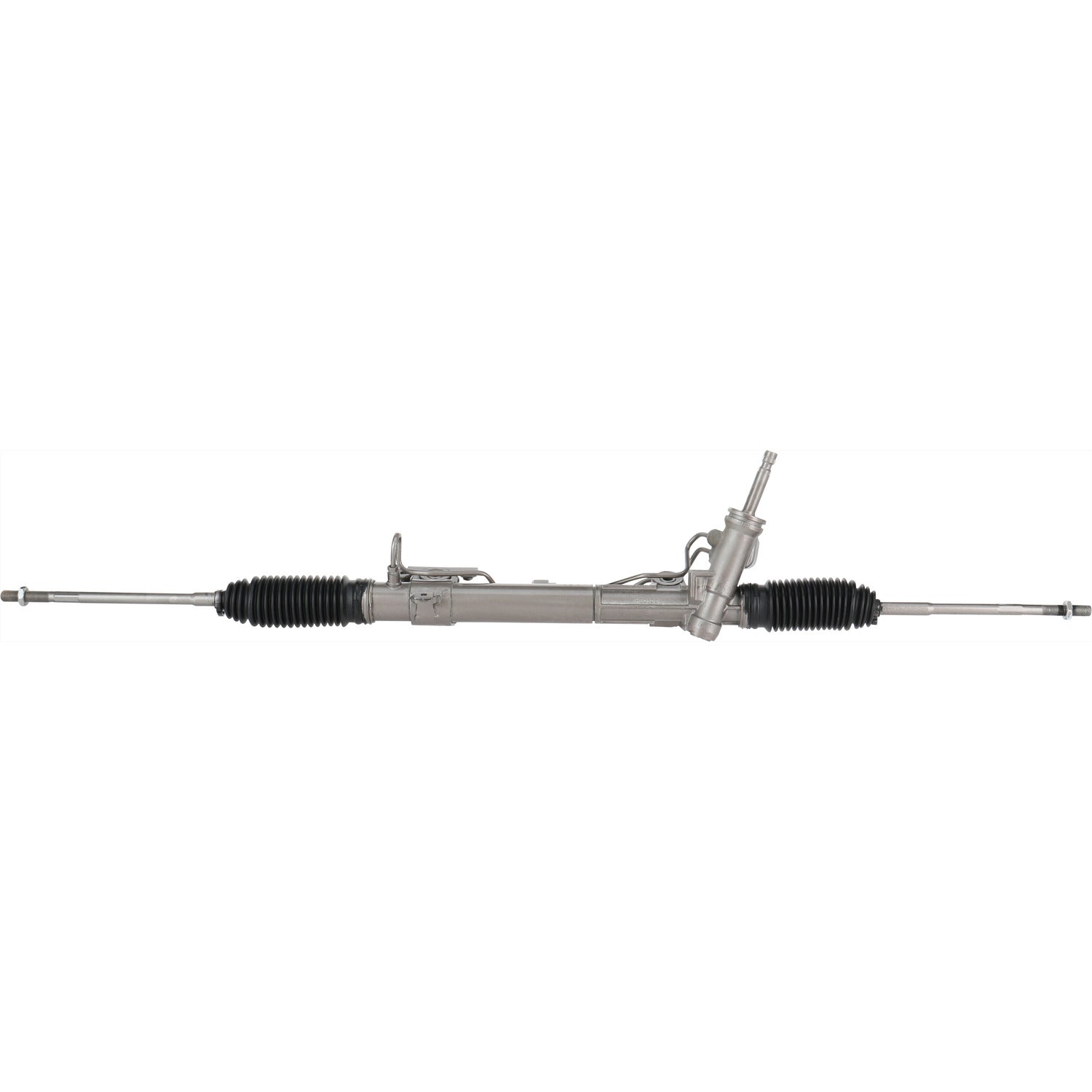

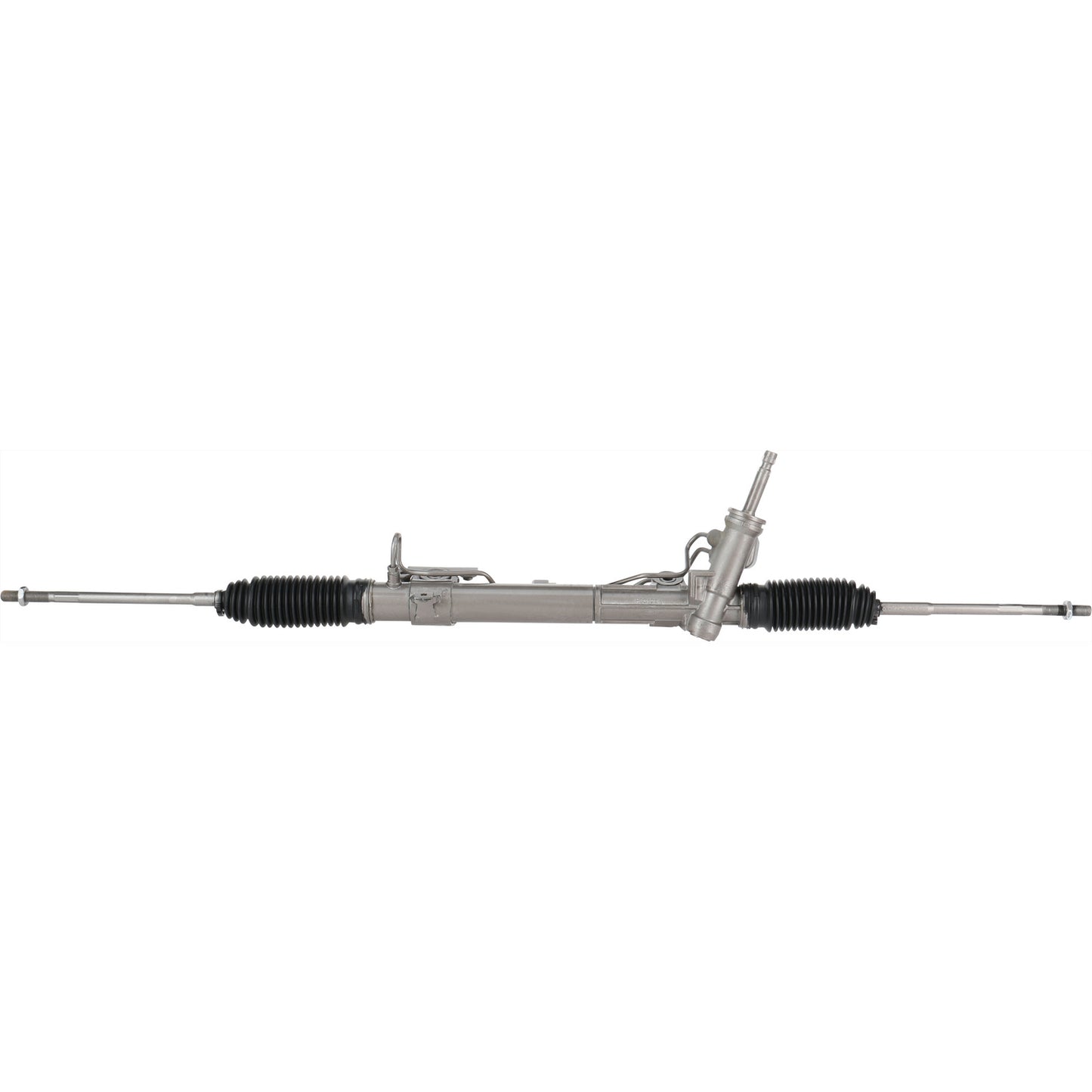

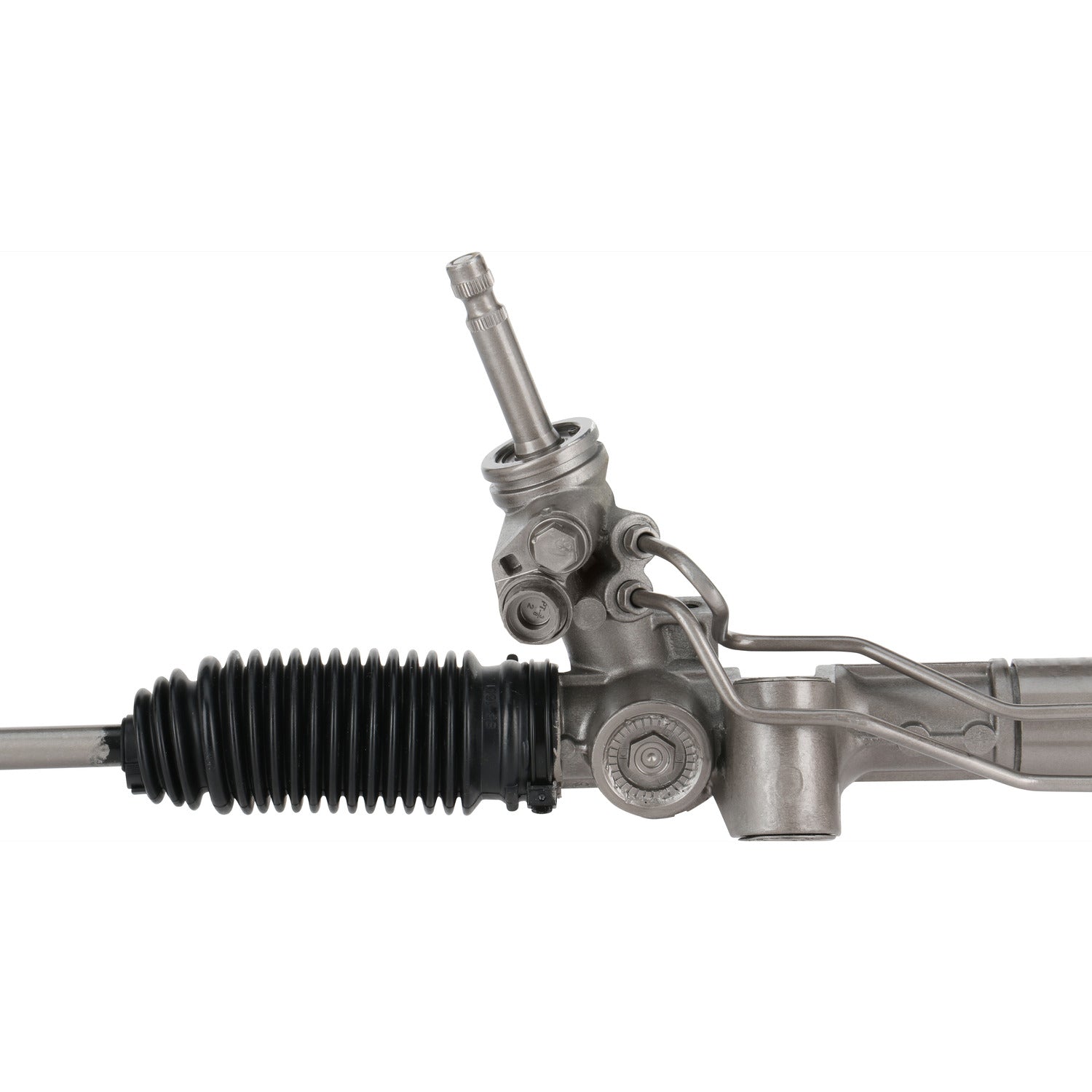

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93346M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93346M

SKU:93346M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 11.31 IN
Distance Between Mounting Holes 287.35 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 3.07 IN
Input Shaft Length 77.85 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 50.75 IN
Rack Length 1289.05 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.09 IN
Thread Length 53.14 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.19



Application Info: Mitsubishi Lancer (2008-2010)

Interchange: Mitsubishi - 4410A004

BBB Cross-Reference: 309-0143

Cardone Cross-Reference: 26-2158
