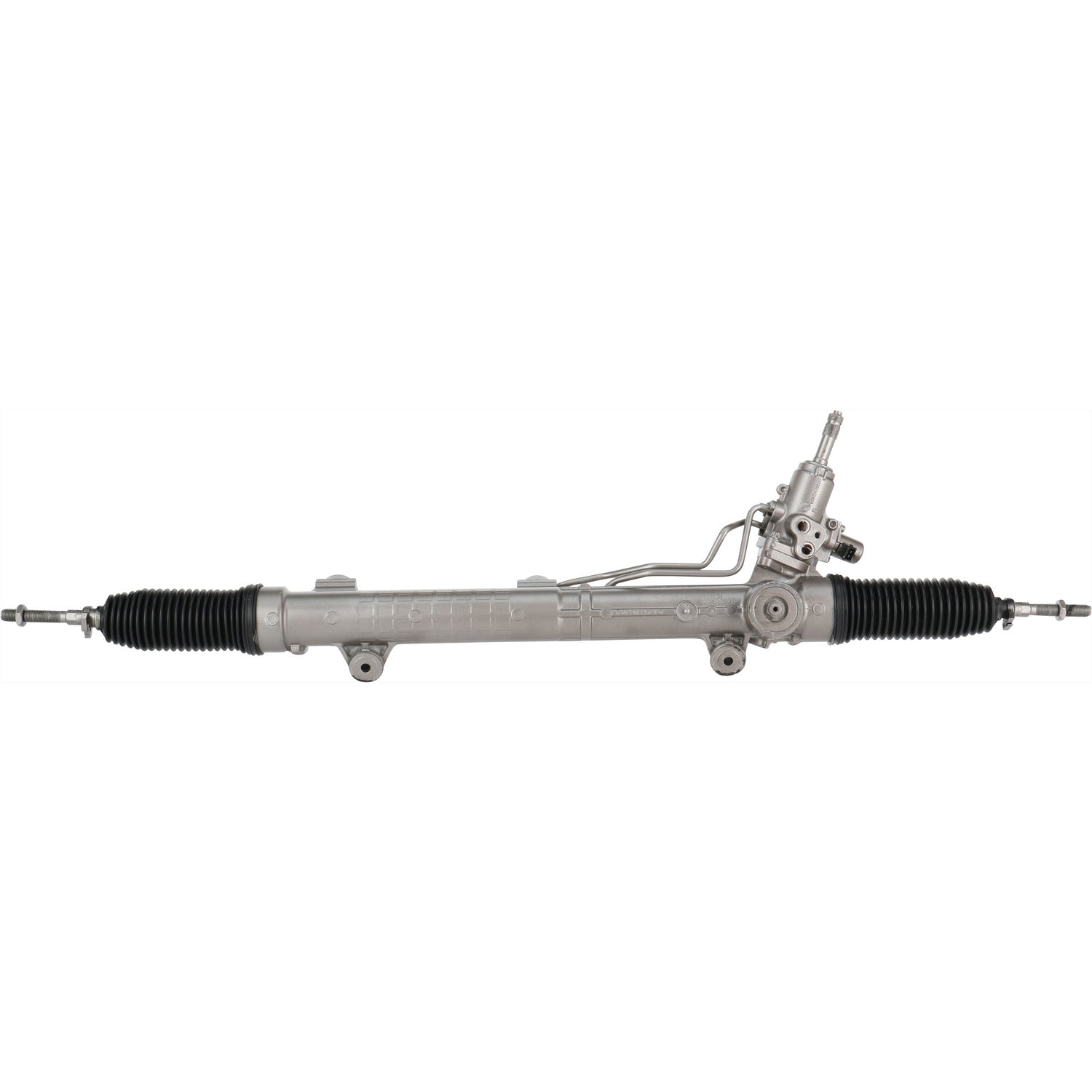

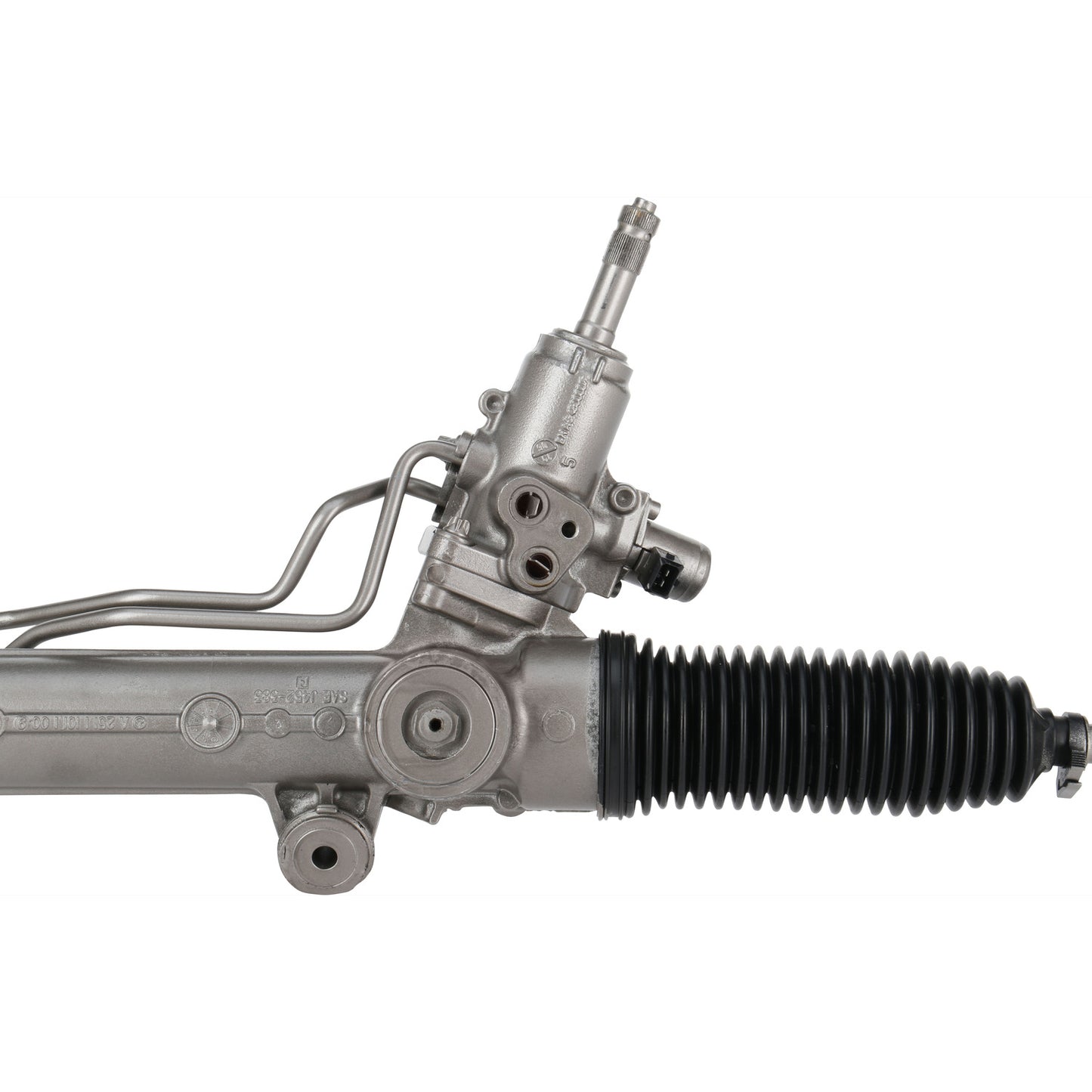

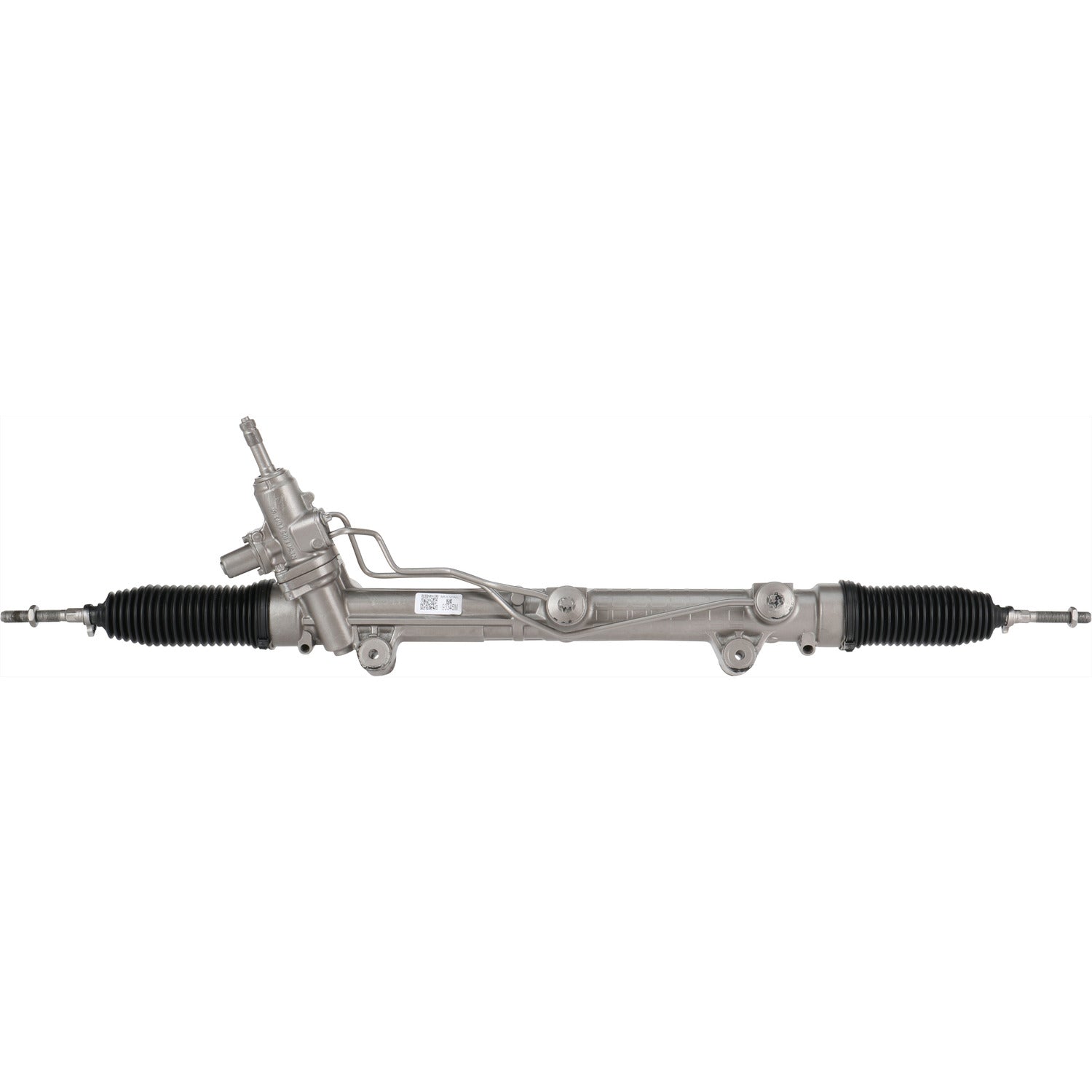

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93345M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93345M
SKU:93345M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Aluminum | |
| Distance Between Mounting Holes | 15.63 | IN |
| Distance Between Mounting Holes | 396.88 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.79 | IN |
| Input Shaft Diameter | 20.02 | MM |
| Input Shaft Length | 2.5 | IN |
| Input Shaft Length | 63.5 | MM |
| Mounting Hole Quantity | 2 | |
| Rack Length | 46.44 | IN |
| Rack Length | 1179.53 | MM |
| Return Port ID Size | 0.472 | |
| Thread Length | 2.21 | IN |
| Thread Length | 56.03 | MM |
| Tie Rod Ends Included | Yes | |
| Total Turns Lock To Lock | 3.25 |
Application Info: Mercedes R320 (2007-09), R350 (2006-10), R500 (2006-07), R63 AMG (2007)
Interchange: Mercedes-Benz - 251 460 0225
BBB Cross-Reference: 313-0294
Cardone Cross-Reference: 26-4025
Instructions - 1 Instructions - 2
