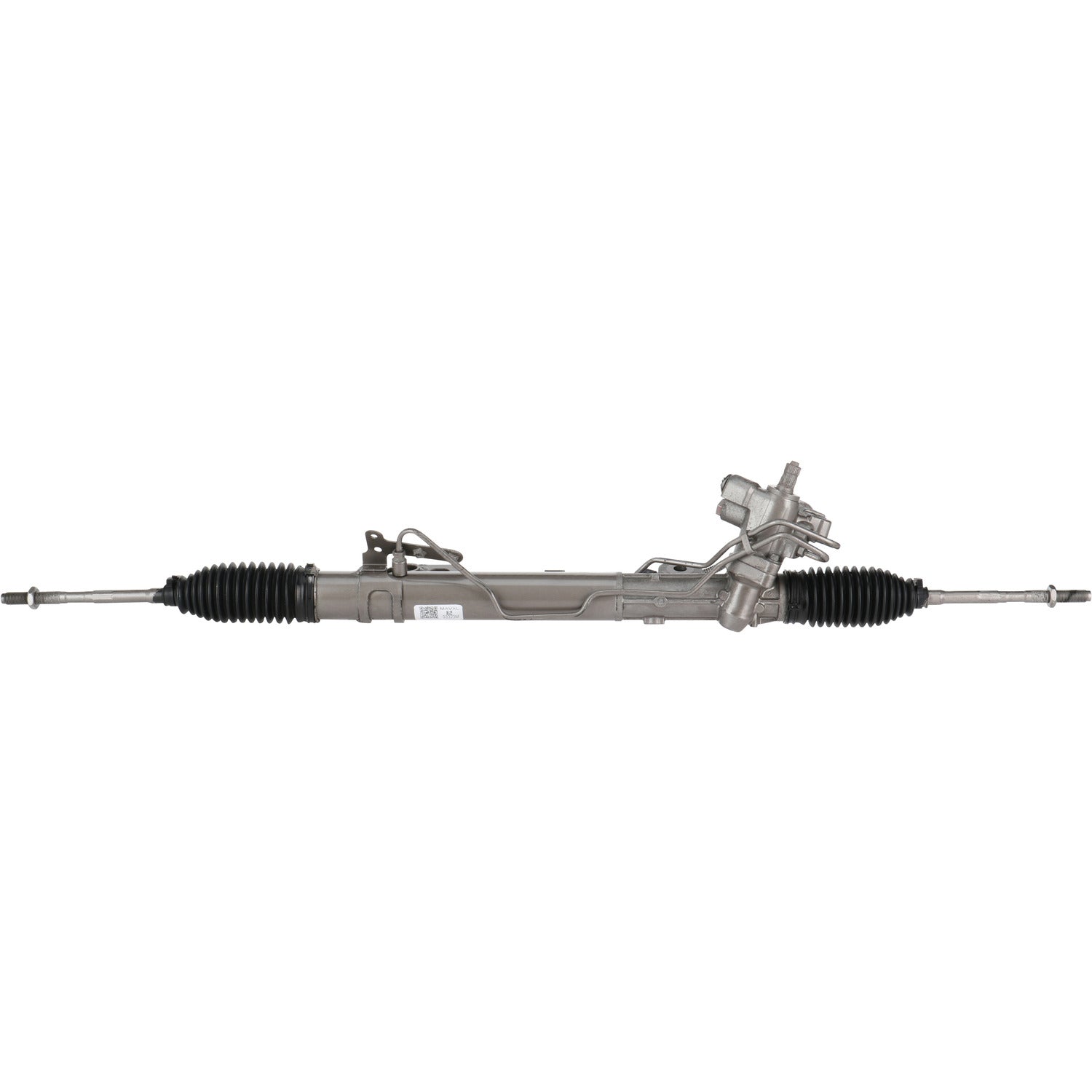

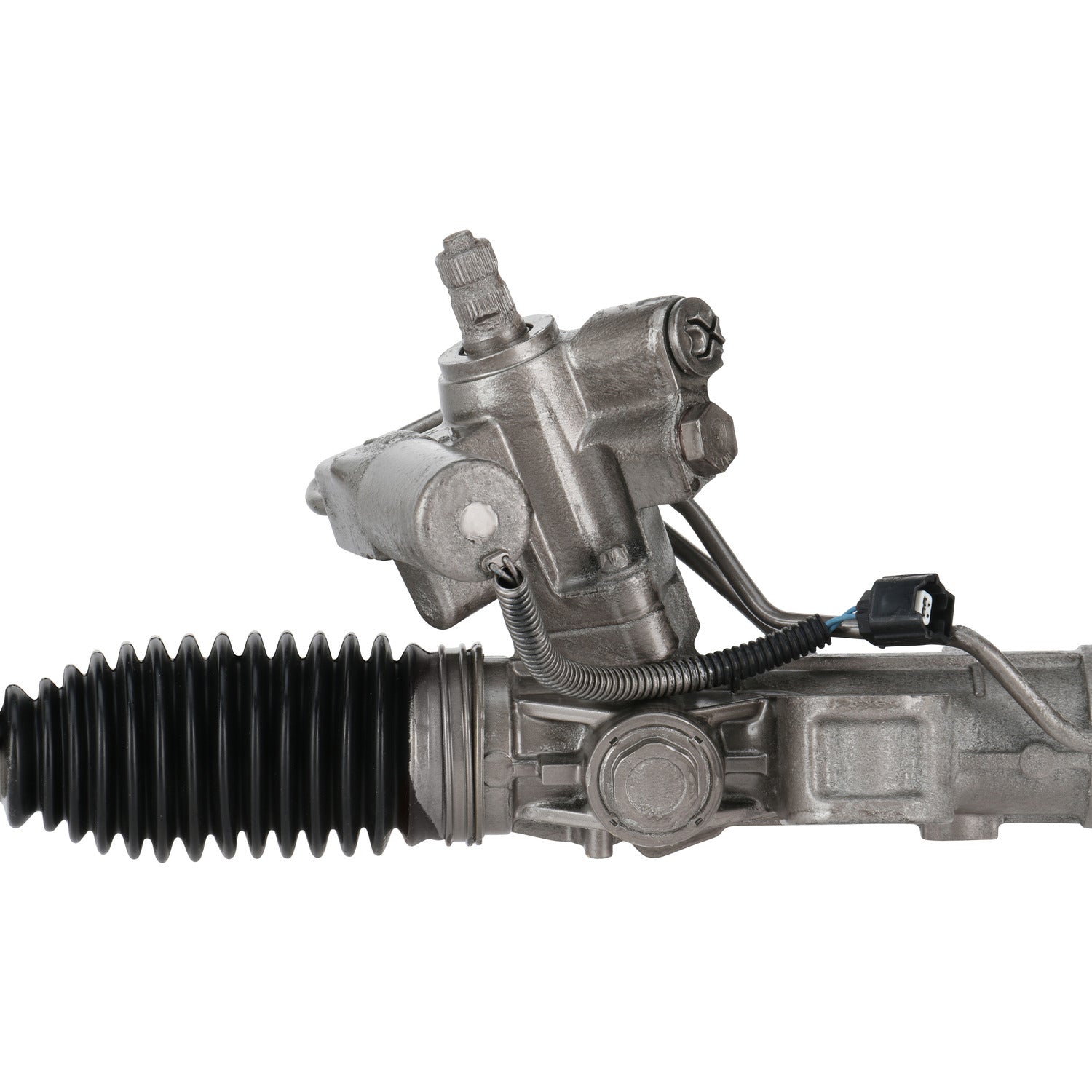

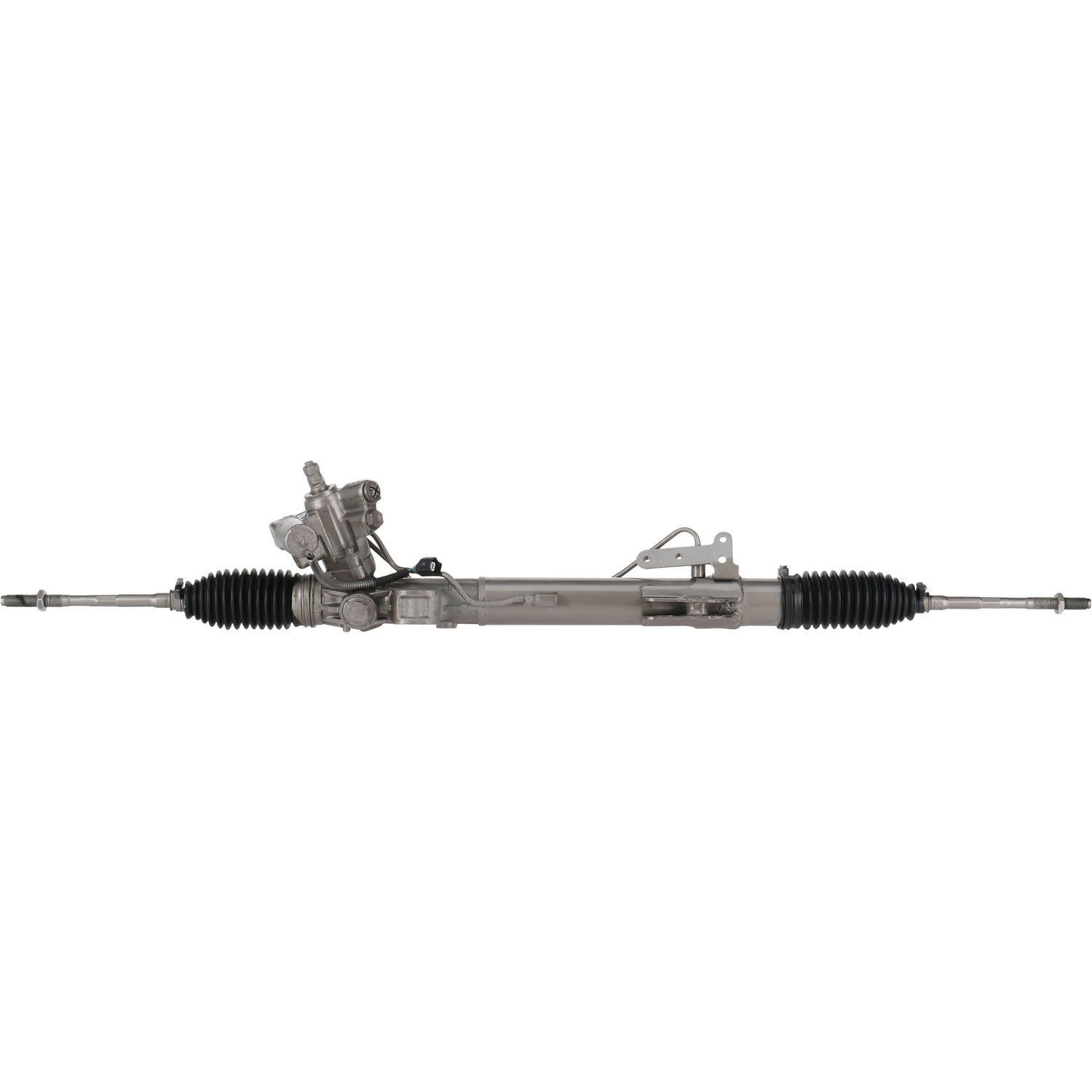

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93323M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93323M
SKU:93323M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Distance Between Mounting Holes | 11.5 | IN |
| Distance Between Mounting Holes | 294.5 | MM |
| Inner Tie Rod Length | 10.1 | IN |
| Inner Tie Rod Length | 258.5 | MM |
| Inner Tie Rods Included | Yes | |
| Input Shaft Diameter | 0.68 | IN |
| Input Shaft Diameter | 17.3 | MM |
| Input Shaft Length | 1.1 | IN |
| Input Shaft Length | 29 | MM |
| Mounting Hole Quantity | 3 | |
| New Or Remanufactured | New | |
| Pressure Port Thread Size | M14x1.50 | |
| Rack Length | 45 | IN |
| Rack Length | 1143.5 | MM |
| Return Port Thread Size | M16x1.50 | |
| Steering Input Shaft Spline Quantity | 36 | |
| Total Turns Lock To Lock | 3.06 | |
| Type | Hydraulic |
Application Info: Nissan Murano LE AWD, with EVO Component (2009-2014) Nissan Murano CrossCaberiolet, with EVO Component (2011-2014)
Interchange: Nissan - 49001-1AA1A
BBB Cross-Reference: 310-0193
Cardone Cross-Reference: 26-3063
