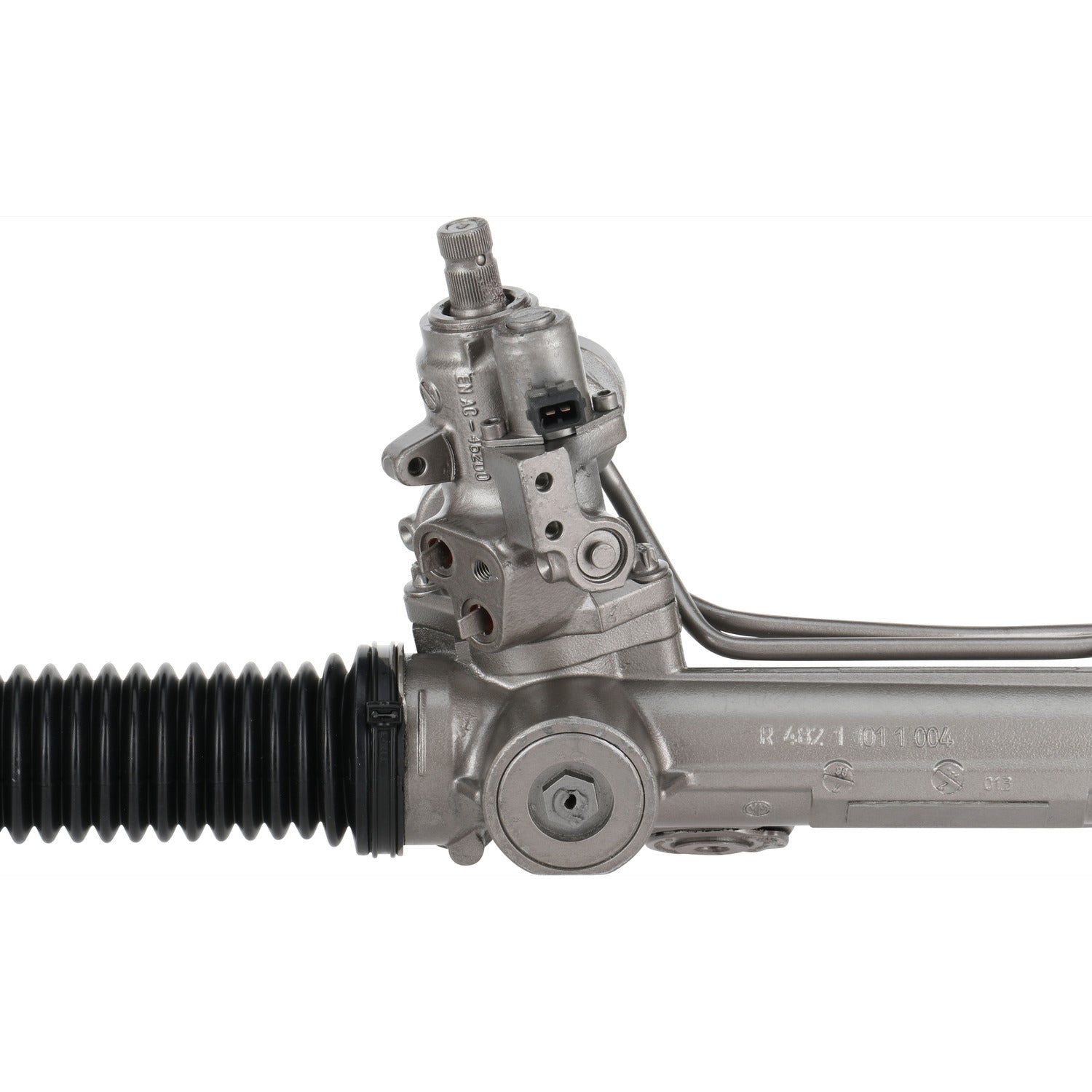

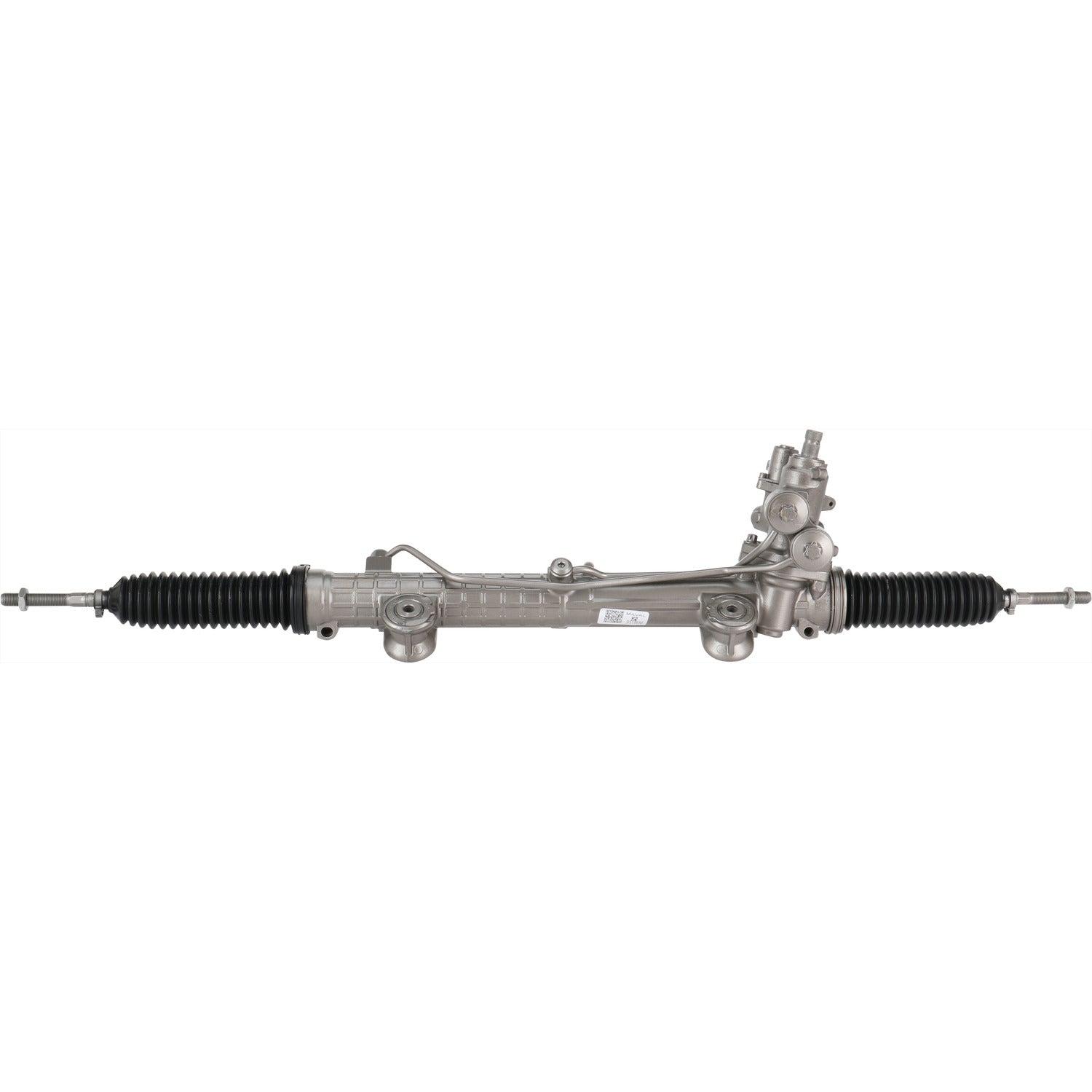

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93196M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Application Info: 2006-2009 Mercedes-Benz E350 4Matic (Drive: AWD); 2007-2009 Mercedes-Benz E550 4Matic (Drive: AWD); 2003-2005 Mercedes-Benz E320 4Matic (Drive: AWD); 2004-2006 Mercedes-Benz E500 4Matic (Drive: AWD)

Interchange: 211 460 24 00, 211 460 24 00 60, 211 460 24 00 80, 211 460 24 00 88

BBB Cross-Reference: 313-0273

Cardone Cross-Reference: 26-4014

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5
