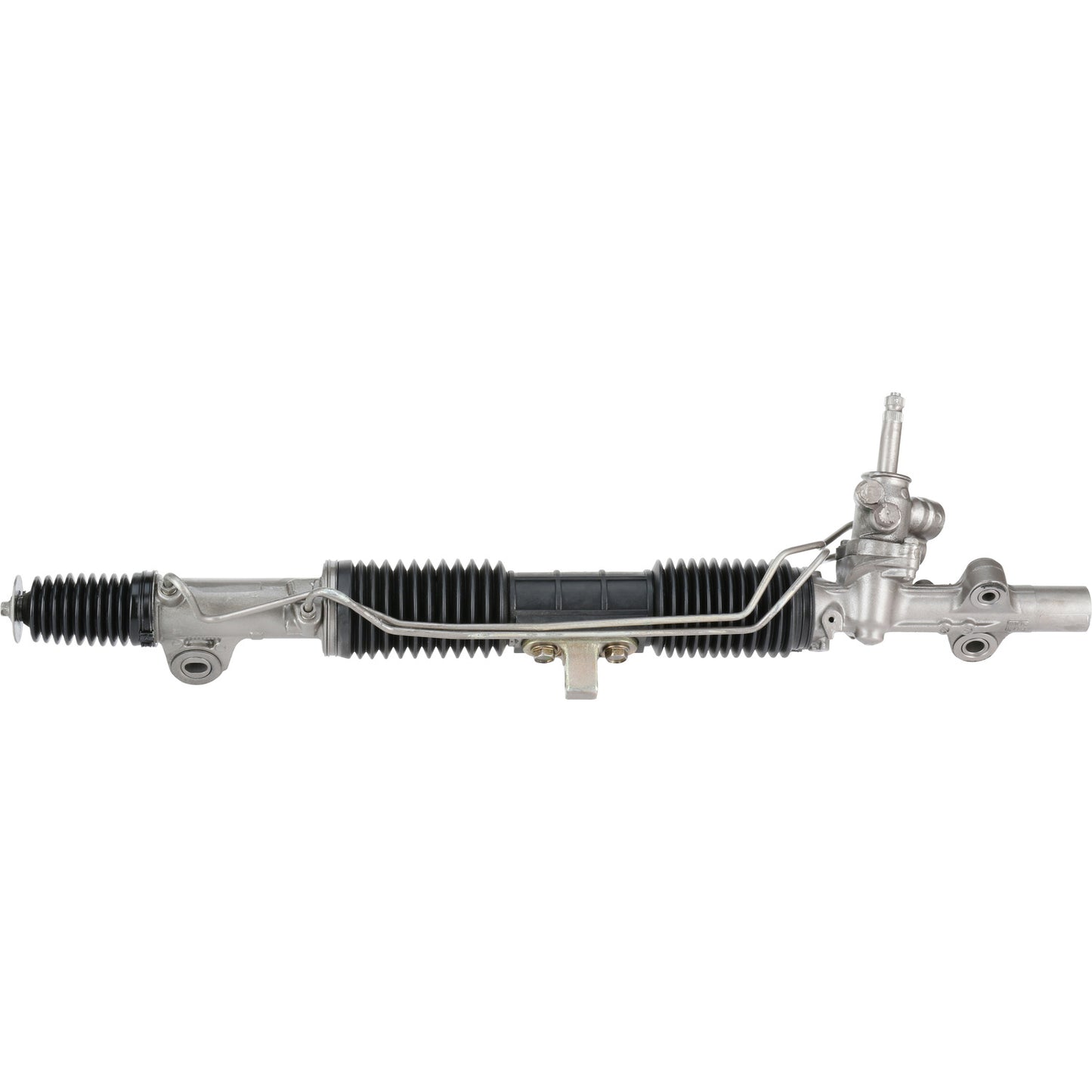

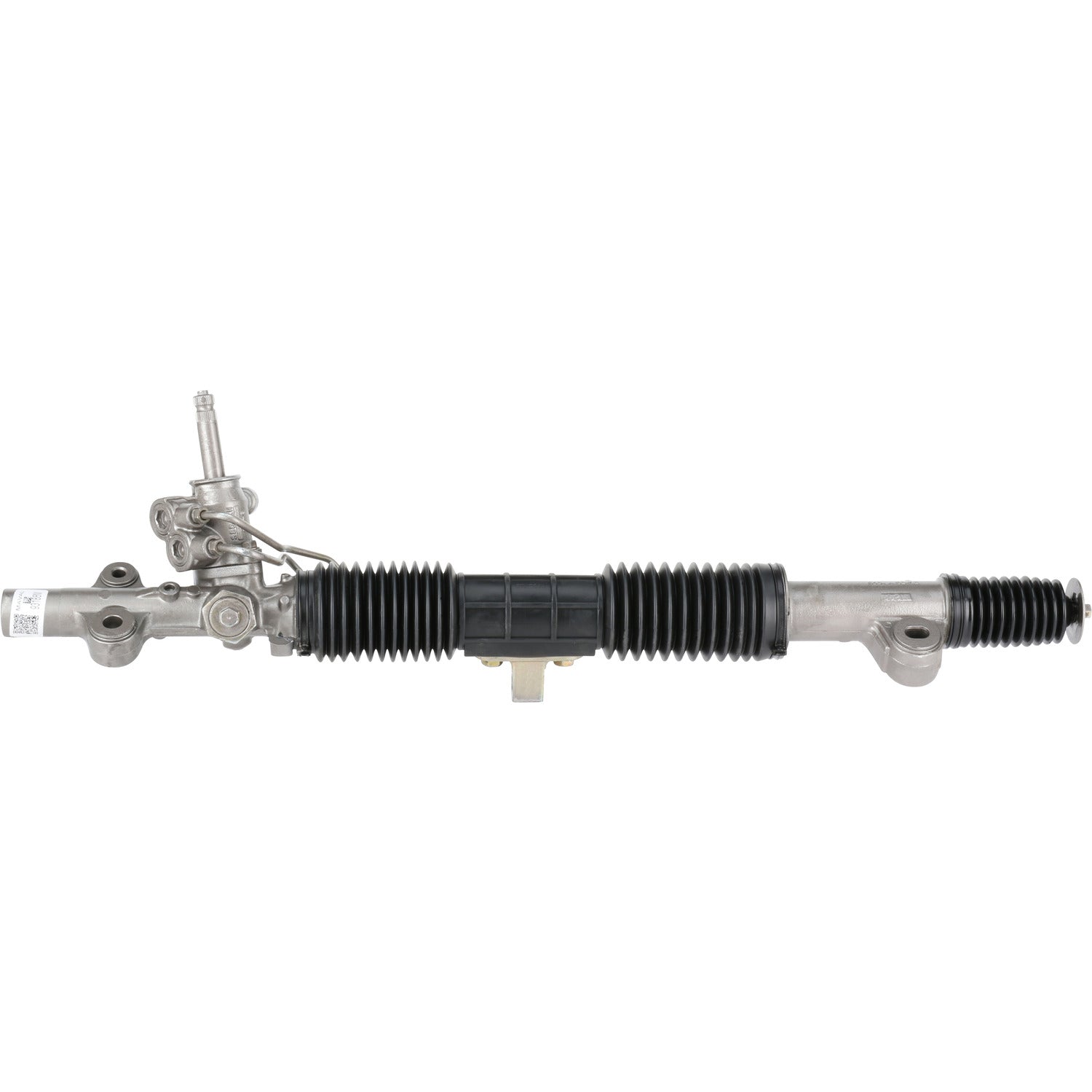

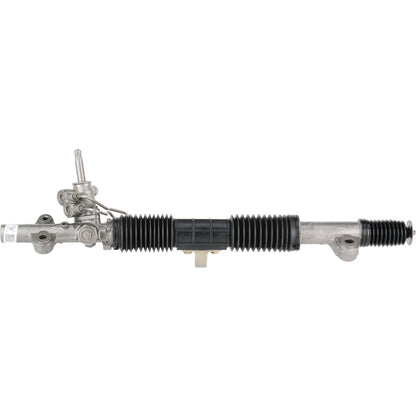

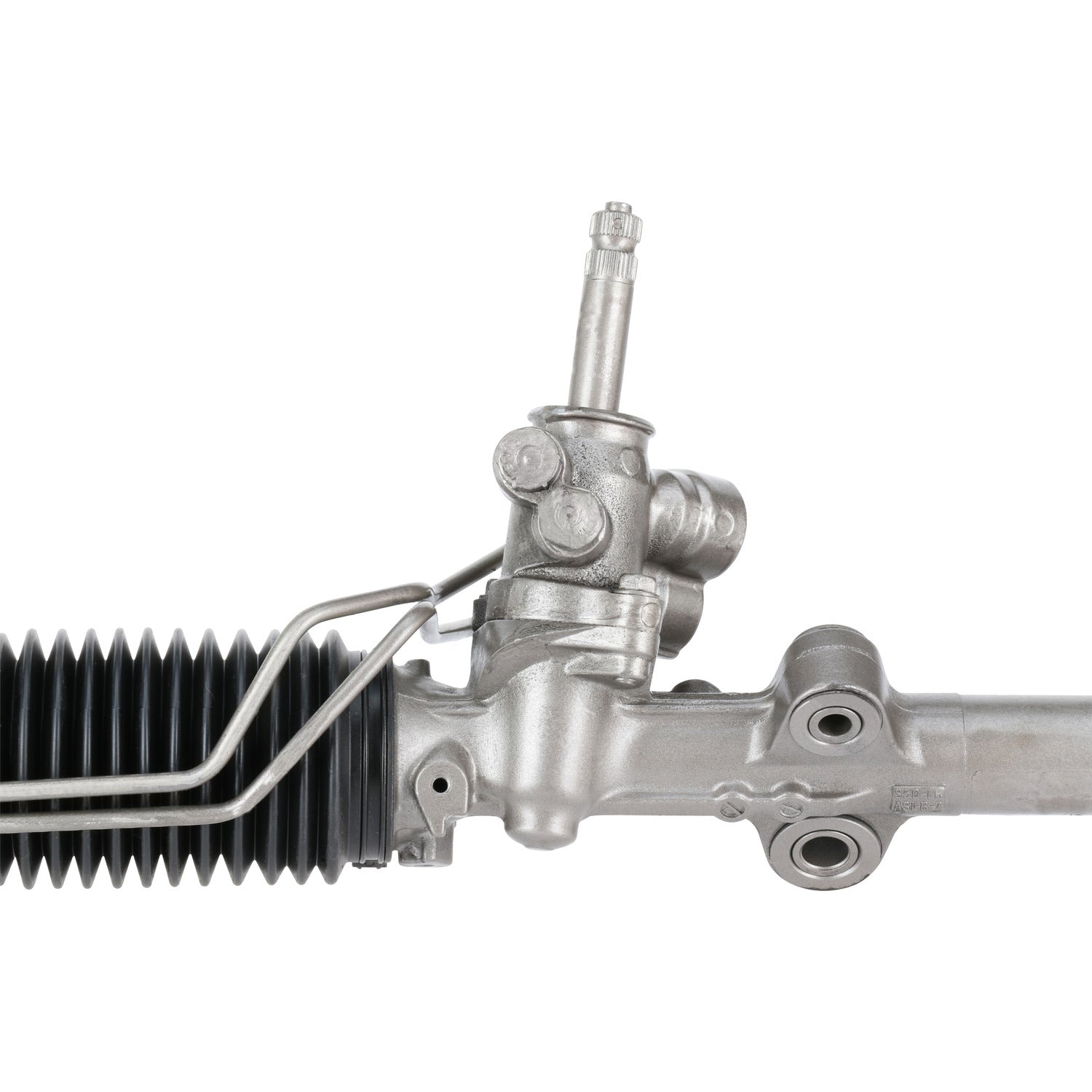

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93188M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93188M

SKU:93188M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 2.58 IN
Distance Between Mounting Holes 65.48 MM
Hose Port Type Seat
Input Shaft Diameter 0.68 IN
Input Shaft Diameter 17.25 MM
Input Shaft Length 2.69 IN
Input Shaft Length 68.28 MM
Number of Mounting Holes 3
Pressure Port Thread Size M14 x 1.5
Rack Length 38.13 IN
Rack Length 968.38 MM
Return Port Thread Size M16 x 1.5
Thread Length 0 IN
Thread Length 0 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.88

Application Info: Honda Civic (2004-2005) ***EX, LX Models***

Interchange: Honda - 53601-S5D-A42

BBB Cross-Reference:

Cardone Cross-Reference: 26-2708

To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance. Click For Tech Bulletin.

Instructions - 1               Instructions - 2
