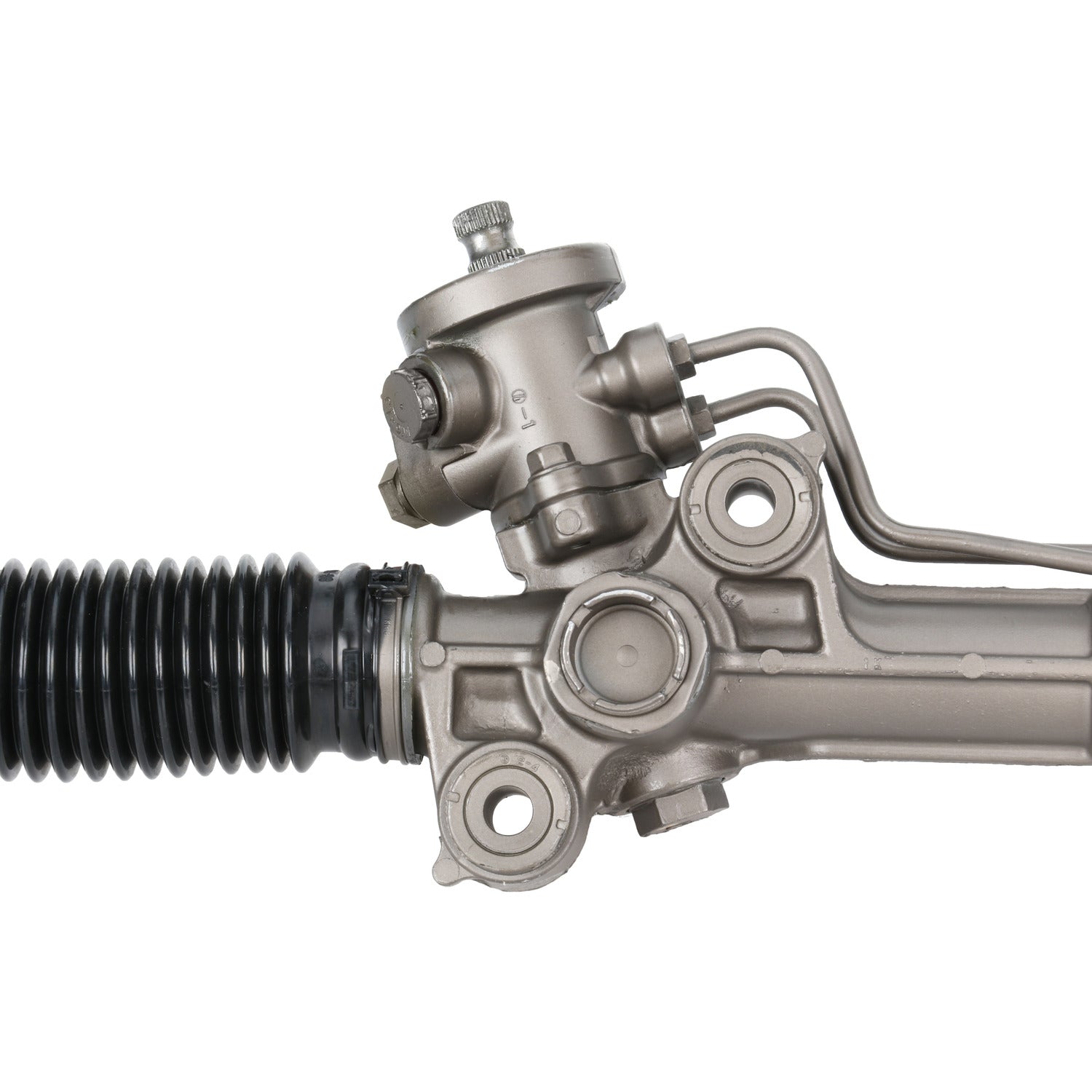

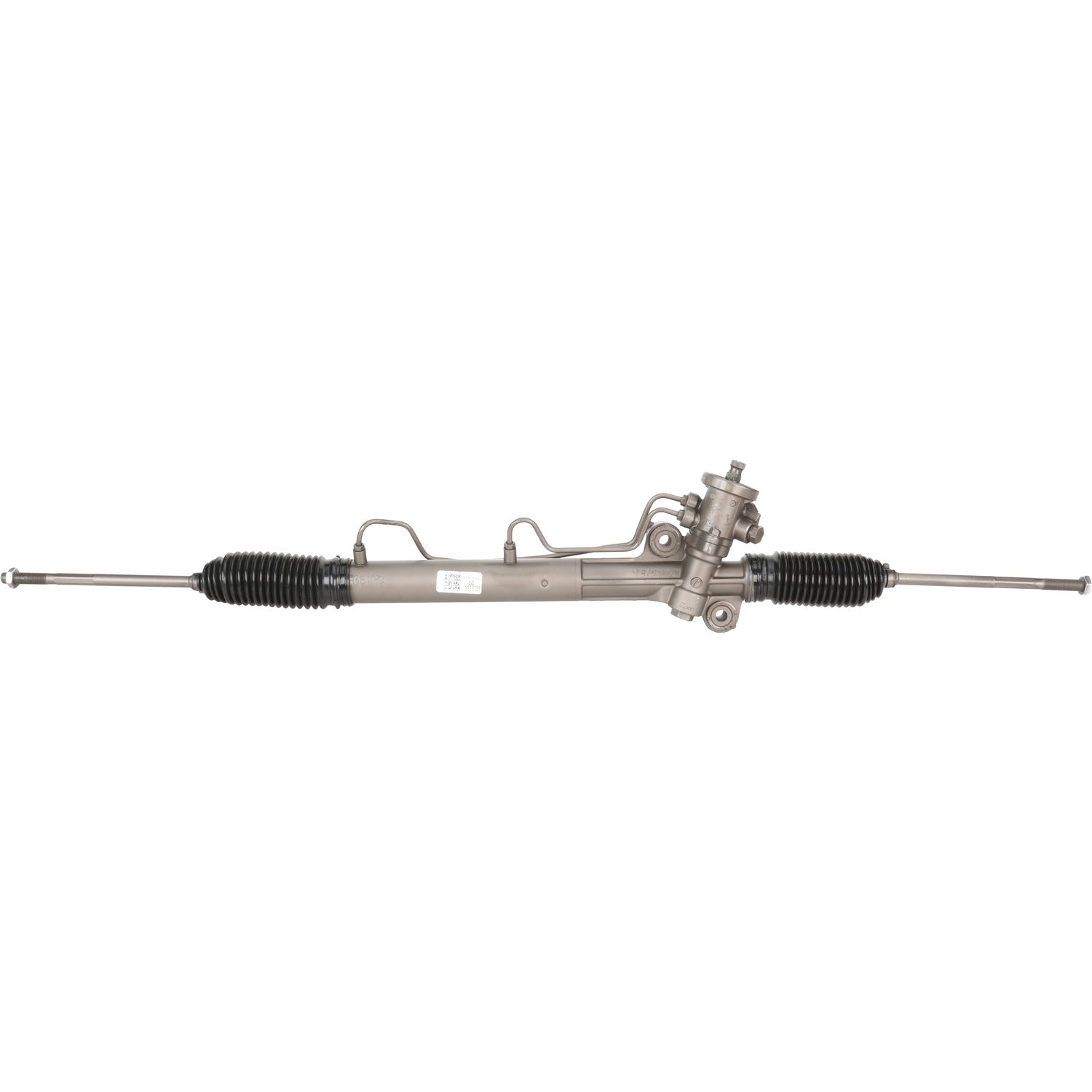

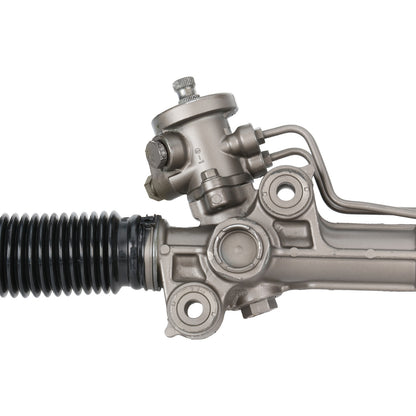

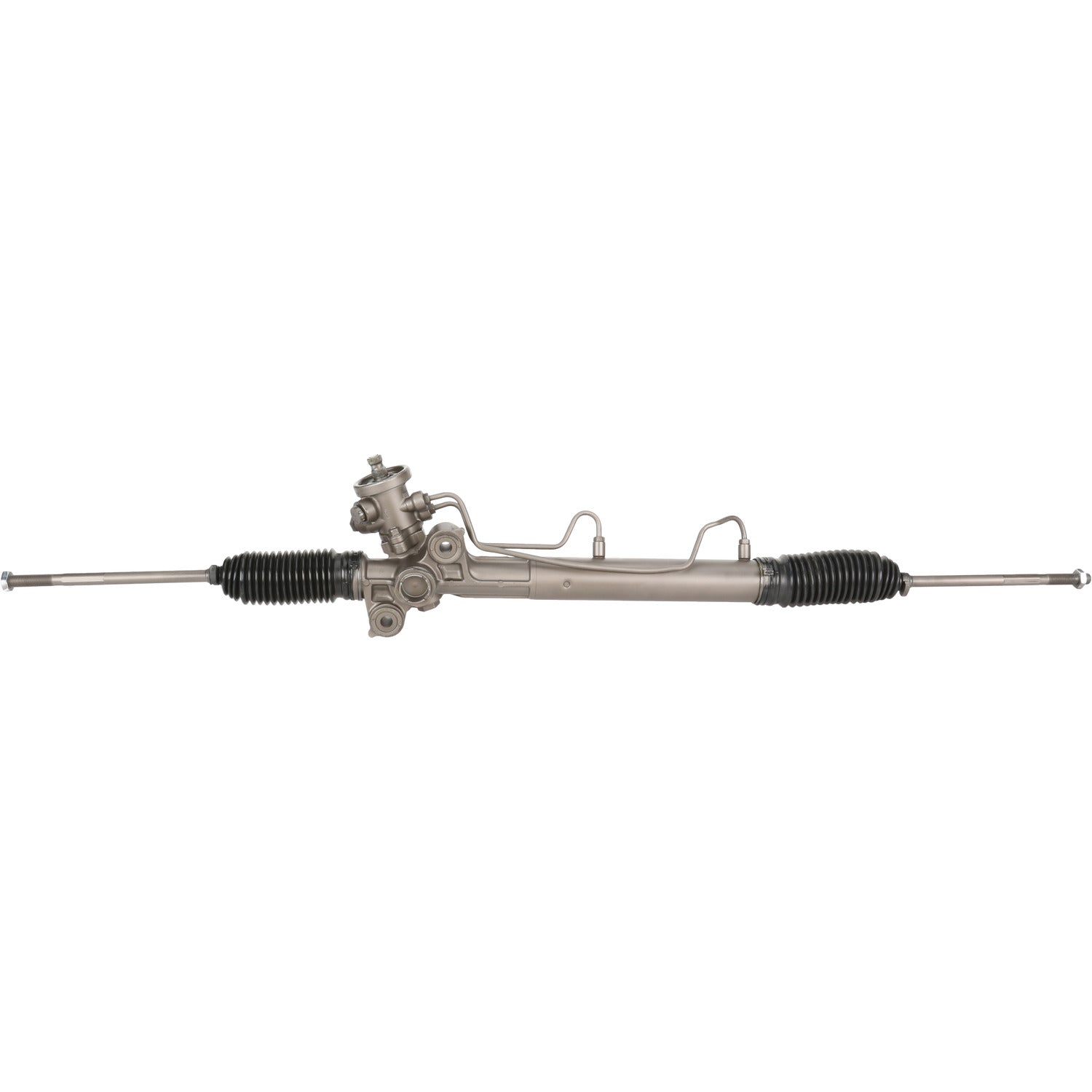

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93157M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93157M

SKU:93157M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 4.25 IN
Distance Between Mounting Holes 107.95 MM
Hose Port Type Washer
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19 MM
Input Shaft Length 1.13 IN
Input Shaft Length 28.58 MM
Number of Mounting Holes 2
Pressure Port Thread Size M14 x 1.5
Rack Length 49.63 IN
Rack Length 1260.48 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.12 IN
Thread Length 53.85 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.31

Application Info: Mazda MPV (2002-2006)

Interchange: Mazda - LD47-32-110

BBB Cross-Reference: 308-0148

Cardone Cross-Reference: 26-2035
