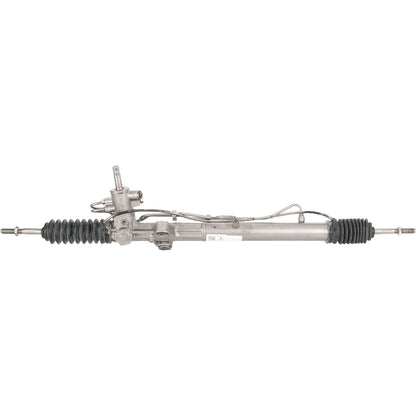

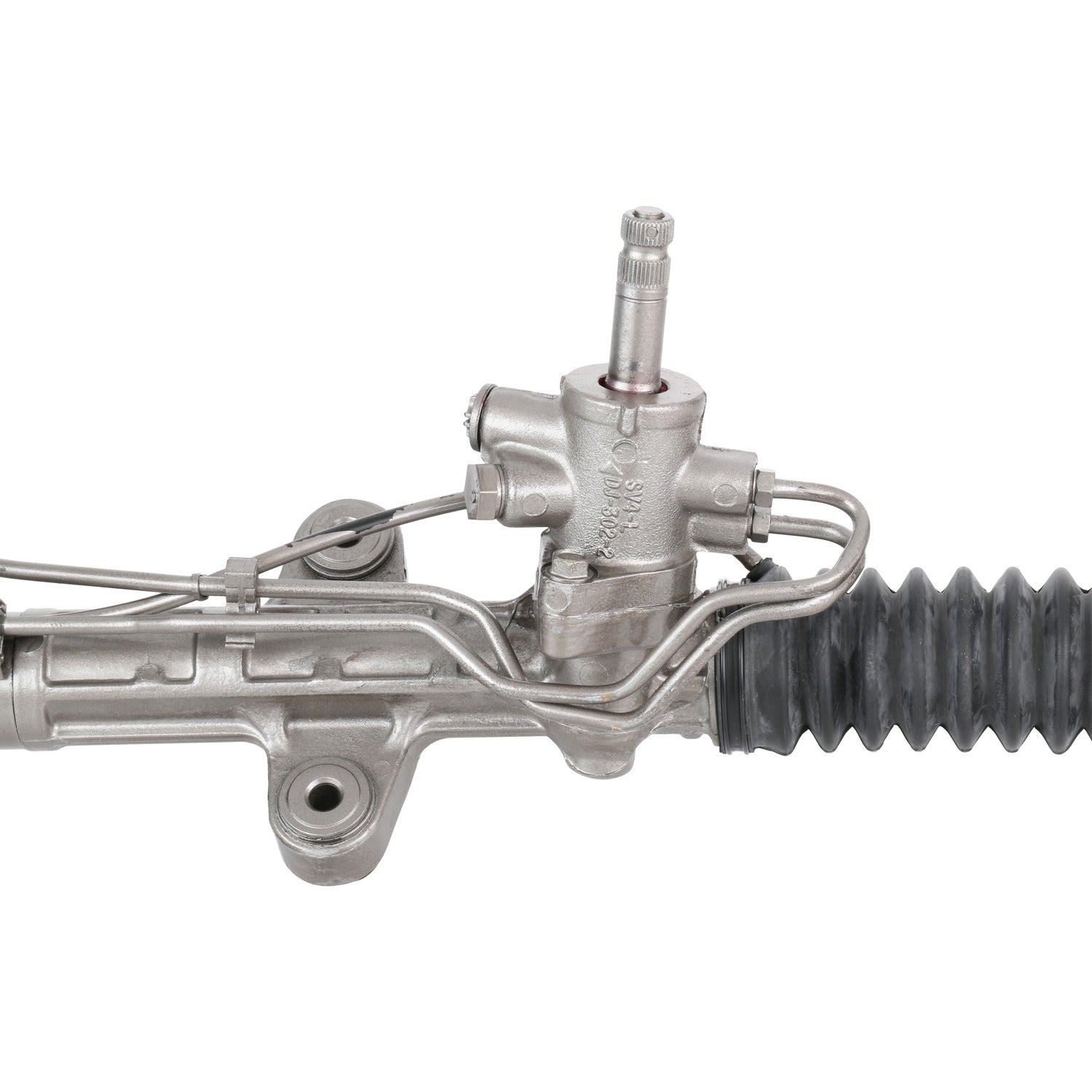

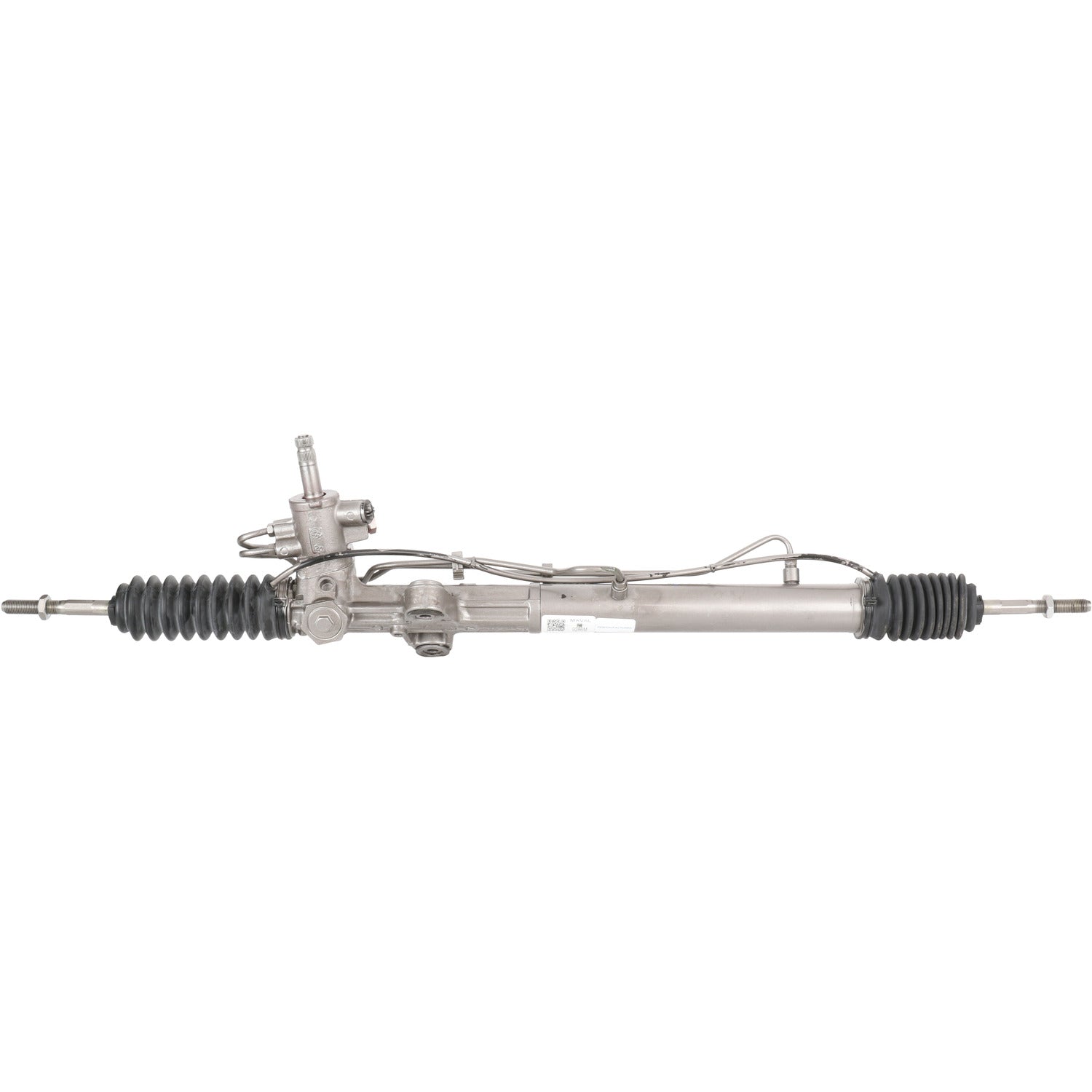

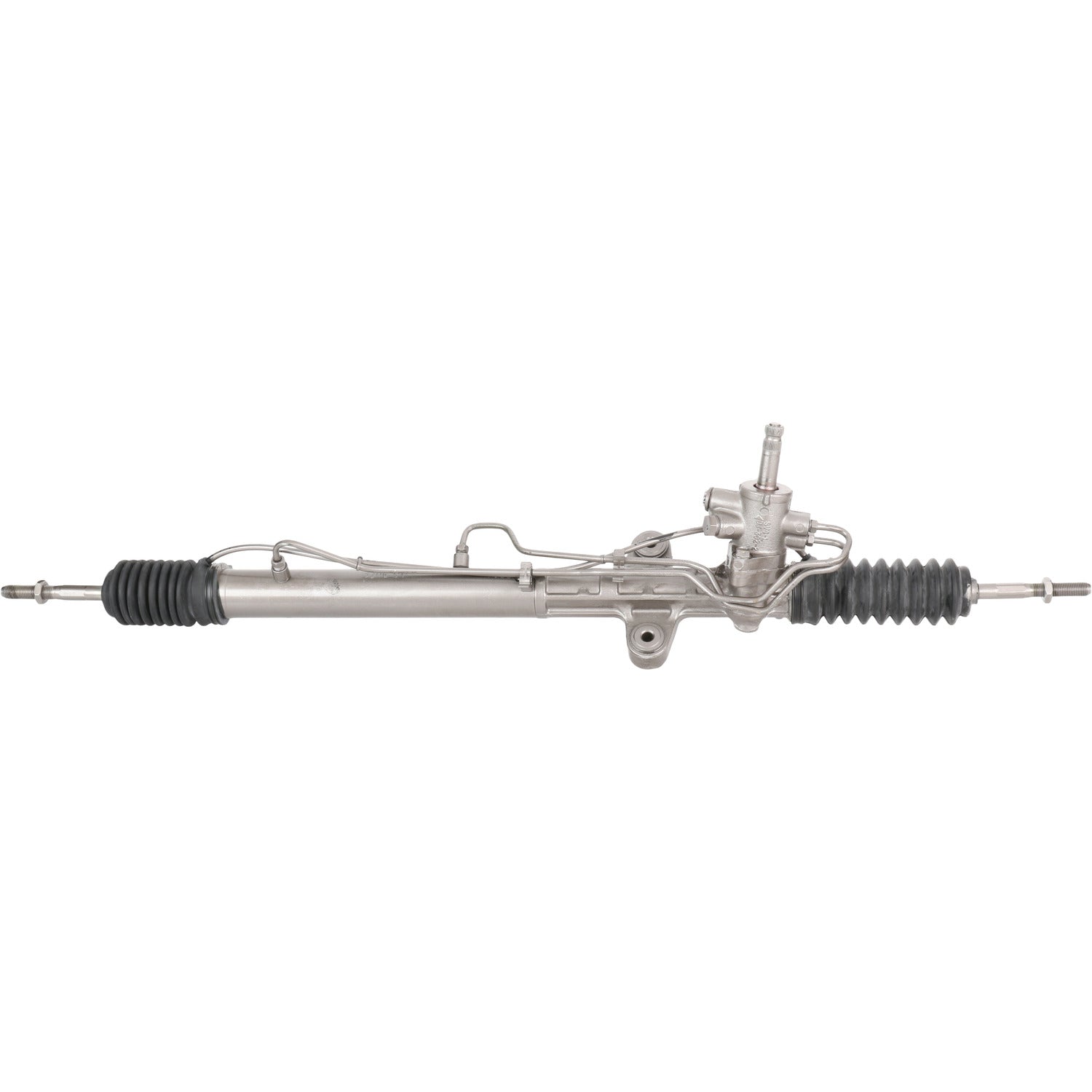

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9286M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9286M

SKU:9286M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability

Casting Material Steel; Aluminum
Distance Between Mounting Holes 4.25 IN
Distance Between Mounting Holes 107.95 MM
Hose Port Type Seat
Input Shaft Diameter 0.74 IN
Input Shaft Diameter 18.72 MM
Input Shaft Length 2.25 IN
Input Shaft Length 57.15 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M14 x 1.5
Rack Length 40.25 IN
Rack Length 1022.35 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.85 IN
Thread Length 46.99 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.06



Application Info: Acura CL L4 (1997-1999)

Interchange: Honda - 53601-SY8-A01

BBB Cross-Reference: 305-0119

Cardone Cross-Reference: 26-1768

To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance. Click For Tech Bulletin.
