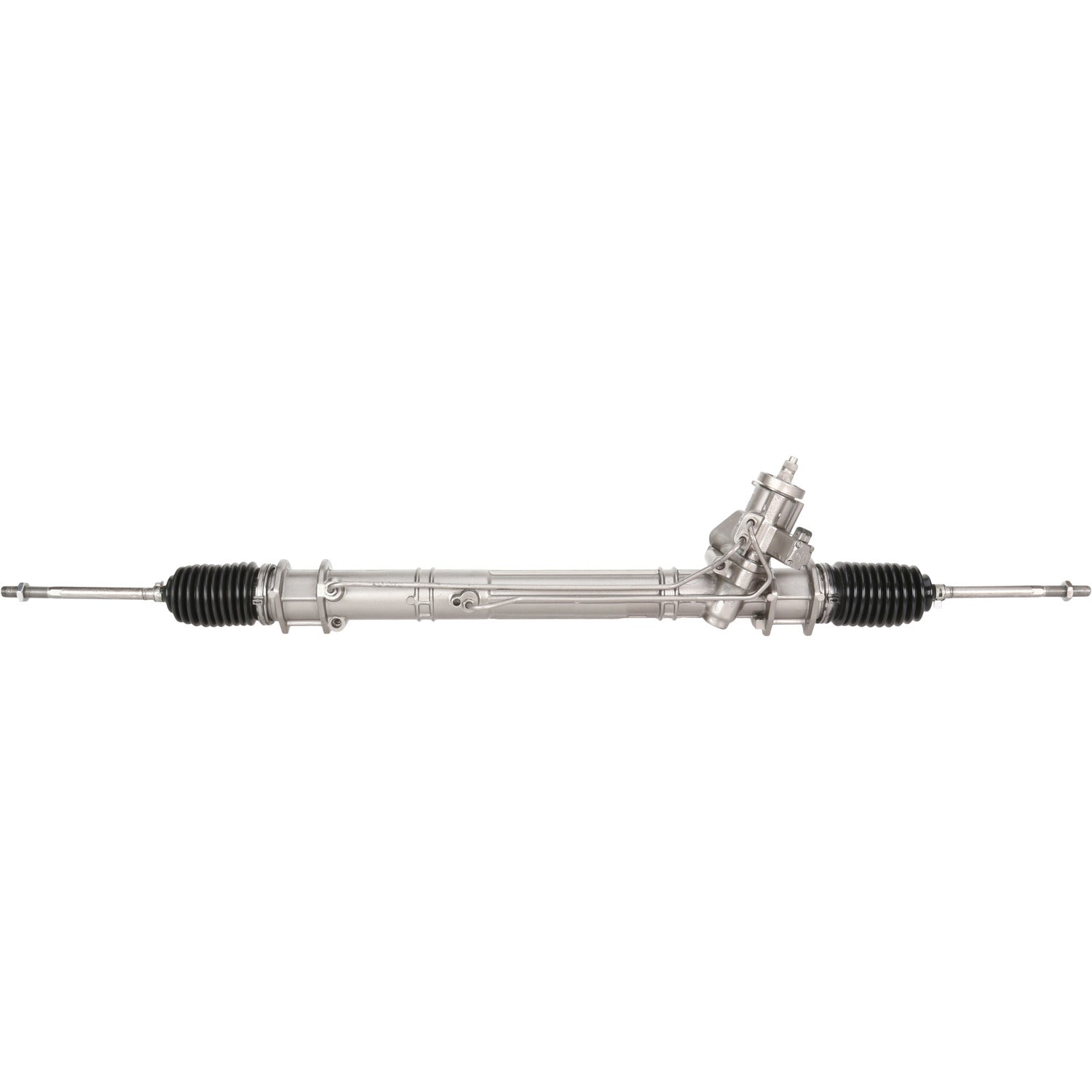

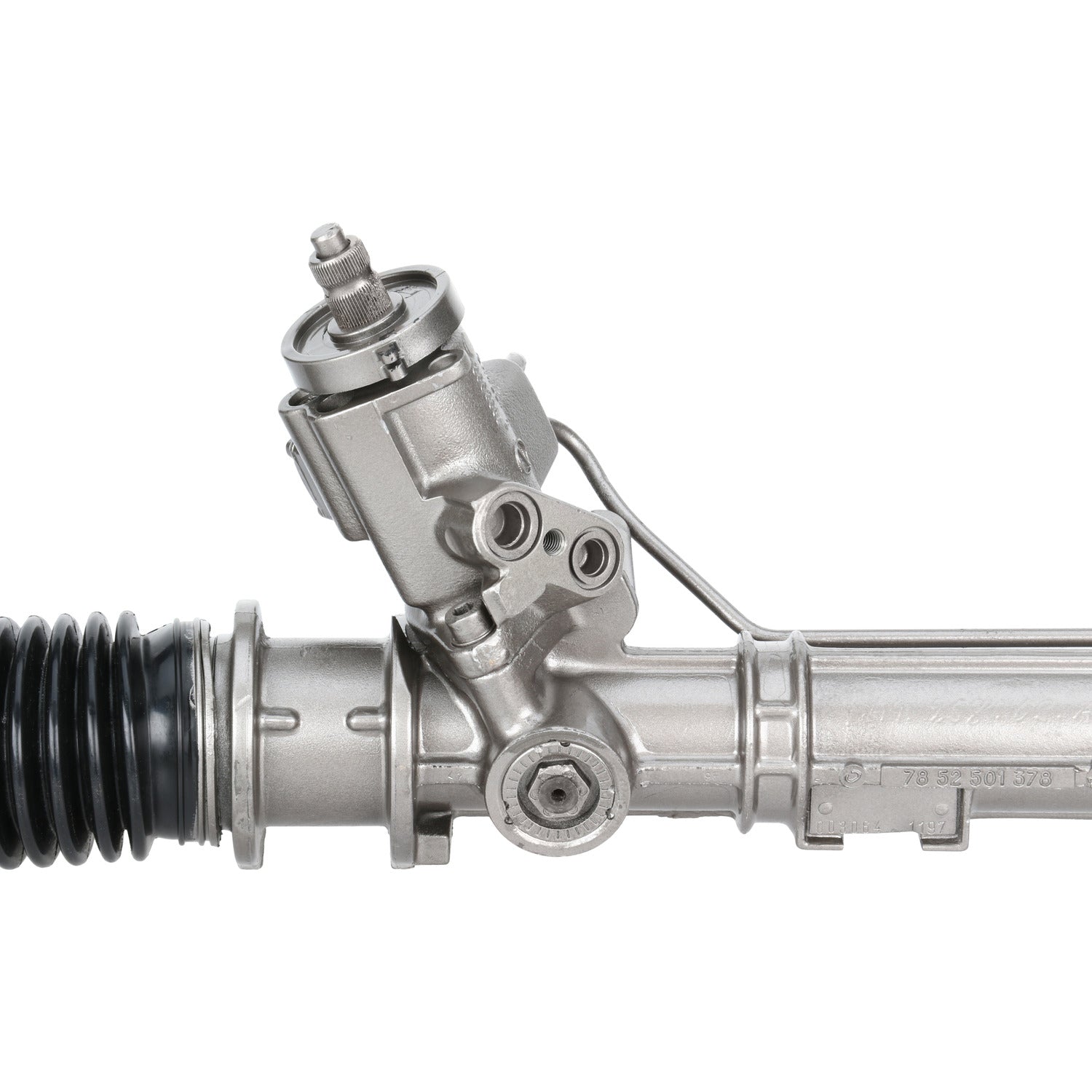

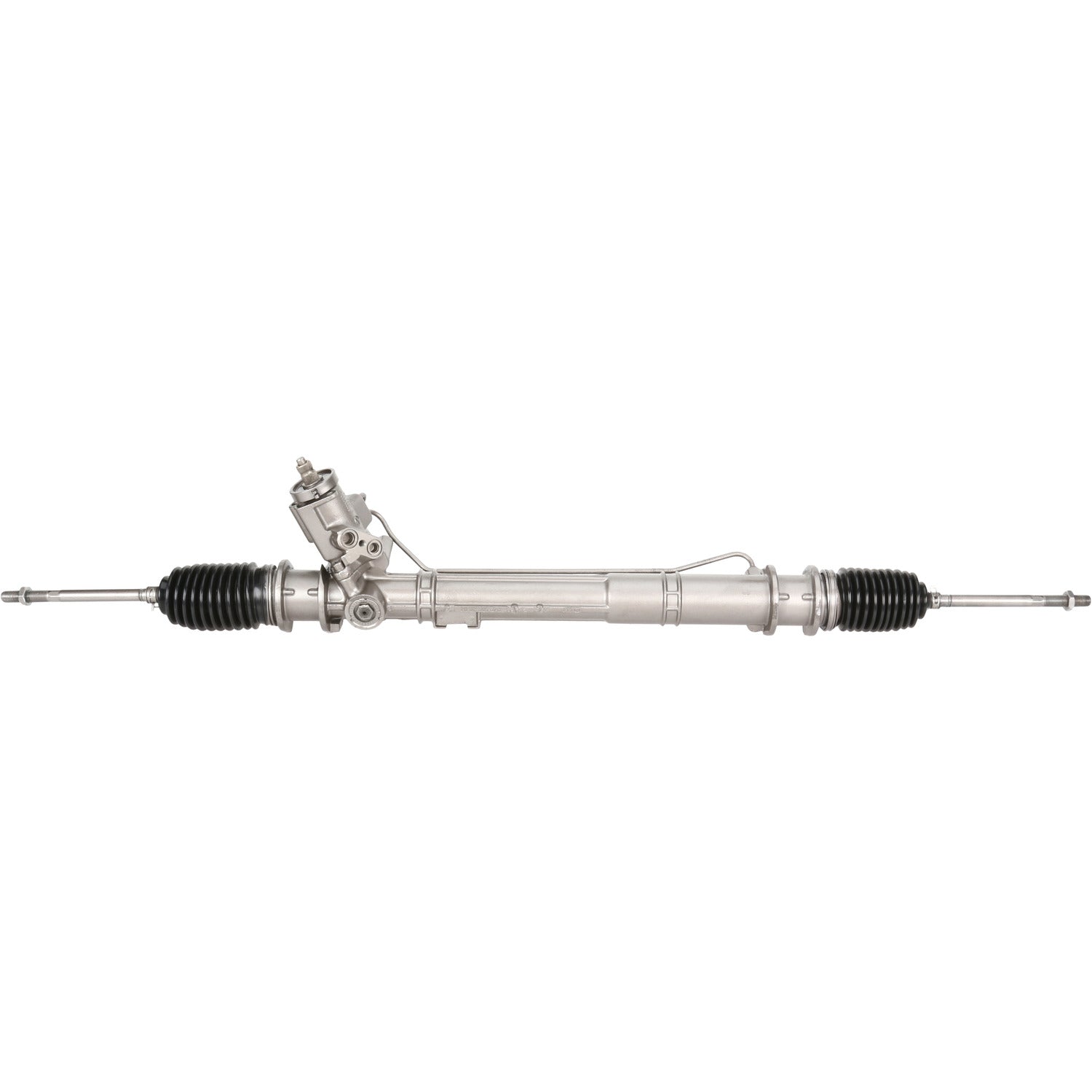

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9280M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9280M
SKU:9280M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Aluminum | |
| Distance Between Mounting Holes | 21.5 | IN |
| Distance Between Mounting Holes | 546.1 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.79 | IN |
| Input Shaft Diameter | 20.02 | MM |
| Input Shaft Length | 1.44 | IN |
| Input Shaft Length | 36.5 | MM |
| Number of Mounting Holes | 2 | |
| Rack Length | 48.5 | IN |
| Rack Length | 1231.9 | MM |
| Thread Length | 2.01 | IN |
| Thread Length | 51.05 | MM |
| Inner Tie Rods Included | Yes | |
| Total Turns Lock To Lock | 2.81 |
Application Info: Jaguar XK8 (1997-1998), Jaguar XJ8 (1998)
Interchange: Jaguar - MJA 3901 AD
BBB Cross-Reference: 307-0206
Cardone Cross-Reference: 26-6007
