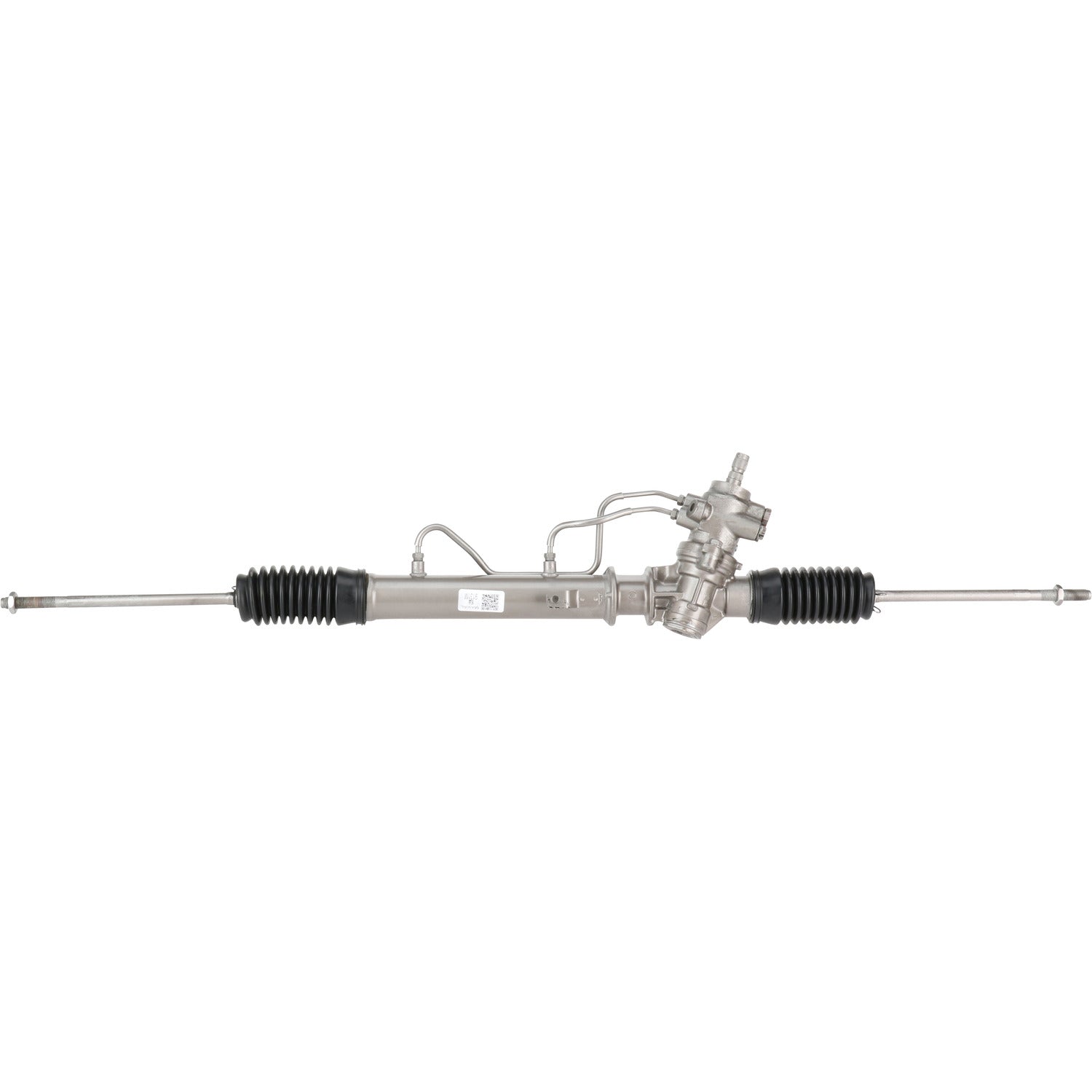

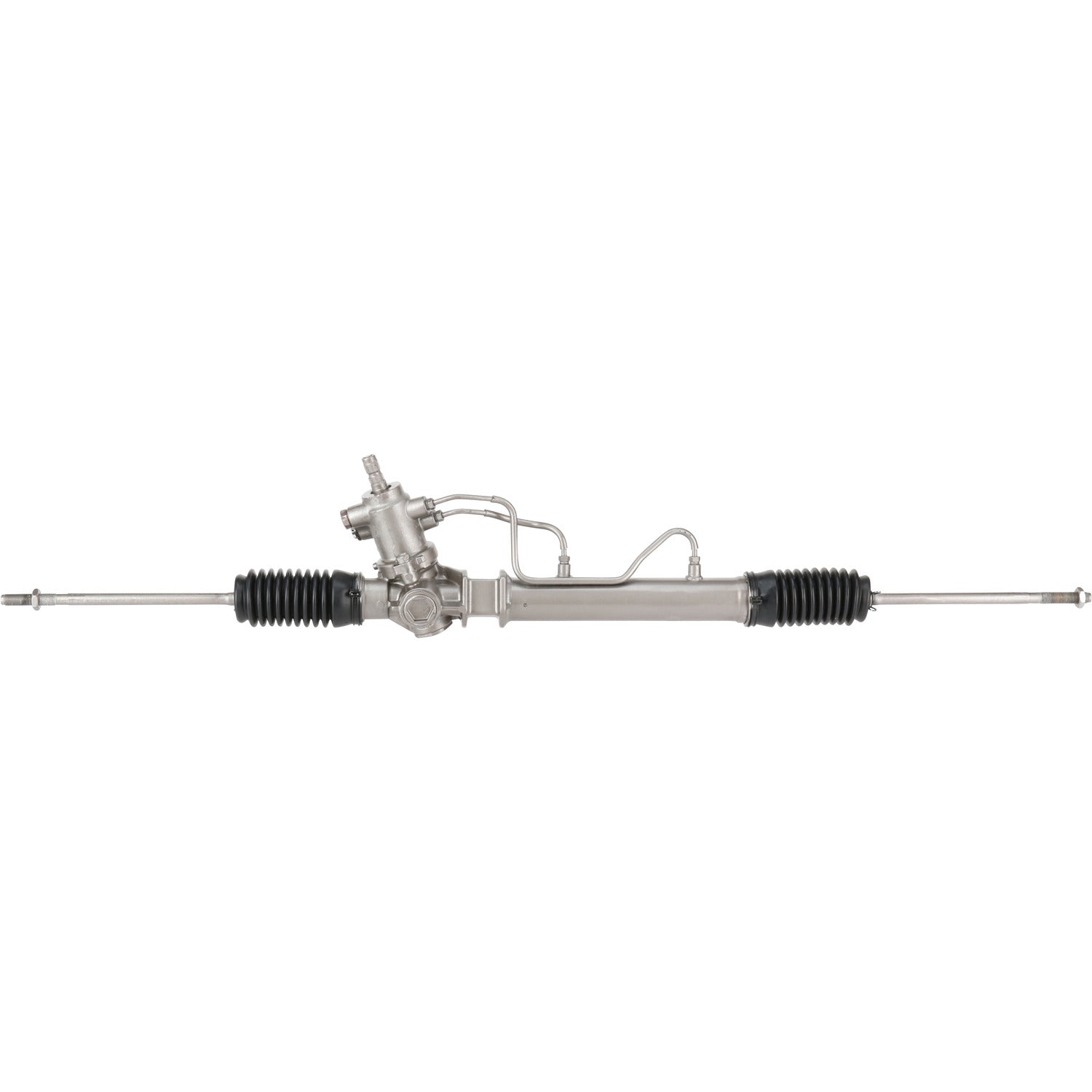

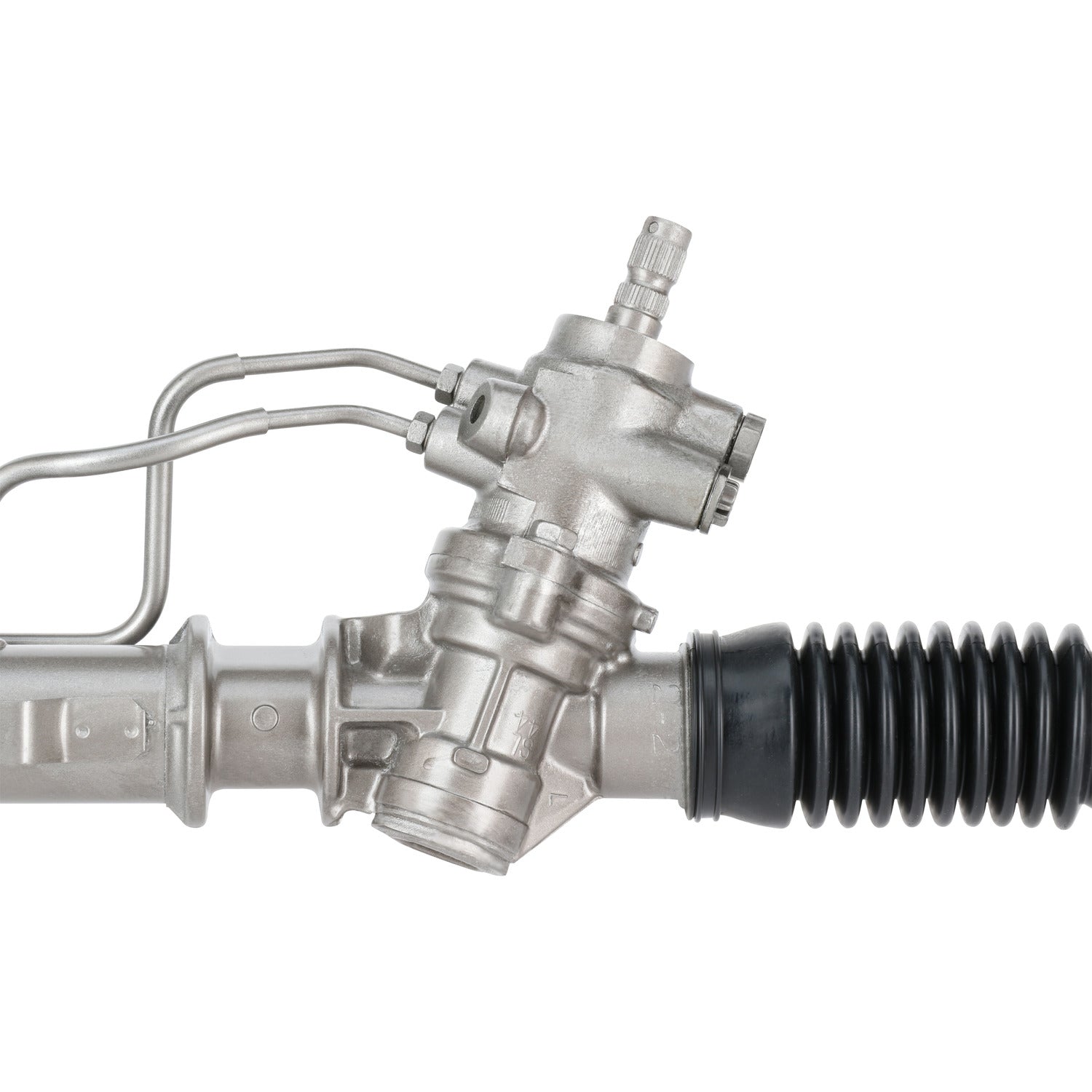

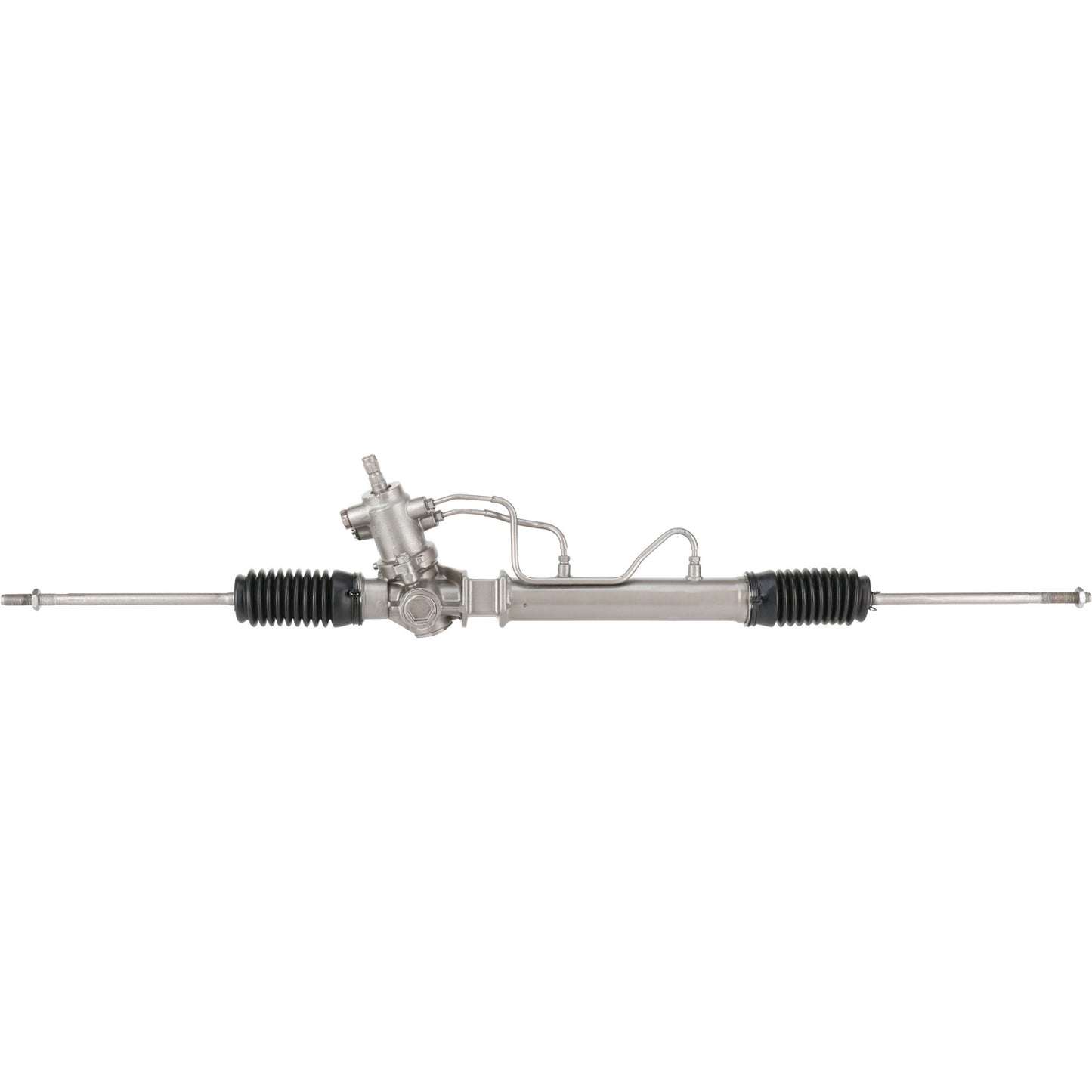

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9131M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9131M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability

Casting Material Steel; Aluminum
Distance Between Mounting Holes 0 IN
Distance Between Mounting Holes 0 MM
Hose Port Type Seat
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 18.97 MM
Input Shaft Length 1.56 IN
Input Shaft Length 39.67 MM
Number of Mounting Holes 1
Pressure Port Thread Size M16 x 1.5
Rack Length 47.63 IN
Rack Length 1209.68 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.1 IN
Thread Length 53.44 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.69

Application Info: Toyota Celica (1989-1993)

Interchange: Toyota - 44250-20280

BBB Cross-Reference: 311-0157

Cardone Cross-Reference: 26-1687
