Marathon HP

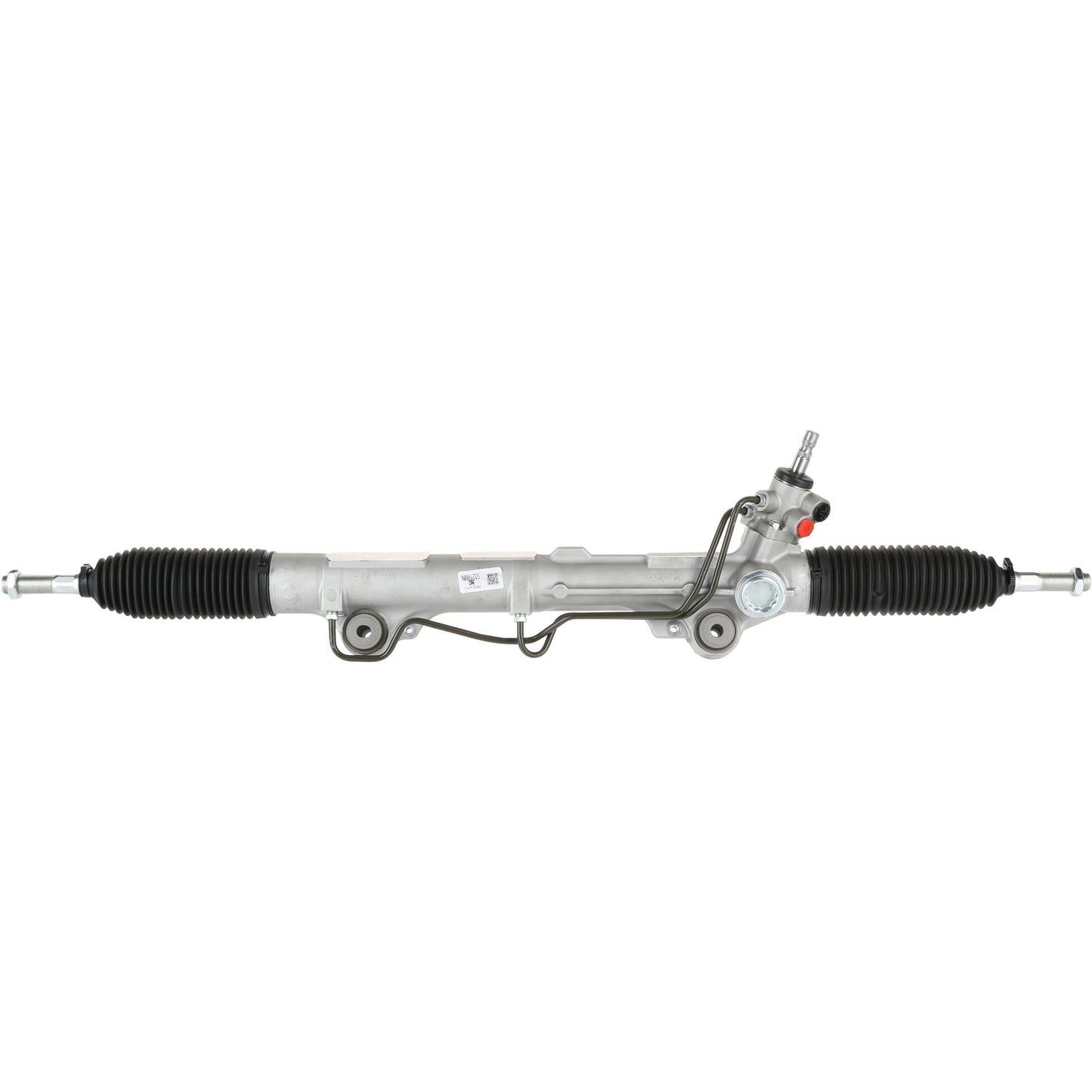

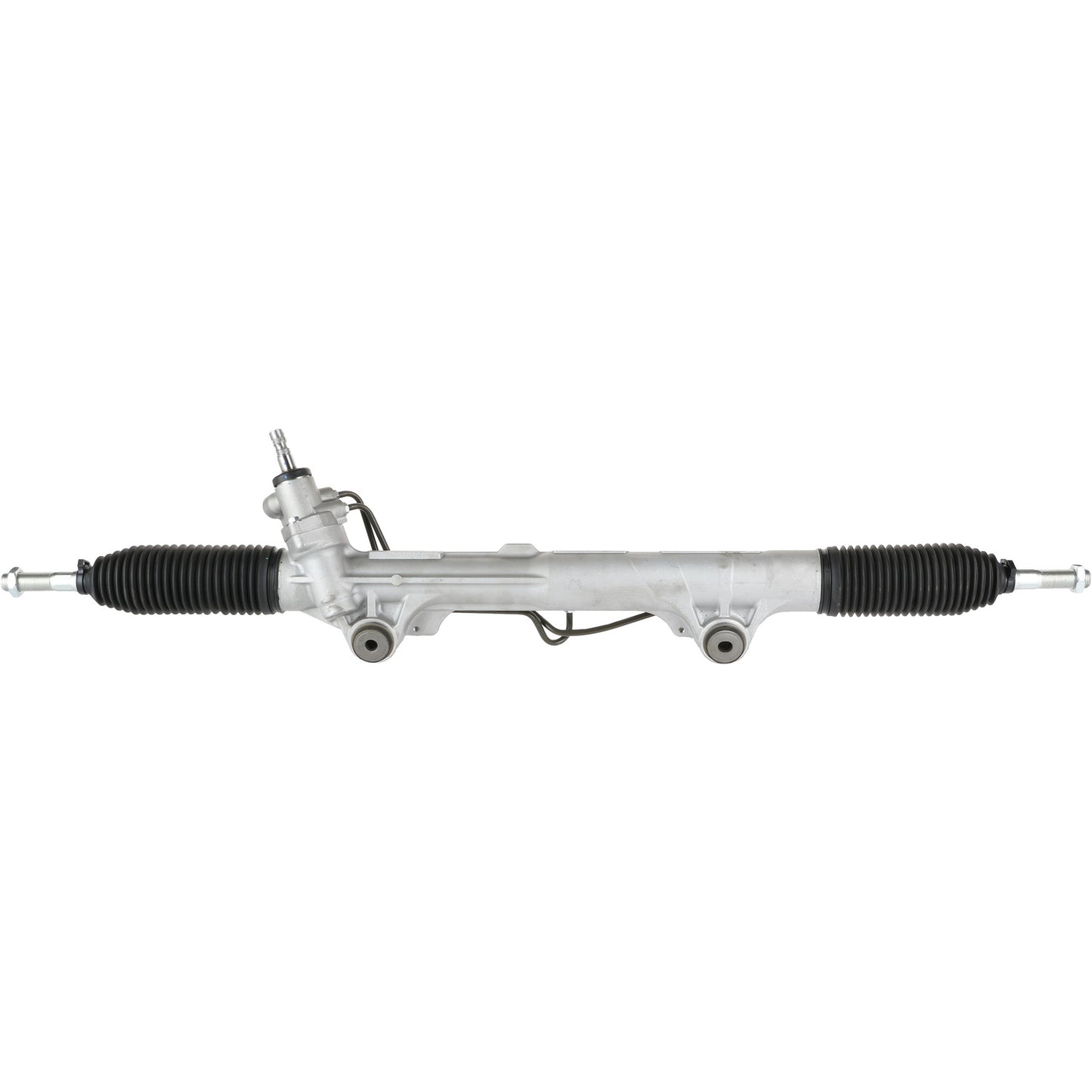

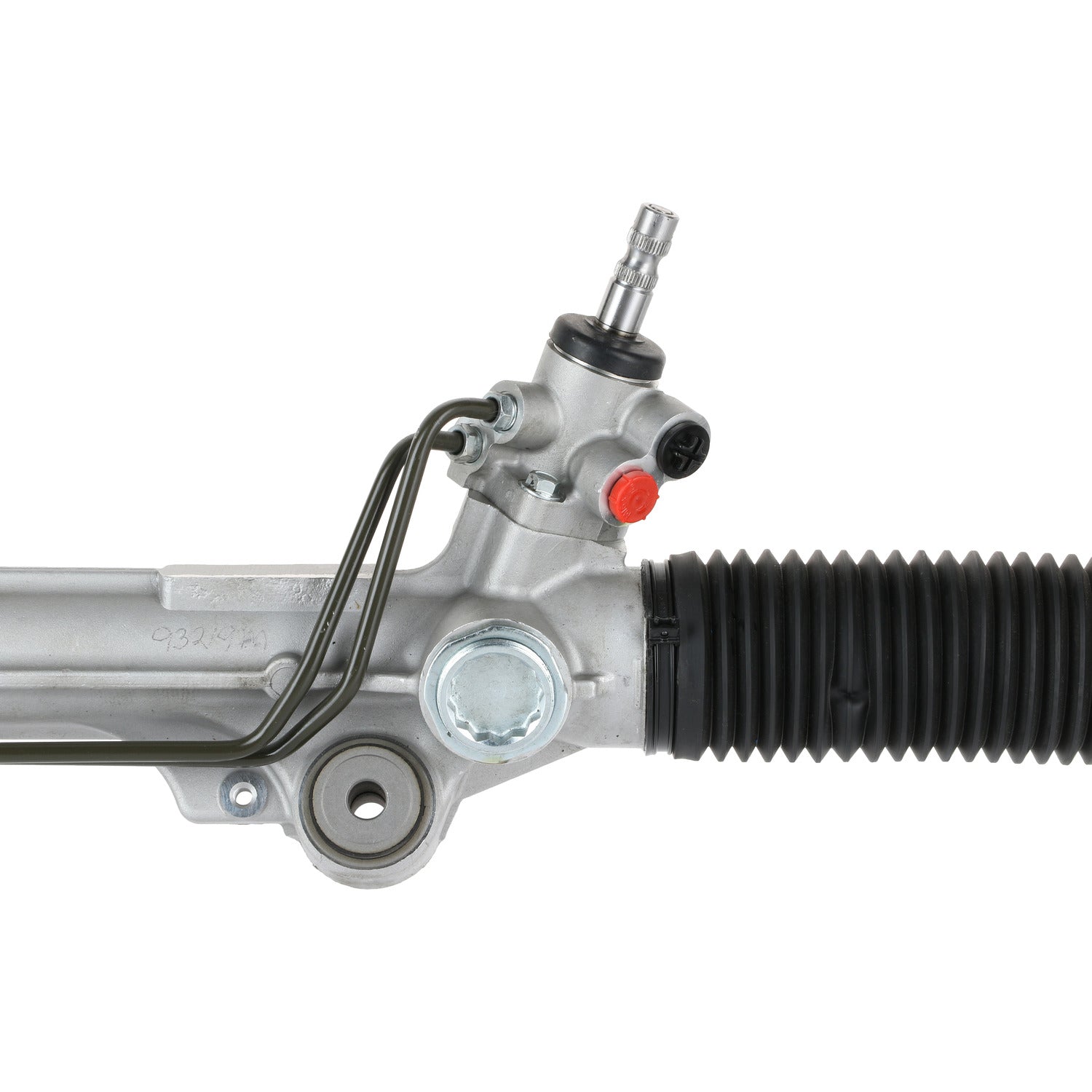

Rack and Pinion Assembly - Marathon HP - Hydraulic Power - New - 93219MN

Rack and Pinion Assembly - Marathon HP - Hydraulic Power - New - 93219MN

SKU:93219MN

Each MAVAL Marathon HP product is designed to meet or exceed original equipment fit, form and function to ensure performance, improve durability, and provide ease of installation. Marathon HP rack and pinions are manufactured with premium parts and high-quality sealing components to ensure performance, prevent leaks, and optimize the longevity of the unit. Every MAVAL Marathon HP product is tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications. MAVAL utilizes superior-grade packaging material and processes to secure and protect its product, making certain it is received intact, undamaged and ready for install. Rack and pinions are 100 percent centered after testing to reduce installation time.

Casting Material Aluminum
Distance Between Mounting Holes 16.13 IN
Distance Between Mounting Holes 409.58 MM
Hose Port Type Banjo/Washer
Input Shaft Diameter 0.71 IN
Input Shaft Diameter 18.14 MM
Input Shaft Length 2.19 IN
Input Shaft Length 55.55 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 49.38 IN
Rack Length 1254.13 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.09 IN
Thread Length 53.09 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.69


Application Info: Toyota Sequoia (2008-2022)

Interchange: 44250-0C070, 44250-0C090, 44250-0C091, 44250-0C100, 44250-0C110, 44250-0C120, 44250-0C130, 44250-0C131, 44250-0C160, 44250-0C170

BBB Cross-Reference:

Cardone Cross-Reference:
