MAVAL

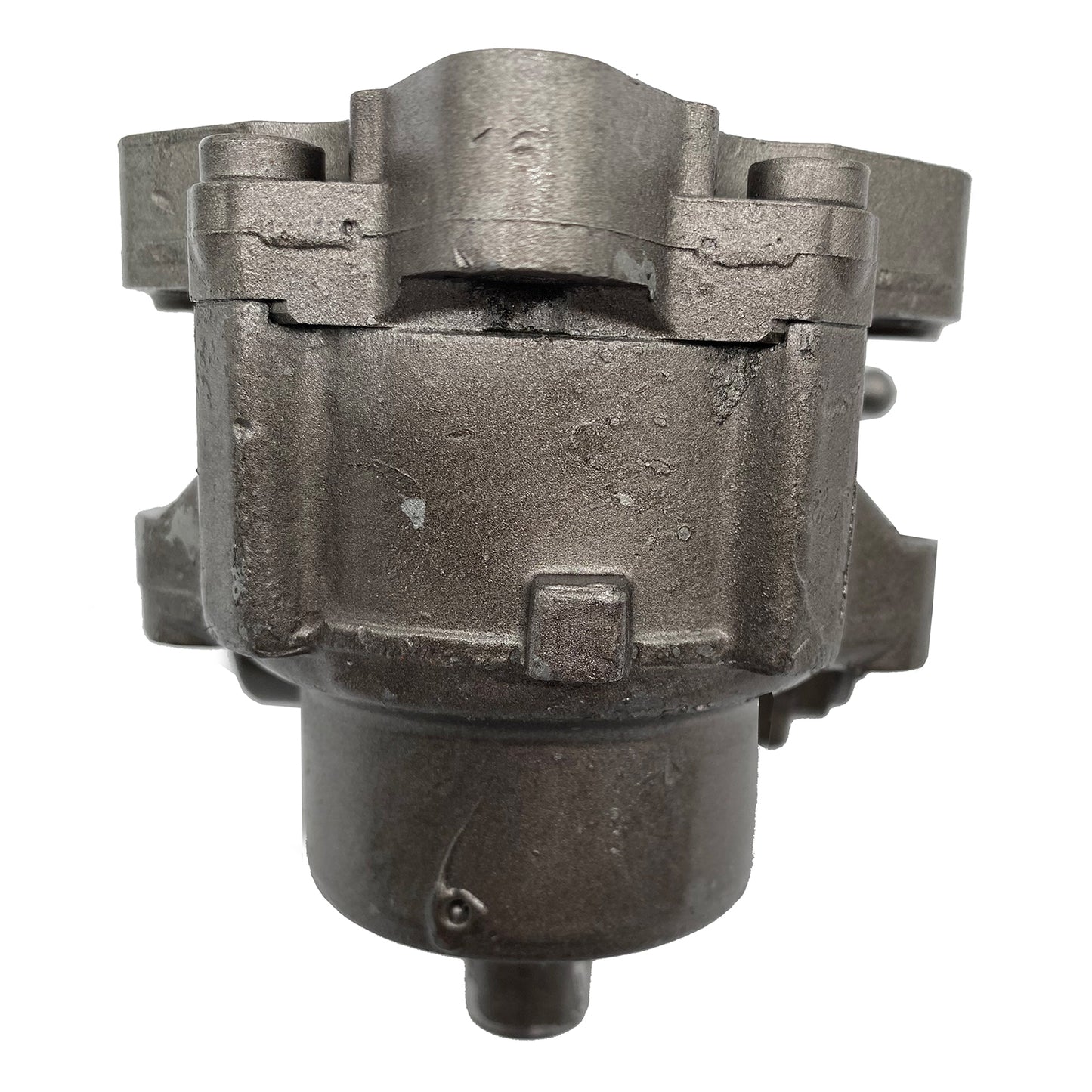

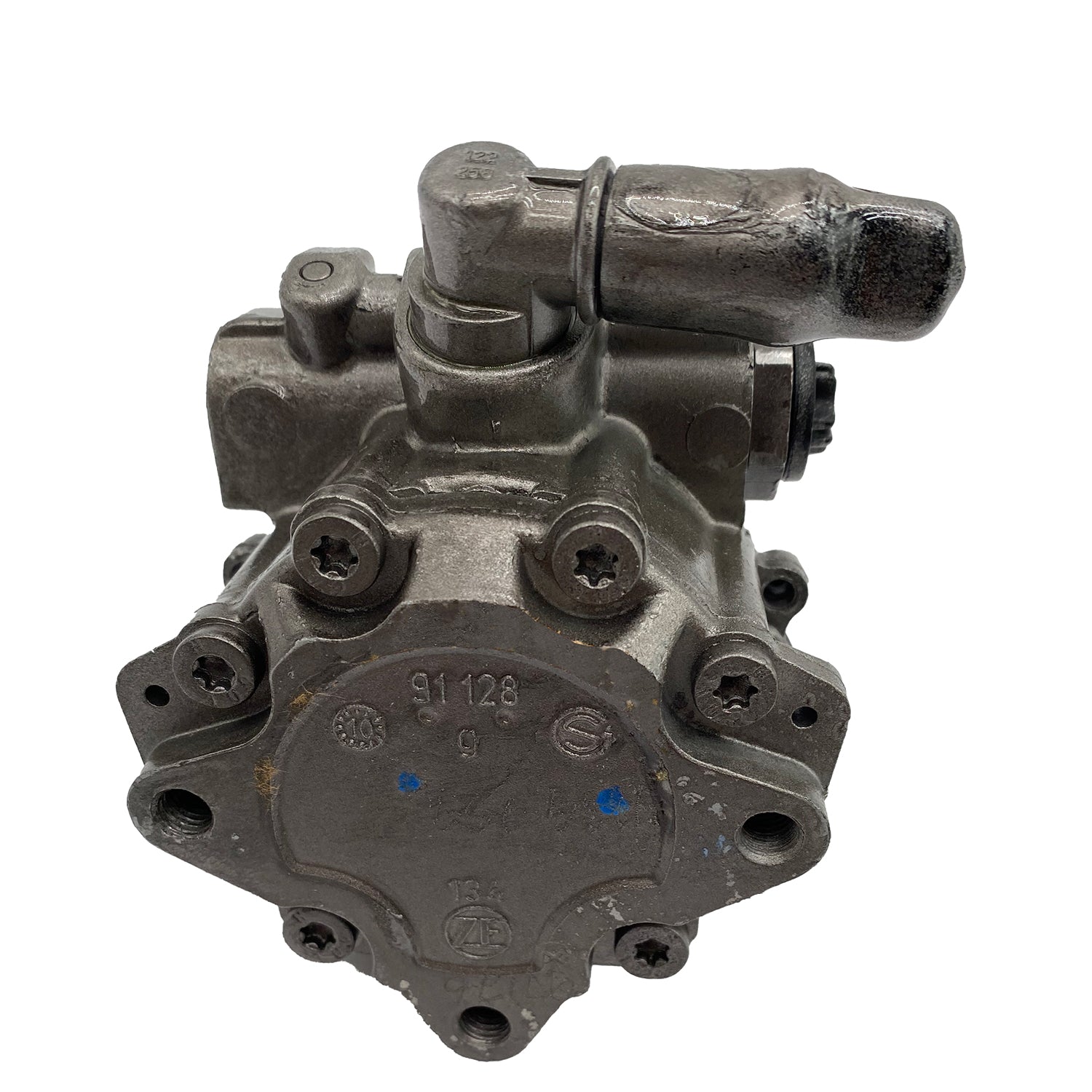

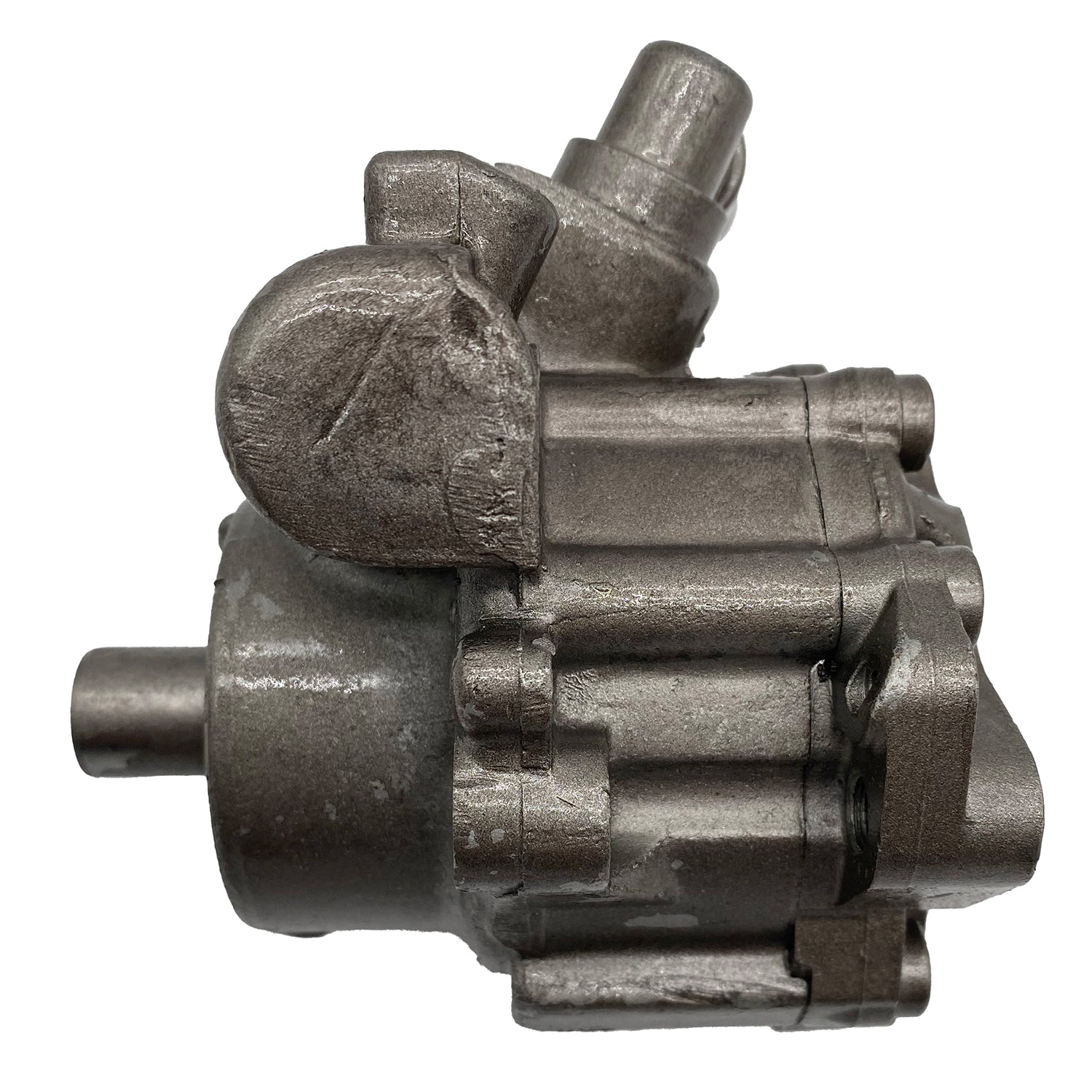

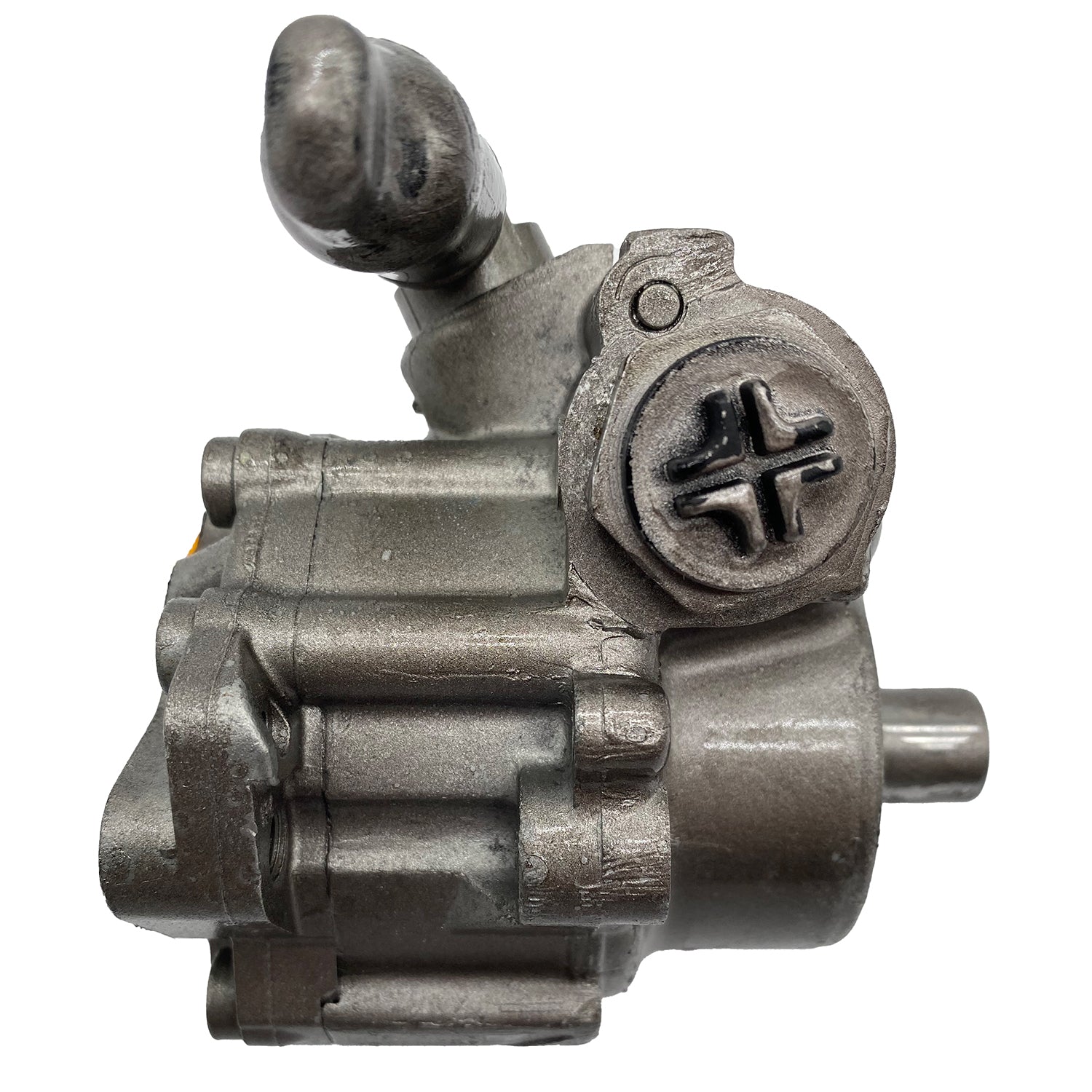

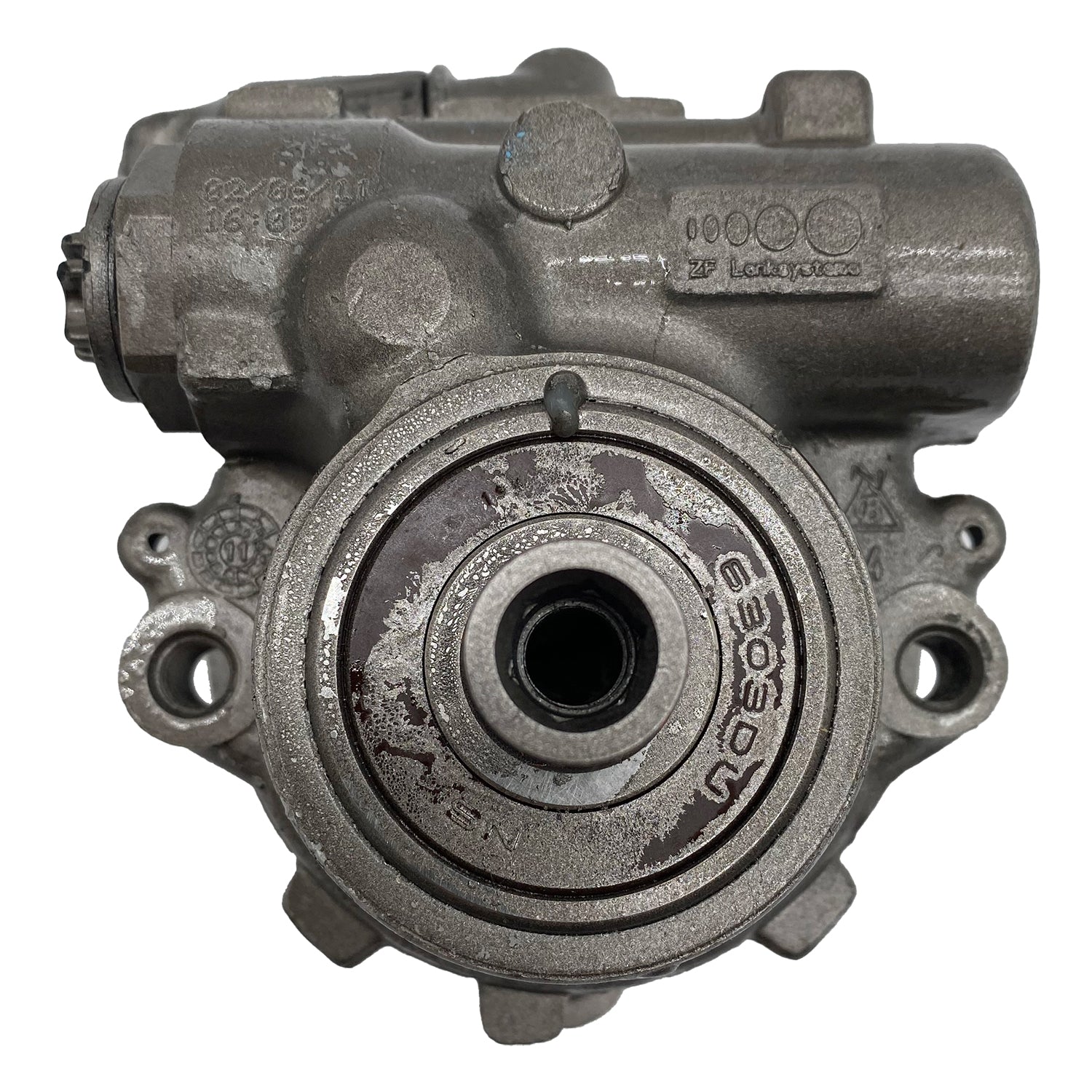

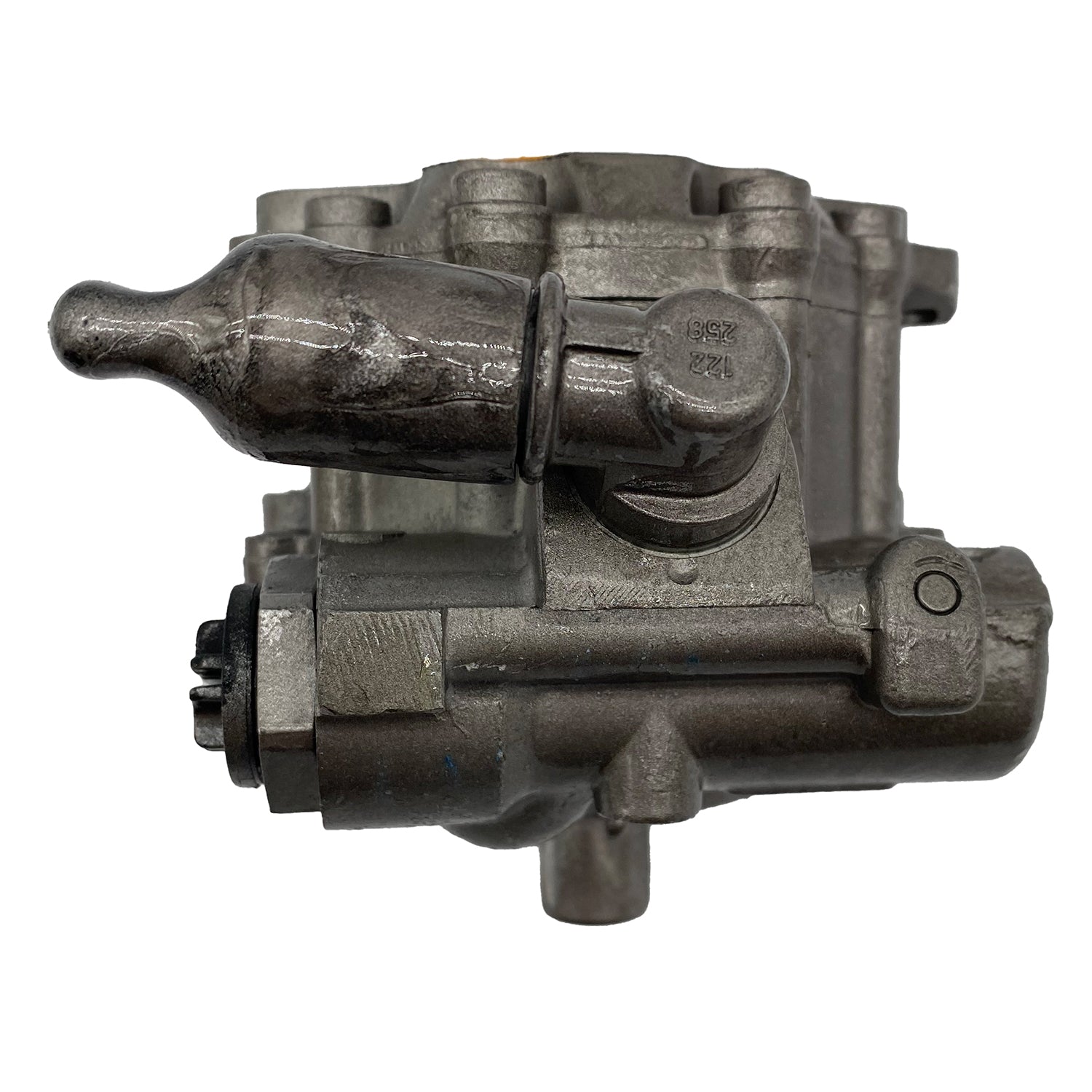

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 97196M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 97196M

SKU:97196M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Aluminum
Outlet Thread Size 16X1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Pulley Attachment Type Press-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No

Application Info: Cadillac CTS (2008-14) ***W/AWD, W/3.0L V6 OR 3.6L V6 Engine, W/O Pulley, W/O Reservoir***

Interchange: 15224339

BBB Cross-Reference: 730-0131

Cardone Cross-Reference: 20-1002

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6

Instructions - 7
