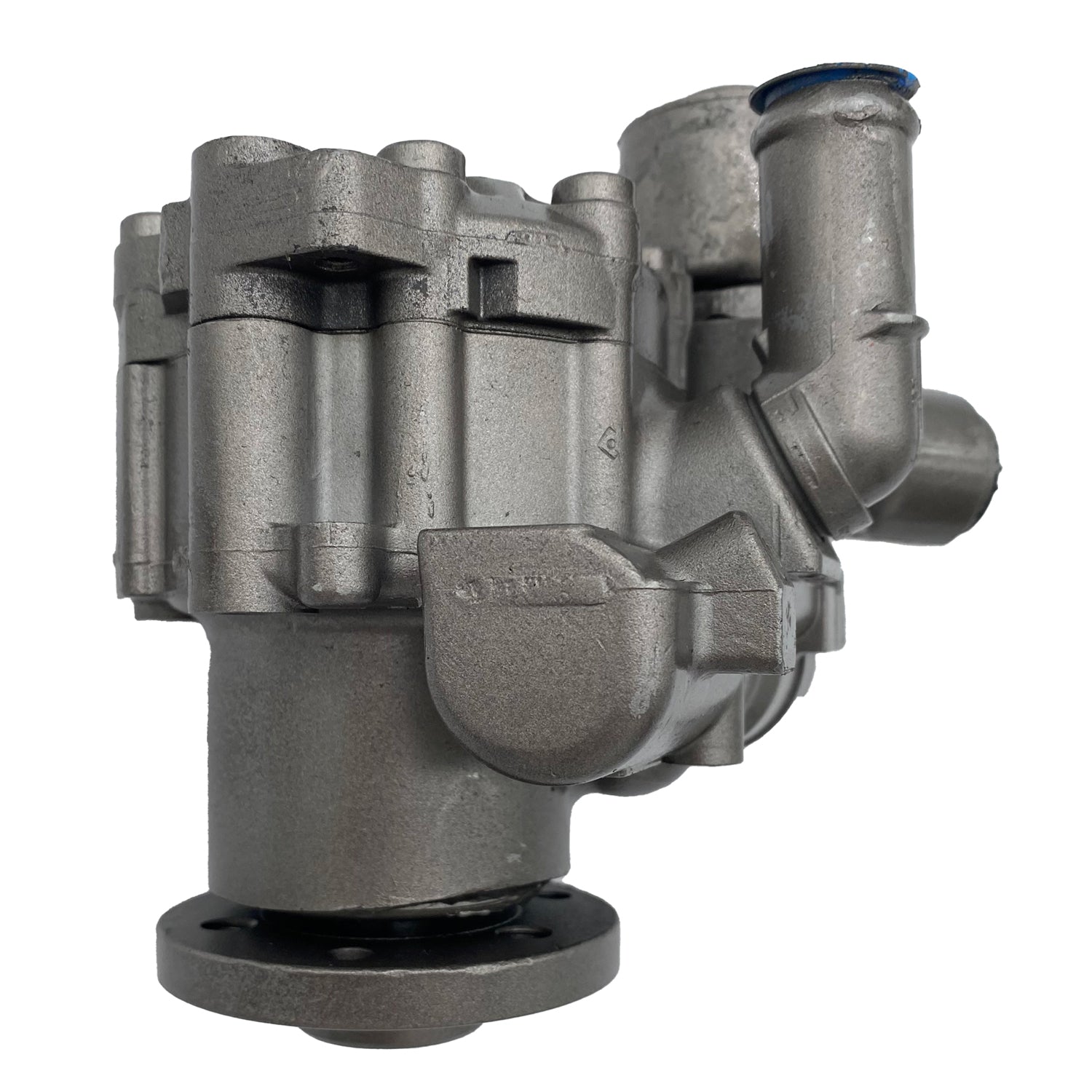

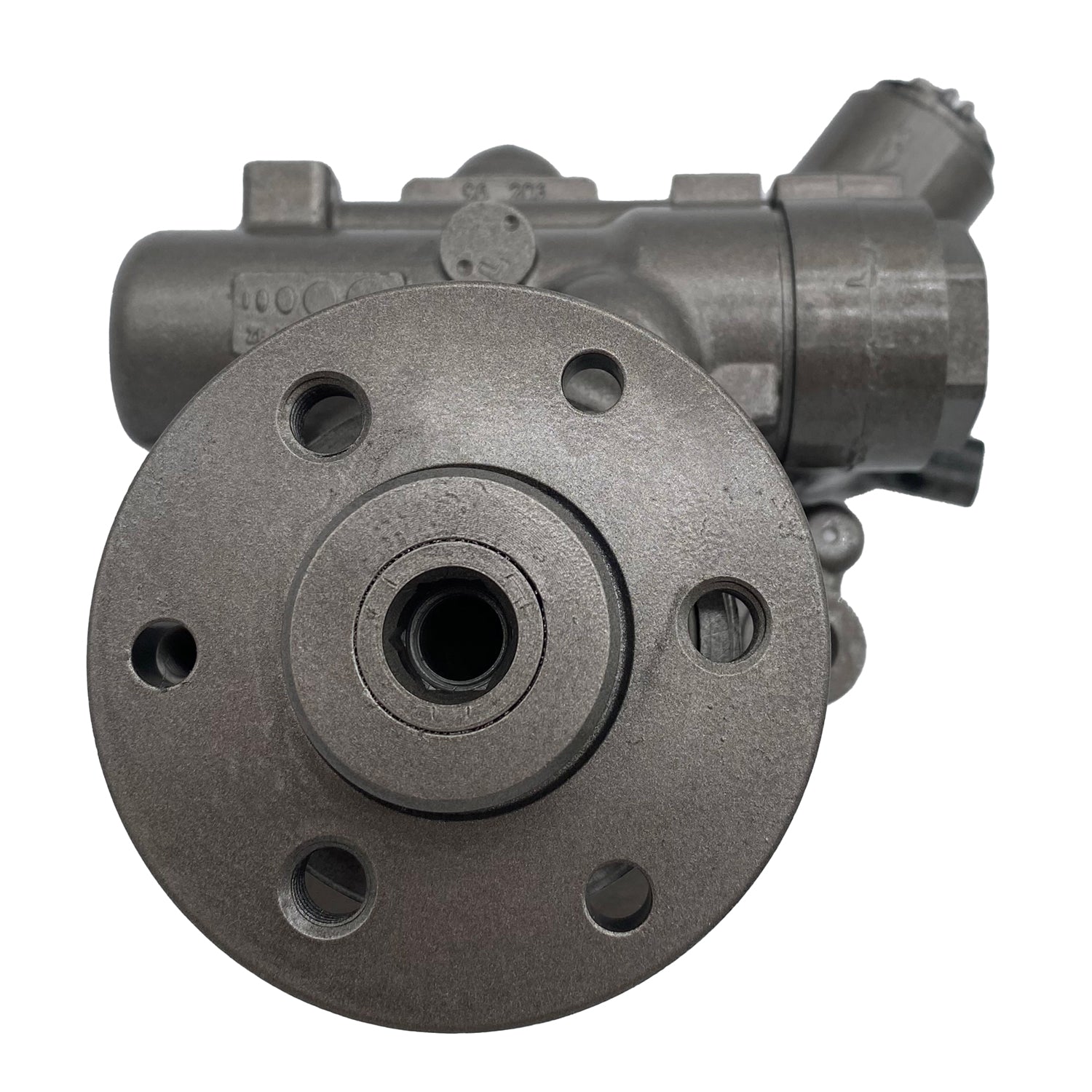

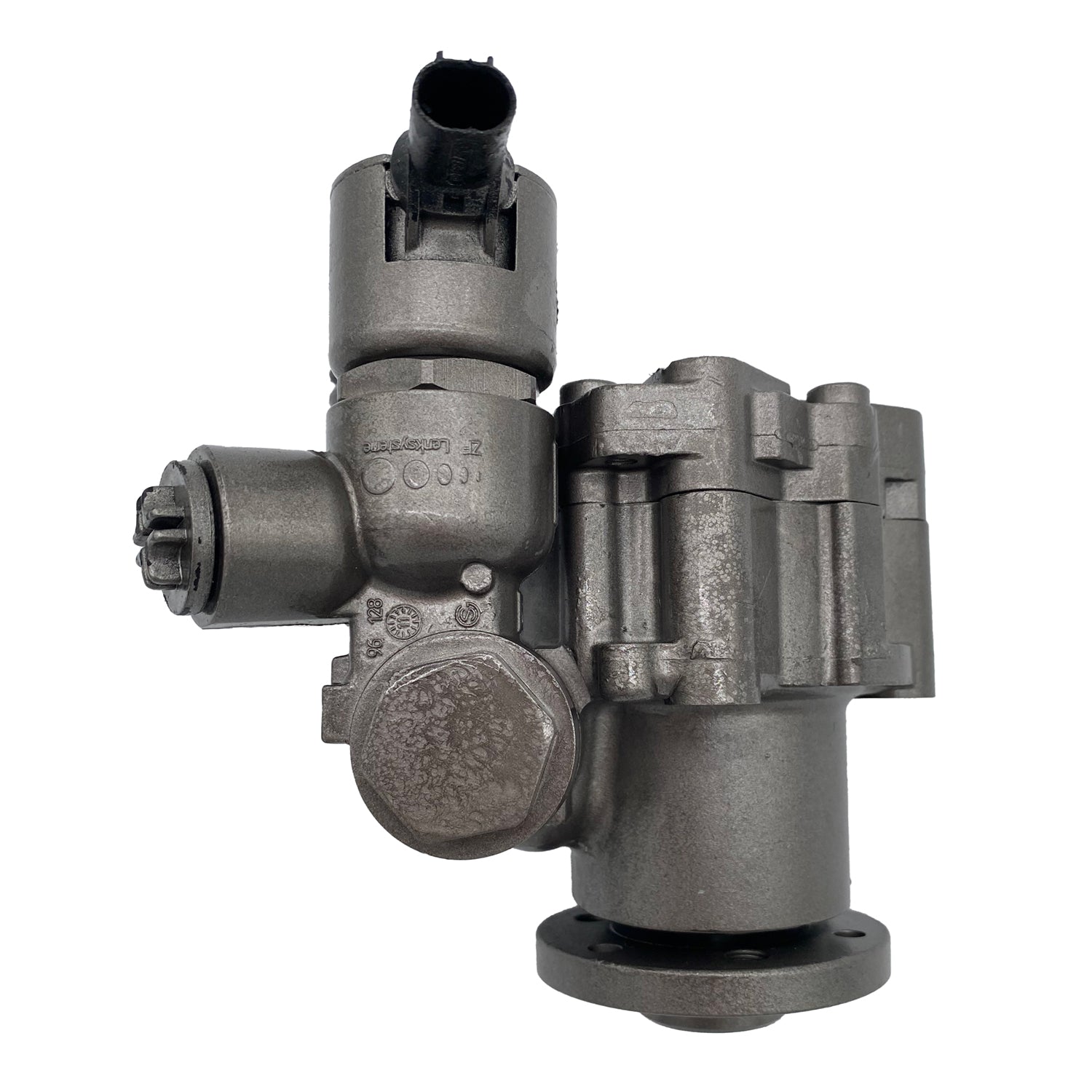

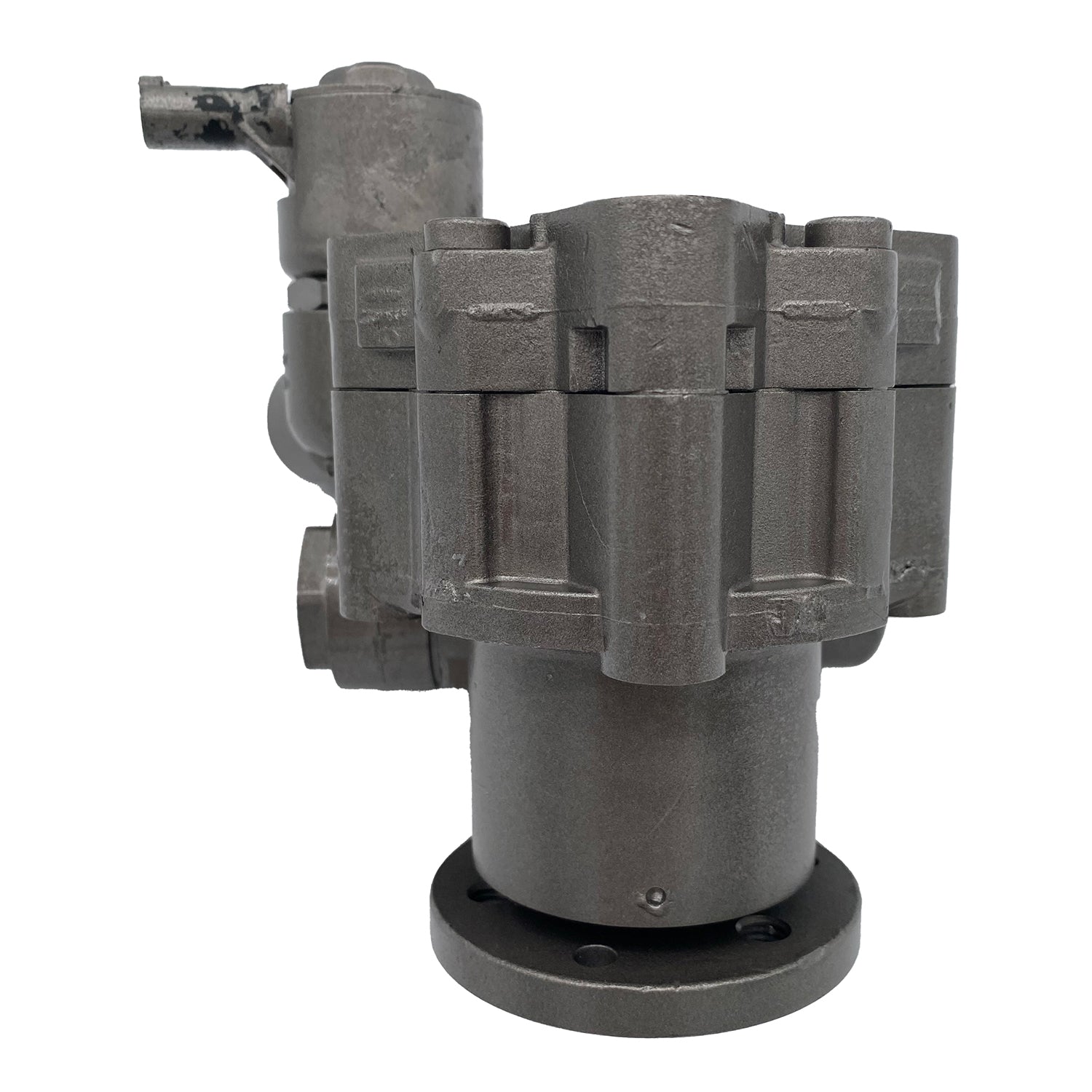

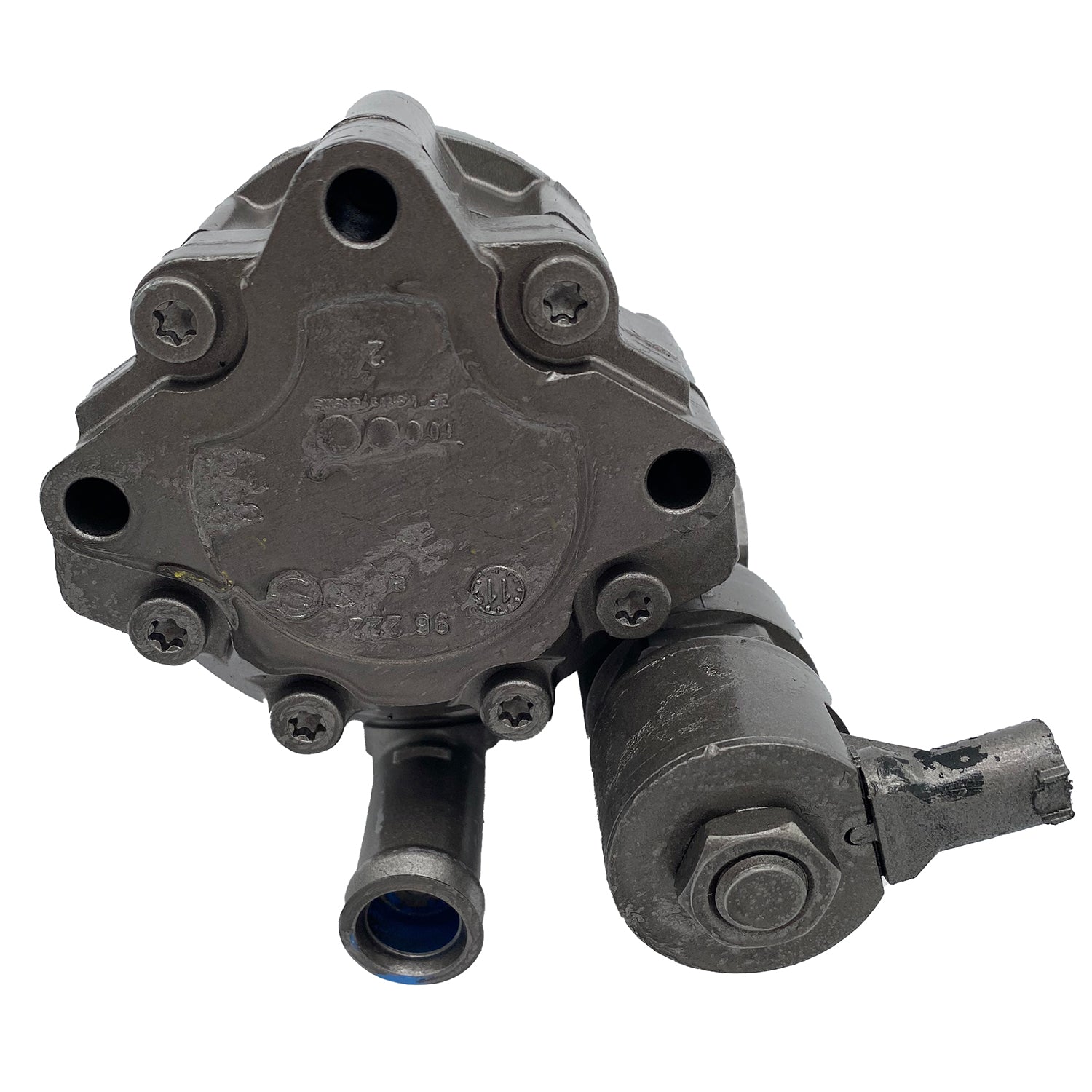

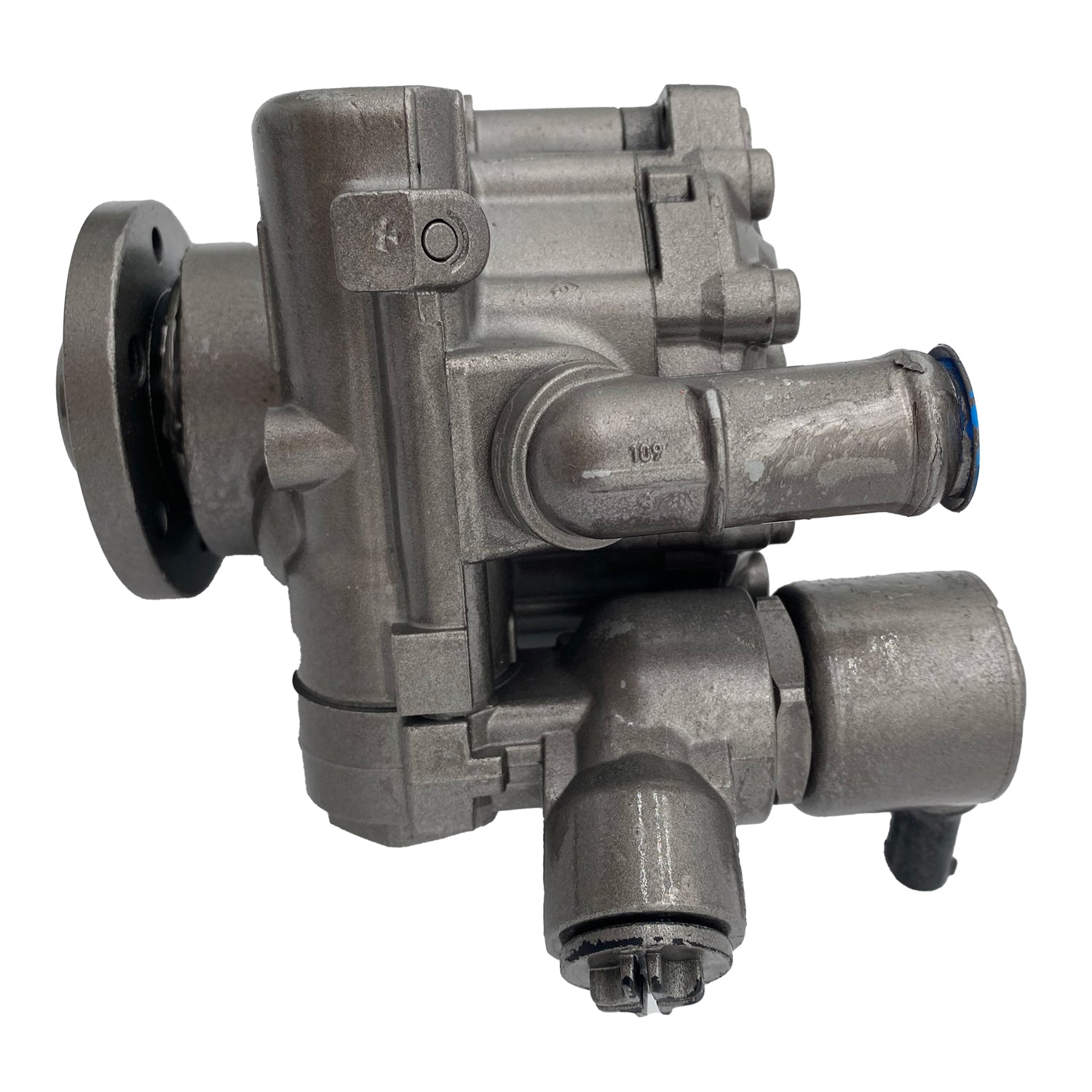

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96899M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Application Info: BMW 128i (2008-13), 135i (2008-13), 135is (2013), 323i (2006-11), 325i (2006-10), 328i (2007-13), 328i xDrive (2009-13), 330i (2006), 335i (2007-13), 335i xDrive (2009-13), 335is (2011-13) ***W/Active Steering, W/O Pulley, W/O Reservoir***

Interchange: 32 41 4 036 397, 32 41 4 036 734, 32 41 4 037 962, 32 41 4 038 995, 32 41 4 042 631, 32 41 4 044 440, 32 41 6 769 960, 32 41 6 779 245, 32 41 6 783 286

BBB Cross-Reference: 990-0879

Cardone Cross-Reference: 21-108
